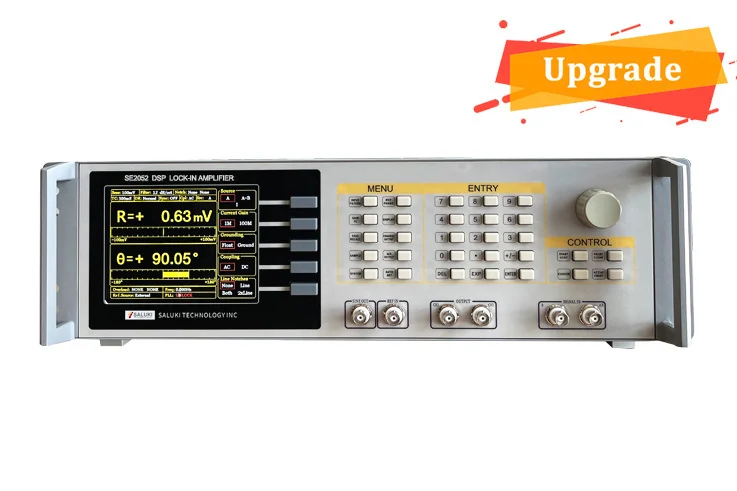

SE2052 DSP Lock-In Amplifier (Dual-channel)

Overview Specifications Ordering Resources

♦ Ultra-Wideband Lock-in Detection

SE2052 Digital Lock-in Amplifier provides an excellent performance within its bandwidth from 1 μHz to 400 MHz. With the advantage of the latest digital signal processing technology and high-speed 1GSa/s 14-bit ADC, SE2052 can easily detect the phase and the magnitude of weak signals overwhelmed by various large noises.

♦ World-Class Performance with Superior Accuracy and Dynamic Reserve

The performance of SE2052 is as good as other lock-in amplifiers all over the world, even better than them in some certain parameters, such as measurement accuracy, SNR, dynamic reserve, which meets the needs of scientific research and industrial application well.

♦ Pricing：

SE2052 Unit Price: US$40,816.00

Click to view the selection guide.

Need technical support or a custom solution? Contact our application engineers: saluki@salukitec.com.

To request a quotation, please contact sales@salukitec.com or click “Contact Us” to leave a message.

Key Features

1 μHz to 400MHz frequency

2 independent lock-in units

Dual signal generators

>120 dB dynamic reserve

4nV/√Hz input noise

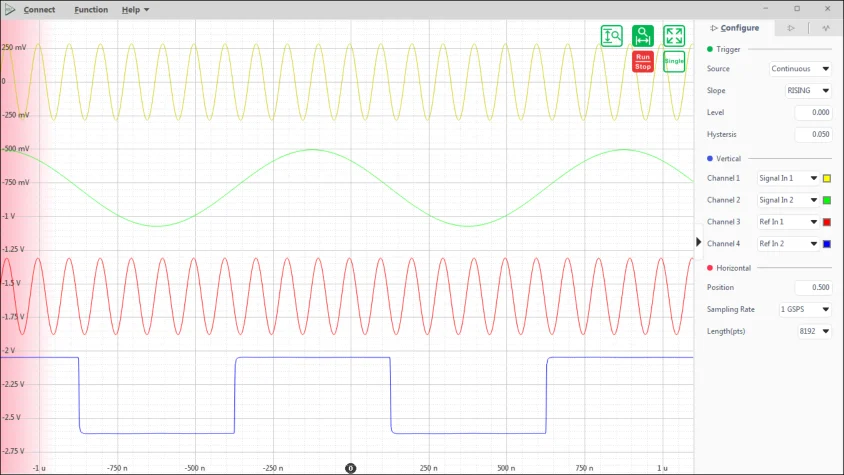

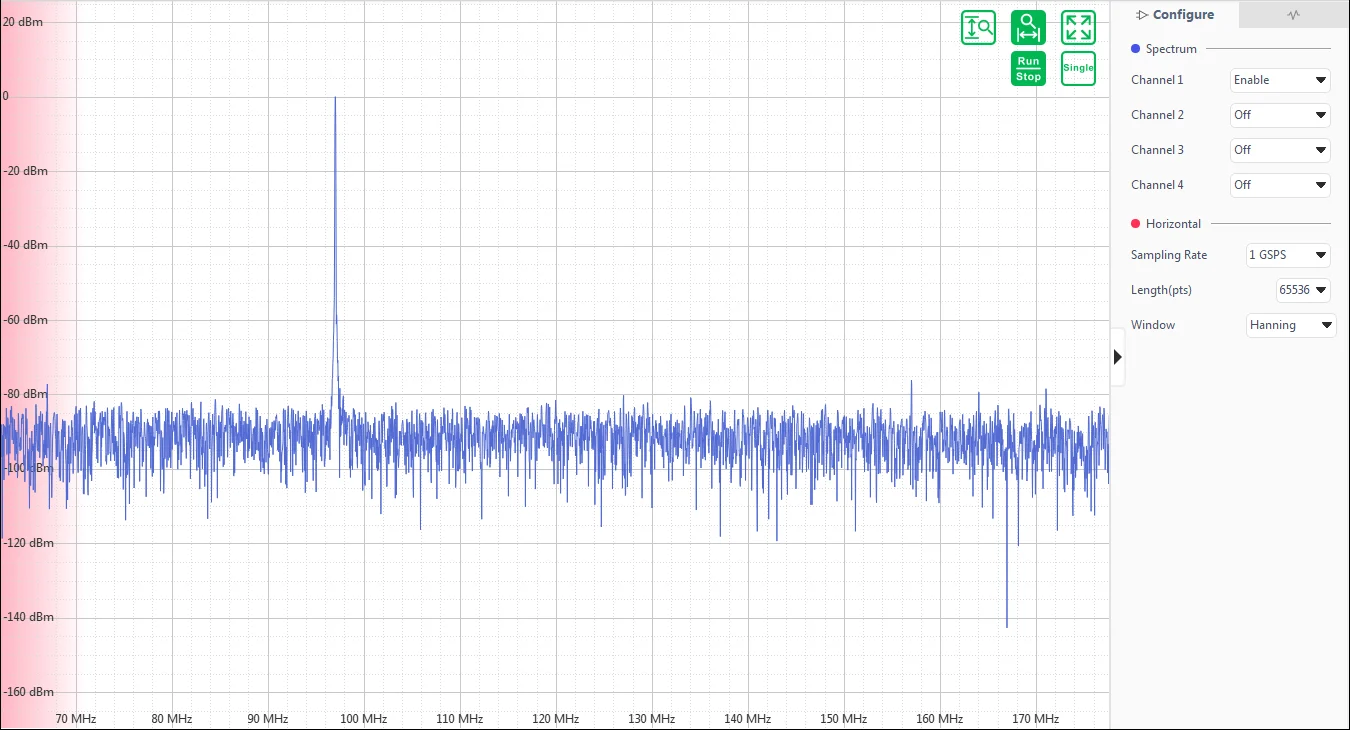

Oscilloscope, spectrum analyzer

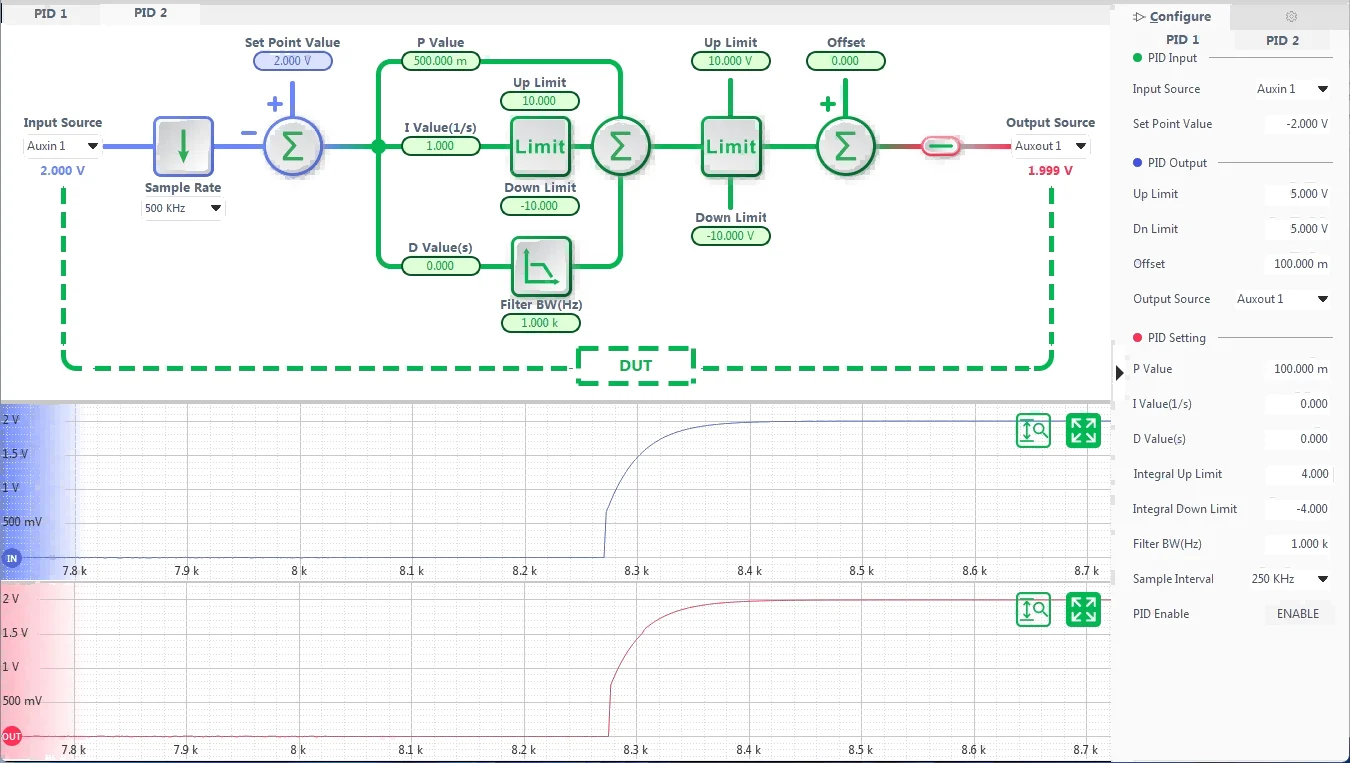

Automatic PID control

1. Dual Channel Signal Channel
Frequency range

1 μHz to 400MHz
Voltage input mode

Single-ended or Differential
Full-scale sensitivity

1 nV to 1 V
Impedance

50 Ω or 10 MΩ//15 pF, AC or DC coupled
Dynamic reserve

> 120 dB
Gain accuracy

0.5 % standard, 1% maximum
Equivalent input noise

4 nV/√Hz (> 100kHz)
Analog-to-digital conversion

14bit, 1GSa/s
2. Dual Reference Channel
Input

•  Frequency range: 1 μHz  to 400 MHz

•  Reference input: Square or Sine Wave

•  Input impedance: 50Ω or 10 MΩ//15 pF, AC or DC coupled


Harmonic detection

1 – 65535F (nF < 400MHz)
Acquisition time

•  Internal ref.: instantaneous acquisition

•  External ref.: 100 signal cycles or 1.5 ms (>100kHz)
3. Two Signal Generators
Frequency range

1 μHz to 400MHz
Frequency resolution

1 uHz
Sine amplitude

• Sine amplitude: 1uVrms to 1.5 Vrms

• Resolution: 1uVrms

• Tolerance: 0.5% standard, 1% maximum

• Temperature stability: 100 ppm/°C
Bias range

±3V
Output impedance

50Ω
4. Demodulator
Number

4
Input signal selection

Signal Channel CHA or Signal Channel CHB
Stability

•  Digital output: no zero drift on all setting

•  Display: no zero drift on all setting
Time constant

25 ns to 4 ks
Measurement bandwidth

40uHz to 6MHz
Filter drop

6,12,18,24,30,36,42,48 dB/oct drop
5. Display
Screen

5.6-inch, 640 x 480 TFT color LCD screen
Screen format

Single-channel or dual-channel display
Display values

X,Y,R,θ values can be displayed on each channel
Display type

Digital display, bar graph
Color style

Yellow, Green
6. Auxiliary Inputs and Outputs
AUX inputs

•  Function: 4-channel input

•  Amplitude: ±10 V, 0.1 mV resolution

•  Impedance: 1 MΩ
AUX outputs / CH outputs

•  Function: 4-channel output

•  Amplitude: ±10 V, 0.1 mV resolution

•  Drive Current: ±30 mA max
Sync input/output

Function: 3.3V TTL external trigger for data storage
10MHz clock input/output

Function: Instrument clock input/output for multi-computer synchronization
7. Communication Interface
RS-232

Standard 9-array RS-232 female socket
USB2.0

USB2.0 high-speed communication interface
Enternet

1Gbps Gigabit network communication interface
Digital I/O

Bidirectional 16bit
8. General
Power requirement

•  Voltage: 220 – 240 VAC

•  Power: 100 W typ, 120W max
Dimension

438 (W) × 147 (H) × 550 (D) mm
Weight

12 kg

Main Machine

Module No. Item Description
SE2052 Digital Lock-in Amplifier (Dual-channel) 1 μHz to 400 MHz, 1 nV to 1V full-scale sensitivity
