SE3001 Optical Chopper

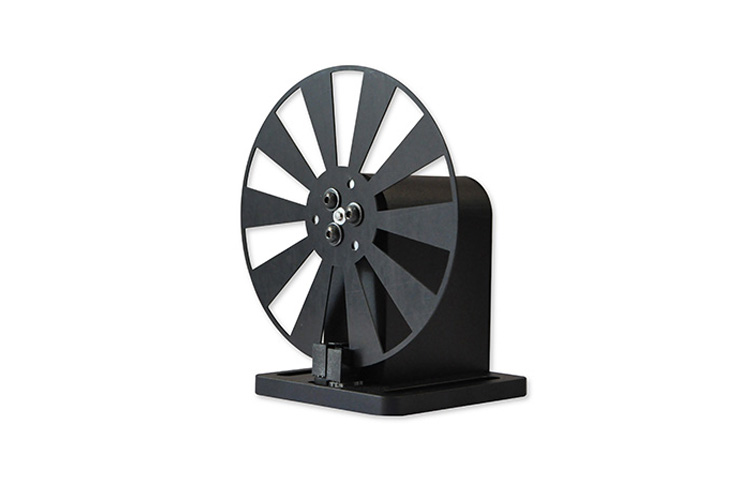

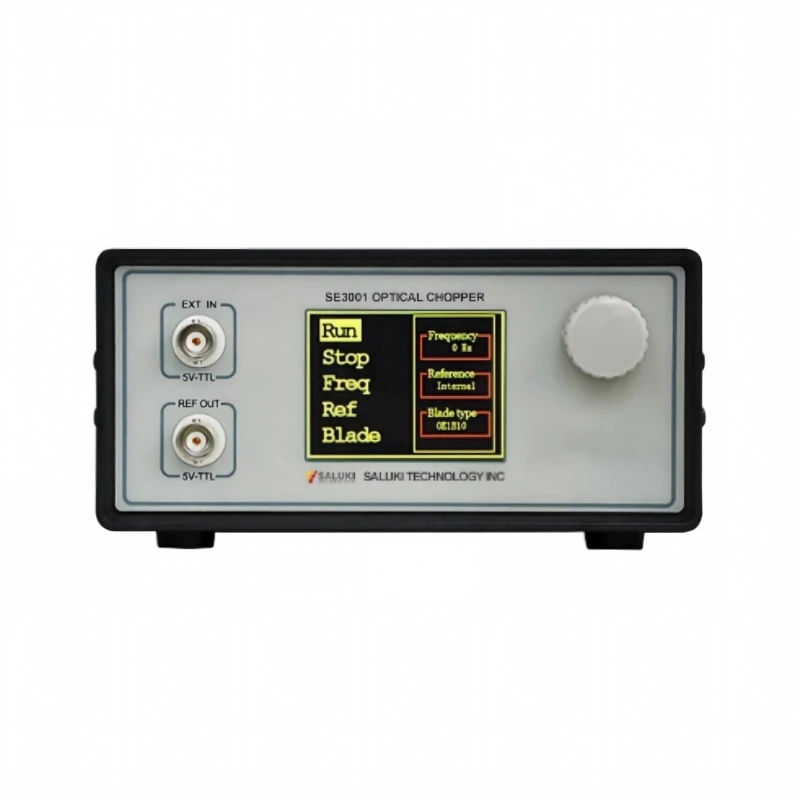

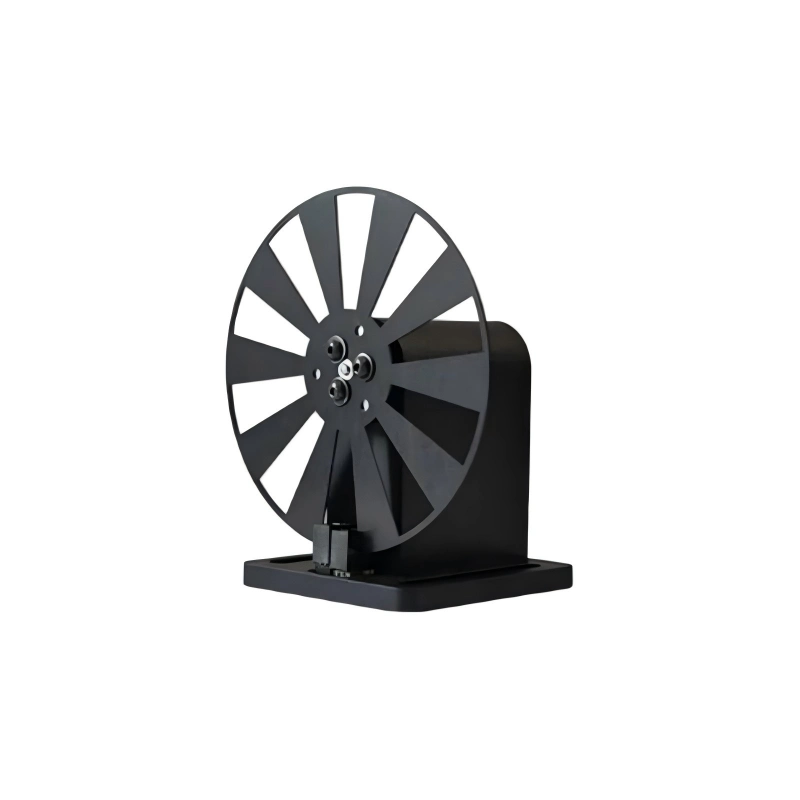

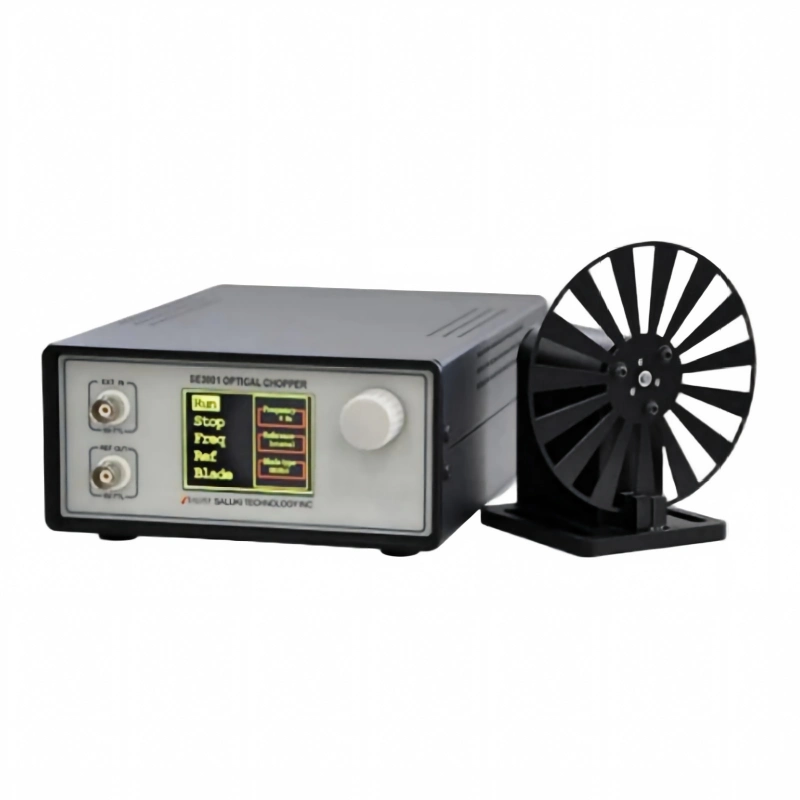

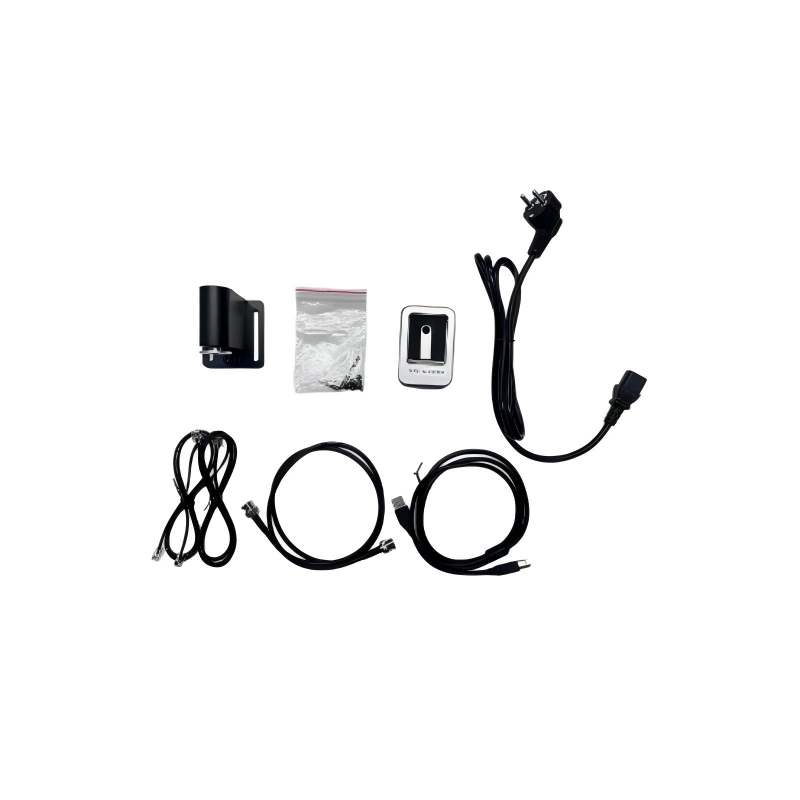

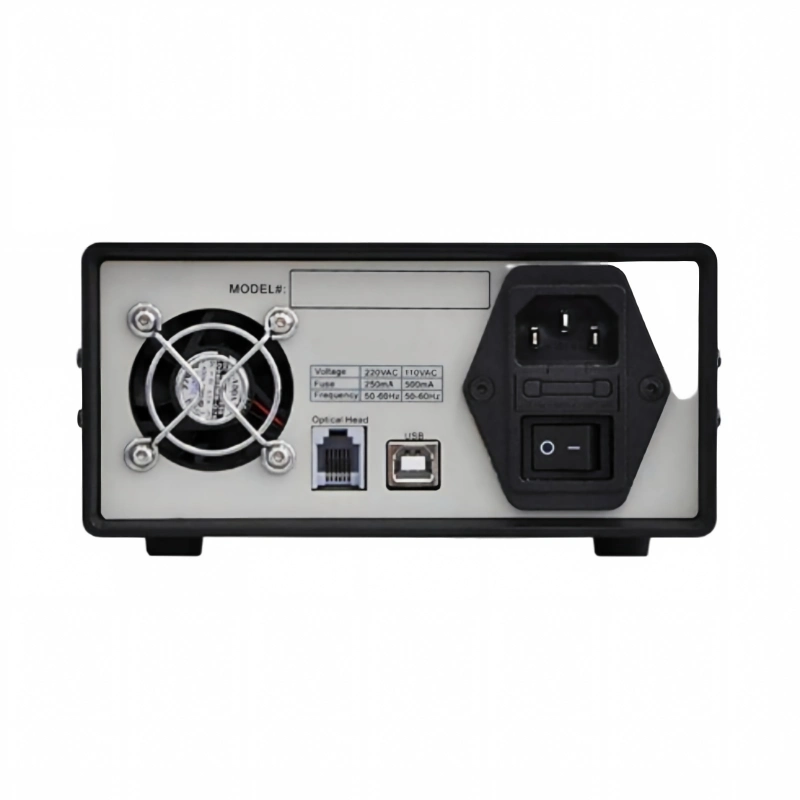

SE3001 Optical Chopper is high-precision optical equipment with its chopper frequencies from 1 Hz to 10 kHz. With the advantage of PID technology and high-quality motor, the frequency accuracy of SE3001 is up to 0.5%. SE3001 consists of a console, a chopper head and a control line. The main function of the console is to control the speed of the motor to achieve the target speed. The chopper head is mainly composed of a base and a motor with a blade.

Key Features

1 Hz to 10 kHz choppingfrequency range

Frequency accuracy up to 0.5%

Replaceable external blade

High-quality motor with PID technology

Standard TTL/CMOS level input & output

Suitable for 50mm optical platforms

Frequency Stability

250 ppm/℃ (typ.)

Frequency Accuracy

< 0.5% (typ.)

Frequency Resolution

1 Hz

Connector

BNC

Compatibility

Standard TTL/CMOS

Communication Type

USB

Protocol

USB (RS232 Emulation)

Display

2.4 inch, 320*240 LCD screen

Dimension

206 (W) × 70 (H) × 150 (D) mm

(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
SE3001 Optical Chopper Standard blade is 10-slot blade with chopping frequency from 20 Hz to 1000 Hz

Optional Chopper Blades

Module No. Frequency Description
SE1B2 1 Hz to 200 Hz 2 slot
SE1B10 20 Hz to 1 kHz 10 slot
SE1B15 30 Hz to 1.5 kHz 15 slot
SE1B30 60 Hz to 3 kHz 30 slot
SE1B60 120 Hz to 6 kHz 60 slot
SE1B100 200 Hz to 10 kHz 100 slot
SE1B57 In 10-500 Hz & Out 14-700 Hz in 5 & out 7 slot
