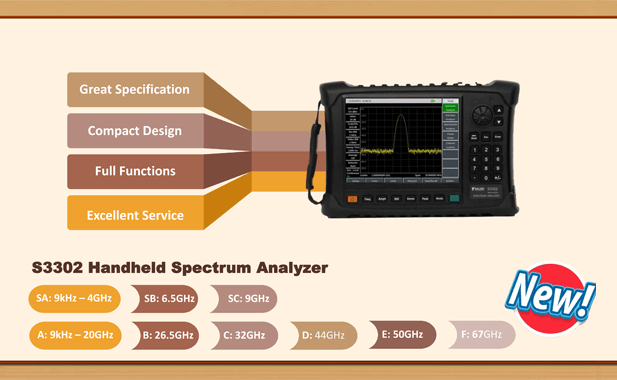

S3302 Series Handheld Spectrum Analyzer

Saluki S3302 series handheld/ portable spectrum analyzer is a high frequency handheld instrument. It provides multiple functions to fullfill different requirements from users. S3302 handheld spectrum analyzer has a compact design, very suitable for on-site measurement. S3302 series handheld/ portable spectrum analyzer can be applied to the signal and equipment test in aerospace, microwave and satellite communications, wireless communications, radar surveillance, electronic warfare and electronic surveillance,precision-guided and other industries.

Key Features

Wide frequency range from 9kHz to 67GHz, 9 models

Low DANL level to -163 dBm @ 1 Hz RBW

Dynamic signal analyzer

Fast scanning speed

8.4" color touch screen

A variety of measurement functions

Flexible interfaces and friendly UI

Excellent phase noise performance

  • Wide Frequency Range from 9kHz to 67GHz, 9 Models

    Saluki S3302 series spectrum analyzer is a high end handheld instrument,small size and light weight which is extremely suitable for on-site measurement.



    S3302 series provides 9 modules to choose, meeting your different requirements.

    •  9 kHz to 4 GHz
    •  9 kHz to 6.5 GHz
    •  9 kHz to 9 GHz
    •  9 kHz to 20 GHz
    •  9 kHz to 26.5 GHz
    •  9 kHz to 32 GHz
    •  9 kHz to 44 GHz
    •  9 kHz to 50 GHz
    •  9 kHz to 67 GHz

  • Convenient User Experiences

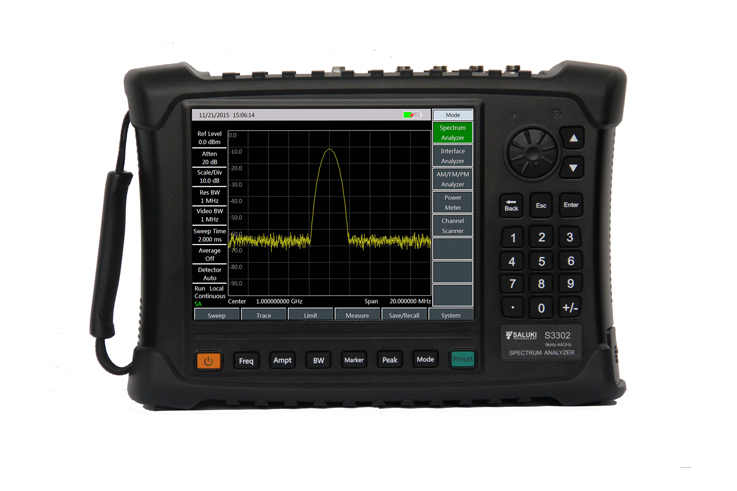

    Equipped 8.4-inch bright LCD screen and large font display and convenient operation touch screen, Integrated LCD and touch screen design, a variety of display modes and automatically adjusts the back-light brightness, etc..

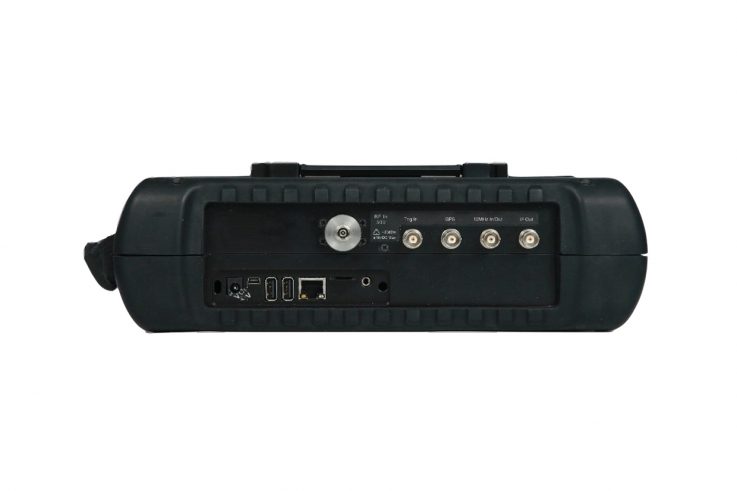

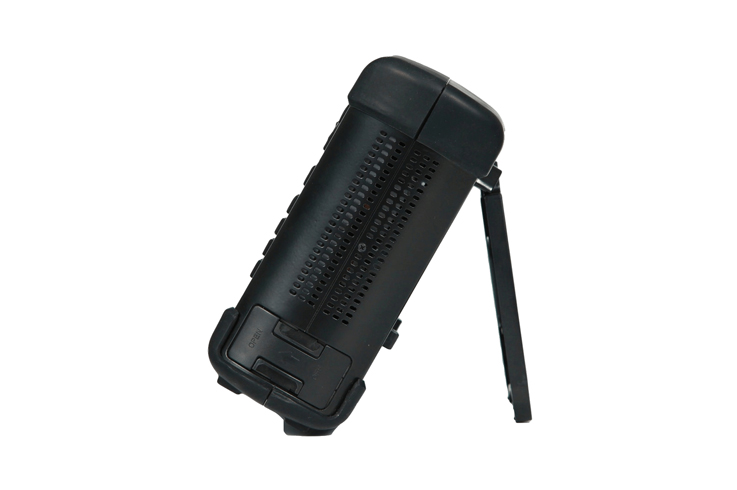

    Also S3302 series has a variety of Auxiliary Test Interface:

    •  10MHz reference input/output interface
    •  GPS antenna interface
    •  Zero span IF output interface
    •  External triggering input interface etc.

  • Excellent Technical Parameters

    •  Wide frequency range: cover from 9kHz to 67GHz, 9 models



    •  Low displayed average noise level up to -163dBm @ 1Hz RBW (typical)



    •  Excellent phase noise performance:

    -112dBc/Hz@100kHz frequency offset@1GHz carrier (S3302SA/SB/SC),

    -106dBc/Hz@100kHz frequency offset@1GHz carrier (S3302A/B/C/D/E/F)



    •  Fast scanning speed: 1GHz span fastest sweep time <20ms



    •  Resolution bandwidth: 1Hz – 10MHz



  • Comprehensive Intelligent Measurement Functions

    S3302 series spectrum analyzer can offer a variety of smart optional measurement functions.



    •  Spectrum analysis

    •  Field strength measurement

    •  Channel scan

    •  Interference analysis

    •  Power measurement

    •  Analog demodulation

  • A Variety of Measurement Function Modes

    •  Adjacent-channel power ratio (ACPR)

    •  AM/FM/PM analysis

    •  Emission Mask

    •  Carrier to noise ratio

    •  Channel power

    •  Spectrogram

    •  List sweep

    •  Power meter

    •  Channel scanner

    •  Field strength

  • Wide Applications and Scenes

    S3302 series spectrum analyzer can be applied to the signal test in aerospace, microwave and satellite communications, wireless communications, radar surveillance, electronic warfare and electronic surveillance, precision-guided and other areas.



    (1) Spectrum analysis, spectrum monitor and spectrum management.

    (2) Mobile transmitter test maintenance, trouble shooting.

    (3) RF/ Electronic product R&D , manufacture, test and maintenance.

    (4) Defense, Satellite, Radar, Aerospace etc high frequency test and R&D.

  • Saluki Quality Control

    •  Strong R&D

    •  Strict product quality control

    •  Material quality control

    •  Standard production process

    •  Best quality products

    •  Global partners
    •  Local service

  • Three Years Warranty, Local Service

    3 Years Warranty
    Saluki S3302 series spectrum analyzer enjoys a 3 years warranty.



    Local Distributors, Local Service

    Saluki has distributors and partners all around world. All our partner will provide you local service.



    Support Team at Your Service

    Contact us any time and all your problems will be replied within 24h.



    Pay Less and Get More

    Saluki provide you good spectrum analyzers with a affordable price.

Frequency Range

S3302SA: 9 kHz to 4 GHz,
S3302SB: 9 kHz to 6.5 GHz,
S3302SC: 9 kHz to 9 GHz,
S3302A: 9 kHz to 20 GHz,
S3302B: 9 kHz to 26.5 GHz,
S3302C: 9 kHz to 32 GHz,
S3302D: 9 kHz to 44 GHz,
S3302E: 9 kHz to 50 GHz,
S3302F: 9 kHz to 67 GHz

Tuning Resolution

1 Hz

Nominal Frequency

10MHz

Aging Rate

± 0.5ppm / Year

Scan Time

10μs – 600s (zero Span)

Scan Accuracy

± 2.00% (zero span)

Frequency Readout Accuracy

± (frequency readout × frequency reference error + 2% × span + 10% × resolution bandwidth)

Sweep Width

100Hz – upper frequency limit corresponding to the type of product or 0Hz

Sweep Accuracy

± 2.0%

Resolution Bandwidth

1Hz – 10MHz (step 1-3 times)

Video Bandwidth

1Hz – 10MHz (step 1-3 times)

SSB Phase Noise (Carrier 1GHz, 20℃ -30℃)

S3302SA/SB/SC:

•  ≤-108 dBc / Hz @ 10kHz offset

•  ≤-112 dBc / Hz @ 100kHz offset

•  ≤-118 dBc / Hz @ 1MHz offset

•  ≤-129 dBc / Hz @ 10MHz offset

S3302A/B/C/D/E/F:

•  ≤-102 dBc / Hz @ 10kHz offset

•  ≤-106 dBc / Hz @ 100kHz offset

•  ≤-111 dBc / Hz @ 1MHz offset

•  ≤-123 dBc / Hz @ 10MHz offset

Displayed Average Noise Level (Preamplifier On)

S3302SA/SB/SC:

•  10MHz – 3GHz: ≤-160dBm

•  3GHz – 9GHz: ≤-157dBm

S3302A/B/C/D:

•  10MHz – 20GHz: ≤-157dBm

•  20GHz – 32GHz: ≤-154dBm

•  32GHz – 40GHz: ≤-148dBm

•  40GHz – 44GHz: ≤-140dBm

S3302E/F:

•  10MHz – 32GHz: ≤-154dBm

•  32GHz – 40GHz: ≤-148dBm

•  40GHz – 46GHz: ≤-143dBm

•  46GHz – 60GHz: ≤-135dBm

•  60GHz – 67GHz: ≤-123dBm

Displayed Average Noise Level (Preamplifier Off)

S3302SA/SB/SC:

•  10MHz – 3GHz: ≤-140dBm

•  3GHz – 9GHz: ≤-138dBm

S3302A/B/C/D:

•  10MHz – 20GHz: ≤-138dBm

•  20GHz – 32GHz: ≤-135dBm

•  32GHz – 40GHz: ≤-127dBm

•  40GHz – 44GHz: ≤-120dBm

S3302E/F:

•  10MHz – 20GHz: ≤-136dBm

•  20GHz – 32GHz: ≤-135dBm

•  32GHz – 40GHz: ≤-130dBm

•  40GHz – 46GHz: ≤-121dBm

•  46GHz – 60GHz: ≤-116dBm

•  60GHz – 67GHz: ≤-102dBm

Residual Response (Preamplifier On)

S3302SA/SB/SC:

•  10MHz – 9GHz: ≤-95dBm

S3302A/B/C/D:

•  10MHz – 32GHz: ≤-100dBm

•  32GHz – 44GHz: ≤-95dBm

(exception frequency: 3.2GHz)

Residual Response (Preamplifier Off)

S3302SA/SB/SC:

•  10MHz – 9GHz: ≤-82dBm

S3302A/B/C/D:

•  10MHz – 13GHz: ≤-90dBm

•  13GHz – 20GHz: ≤-85dBm

•  20GHz – 44GHz: ≤-80dBm

(exception frequency: 3.2GHz)

Second Harmonic Distortion

S3302SA/SB/SC/E/F: <-62dBc

S3302A/B/C/D: 10MHz – 13GHz: ≤-60dBc

Absolute Amplitude Accuracy

10MHz – 13GHz: ± 1.8dB

13GHz – 40GHz: ± 2.3dB

40GHz – 50GHz: ± 2.7dB

50GHz – 67GHz: ± 3.0dB

Input Attenuator

S3302SA/SB/SC/E/F: Attenuation range 0dB – 30dB, 5dB step

S3302A/B/C/D: Attenuation range 0dB – 50dB, 10dB step

Max. Safe Input Level (CW input)

S3302SA/SB/SC/E/F:

•  +27dBm, typ. (≥10dB attenuation)

•  +20dBm, typ. (<10dB attenuation)

•  +20dBm, typ. (<10dB attenuation)

S3302A/B/C/D:

•  +30dBm, typ. (≥10dB attenuation)

•  +23dBm, typ. (<10dB attenuation)

•  +13dBm, typ. (<10dB attenuation)

Reference Level

Range: -120dBm – + 30dBm

Conversion Uncertainty: ± 1.20dB

VSWR of Input Interface

Under the condition of reference level> 0dBm, attenuator defaults

50MHz – 20GHz: ≤1.5: 1 (typ.)

20GHz – 44GHz: ≤2.0: 1 (typ.)

Test Port

RF input:

S3302SA/SB/SC/A/B: Type-N female connector

S3302C/D: 2.4mm male connector

S3302E/F: 1.85mm male connector

RF output:

S3302SA/SB/SC: Type-N female connector

Other Interface

10MHz reference input / output: BNC female connector

External trigger input: BNC female connector

IF output: BNC female connector

GPS antenna input: BNC female connector

Battery Life (typ.)

S3302SA/SB/SC: 3hrs,

S3302A/B/C/D: 2.5hrs,

S3302E/F: 2hrs

Dimension

Excluding the handle, brackets: 314 (W) × 218 (H) × 91 (D) mm
Including the handle, brackets: 338 (W) × 218 (H) × 100 (D) mm

Weight (excluding battery)

S3302SA/SB/SC: ≤4.5kg,

S3302A/B/C/D: ≤5kg,

S3302E/F: ≤5.3kg

Power Supply

AC power adapter: input 100V-240VAC, 50-60Hz; output 15VDC, 4A
Li-on battery: 10.8V, 7800mAh

Main Machine

Module No. Item Description
S3302SA Handheld Spectrum Analyzer 9 kHz to 4 GHz
S3302SB Handheld Spectrum Analyzer 9 kHz to 6.5 GHz
S3302SC Handheld Spectrum Analyzer 9 kHz to 9 GHz
S3302A Handheld Spectrum Analyzer 9 kHz to 20 GHz
S3302B Handheld Spectrum Analyzer 9 kHz to 26.5 GHz
S3302C Handheld Spectrum Analyzer 9 kHz to 32 GHz
S3302D Handheld Spectrum Analyzer 9 kHz to 44 GHz
S3302E Handheld Spectrum Analyzer 9 kHz to 50 GHz
S3302F Handheld Spectrum Analyzer 9 kHz to 67 GHz

Options

Module No. Item Description
S3302-05 Programming Manual /
S3302-06 Power Adapter /
S3302-07 Rechargeable lithium-ion battery Backup
S3302-08 CAT5 LAN cable Point to Point, 2m length
S3302-09 Micro SD card Class 4, 8G capacity
S3302-10 GPS Option GPS Exposed Antenna (BNC), Built-In GPS Module and Software
S3302-11 USB Power Meter Provide USB Power Measurement function (need option 12-15)
S3302-12 S87230 USB Power Continuous Wave Power Probe 9kHz - 6GHz Power Sensors (need option 11)
S3302-13 S87231 USB Power Continuous Wave Power Probe 10MHz - 18GHz Power Sensors (need option 11)
S3302-14 S87232 USB Power Continuous Wave Probe 50MHz - 26.5GHz power sensor (need option 11)
S3302-15 S87233 USB Power Continuous Wave Probe 50MHz - 40GHz Power Sensors (need option 11)
S3302-16 Interference Analyzer Provide waterfall, RSSI measurement functions
S3302-17 AM/FM/PM Analyzer Implement AM / FM / PM signal modulation characteristics analysis
S3302-18 Channel Scanner Implementing multiple channel or frequency signal power measurements
S3302-19 List Sweep Continuous scanning measurement multi-frequency bands
S3302-20 Zero Span IF Output IF signal output from the third or fourth intermediate frequency signal (one option available out of two)
S3302-21 S89101AAntenna Frequency range: 10kHz-20MHz (need option 25 )
S3302-22 S89101B Antenna Frequency range: 20MHz-200MHz (need option 25 )
S3302-23 S89101C Antenna Frequency range: 200MHz-500MHz (need option 25)
S3302-24 S89101D Antenna Frequency range: 500MHz-4GHz (need option 25)
S3302-25 S89401 Antenna Amplifier Frequency range: 10kHz-4GHz, N (f) (should work with optional 17, 18, 19 or 20)
S3302-26 S89901 Antenna Frequency Range: 1GHz-18GHz, N (f)
S3302-27 S89902 Antenna Frequency range: 18GHz-40GHz, 2.92mm (f)

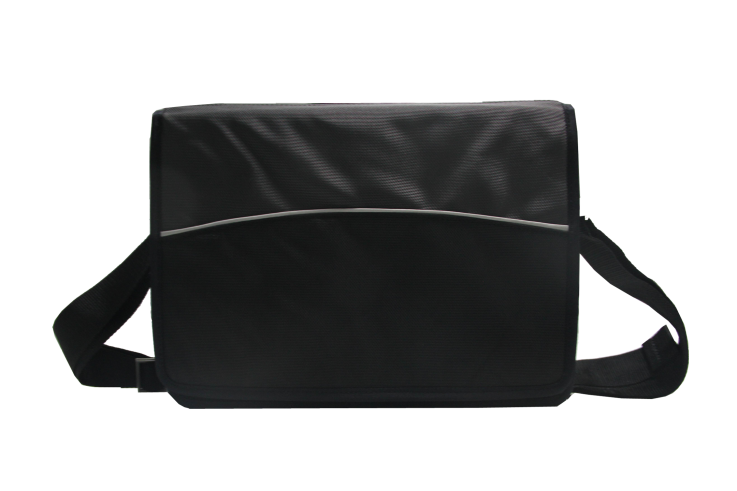

S3302-28 Functional Bag /
S3302-29 Backpack /
S3302-30 Carrying Case For safety carrying
S3302-31 S89901 Antenna Handle Need option 26
S3302-32 S89902 Antenna Handle Need option 27
S3302-33 Signal Analyzer To realize the rapid analysis of interference signal, and provide the audio output and IQ Capture.
S3302-34 Field Strength Provide Pscan, Fscan, MScan etc.functions
S3302-35 Tracking Generator (100kHz - 4GHz) For S3302SA only
S3302-36 Tracking Generator (100kHz - 6.5GHz) For S3302SB only
S3302-37 Tracking Generator (100kHz - 9GHz) For S3302SC only
S3302-38 Orientation Analysis Built-In software (need option10, 50 and directional Antenna)
S3302-39 Coverage Map Built-In software (need option10)
S3302-40 Charger of Power Supply by Vehicle /
S3302-41 Portable Omnidirectional Antenna Frequency range :700MHz-2.7GHz (for communication bands)
S3302-42 700MHz - 4GHz Directional Antenna Active log-periodic antenna
S3302-43 700MHz - 6GHz Directional Antenna Active log-periodic antenna
S3302-44 680MHz - 10GHz Directional Antenna Active log-periodic antenna
S3302-45 680MHz - 20GHz Directional Antenna Active log-periodic antenna
S3302-46 400MHz - 4GHz Directional Antenna Active log-periodic antenna
S3302-47 400MHz - 6GHz Directional Antenna Active log-periodic antenna
S3302-48 380MHz - 10GHz Directional Antenna Active log-periodic antenna
S3302-49 380MHz - 20GHz Directional Antenna Active log-periodic antenna
S3302-50 External Electric Compass External USB electric compass (need option 38)
S3302-51 6GHz Omnidirectional Antenna (680MHz - 6GHz) Portable omnidirectional antenna
S3302-52 8GHz Omnidirectional Antenna (300MHz - 8GHz) Portable omnidirectional antenna
S3302-53 VHF/UHF Portable Antenna Frequency range :140MHz/430MHz
S3302-54 Passive Directional Antenna (700MHz - 4GHz) Passive log-periodic antenna
S3302-55 Passive Directional Antenna (700MHz - 6GHz) Passive log-periodic antenna
S3302-56 Passive Directional Antenna (680MHz - 10GHz) Passive log-periodic antenna
S3302-57 Passive Directional Antenna (680MHz - 18GHz) Passive log-periodic antenna
S3302-58 Passive Directional Antenna (680MHz - 25GHz) Passive log-periodic antenna
S3302-59 Passive Directional Antenna (680MHz - 35GHz) Passive log-periodic antenna
S3302-60 N/SMA-JJ RF Cable (2m) N male to SMA male RF coaxial cable, DC-18GHz, Length 2m
S3302-61 N/SMA-JJ RF Cable (1m) N male to SMA male RF coaxial cable, DC-18GHz, Length 1m
S3302-62 Differential antenna orientation analysis function Built-in high-precision direction finding software (need option 63, 64 or 65)
S3302-63 8GHz differential antenna assembly Frequency range: 1GHz-8GHz, including differential antenna components, transport box, high-precision electronic compass, tripod, etc. (need option 63)
S3302-64 10GHz differential antenna assembly Frequency range: 1GHz-10GHz, including differential antenna components, transport box, high-precision electronic compass, tripod, etc. (need option 63)
S3302-65 18GHz differential antenna assembly Frequency range: 1GHz-18GHz, including differential antenna components, transport box, high-precision electronic compass, tripod, etc. (need option 63)
S3302-67 ZE9080 Antenna transport box Used for antenna and amplifier, including option 21, 22, 23, 24, 25

Leave A Message
