CSA Series Signal Analyzer

Overview Specifications Ordering Resources

Saluki CSA series signal analyzer reaches the frequency from 100 kHz to 26.5 GHz with a maximum of 40 MHz analysis bandwidth. It can test signal power, frequency, phase, P-1, TOI, OBW, channel power, spurious, ACPR, CCDF, SEM, EVM, and other indicators. It can be used independently or combined with the chassis to form a test system.

CSA series signal analyzer is a cost-effective tool for essential signal characterization. Its capabilities provide a solid foundation for testing in general-purpose and educational applications.

<< Click to explore more videos >>

Key Features

Frequency range from 100kHz to 26.5GHz

Low DANL level to -164dBm @ 1GHz (preamp on)

1Hz minimum resolution bandwidth (RBW)

Fast continuous scanning technology

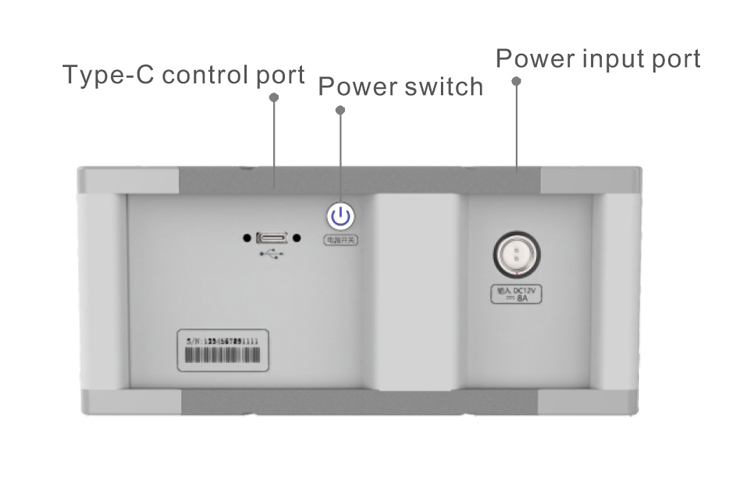

USB control, independent application software

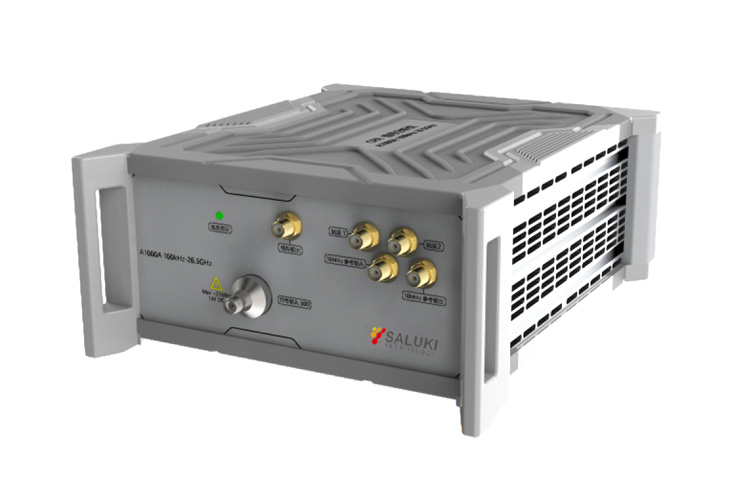

Small size 175×150×64 mm, easy to carry

Can be used independently or combined with the chassis to form a test system

Cost-effective Tool for Essential Signal Characterization

• Measuring frequency range: 100 kHz – 26.5 GHz

• Analysis bandwidth: 40 MHz

• DANL: -148 dBm/Hz@1 GHz (LNA off), -164 dBm/Hz@1 GHz (LNA on)

• Measuring range: DANL to +27 dBm

• Frequency resolution (Marker frequency counter): 0.001 Hz

• Phase noise: -106dBc/Hz@10 kHz (CF=1 GHz)

• Spurious: -74 dBc

CSA series USB spectrum analyzer can test signal power, frequency, phase, P-1, TOI, OBW, channel power, spurious, ACPR, CCDF, SEM, EVM, and other indicators.
Your Reliable RF&MW Test Equipments

• Convenient and Easy:  modular design+PC software

• Quick Combination:  miniature chassis + integrated software

• High Performance:  benchmarking Keysight performance

• Stable and Reliable:  rigorous test + statistical analysis

• Customer Value:  cost-effective + high efficiency

• R&D Technology:  calibration test + LO technology + signal processing + channel technology

Frequency Range	CSA2026: 100 kHz to 26.5 GHz
Frequency Readout Accracy	± (marker frequency × frequency reference accuracy + 0.25 % × span + 5 % × RBW + 2Hz + 0.5 × horizontal resolution)
Aging Rate	± 3×10^-7/ year
Frequency Span Range	0Hz (zero span), 10Hz to maximum frequency of instrument
Scan Time	• 1μs to 6000s (span = 0Hz) • 1ms to 4000s (span ≥ 10Hz)
Scan Accuracy	± 1% nominal (zero span)
Trigger Mode	Free run, video, external, RF burst, periodic timer
Scan (Trace) Point Range	1 to 40001 (all spans)
Resolution Bandwidth	1Hz to 3MHz (10% steps), 4, 5, 6, 8 MHz
Video Bandwidth	1Hz to 3MHz (10% steps), 4, 5, 6, 8 MHz, and wide open (labeled 50MHz)
Amplitude Test Range	DANL to +27dBm (preamp off)
Max. Safe Input Level	Average total power: • +27dBm (0.5W), (≥ 10dB input attenuation , preamp off) • +27dBm (0.5W), (≥ 20dB input attenuation , preamp on) Peak pulse power: • +47dBm (50W), (< 10μs pulse width, < 1% duty cycle, ≥ 30dB input attenuation)
Display Scale Switching Uncertainty	0dB
Trace Detectors	Normal, peak, sample, negative peak, log power average, RMS average, and voltage average
SSB Phase Noise (CF=1GHz, Typ.)	• -80 dBc/Hz @ 100Hz offset • -102 dBc/Hz @ 1kHz offset • -108 dBc/Hz @ 10kHz offset • -110 dBc/Hz @ 100kHz offset • -132 dBc/Hz @ 1MHz offset
Displayed Average Noise Level (Preamplifier On)	• 1MHz – 10MHz: -154, (-158) dBm • 10MHz – 1.5GHz: -160, (-163) dBm • 1.5GHz – 4.5GHz: -160, (-163) dBm • 4.5GHz – 7GHz: -157, (-161) dBm • 7GHz – 9.5GHz: -158, (-160) dBm • 9.5GHz – 13GHz: -156, (-160) dBm • 13GHz – 14.5GHz: -158, (-161) dBm • 14.5GHz – 19.3GHz: -153, (-157) dBm • 19.3GHz – 23GHz: -152, (-157) dBm • 23GHz – 24GHz: -150, (-155) dBm • 24GHz – 26.5GHz: -144, (-149) dBm
Displayed Average Noise Level (Preamplifier Off)	• 100kHz – 1MHz: (-125) dBm • 1MHz – 10MHz: -144, (-148) dBm • 10MHz – 1.5GHz: -148, (-150) dBm • 1.5GHz – 4.5GHz: -146, (-149) dBm • 4.5GHz – 7GHz: -141, (-145) dBm • 7GHz – 9.5GHz: -144, (-147) dBm • 9.5GHz – 13GHz: -136, (-140) dBm • 13GHz – 14.5GHz: -142, (-145) dBm • 14.5GHz – 19.3GHz: -132, (-138) dBm • 19.3GHz – 23GHz: -134, (-139) dBm • 23GHz – 24GHz: -132, (-137) dBm • 24GHz – 26.5GHz: -128, (-133) dBm
Residual Response (Input terminated, 0dB attenuation)	• 200kHz – 26.5GHz(swept): -90dBm • Zero span or FFT or other frequencies: -100dBm norminal
Second Harmonic Distortion (SHI)	• 10MHz – 3.75GHz: +50dBm • 3.75GHz – 13.25GHz: +62dBm
Third-order Intermodulation Distortion (TOI)	Preamp Off: • 10MHz – 2GHz: +12,(+16) dBm • 2GHz – 3GHz: +12,(+17) dBm • 3GHz – 7.5GHz: +12,(+16) dBm • 7.5GHz – 13.6GHz: +11,(+15) dBm • 13.6GHz – 26.5GHz: +10,(+14) dBm Preamp On: • 10MHz – 26.5GHz: -8dBm nominal
I/Q Analyzer	Frequency range: • Standard: 100kHz – 25MHz • Option B40: 100kHz – 40MHz Resolution bandwidth: Overall: 100mHz – 3MHz Analysis bandwidth: • Standard: 100kHz – 25MHz • Option B40: 100kHz – 40MHz Data acquisition: • IQ analyzer: 4,000,000 IQ sample pairs • Sample rate: 90MSa/s • ADC resplution: 14 Bits

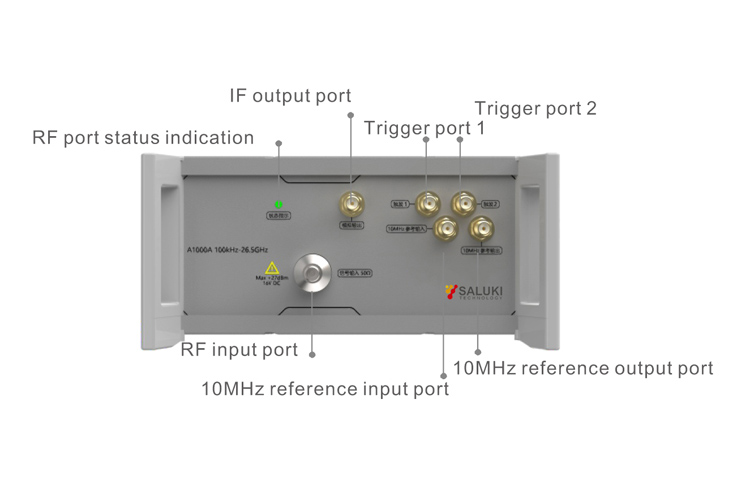

Connectors	RF input: 2.92mm (female), 50Ω nominal 10MHz in: SMA (female), 50Ω nominal 10MHz out: SMA (female), 50Ω nominal Trigger in: SMA (female), 10kΩ nominal Trigger out: SMA (female), 50Ω nominal Analog out: SMA (female), 50Ω nominal
Dimension	150 (W) × 64 (H) × 175 (D) mm
Weight	2.2kg
	(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No.	Item	Description
CSA2026	Signal Analyzer	100 kHz to 26.5 GHz, 25MHz analysis bandwidth (software can be upgraded remotely)

Options

Module No.	Item	Description
P26	Pre-amplifier	/
B40	40MHz Analysis Bandwidth	To output real-time signal acquisition data through optical fiber and support signal data output with maximum 40MHz bandwidth.
HAS	High Resolution Step Attenuator	0-50dB，2dB step
PFR	Precision Frequency Reference	/
RTA	Real Time Analysis	/
