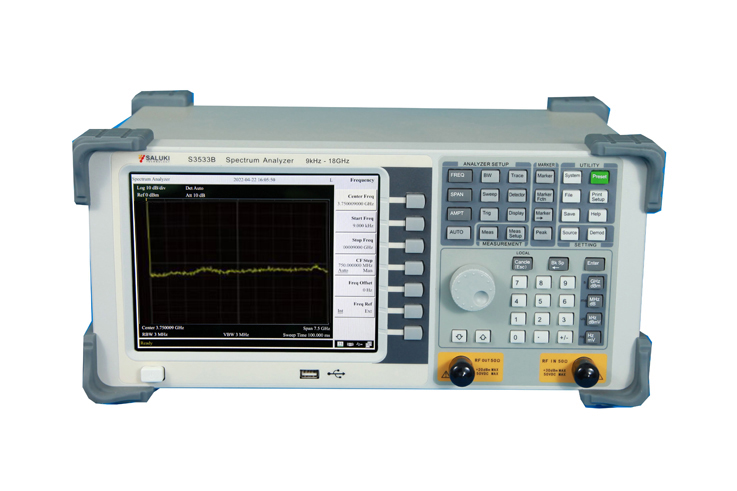

S3533 Series Spectrum Analyzer

Saluki S3533 series spectrum analyzer is a wide-band, high-performance analyzer with a frequency measurement range of 5kHz-8GHz/20GHz. Highly integrated RF front-end and fully digital IF technology ensure its excellent performance and stable performance. The maximum real-time bandwidth of 40MHz meets the test of common radio signals such as mobile communication, TV and Wi-Fi, and the 145MHz analog IF output provides users with a variety of test options. It has a variety of intelligent measurement functions such as spectrum analysis, network measurement, field strength measurement, channel scanning, third-order intermodulation, harmonic distortion, carrier-to-noise ratio and Pass-Fail. S3533 series spectrum analyzer adopts all-aluminum metal structure chassis, 8.4-inch LED-backlit high-brightness standard display screen and has good environmental adaptability. It can be widely used in aerospace, microwave communication, satellite navigation, radar detection, electronic detection and countermeasures, precision guidance and other fields.

Key Features

Frequency range: 5kHz - 8GHz / 9kHz - 20GHz

Resolution bandwidth: 1Hz -5MHz

Sensitive, DANL < -160dBm

Maximum real-time bandwidth: 40MHz

145MHz analog IF output

Multiple measurement modes to meet various test requirements

8.4 inch LED high-brightness standard display screen

Compact all-metal structure, good shielding performance and EMC characteristics

Frequency Range

S3533A: 5kHz to 8GHz,

S3533B: 9kHz to 20GHz

Amplitude Range

DANL to +20dBm  (fc≥10MHz)

Safe Input Level

Average continuous power, maximum +27dBm

Input Attenuator Range

0 to 30dB in 1 dB step

RBW Range

1Hz to 5MHz, in 1-3-5 steps

VBW Range

10Hz – 5MHz

Displayed Average Noise Level (Preamplifier On)

S3533A:

•   1MHz – 10MHz: <-140dBm, typical -145dBm

•   10MHz – 2GHz: <-158dBm, typical -162dBm

•   2GHz – 3.1GHz: <-156dBm, typical -160dBm

•   3.1GHz – 5GHz: <-155dBm, typical -159dBm

•   5GHz – 8GHz: <-153dBm, typical -155dBm

•   5GHz – 8GHz: <-153dBm, typical -155dBm

S3533B:

•   1MHz – 10MHz: <-135dBm

•   10MHz – 2GHz: <-156dBm

•   2GHz – 5GHz: <-154dBm

•   5GHz – 7GHz: <-152dBm

•   7GHz – 8GHz: <-150dBm

•   8GHz – 15GHz: <-153dBm

•   15GHz – 18GHz: <-150dBm

•   7GHz – 8GHz: <-150dBm

•   8GHz – 15GHz: <-153dBm

•   15GHz – 18GHz: <-150dBm

(0dB attenuation, RBW=1 Hz)

Displayed Average Noise Level (Preamplifier Off)

S3533A:

•   5kHz – 1MHz: <-120dBm, typical -130dBm

•   1MHz – 10MHz: <-130dBm, typical -140dBm

•   10MHz – 2GHz: <-138dBm, typical -142dBm

•   2GHz – 3.1GHz: <-136dBm, typical -140dBm

•   3.1GHz – 5GHz: <-136dBm, typical -140dBm

•   5GHz – 8GHz: <-135dBm, typical -138dBm

S3533B:

•   9kHz – 100kHz: <-100dBm

•   100kHz – 5MHz: <-110dBm

•   5MHz – 4.0GHz: <-138dBm

•   4GHz – 7GHz: <-135dBm

•   7GHz – 8GHz: <-133dBm

•   8GHz – 15GHz: <-135dBm

•   15GHz – 18GHz: <-133dBm

(0dB attenuation, RBW=1 Hz)

SSB Phase Noise

S3533A:

•  -98 dBc/Hz @ 10kHz offset

•  ≤-108 dBc/Hz @ 1MHz offset

S3533B:

•  ≤-90 dBc/Hz @ 10kHz offset

•  ≤-105 dBc/Hz @ 1MHz offset

Sweep Time

Non-zero span: 5ms – 3000s,  Zero span: 20us – 3000s

Sweep Mode

Continuous, single

Trigger Mode

Free run, video, external

Frequency Counter

Resolution: 1Hz, 10Hz, 100Hz, 1kHz

TOI (>30MHz)

+7dBm

SHI (>10MHz)

+40dBm

Input Related Spurious (>10MHz)

<-60dBc

Display

8.4 inch TFT-LCD

Dimension

390 (W) × 182 (H) × 230 (D) mm

Weight

7kg

(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
S3533A Spectrum Analyzer 5 kHz to 8 GHz
S3533B Spectrum Analyzer 9 kHz to 20 GHz

Options

Module No. Item Description
S3533-01 High-stability Time-base Aging rate: <0.2ppm/year, Temperature stability: <0.1ppm
S3533-02 Advanced Measurement Including Field Strength Measurement, Channel Scan, Third-order Intermodulation, Harmonic Distortion, Carrier Noise functions
S3533-03 Near Field Probe Kit Frequency range: LF-3GHz
S3533-04 RF Demonstration Kit Frequency range: 10MHz - 4.4GHz
S3533-05 Directional Antenna Frequency range: 600MHz - 8GHz
S3533-06 Omnidirectional Antenna Frequency range: 300MHz - 7.5GHz
S3533-07 USB Power Sensor Frequency range: 10MHz - 6GHz
S3533-08 Tracking Source Frequency range: 100kHz - 6GHz (updating, currently unavailable)
