TP9000 Temperature Data Acquisition

Overview Specifications Ordering Resources

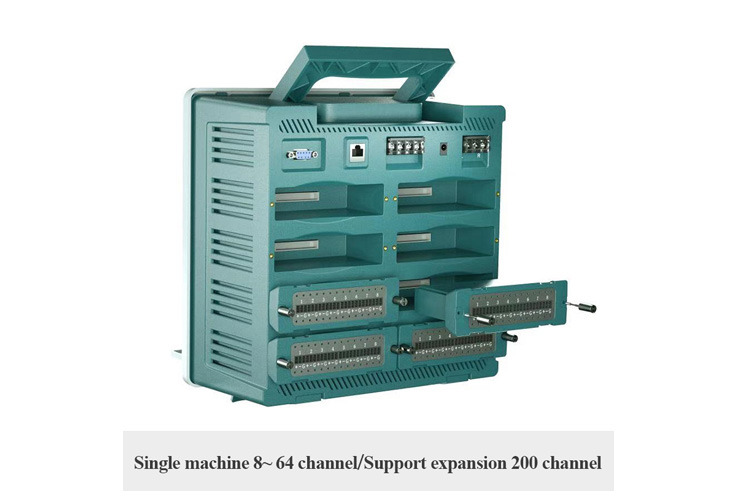

Toprie TP9000 Portable Temperature Data Acquisition integrates the data acquisition, display, built-in data storage, and network connectivity. The single device has 8 to 64 channels, even up to 200 channels of simultaneous acquisition. TP9000 is special for the acquisition of temperature signals. It also can be remotely transmitted wirelessly to computers & mobile phone monitoring.

The TP9000 is an eight-slot mainframe with seven plug-in module options to facilitate future channel expansion and function enhancement. The portable design is suitable for industrial and laboratory applications.

Key Features

Support acquisition of multiple thermocouple and thermal resistance

Up to 200 channels of simultaneous acquisition

1s or optional 0.1s high-speed sampling

70MB or optional 2GB internal storage

8-slot mainframes, optional 7 functional plug-in modules

7 inch color touch screen, multiple data display interface

One-click connect to the IOT platform to realize remote monitoring of PC and Phone

RS232, RS485, Ethernet communication interface and USB for easy connectivity to your PC

Input Signals	Thermocouple: K, R, B, N, E, T, J, S, WRE5-26, WRE3-25 Thermal resistance: pt1000, pt100, cu50
Number of Channels	1 – 200
Power Consumption	≤ 25 VA
Storage Interval	Self-setting from 1s to 19999s
Internal Memory	70MB, or optional 2GB
Acquisition Mode	Cyclic
Alarm	Upper & Uppermost & Lower & Lowermost limit, 4 alarms per channel
Relay	8-channel NO&NC relay 250V 5A
Power Supply	AC 85V-265V, DC 12V-25V
Distribution Output	1-channel 24VDC (optional multi-channel 24V or 5VDC output)
Communication	Standard Ethernet, RS485, RS232 (optional USB/4G/WIFI wirelss), Standard Modbus TCP/RTU protocol
Temperature	Operating: -20°C to +50°C, Storage: 0°C to +50°C
Humidity	Operating: 0 – 90% RH, Storage: 0 – 85% RH (non-condensing)
Dimension	288 × 288 × 200 mm

Main Machine

Module No.	Item	Description
TP9000	Temperature Data Acquisition	7 inch touch screen, 70MB internal storage, 8-slot mainframes

Optional Modules

P/N	Item	Description
TP1708P	Universal Signal Input Module	Temperature K, T, J, E, S, B, R, N, WRe3, WRe5 thermocouple, PT1000, PT100, CU50 platinum resistance
TP1708Q	0.1S Fast Acquisition Module	Temperature K, T, J, E, S, B, R, N, WRe3, WRe5 thermocouple (8 channel can only be used at the same time of the same type)
TP1708J	Relay Alarm Output Module	Adopt 8 NONC relay contact output. Each contact can be matched with any channel, the maximum current is 5A.
TP1701	Lithium Battery Module	Adopt 12V/4000mAh high-capacity polymer lithium battery pack. One battery module can be used for 8 channel DAQ to work continuously for 10 hours. Multiple battery modules can be used in one DAQ.
TP1702V4	4G Wireless Terminal DTU Module	Support 4G wireless data upload cloud platform
TP1702V3	WiFi Wireless Terminal DTU Module	Support WiFi wireless data upload cloud platform
TP1708NTC	NTC Temperature Sensor Acquisition Module	Can be connected to 8 or 16 NTC temperature sensors.
