TP700 Multi-channel Data Acquisition

Toprie TP700 Portable Data Acquisition integrates the data acquisition, display, built-in data storage, and network connectivity. The single device has 8 to 64 channels, even up to 200 channels of simultaneous acquisition. TP700 can measure an electrical or physical phenomenon, such as voltage, current, temperature, pressure, humidity, liquid level, flow, etc. It also can be remotely transmitted wirelessly to computers & mobile phone monitoring.

The TP700 data acquisition is an eight-slot mainframe with thirteen plug-in module options to facilitate future channel expansion and function enhancement. The portable design is suitable for industrial and laboratory applications.

Key Features

Up to 200 channels of simultaneous acquisition

1s or optional 0.1s high-speed sampling

70MB or optional 2GB internal storage

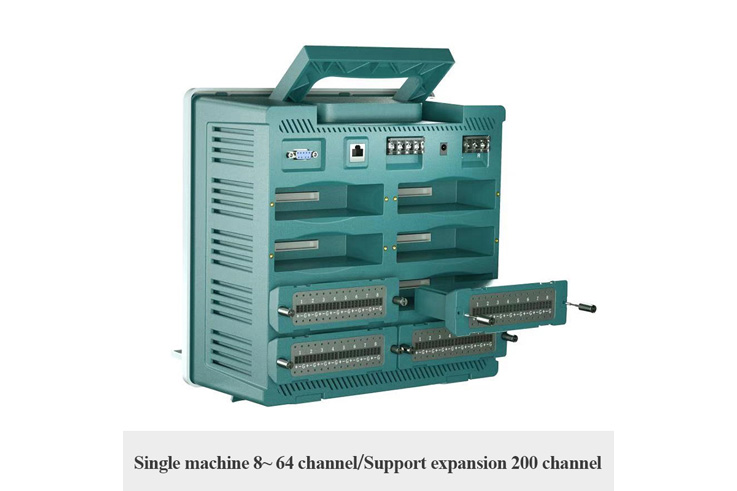

8-slot mainframes, optional 13 functional plug-in modules

7 inch color touch screen, multiple data display interface

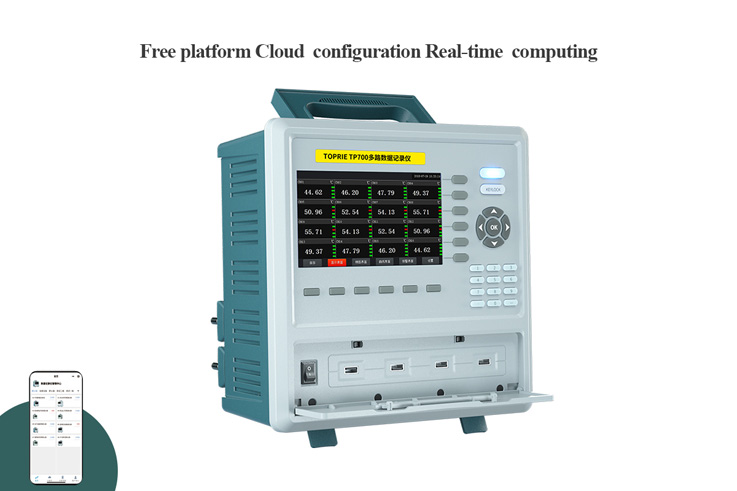

One-click connect to the IOT platform to realize remote monitoring of PC and Phone

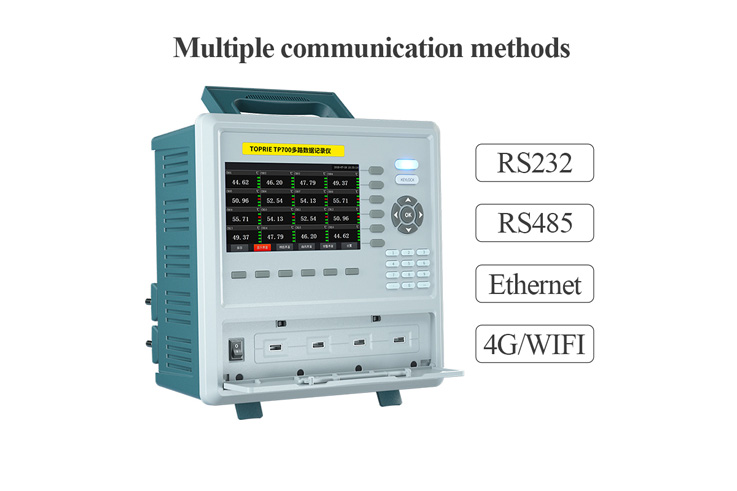

RS232, RS485, Ethernet communication interface and USB for easy connectivity to your PC

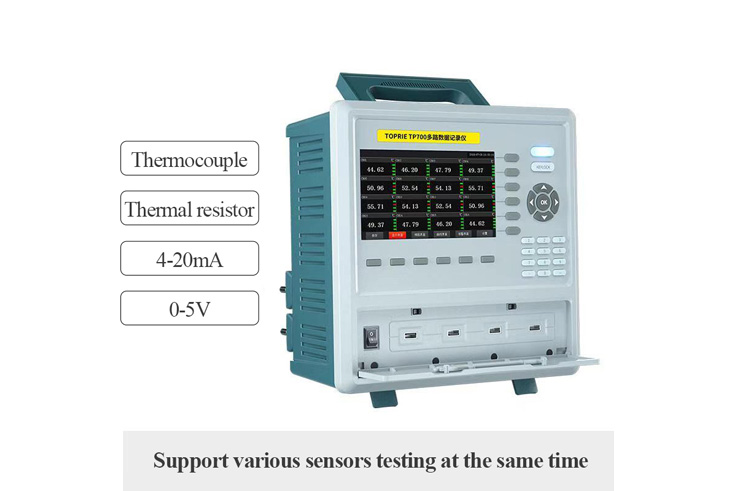

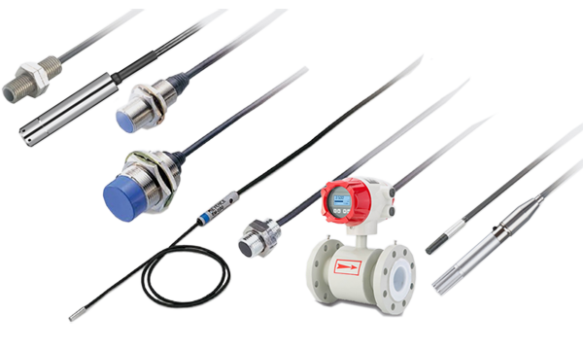

  • Support Multiple Signal Sensor Access

    •   Voltage

    •   Current

    •   Power

    •   Frequency

    •   Pressure

    •   Temperature

    •   Humidity

    •   Flow

    •   Liquid level

    •   Vibration

    •   Rotating speed

Input Signals

Thermocouple: K, R, B, N, E, T, J, S, WRE5-26, WRE3-25

Thermal resistance: pt1000, pt100, cu50

Current (DC): 4-20mA, 0-20mA

Voltage (DC): 0-5V, 0-10V, ±20mV, ±100mV

Number of Channels

1 – 200

Power Consumption

≤ 25 VA

Storage Interval

Self-setting from 1s to 19999s

Internal Memory

70MB, or optional 2GB

Acquisition Mode

Cyclic

Alarm

Upper & Uppermost & Lower & Lowermost limit, 4 alarms per channel

Relay

8-channel NO&NC relay 250V 2A

Power Supply

AC 85V-265V, DC 12V-25V

Distribution Output

1-channel 24VDC (optional multi-channel 24V or 5VDC output)

Communication

Standard Ethernet, RS485, RS232 (optional USB/4G/WIFI wirelss), Standard Modbus TCP/RTU protocol

Temperature

Operating: -20°C to +50°C, Storage: 0°C to +50°C

Humidity

Operating: 0 – 90% RH, Storage: 0 – 85% RH (non-condensing)

Dimension

288 × 288 × 200 mm

Main Machine

Module No. Item Description
TP700 Data Acquisition 7 inch touch screen, 70MB internal storage, 8-slot mainframes

Optional Modules

P/N Item Description
TP1708P Universal Signal Input Module Temperature K, T, J, E, S, B, R, N, WRe3, WRe5 thermocouple, PT1000, PT100 platinum resistance, DC voltage 0-5V, 0-10V, ±100mV, DC current 4-20mA
TP1708Q 0.1S Fast Acquisition Module Temperature K, T, J, E, S, B, R, N, WRe3, WRe5thermocouple, DC voltage 0-5V, 0-10V, ±100mV, DC current 4-20mA (8 channel can only be used at the same time of the same type)
TP1708J Relay Alarm Output Module Adopt 8 NONC relay contact output. Each contact can be matched with any channel, the maximum current is 5A.
TP1701 Lithium Battery Module Adopt 12V/4000mAh high-capacity polymer lithium battery pack. One battery module can be used for 8 channel DAQ to work continuously for 10 hours. Multiple battery modules can be used in one DAQ.
TP1708K Switch Input Module 8-channel switch signal input module, Wet node, 5-24V
TP1748 DC Current Acquisition Module Maximum 0-10A acquisition (current range can be customized), Accuracy 0.5%, Resolution 1mA
TP1758 DC Voltage Acquisition Module Maximum 0-120V acquisition (current range can be customized), Accuracy 0.5%, Resolution 1mV
TP1706AC AC Power Electric Parameter Test Module Single-phase AC power electric energy parameter test record can be shared with other modules such as temperature in a DAQ host.
TP1706ADC AC & DC Power Electric Parameter Test Module Voltage range: 5-600V, Current range: 10mA-20A, Frequency range: 45-400Hz
TP1702V4 4G Wireless Terminal DTU Module Support 4G wireless data upload cloud platform
TP1702V3 WiFi Wireless Terminal DTU Module Support WiFi wireless data upload cloud platform
TP1728 Temperature & Humidity Acquisition Module Can be connected to 4pcs 2305 temperature and humidity probes or 8pcs 2305 single humidity probes with an accuracy of ±3%. Can be connected to 8pcs DS18B20 temperature sensors with an accuracy of ±3%. (-20 to 120°C).
TP1708NTC NTC Temperature Sensor Acquisition Module Can be connected to 8 or 16 NTC temperature sensors.
