TP710 Multi-channel Data Acquisition

Toprie TP710 Portable Data Acquisition integrates the data acquisition, display, built-in data storage, and network connectivity. The single device has 8 to 16 channels. DAQ can measure an electrical or physical phenomenon, such as voltage, current, temperature, pressure, humidity, liquid level, flow, etc. It also can be remotely transmitted wirelessly to computers & mobile phone monitoring. The portable design is suitable for industrial and laboratory applications.

Key Features

Standard 8 or 16 channels

1s high-speed sampling

70MB or optional 2GB internal storage

7 inch color touch screen, multiple data display interface

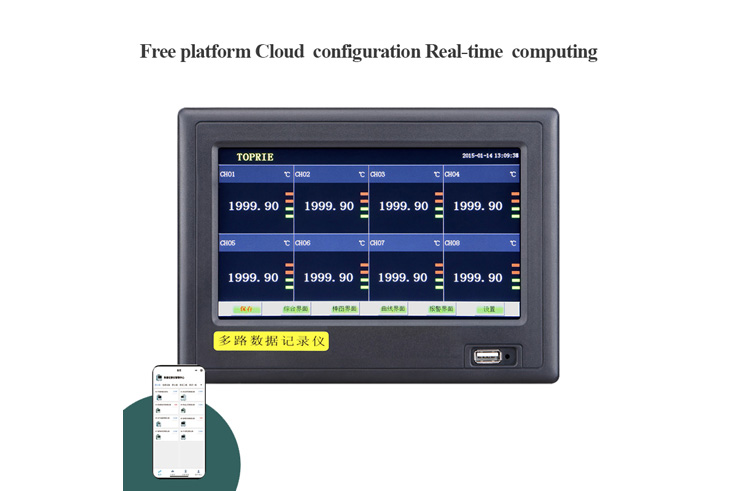

One-click connect to the IOT platform to realize remote monitoring of PC and Phone

RS232, RS485, Ethernet communication interface and USB for easy connectivity to your PC

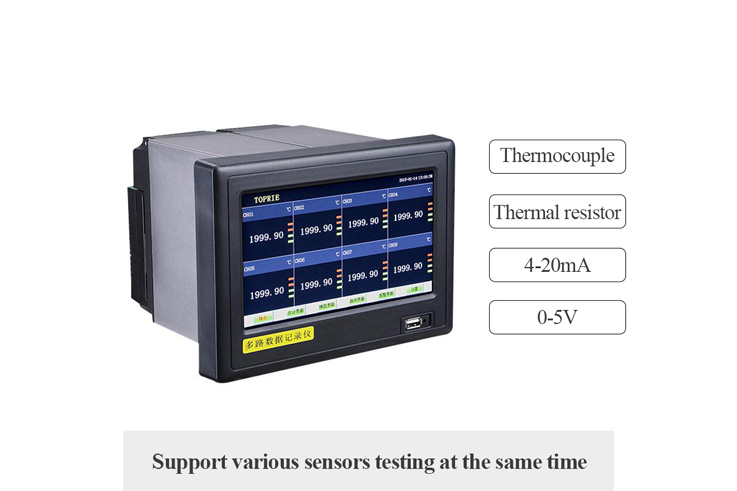

  • Support Multiple Signal Sensor Access

    •   Voltage

    •   Current

    •   Power

    •   Frequency

    •   Pressure

    •   Temperature

    •   Humidity

    •   Flow

    •   Liquid level

    •   Vibration

    •   Rotating speed

Input Signals

Thermocouple: K, R, B, N, E, T, J, S, WRE5-26, WRE3-25

Thermal resistance: pt1000, pt100, cu50

Current (DC): 4-20mA, 0-10mA, 0-20mA

Voltage (DC): 0-5V, 0-10V, 1-5V

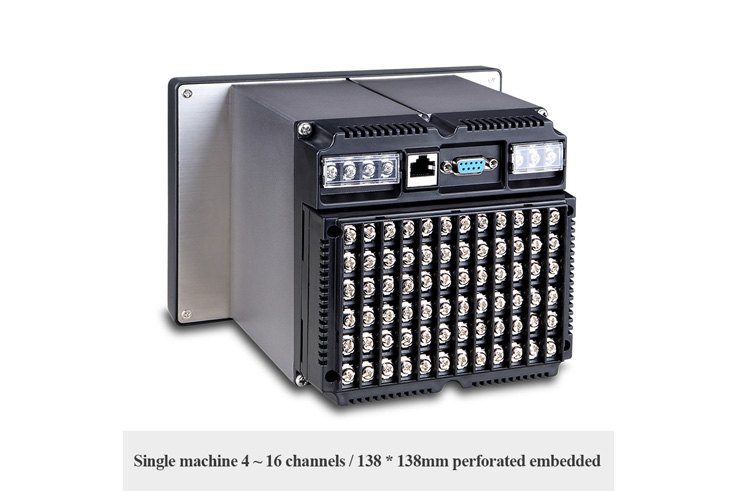

Number of Channels

8 – 16

Power Consumption

≤ 25 VA

Storage Interval

Self-setting from 1s to 19999s

Internal Memory

70MB, or optional 2GB

Acquisition Mode



Upper & Uppermost & Lower & Lowermost limit, 4 alarms per channel


8-channel NO relay 220VAC/3A

Power Supply

24VDC ± 10%

Distribution Output

1-channel 24VDC (optional multi-channel 24V or 5VDC output)


Standard RS232C (optional Ethernet, RS485, GPRS wirelss), Standard Modbus RTU protocol


Operating: -20°C to +70°C, Storage: 0°C to +50°C


Operating: 0 – 95% RH, Storage: 0 – 85% RH (non-condensing)


198 × 141 × 202 mm

Main Machine

Module No. Item Description
TP710-8 Data Acquisition 7 inch touch screen, 70MB internal storage, 8 channels signal input
TP710-16 Data Acquisition 7 inch touch screen, 70MB internal storage, 16 channels signal input
