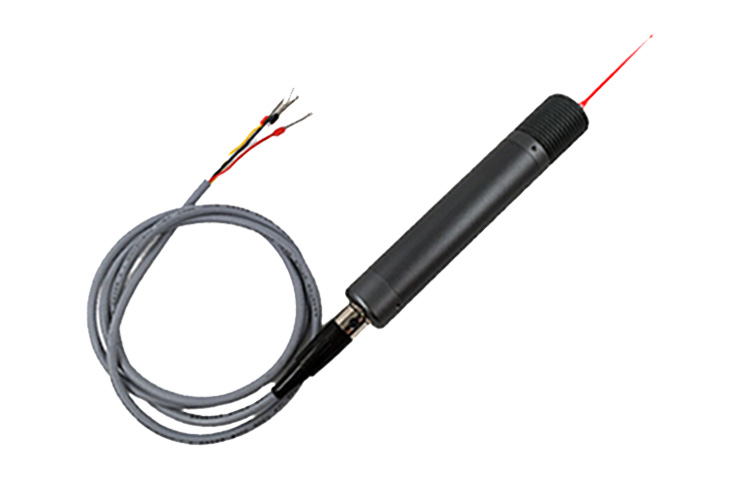

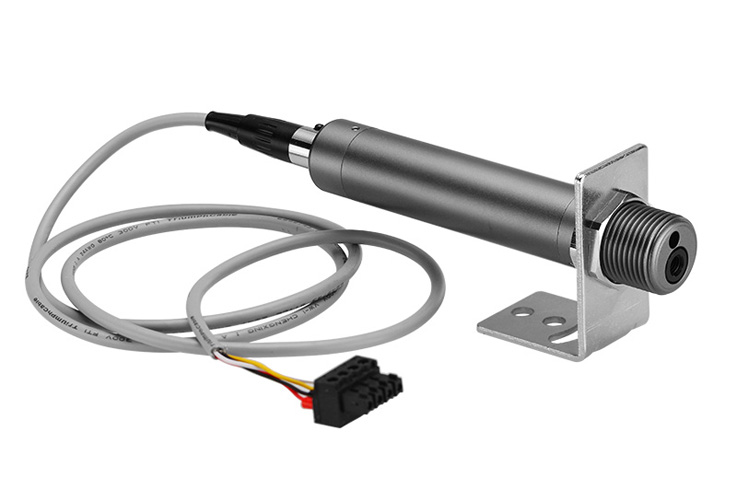

TP2360V1 Infrared Temperature Sensor

Toprie TP2360V1 Infrared Temperature Sensor supports a variety of signal outputs, can quickly respond to temperature data, has high temperature measurement accuracy and stable performance. The sensor can self-adjust the emissivity. With intelligent acquisition equipment, wireless remote transmission and remote temperature control can be achieved.

TP2360V1 sensor can be used in electronic components, power distribution cabinets, steel and aluminum, forging, quenching, heat treatment, metallurgy, machinery, wire, coal, coking, glass, semiconductor, and other fields.

Key Features

Measurement range from -70 to 280°C, or 0 to 1800°C

±0.2°C high accuracy

Support self-adjustable emissivity

Fast response, strong anti-interference

Small and portable, safe and reliable

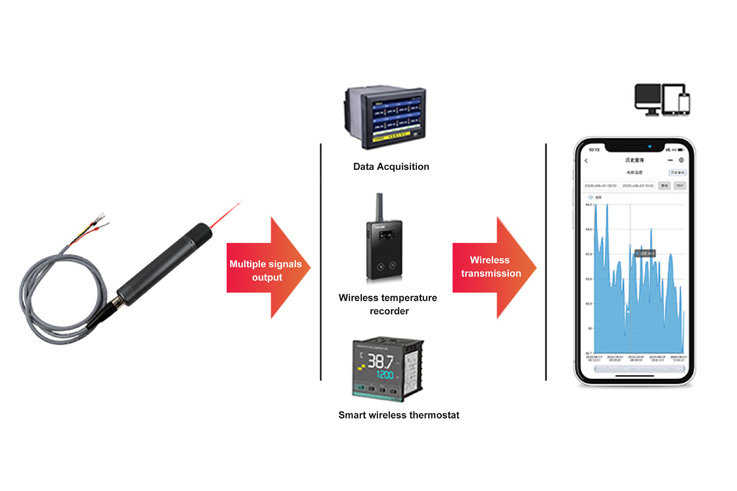

Remote monitoring on PC and mobile phone

Can be used with data acquisition to meet various needs

Measurement range

-70 to 280°C, or 0 to 1800°C




± 0.2°C

Output Signal

RS485 / 4-20mA / 0-5V / 0-10V / 1-wire Bus

Object Distance Ratio

11.6 : 1



0 – 1 adjustable (1 default)

Infrared Band

5.5 – 14 μm

Data Response Time

< 200ms

Operation Voltage

•  RS485 output: DC24V supply

•  4-20mA output: DC12V supply

Operation Current

< 15mA

Operation Environment

-40°C to +70°C, 0 – 90% RH (non-condensing)

Storage Environment

-40°C to +85°C, 0 – 95% RH (non-condensing)


112 × 19.5 mm



Main Machine

Module No. Item Description
TP2360V1 Infrared Temperature Sensor Measurement range -70 to 280°C, or 0 to 1800°C
