TP1000 Multi-channel Data Acquisition

Overview Specifications Ordering Resources

Toprie TP1000 Portable Data Acquisition integrates the data acquisition, display, built-in data storage, and network connectivity. The single device has 8 to 64 channels, even up to 200 channels of simultaneous acquisition. TP1000 can measure an electrical or physical phenomenon, such as voltage, current, temperature, pressure, humidity, liquid level, flow, etc. It also can be remotely transmitted wirelessly to computers & mobile phone monitoring.

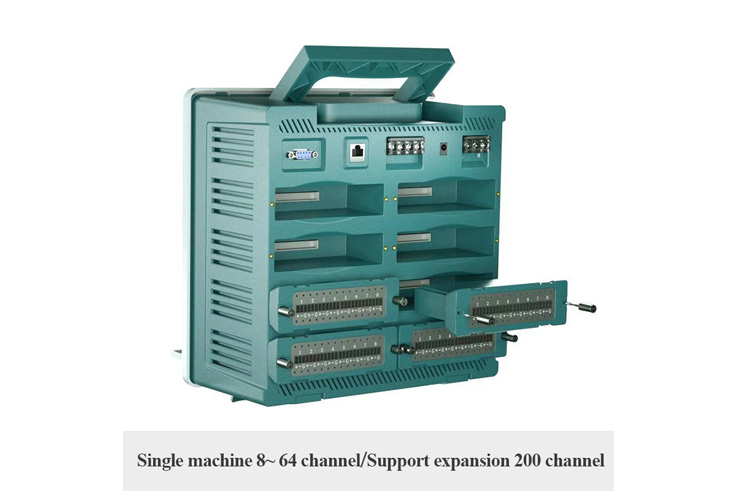

The TP1000 data acquisition is an eight-slot mainframe with thirteen plug-in module options to facilitate future channel expansion and function enhancement. The portable design is suitable for industrial and laboratory applications.

Key Features

Up to 200 channels of simultaneous acquisition

1s or optional 0.1s high-speed sampling

Standard 3GB internal storage

8-slot mainframes, optional 13 functional plug-in modules

10 inch color touch screen, multiple data display interface

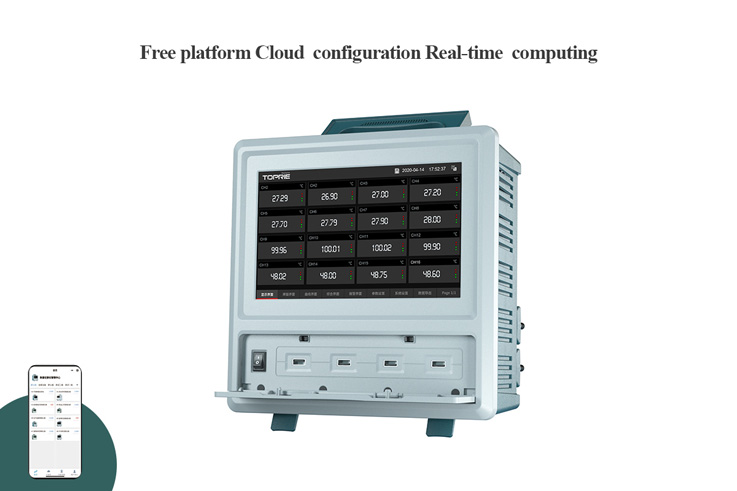

One-click connect to the IOT platform to realize remote monitoring of PC and Phone

RS232, RS485, Ethernet communication interface and USB for easy connectivity to your PC

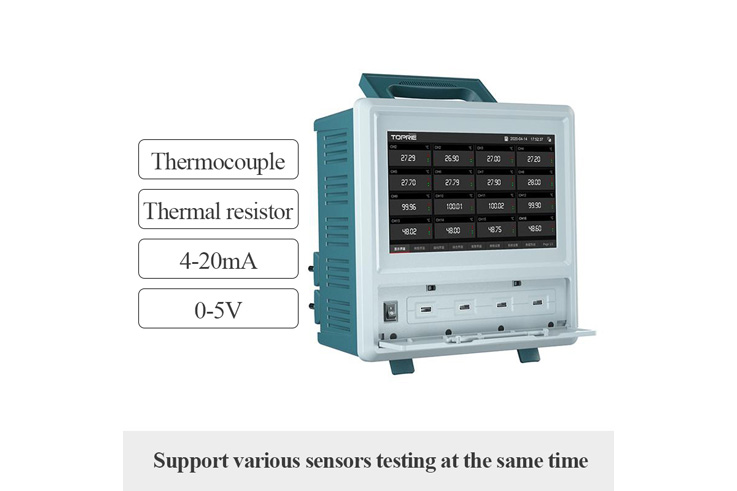

Support Multiple Signal Sensor Access

• Voltage

• Current

• Power

• Frequency

• Pressure

• Temperature

• Humidity

• Flow

• Liquid level

• Vibration

• Rotating speed

Input Signals	Thermocouple: K, R, B, N, E, T, J, S, WRE5-26, WRE3-25 Thermal resistance: pt1000, pt100, cu50 Current (DC): 4-20mA, 0-20mA Voltage (DC): 0-5V, 0-10V, ±20mV, ±100mV
Number of Channels	1 – 200
Power Consumption	≤ 25 VA
Storage Interval	Self-setting from 1s to 19999s
Internal Memory	3GB
Acquisition Mode	Cyclic
Alarm	Upper & Uppermost & Lower & Lowermost limit, 4 alarms per channel
Relay	8-channel NO&NC relay 250V 5A
Power Supply	AC 85V-265V, DC 12V-25V
Distribution Output	1-channel 24VDC (optional multi-channel 24V or 5VDC output)
Communication	Standard Ethernet, RS485, RS232 (optional USB/4G/WIFI wirelss), Standard Modbus TCP/RTU protocol
Temperature	Operating: -20°C to +50°C, Storage: 0°C to +50°C
Humidity	Operating: 0 – 95% RH, Storage: 0 – 85% RH (non-condensing)
Dimension	288 × 288 × 200 mm

Main Machine

Module No.	Item	Description
TP1000	Data Acquisition	10 inch touch screen, 3GB internal storage, 8-slot mainframes

Optional Modules

P/N	Item	Description
TP1708P	Universal Signal Input Module	Temperature K, T, J, E, S, B, R, N, WRe3, WRe5 thermocouple, PT1000, PT100 platinum resistance, DC voltage 0-5V, 0-10V, ±100mV, DC current 4-20mA
TP1708Q	0.1S Fast Acquisition Module	Temperature K, T, J, E, S, B, R, N, WRe3, WRe5thermocouple, DC voltage 0-5V, 0-10V, ±100mV, DC current 4-20mA (8 channel can only be used at the same time of the same type)
TP1708J	Relay Alarm Output Module	Adopt 8 NONC relay contact output. Each contact can be matched with any channel, the maximum current is 5A.
TP1701	Lithium Battery Module	Adopt 12V/4000mAh high-capacity polymer lithium battery pack. One battery module can be used for 8 channel DAQ to work continuously for 10 hours. Multiple battery modules can be used in one DAQ.
TP1708K	Switch Input Module	8-channel switch signal input module, Wet node, 5-24V
TP1748	DC Current Acquisition Module	Maximum 0-10A acquisition (current range can be customized), Accuracy 0.5%, Resolution 1mA
TP1758	DC Voltage Acquisition Module	Maximum 0-120V acquisition (current range can be customized), Accuracy 0.5%, Resolution 1mV
TP1706AC	AC Power Electric Parameter Test Module	Single-phase AC power electric energy parameter test record can be shared with other modules such as temperature in a DAQ host.
TP1706ADC	AC & DC Power Electric Parameter Test Module	Voltage range: 5-600V, Current range: 10mA-20A, Frequency range: 45-400Hz
TP1702V4	4G Wireless Terminal DTU Module	Support 4G wireless data upload cloud platform
TP1702V3	WiFi Wireless Terminal DTU Module	Support WiFi wireless data upload cloud platform
TP1728	Temperature & Humidity Acquisition Module	Can be connected to 4pcs 2305 temperature and humidity probes or 8pcs 2305 single humidity probes with an accuracy of ±3%. Can be connected to 8pcs DS18B20 temperature sensors with an accuracy of ±3%. (-20 to 120°C).
TP1708NTC	NTC Temperature Sensor Acquisition Module	Can be connected to 8 or 16 NTC temperature sensors.

Document

TP1000 Data Acquisition Introduction
