Saluki’s SARP-6 RF Instrument can provide a high-performance and cost-effective rf signal acquisition, record and playback solution. It can be used to directly acquire, record, and playback RF signal from 1MHz to 6GHz.

Figure 1  SARP-6 RF Signal Acquisition Record and Playback Apparatus

SARP-6, one portable instrument, can realize the functions of spectrum analyzer, data acquisition and vector signal generator.

The SARP-6 RF Signal Acquisition Record and Playback system is composed of up and down inverter module, high-performance ADC and DAC, and large capacity solid-state FLASH or high-performance disk. See below figure 2.

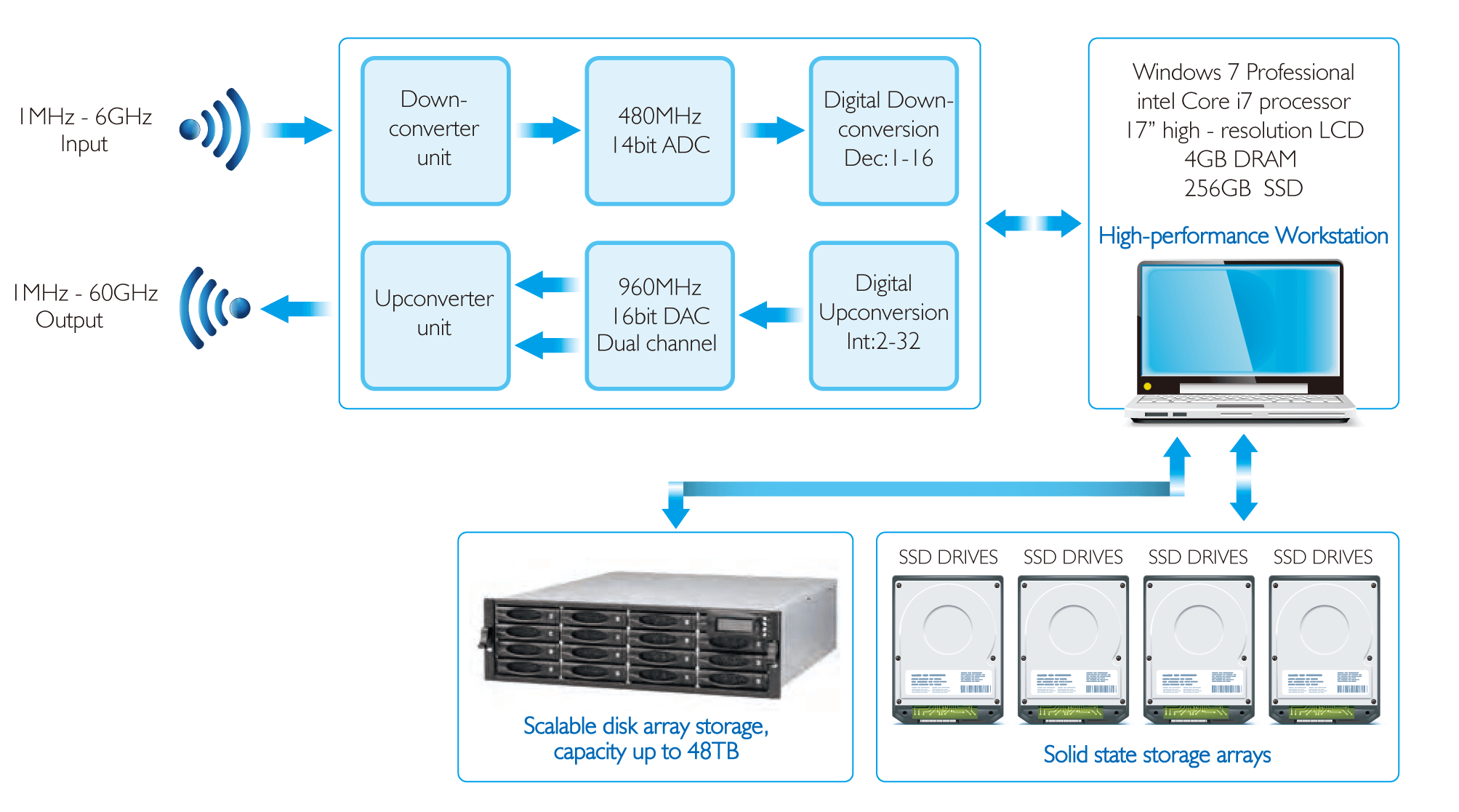

Figure 2  Diagram of SARP-6 RF Signal Acquisition Record and Playback system

Functions of RF Signal Acquisition Record and Playback system

1. Collect the target signal, perform detection and analysis through playback, obtain useful data, and judge the status of the target device.
2. Long-term continuous collection and analysis records provide a decision-making basis for electronic countermeasures, reconnaissance and intelligence monitoring, and provide raw data for receiver research and development.
3. After collecting the characteristic signal of the environment, it is played back, the external environment is reconstructed, and it acts as the signal source of the device under test.
4. Monitor and analyze complex electromagnetic environment signals, and analyze and evaluate experiments or real scenarios.

Typical Applications

RF Signal Acquisition, Record and Playback System can be widely used in radar, GPS, communication, telemetry, as well as many other circumstances for civil purposes when acquiring signal and recording it down.

Analysis Software

SARP-6 instrument offers signal analysis and quick-view software. Meanwhile, it also supports Tektronix SignalVu signal analysis software.

Figure 3 is the interface of SignalVu Signal Analysis Software.

Figure 3  SignalVu Signal Analysis Software

Figure 4 is the SignalOverView software which can achieve fast signal browsing for high-volume data.

Figure 4  SignalOverView software

Figure 5 is the SignalBoxManager software which is used for file management and conversion for data acquisition and playback.

Figure 5  SignalBoxManager software
