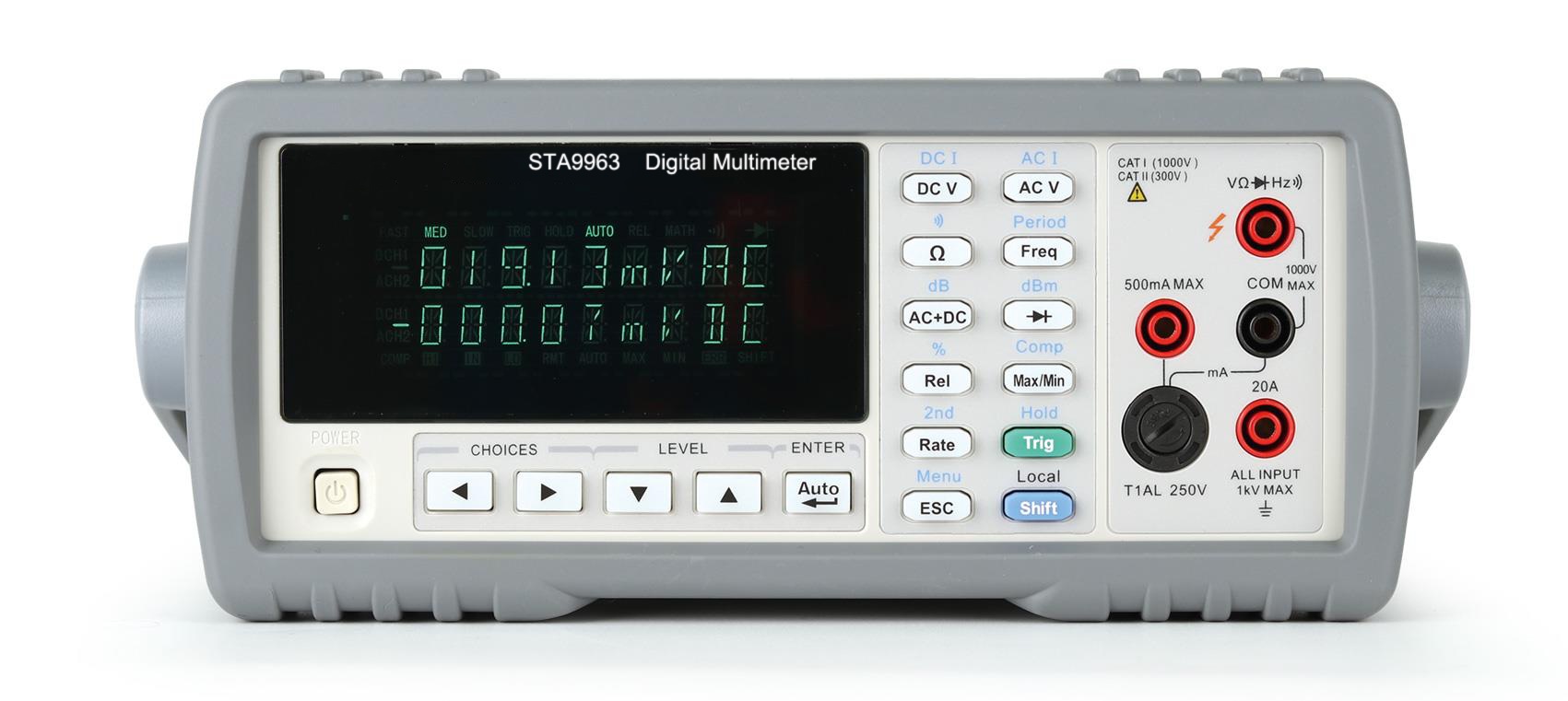

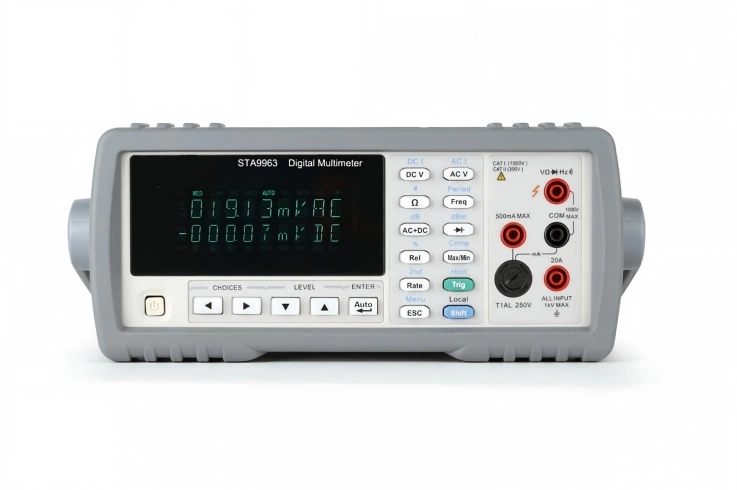

STA9963 is a digital multimeter with high accuracy, stability and speed. The instrument provides a maximum measurement speed of 1000 times/sec. STA9963 has a 0.0035% DC voltage basic accuracy, 0.0100% basic resistance accuracy and other high performance.
Application: Production line workbench / Maintenance workbench / Teaching laboratory / Automated test equipment
** Standard Lead Time: within 4 weeks **
6.5 bit 1199999 digits reading
Test speed up to 1000 times / second
Histogram, bar graph, trend chart display
AC low frequency signal can be tested down to 3Hz
Capacitance test function
Up to 5V diode test voltage
4.3-inch LCD color display, English interface, fast help

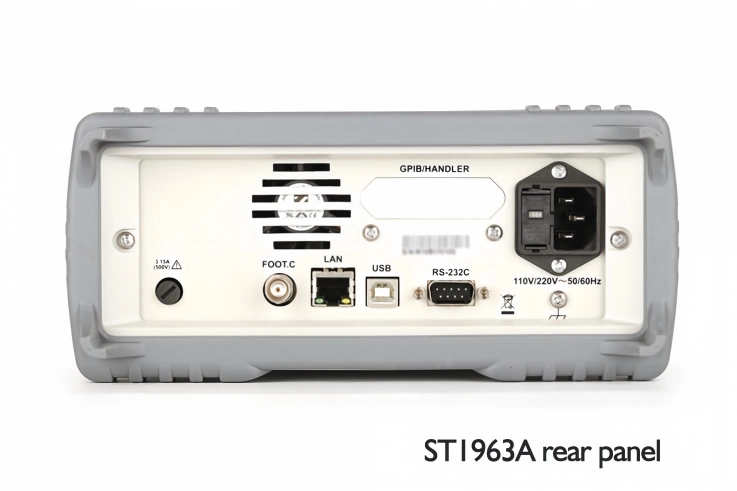

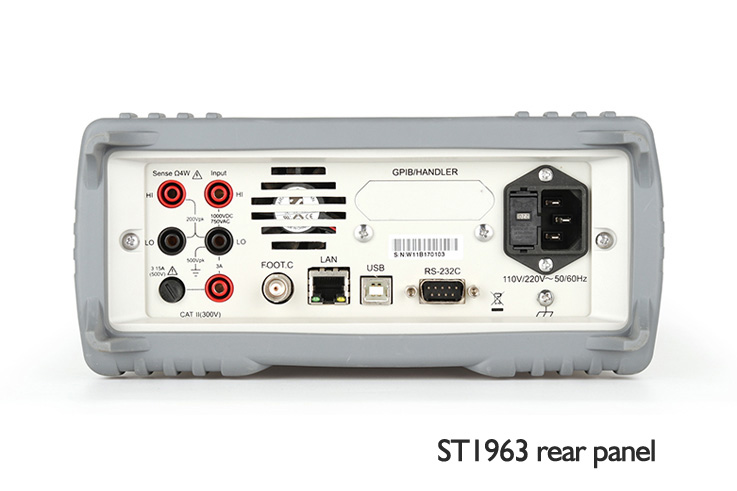

Small size, front and rear input terminal, easy to shelve
| Module | STA9963 / STA9963A/STA9953 |
| Display Digits | 1,199,999 digits reading |
| Measurement Parameters | DC voltage, AC voltage, DC current, AC current, DC resistance, capacitance, frequency, breakover, diode, temperature |
| Display Mode | Direct reading, histogram, bar graph, trend chart |
| Measurement Speed | Up to 1000 times/s |
| Math Function | Reset function, Min / Max / Average / Standard deviation, dB, dBm |
| Dimension | Rackmount: 215 (W) × 88 (H) × 300 (D) mm Standard: 235 (W) × 105 (H) × 320 (D) mm |
| Weight | 2.7kg |
(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’) |
| Module No. | Item | Description |

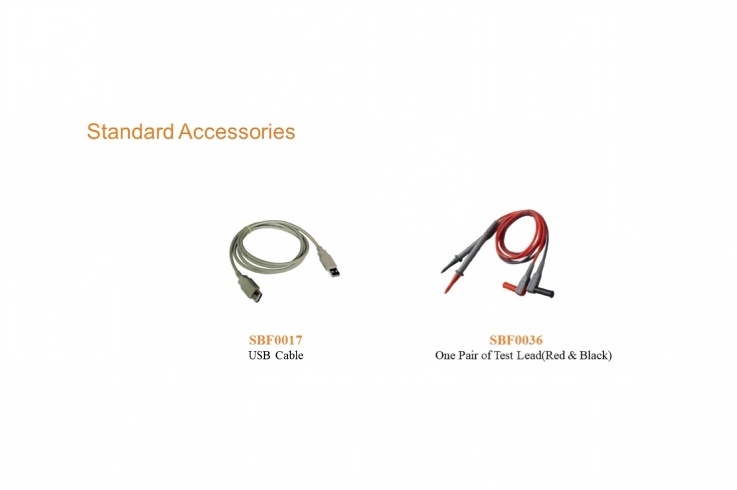

| STA9963 | Digit Multimeter | 6.5 digits, 1199999 readings, DCV accuracy: 0.0035+0.0005, including USB cable and test lead |
| STA9963A | Digit Multimeter | 6.5 digits, 1199999 readings, DCV accuracy: 0.0075+0.0005, including USB cable and test lead |
| STA9953 | Digit Multimeter | 5.5 digits, 1199999 readings, DCV accuracy: 0.010+0.005, including USB cable and test lead |
| Module No. | Item | Description |
| SBF0039 | Four Terminal Test Line | / |
