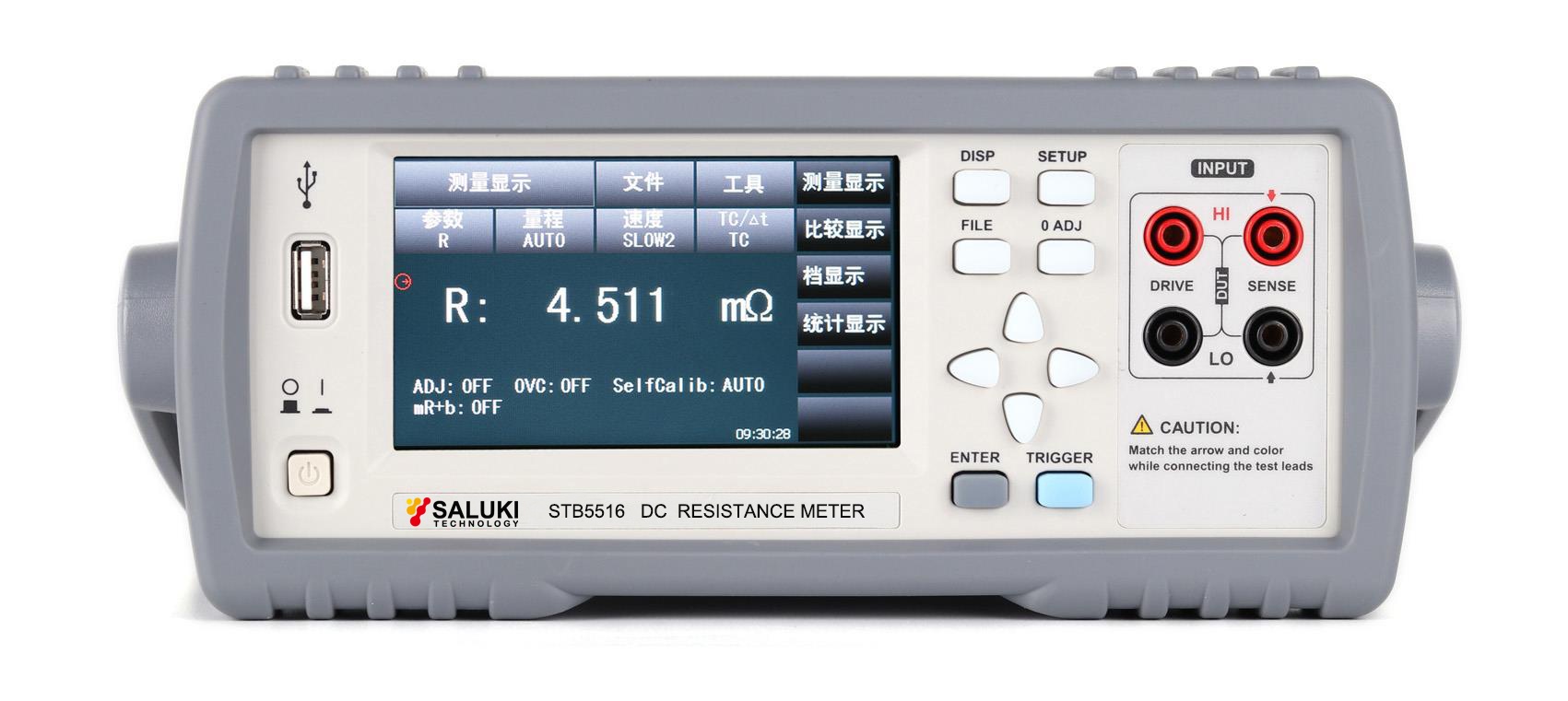

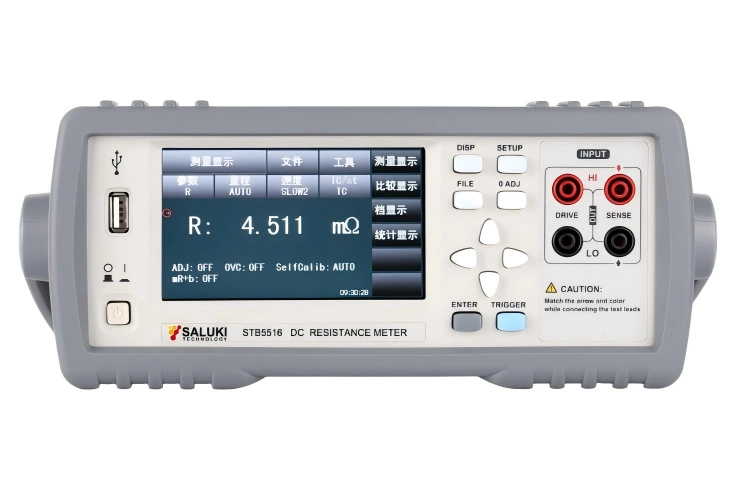

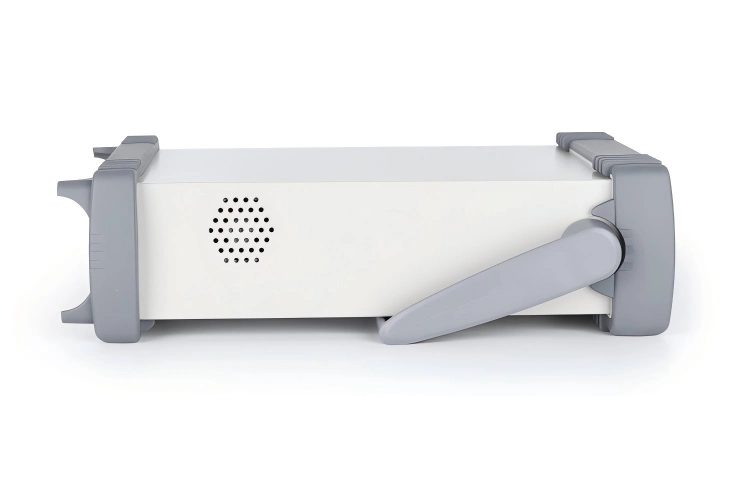

STB5516 Series DC Resistance Meter

STB5516 series DC resistance meter adopts 32 bits CPU and high density SMD technology, 4.3-inch and touch LCD screen brings ease for your eyes and convenience to your operation. The maximum 0.05% accuracy and minimum 1µΩ resolution shore up its leading role in testing relay contact resistance, interconnecting resistance, conductor resistance, PCB resistance and welding-hole resistance. Temperature compensation and conversion functions make your tests be free from the effect of the environment temperature. The offset voltage compensation has effectively eliminated the electromotive force of the DUT and its contact potential difference. For the contact influence of the thermoelectricity on DUT, its elimination is achieved. Automation on production lines can be greatly improved by the realization of ultra-high-test speed and the signal output of 3 compare results through HANDLER interface.

** Standard Lead Time: within 4 weeks **

Key Features

Measurement range of resistance: 1μΩ to 20kΩ/2MΩ, 10μΩ to 200kΩ

Maximum accuracy: 0.05%, minimum resolution: 1μΩ

Low-voltage test mode can effectively protect DUT

Multiple measurement combinations of R, LPR, T

Temperature compensation (TC), Temperature conversion (Δt)

Offset voltage compensation (OVC), Customer self-correction(0 ADJ)

Simultaneously output compare results of 3 bins (OVER, PASS and BEEP)

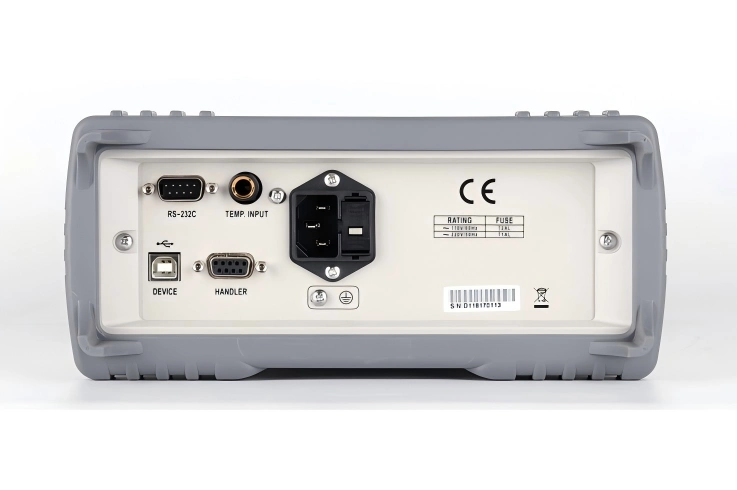

Available RS232, USB HOST, USB Device and LAN interface

24 bits, 4.3-inch and 4-wire touch LCD screen, resolution 480×272

Module

STB5516, STB5516A, STB5516B

Measurement Range

•  STB5516: 1μΩ – 2MΩ

•  STB5516A: 10μΩ – 200kΩ

•  STB5516B: 1μΩ – 20kΩ

Basic Accuracy

•  STB5516/A: 0.05%

•  STB5516B: 0.1%

Measurement Time

FAST: 10ms;  MED: 25ms;  SLOW1: 115ms;  SLOW2: 455ms

(Above data is correct when DISPLAY is OFF; When DISPLY is ON, 20ms should be added.)

Test Terminal

4-terminal

Trigger Mode

Internal, Manual, External, BUS

Setting Data Storage

30 groups

Sorting

3 bins, absolute value/ percentage

Dimension

Rackmount: 215 (W) × 89 (H) × 360 (D) mm

Standard: 235 (W) × 104 (H) × 360 (D) mm

Weight

3.6kg

(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description

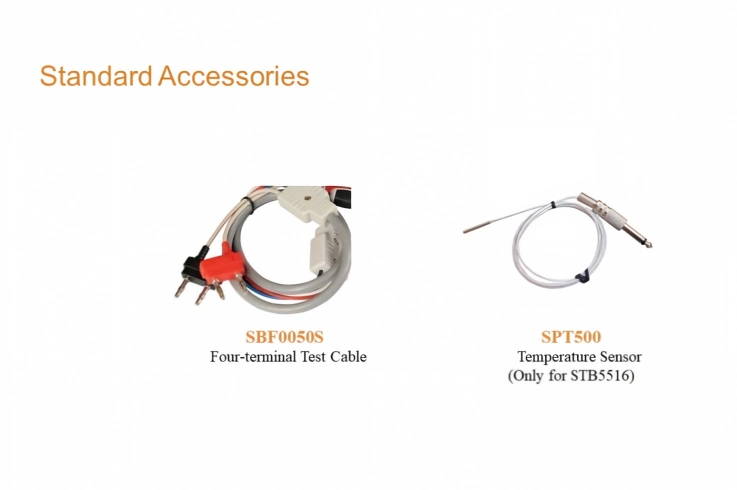

STB5516 DC Resistance Meter Test Range: 1uΩ-2MΩ, including four-terminal test cable, temperature sensor
STB5516A DC Resistance Meter Test Range: 10uΩ-200kΩ, including four-terminal test cable
STB5516B DC Resistance Meter Test Range: 1uΩ-20kΩ, including four-terminal test cable

Options

Module No. Item Description
SBF0065 Low Resistance Probe Frequency range: DC - 100kHz, maximum DC current: 1A
