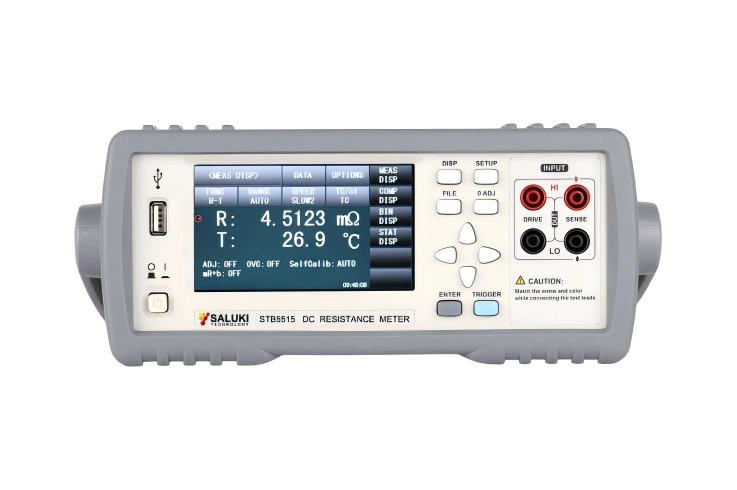

STB5515 DC Resistance Meter

STB5515 DC resistance meter adopts 32 bits CPU and high density SMD technology, 4.3-inch and touch LCD screen brings ease for your eyes and convenience to your operation. For the contact influence of the thermoelectricity on DUT, its elimination is achieved. The maximum 0.01% accuracy and minimum 0.1 µΩ resolution shore up its leading role in testing relay contact resistance, interconnecting resistance, conductor resistance, PCB resistance and welding-hole resistance. Temperature compensation and conversion functions make your tests be free from the effect of the environment temperature. The offset voltage compensation has effectively eliminated the electromotive force of the DUT and its contact potential difference. Automation on production lines can be greatly improved by the realization of ultra-high-test speed and the signal output of 10 compare results through HANDLER interface.

** Standard Lead Time: within 4 weeks **

Key Features

Measurement range of resistance: 0.1μΩ to 110MΩ

Maximum accuracy: 0.01%, minimum resolution: 0.1μΩ

Low-voltage test mode can effectively protect DUT

Multiple measurement combinations of R, LPR, T

Temperature compensation (TC), Temperature conversion (Δt)

Offset voltage compensation (OVC), Customer self-correction(0 ADJ)

Simultaneously output compare results of 10 bins (OVER, PASS and BEEP)

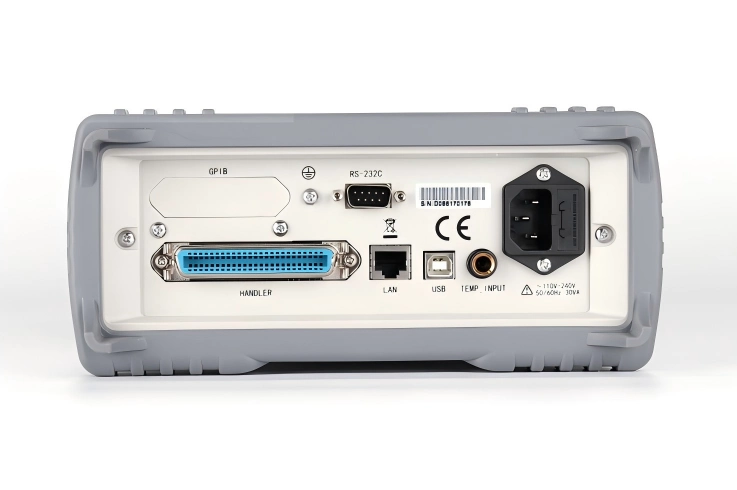

Available RS232, USB HOST, USB Device and LAN interface and optional GPIB

24 bits, 4.3-inch and 4-wire touch LCD screen, resolution 480×272



Measurement Range

0.1μΩ – 110MΩ

Basic Accuracy


Measurement Time

FAST: 7ms;  MED: 22ms;  SLOW1: 102ms;  SLOW2: 402ms

(Above data is correct when DISPLAY is OFF; When DISPLY is ON, 20ms should be added.)

Test Terminal


Trigger Mode

Internal, Manual, External, BUS

Setting Data Storage

30 groups


10 bins, absolute value/ percentage


Rackmount: 215 (W) × 87 (H) × 335 (D) mm

Standard: 235 (W) × 105 (H) × 360 (D) mm



(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description

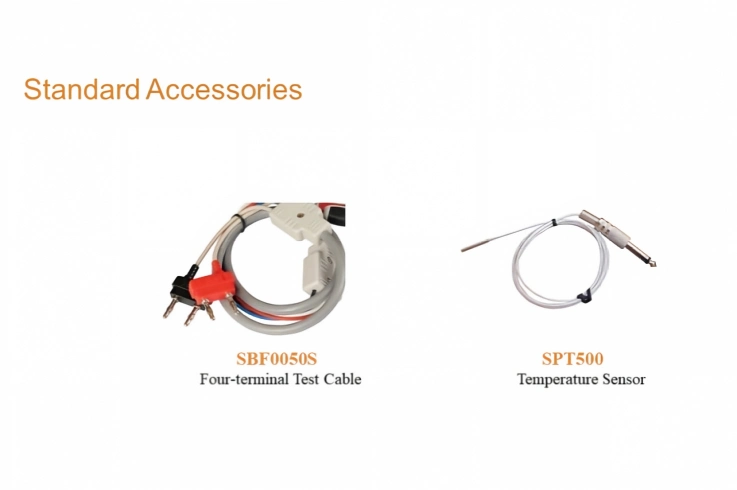

STB5515 DC Resistance Meter Test Range: 0.1uΩ-110MΩ, including four-terminal test cable, temperature sensor


Module No. Item Description
SBF0065 Low Resistance Probe Frequency range: DC - 100kHz, maximum DC current: 1A
