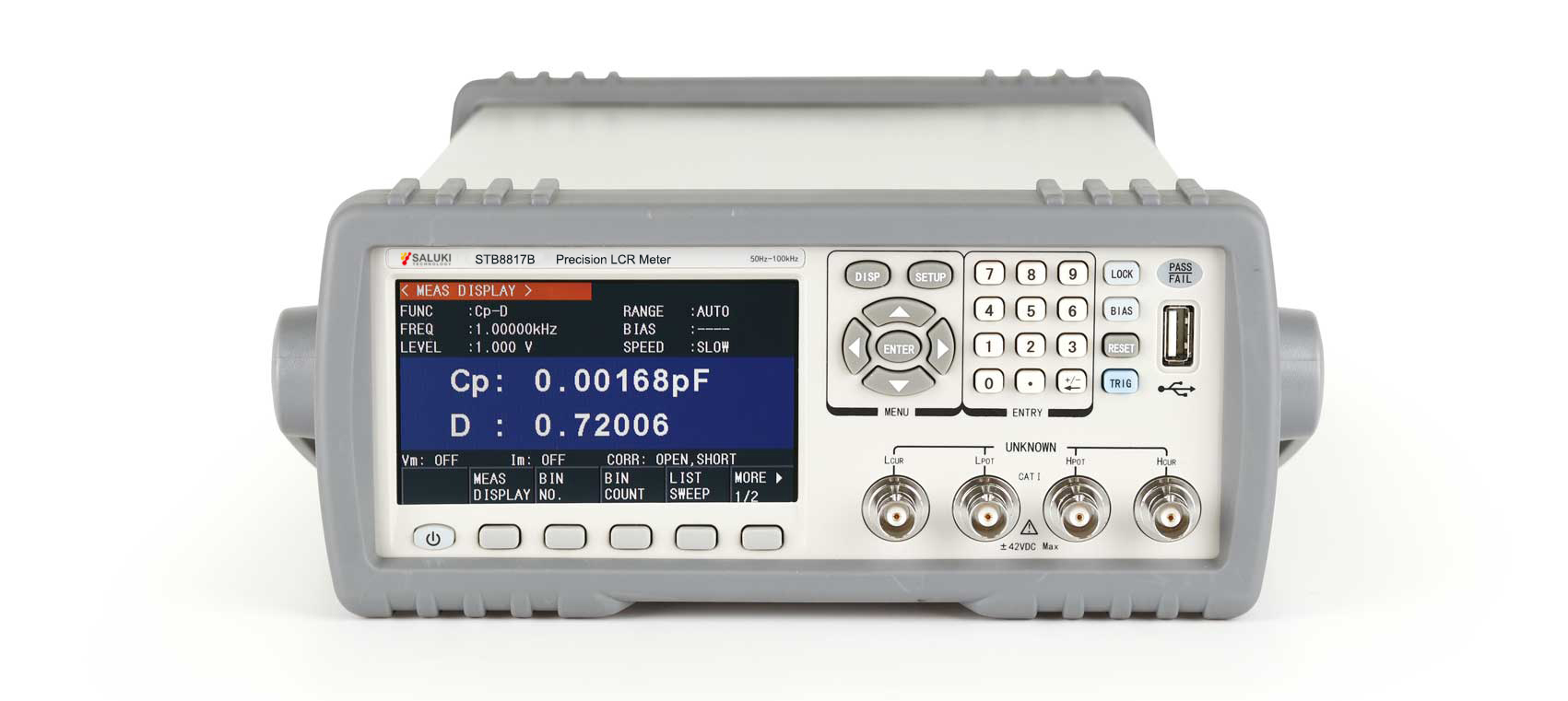

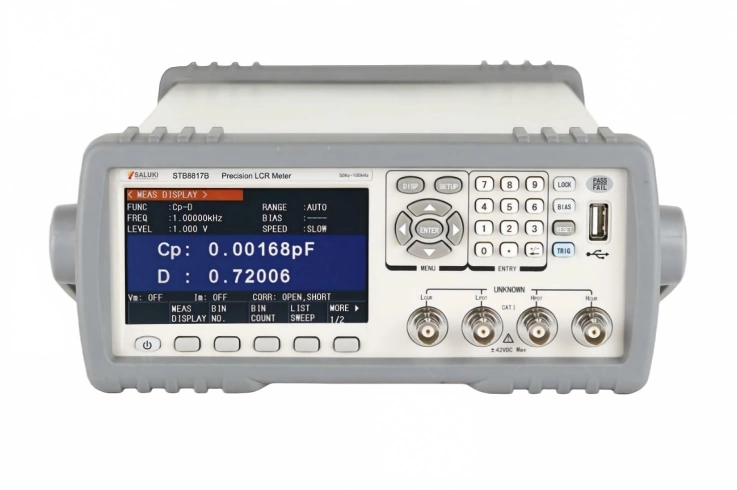

STB8817B LCR meter is a high-performance and cost-effective measuring instrument. It can automatically measure the inductance L, capacitance C, resistance value R, impedance modulus |Z|, quality factor Q and loss tangent value D and other component parameters. The instrument combines powerful functions, superior performance and simple operation, which can not only meet the needs of high-speed measurement on the production site, but also meet the needs of precision testing in quality inspection, measurement, scientific research and experiment departments.
Applications: Passive component / Other component
** Standard Lead Time: within 4 weeks **
Key Features
Ten test frequencies: 50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz
Test Accuracy: 0.1%
Test Speed: Max.12.5ms, support low frequency and high speed: TX4+3ms
Data logging and screen capture function
10 bins sorting, test sorting is more perfect
100 sets of LCRZ instrument setting files, 10 measurements
10-point list sweep, support multi-frequency test sorting
4.3 inch TFT liquid crystal display, 6-digit reading resolution
Super impact protection, power on state lock button, empty fixture judgment
Interface function, timing, trigger delay, etc. are more complete
Ultra-low signal source output offset (<100μV), meeting the needs of large inductor, common mode choke inductor test
