STB8827 Series Precision LCR Meter

CurrentHome>LCR Meters

STB8827 Series Precision LCR Meter

Overview Specifications Ordering Resources

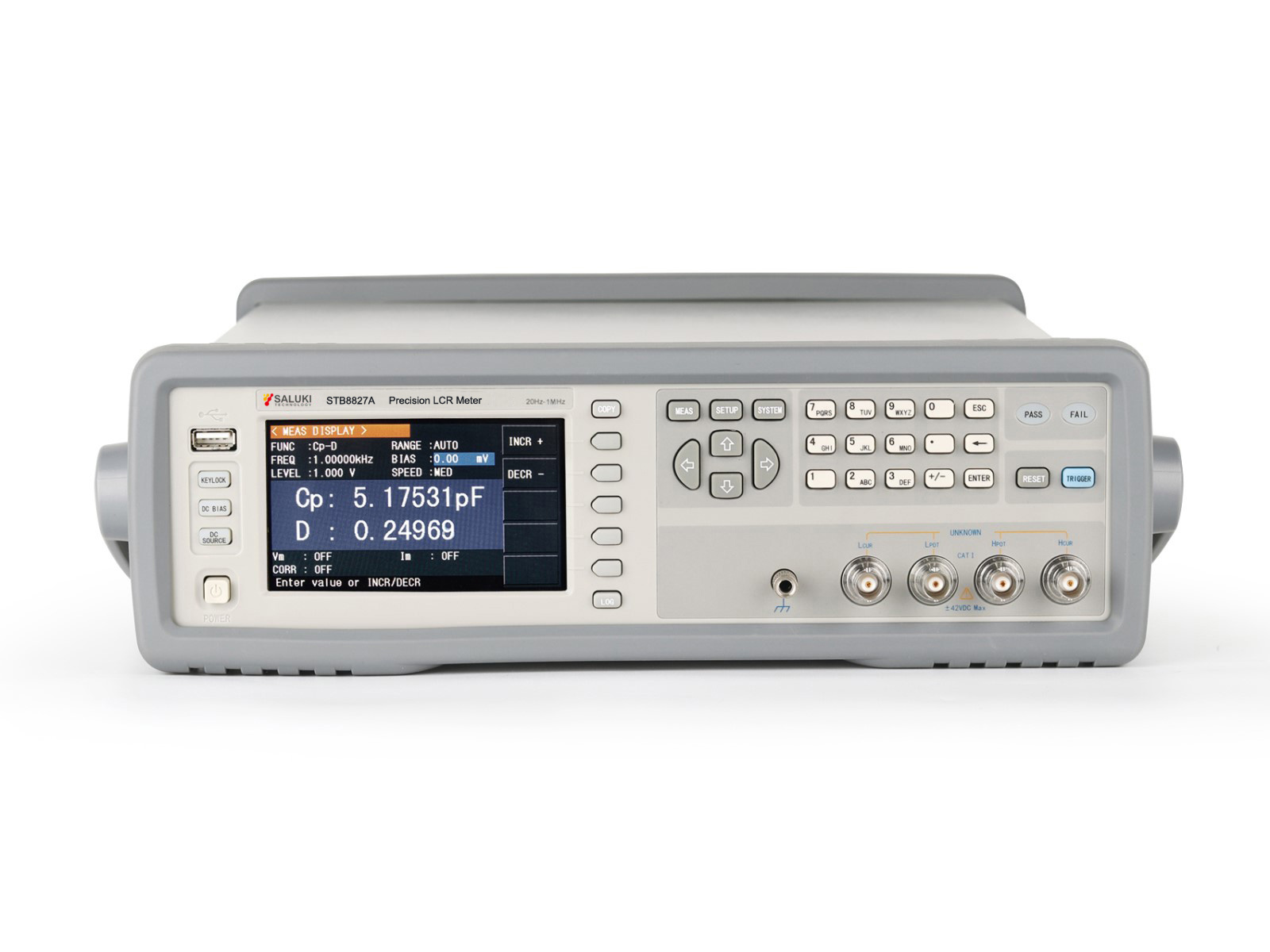

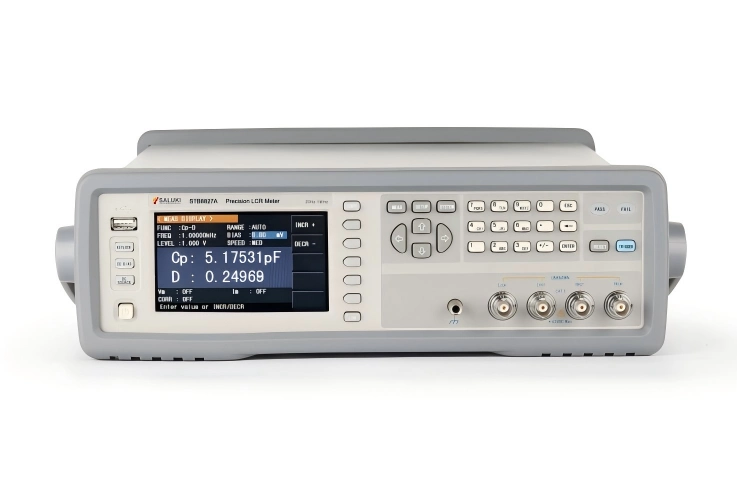

STB8827 series precision LCR meter has multiple functions and higher test frequency. With small size and portable appearance, it is convenient for use on the shelves. This instrument has a basic accuracy of 0.05%, maximum test frequency of 1MHz and resolution of 10 mHz. STB8827 series is easy to operate with a 4.3-inch LCD screen as well as English operation interfaces. Integrated transformer test function greatly improve the test efﬁciency. The instrument is also provided with multiple interfaces which can meet various requirements of the automatic sorting test, data transmission and storage.

Applications: Passive component / Semiconductor component / Dielectric material / Magnetic material / Semiconductor material / Liquid crystal cell

** Standard Lead Time: within 4 weeks **

Key Features

Test signal frequency of 1MHz, resolution of 10mHz

Basic Test Accuracy: 0.05%

Maximum test speed: 13ms/time

Selectable internal resistance of 30Ω, 50Ω and 100Ω

Transformer parameter test function

Automatic level control (ALC) function for V and I

Test signal level monitor function for V and I

Built-in comparator: 10-bin sorting and bin counter

Internal file storage and external USB-disk file storage

Test data can be saved to USB-disk directly

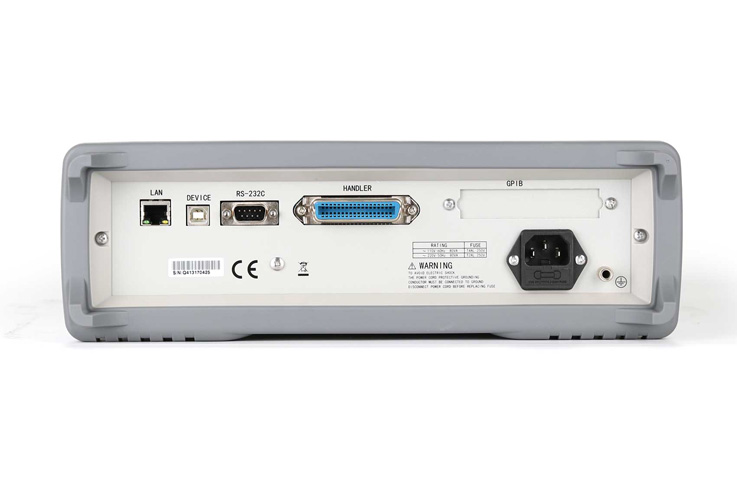

RS232C, USB, LAN, HANDLER, GPIB, DCI interface

Frequency Range	STB8827A: 20Hz – 300kHz STB8827C: 20Hz – 1MHz
Basic Accuracy	0.05%
AC Signal Source	Voltage: 5mVrms – 20Vrms Current: 10μArms – 20mArms
DC Bias	Voltage: 0V – ±5V Current: 0mA – ±50mA
	(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No.	Item	Description

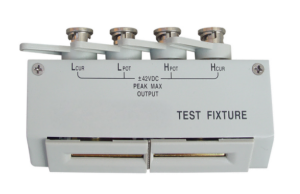

STB8827A	Precision LCR Meter	Frequency range: 20Hz - 300kHz, including transformer test fixture, short circuit, fixture and Kelvin test lead with box four-terminal insulation & lock
STB8827C	Precision LCR Meter	Frequency range: 20Hz - 1MHz, including transformer test fixture, short circuit, fixture and Kelvin test lead with box four-terminal insulation & lock

Options

Module No.	Item	Description
SBF0007A	Magnetic Ring Test Fixture	DC-120MHz, maximum ±42V DC bias, applied to single-turn inductance test of small magnetic ring, customizable size
SBF0008A	SMD Component Test Fixture	DC-120MHz, maximum ±42V DC bias, applied to SMD components, especially high-frequency small capacitor ≤3pF or small inductance ≤1uH, test frequency ≥100kHz
SBF0009B	SMD Component Test Fixture	DC-15MHz, maximum ±42V DC bias, applied to SMD components
SBF0047	Four-terminal Test Fixture	DC-120MHz, maximum ±42V DC bias, applied to impedance testing of wire-like devices, with shielded ground terminal
SBF0048	Four-terminal Test Fixture	DC-13MHz, maximum ±42V DC bias, applied to in-Line axial and radial impedance components
SBF0063	Four-terminal Test Fixture	DC-100kHz, maximum ±42V DC bias, applied to test bolted capacitor and DC_LINK capacitors
SBF0062A	Four-terminal Test Fixture	DC-100kHz, maximum ±42V DC bias, applied to test thin film bulk DC_LINK capacitors for electric vehicles
SBF1108C	Four-terminal SMD Test Fixture	DC-40MHz, maximum ±42V DC bias, applied to SMD components, especially high-frequency small capacitor ≤3pF or small inductance ≤1uH, test frequency ≥100kHz
SBF0077	Dielectric Test Fixture	DC-120MHz, DUT size: 10mm-56mm, DUT thickness: ≤10mm, applied to dielectric analysis of solid materials
