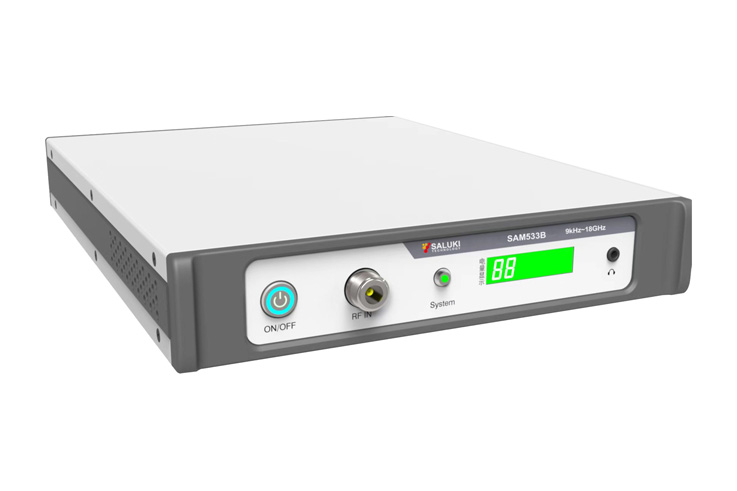

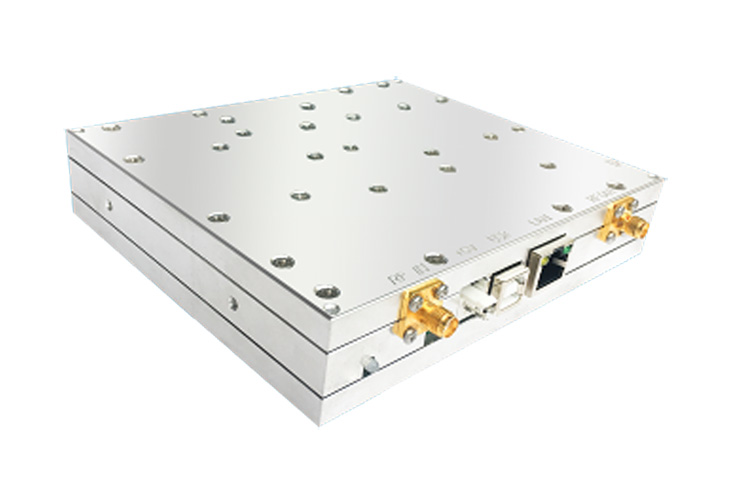

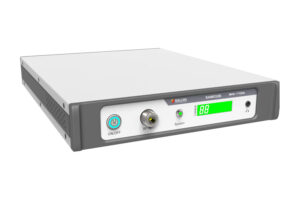

SAM533 Series Spectrum Analyzer Module

Saluki SAM533 series spectrum analyzer module is a wide-band, high-performance spectrum analyzer. The frequency measurement range covers up to 18GHz. The main technical indicators are comparable to the desktop spectrum analyzer. The integrated design of highly integrated RF front-end and digital processing enables it to have ultra-small size and independent signal processing capabilities, especially suitable for microwave test system integration and signal monitoring sensor applications. The product adopts fully digital IF processing technology to ensure higher measurement accuracy and excellent repeatability, and has independent signal processing capability, which is especially suitable for system integration and signal monitoring applications. The maximum real-time bandwidth of 40MHz meets the test of common radio signals such as mobile communication, TV and WiFi, and the 145MHz analog IF output provides users with a variety of test options.

The PC host computer directly obtains the measurement results through the USB or LAN interface. Users can flexibly carry out secondary development according to their needs, and can quickly build and upgrade the integrated test system. SAM533 series spectrum analyzer module can be widely used in aerospace, microwave communication, satellite navigation, radar detection, electronic detection and countermeasures, precision guidance and other fields.

Key Features

Frequency range: 5kHz - 8GHz / 9kHz - 18GHz

Resolution bandwidth: 1Hz -5MHz

Sensitive, DANL < -160dBm

Maximum real-time bandwidth: 40MHz

145MHz analog IF output

Independent source modules provide wider choices for system integration

Adopt USB, LAN interface, easy to control connection

Standard and complete SCPI commands make system integration testing flexible and convenient

Small size, ultra-light weight, easy system integration

Frequency Range

SAM533A: 5kHz to 8GHz,

SAM533B: 9kHz to 18GHz

Amplitude Range

DANL to +20dBm  (fc≥10MHz)

Safe Input Level

Average continuous power, maximum +27dBm

Input Attenuator Range

0 to 30dB in 1 dB step

RBW Range

1Hz to 5MHz, in 1-3-5 steps

VBW Range

10Hz – 5MHz

Displayed Average Noise Level (Preamplifier On)


•   1MHz – 10MHz: <-140dBm, typical -145dBm

•   10MHz – 2GHz: <-158dBm, typical-162dBm

•   2GHz – 3.1GHz: <-156dBm, typical -160dBm

•   3.1GHz – 5GHz: <-155dBm, typical -159dBm

•   5GHz – 8GHz: <-153dBm, typical-155dBm


•   1MHz – 10MHz: <-135dBm

•   10MHz – 2GHz: <-156dBm

•   2GHz – 5GHz: <-154dBm

•   5GHz – 7GHz: <-152dBm

•   7GHz – 8GHz: <-150dBm

•   8GHz – 15GHz: <-153dBm

•   15GHz – 18GHz: <-150dBm

•   7GHz – 8GHz: <-150dBm

•   8GHz – 15GHz: <-153dBm

•   15GHz – 18GHz: <-150dBm

(0dB attenuation, RBW=1 Hz)

Displayed Average Noise Level (Preamplifier Off)


•   5kHz – 1MHz: <-120dBm, typical -130dBm

•   1MHz – 10MHz: <-130dBm, typical -140dBm

•   10MHz – 2GHz: <-138dBm, typical -142dBm

•   2GHz – 3.1GHz: <-136dBm, typical -140dBm

•   3.1GHz – 5GHz: <-136dBm, typical -140dBm

•   5GHz – 8GHz: <-135dBm, typical -138dBm


•   9kHz – 100kHz: <-100dBm

•   100kHz – 5MHz: <-110dBm

•   5MHz – 4.0GHz: <-138dBm

•   4GHz – 7GHz: <-135dBm

•   7GHz – 8GHz: <-133dBm

•   8GHz – 15GHz: <-135dBm

•   15GHz – 18GHz: <-133dBm

(0dB attenuation, RBW=1 Hz)

SSB Phase Noise


•  -98 dBc/Hz @ 10kHz offset

•  ≤-108 dBc/Hz @ 1MHz offset


•  ≤-90 dBc/Hz @ 10kHz offset

•  ≤-105 dBc/Hz @ 1MHz offset

Sweep Time

Non-zero span: 5ms – 3000s,  Zero span: 20us – 3000s

Sweep Mode

Continuous, single

Trigger Mode

Free run, video, external

TOI (>30MHz)


SHI (>10MHz)


Input Related Spurious (>10MHz)



120 (W) × 32 (H) × 165 (D) mm



(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
SAM533A Spectrum Analyzer Module 5 kHz to 8 GHz
SAM533B Spectrum Analyzer Module 9 kHz to 18 GHz


Module No. Item Description
SAM533-01 10MHz High-stability Time-base /
SAM533-02 Standard Housing Spectrum analyzer module housing
