S3302RC Signal/ Spectrum Analyzer (5G Test)

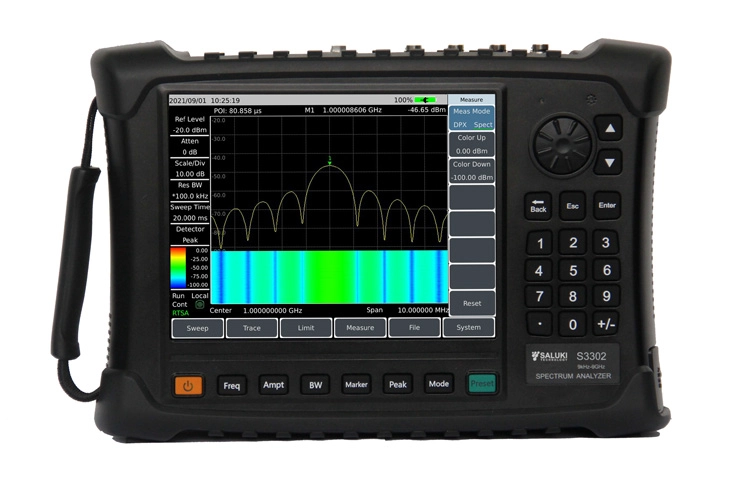

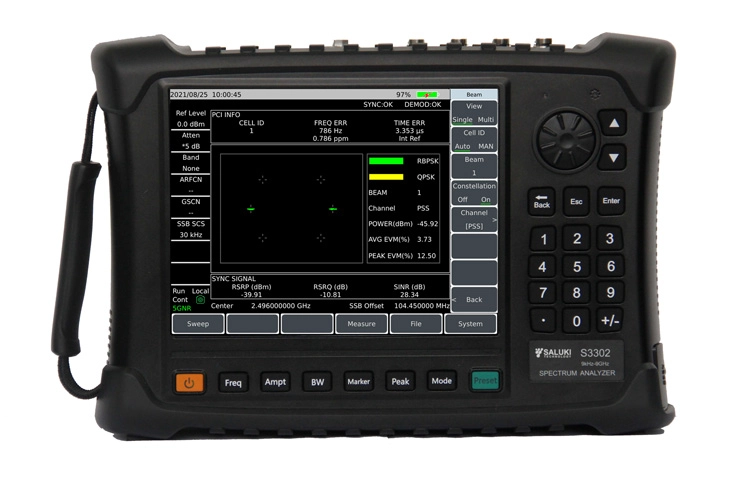

Saluki S3302RC spectrum analyzer is a broadband handheld real-time spectrum analyzer designed for field testing. The maximum real-time analysis bandwidth reaches 120MHz. It has real-time spectrum analysis, 5G NR demodulation analysis, LTE FDD/TDD demodulation analysis, GSM/ EDGE demodulation analysis, directional analysis, and other measurement function modes, as well as field strength measurement, channel power, occupied bandwidth, adjacent channel power, audio demodulation, harmonic distortion, spectral emission mask/spurious emission mask, indoor/outdoor map measurement.

Key Features

Wide frequency range from 9kHz to 9GHz, full-band preamplifiers configuration

Low displayed average noise level: -163dBm@1Hz RBW (typical)

Real-time spectrum analysis function, support persistence spectrum and waterfall display mode

Various measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI), RTSA, 5G NR demodulation, LTE FDD/TDD demodulation, GSM/EDGE demodulation function etc.

8.4 inch high definition LCD touch screen, one-click quick measurement, easy and convenient user operation

  • New Portable 5G Test Equipment !!!

    S3302RC signal and spectrum analyzer is a broadband handheld real-time spectrum analyzer designed for field testing. The maximum real-time analysis bandwidth reaches 120MHz.



    •   On-site debugging and installation and maintenance of mobile communications, wireless communications, satellite communications, radar, and other equipment

    •   Wireless communication signal demodulation analysis

    •   Interference source direction finding and map positioning

    •   Broadband modulation or transient signal test analysis

    •   Field test and diagnosis of transmitter and receiver

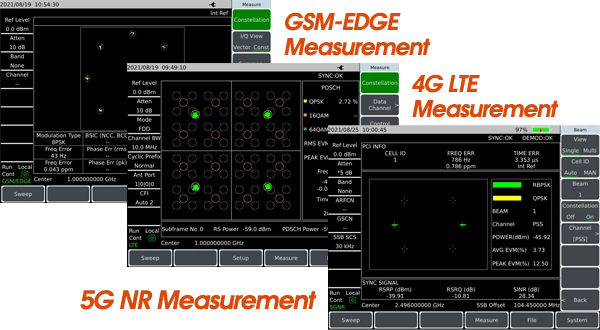

  • Comprehensive Performance Evaluation of Wireless Communication Base Stations

    S3302RC signal and spectrum analyzer has 5G NR, LTE FDD/TDD, GSM/EDGE, and other wireless communication signal demodulation analysis.



    S3302RC signal and spectrum analyzer can be applied to the field installation and commissioning of wireless communication base stations and maintenance support. It can provide a relatively complete solution for the user’s external field spectrum test.



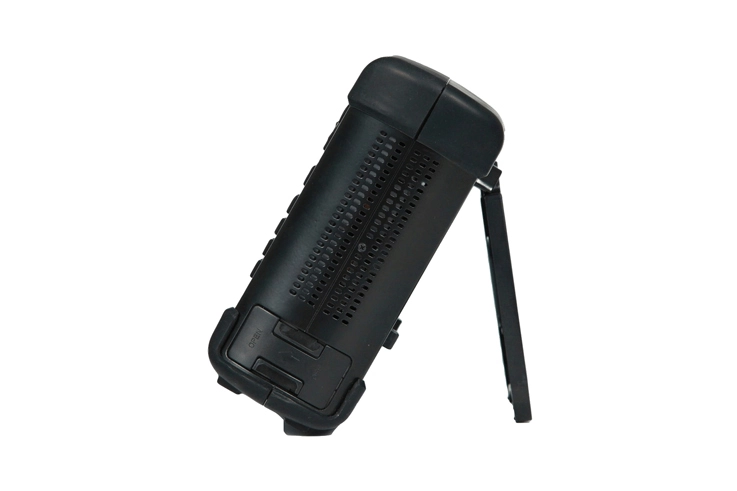

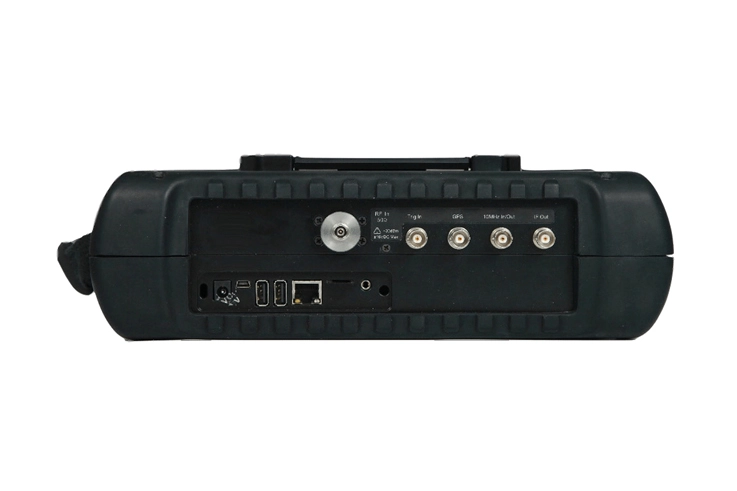

    The structure adopts a handheld chassis, small size, light weight, flexible power supply, easy to maneuver, and extremely suitable for on-site use.

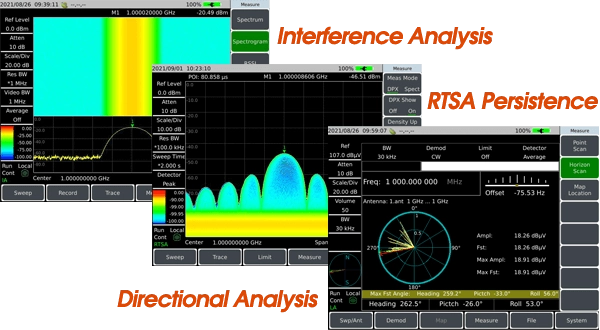

  • Broadband Spectrum Monitoring, Interference Recognition

    S3302RC handheld signal and spectrum analyzer has various measurement modes.

    •   Spectrum analysis

    •   Interference analyzer (spectrogram, RSSI)

    •   RTSA persistence

    •   RTSA Waterfall



    S3302RC can be used for electromagnetic environment detection, radio interference analysis, electromagnetic environment background assessment, spectrum monitoring, and illegal channel interference signal recognition.

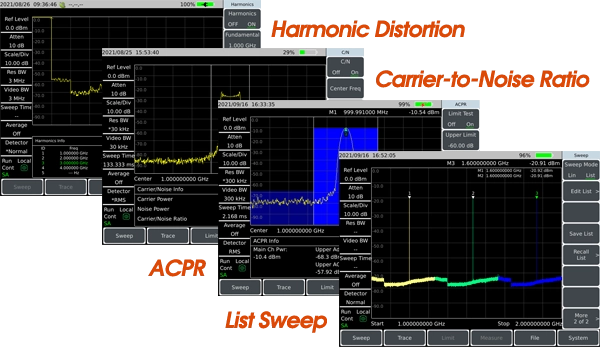

  • Field Test and Diagnosis of Transmitter and Receiver

    S3302RC signal and spectrum analyzer has various measurement function modes.



    •   Field strength measurement

    •   Channel power

    •   Occupied bandwidth

    •   Adjacent-channel power ratio

    •   Carrier-to-noise ratio

    •   Emission mask

    •   Indoor/outdoor map measurement

    •   Support GPS/BEIDOU positioning and frequency taming calibration function of the crystal oscillator in the machine

  • Easy & Convenient User Operation

    •   One-click quick measurement

    •   Storage and recall of state and data

    •   Combination of 8.4 inch LCD and capacitive touchscreen, smaller light refraction and clearer display

    •   Convenient capacitive touch screen operation

    •   Backlight keys enable easy viewing in darkness

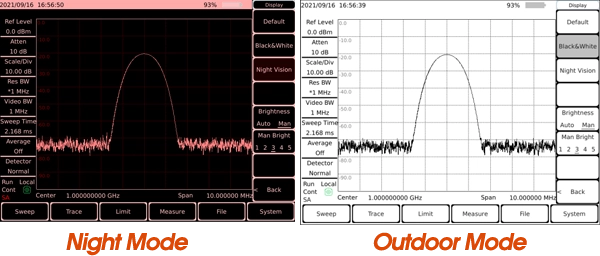

    •   Various display modes, better experience under outdoor light and night vision



Frequency Range

9 kHz to 9 GHz

Frequency Resolution

1 Hz

Frequency Reference

Frequency: 10MHz

Aging Rate: ±0.5ppm/year

Initial Frequency Accuracy: ±0.3ppm

Temperature Stability:±0.1ppm(-10 to 50℃, Comparative to 25℃)

Sweep Time

Range: 10μs-6000s (zero span)

Accuracy: ±2.00% (zero span)

Frequency Readout Accuracy

± (Frequency Readout × frequency Reference + 2%×Span + 10%×Resolution Bandwidth)

Frequency Span

Range: 100Hz – 9GHz or 0Hz

Accuracy: ±2.0%

RBW

1Hz-10MHz (1-3 Times of Stepping), 20MHz

Video Bandwidth

1Hz-10MHz (1-3 Times of Stepping), 20MHz

SSB Phase Noise (Carrier 1GHz)

•   ≤-108dBc/Hz @ Frequency offset 10kHz

•   ≤-110dBc/Hz @ Frequency offset 100kHz

•   ≤-118dBc/Hz @ Frequency offset 1MHz

•   ≤-129dBc/Hz @ Frequency offset 10MHz

Displayed Average Noise Level

Pre-amplifier Off:

•   ≤-140dBm (2MHz-3GHz)

•   ≤-138dBm (3GHz-9GHz)

Pre-amplifier On:

•   ≤-160dBm (2MHz-3GHz)

•   ≤-157dBm (3GHz-9GHz)

Residual Response

Pre-amplifier Off:

•   ≤-82dBm (10MHz-9GHz)

Pre-amplifier On:

•   ≤-95dBm (10MHz-9GHz)

(exceptional frequency: 3.15GHz)

Second Harmonic Distortion

50MHz-2GHz: <-65dBc

2GHz-4.5GHz: <-70dBc

(0dB attenuation, -30dBm input signal)

TOI

50MHz-5.2GHz: ≥+10dBm

5.2GHz-9GHz: ≥+12dBm

(-15dBm two-tone signal, 100kHz span, pre-amplifier off)

Absolute Amplitude Accuracy

±1.3dB (10MHz-9GHz)

Input Attenuator

0dB-30dB, 5dB steps

Maximum Continuous Input

•   +27dBm Peak Typical (≥10dB attenuation)

•   +20dBm Peak Typical (<10dB attenuation)

•   +10dBm Peak Typical (pre-amp on)

Reference Level

Range: -150dBm-+30dBm

Conversion Uncertainty: ±1.20dB

Dimension

•   314mm (W) × 218mm (H) × 91mm (D) (excluding handle, stand)

•   338mm (W) × 218mm (H) × 100mm (D) (including handle, stand)

Weight

≤ 4.6kg

Main Machine

Module No. Item Description
S3302RC Signal and Spectrum Analyzer 9 kHz to 9 GHz

Options

Module No. Item Description
S3302RC-006 Power Adapter /
S3302RC-007 Rechargeable Lithium Ion Battery Standby Battery
S3302RC-008 CAT5 LAN Cable Point to Point, 2m Length
S3302RC-009 Micro SD Card Class4, Capacity: 8G
S3302RC-010 GPS and BEIDOU function GPS Exposed Antenna
S3302RC-016 Interference Analyzer Option Provide Spectrogram, RSSI Measurement etc. Functions
S3302RC-019 List Sweep Option To Realize Continuous Sweep Measurement of Various Frequency Bands
S3302RC-020 Zero Span IF Output Output the Third or Fourth IF Signal (Choose One of Two)
S3302RC-021 ZE9080 Directional Antenna A Frequency Range:9kHz-20MHz,N(f) (Requires Option 025)
S3302RC-022 ZE9080 Directional Antenna B Frequency Range:20MHz-200MHz, N(f) (Requires Option 025)
S3302RC-023 ZE9080 Directional Antenna C Frequency Range:200MHz-500MHz, N(f) (Requires Option 025)
S3302RC-024 ZE9080 Directional Antenna D Frequency Range:500MHz-8GHz, N(f) (Requires Option 025)
S3302RC-025 ZE9080 Antenna Amplifier Frequency Range:10kHz-8GHz,N(m), include option 050 (Requires Option 021/022/023/024)
S3302RC-028 Functional Bag Protect the Instrument
S3302RC-029 Backpack Easy to Carry
S3302RC-030 Safety Instrument Carrying Case Used to Carry
S3302RC-038 Location Analyzer Option Internal software which requires option 010, option 050 and directional antenna for function realization
S3302RC-041 Omnidirectional Whip Antenna Frequency Range: 700MHz-2700MHz, suitable for communication frequency band
S3302RC-042 700MHz-4GHz Directional Antenna Active Log Periodic Antenna, Frequency Range: 700MHz-4GHz
S3302RC-043 700MHz-6GHz Directional Antenna Active Log Periodic Antenna, Frequency Range: 700MHz-6GHz
S3302RC-044 680MHz-10GHz Directional Antenna Active Log Periodic Antenna, Frequency Range: 680MHz-10GHz
S3302RC-046 400MHz-4GHz Directional Antenna Active Log Periodic Antenna, Frequency Range: 400MHz-4GHz
S3302RC-047 400MHz-6GHz Directional Antenna Active Log Periodic Antenna, Frequency Range: 400MHz-6GHz
S3302RC-048 380MHz-10GHz Directional Antenna Active Log Periodic Antenna, Frequency Range: 380MHz-10GHz
S3302RC-050 USB Electronic Compass External USB electronic compass, requires option 038 for function realization
S3302RC-051 6GHz Omnidirectional Antenna Portable Omnidirectional Antenna, Frequency Range: 680MHz-6GHz
S3302RC-052 8GHz Omnidirectional Antenna Portable Omnidirectional Antenna, Frequency Range: 300MHz-8GHz
S3302RC-054 Passive Directional Antenna Passive Log Periodic Antenna, Frequency Range: 700MHz-4GHz
S3302RC-055 Passive Directional Antenna Passive Log Periodic Antenna, Frequency Range: 700MHz-6GHz
S3302RC-056 Passive Directional Antenna Passive Log Periodic Antenna, Frequency Range: 680MHz-10GHz
S3302RC-060 N/SMA-JJ RF Cable (2m) N/SMA RF Coaxial Cable (m-m), DC-18GHz, 2m length
S3302RC-061 N/SMA-JJ RF Cable (1m) N/SMA RF Coaxial Cable (m-m), DC-18GHz, 1m length
S3302RC-067 ZE9080 Antenna Transportation Case Special case for ZE9080 antenna, for the whole set of ZE9080 antenna and antenna amplifier, including option 021, 022, 023, 024, 025
S3302RC-068 Real-time Spectrum Analysis Provide real-time spectrum analysis function, including digital fluorescence and waterfall chart
S3302RC-069 5G NR Measurement Perform demodulation analysis of 5G NR signals
S3302RC-070 Time Gating Measurement Perform time slot signal analysis
S3302RC-071 LTE Measurement Perform 4G LTE FDD/TDD demodulation analysis
S3302RC-072 GSM/EDGE Measurement Perform 2G GSM/EDGE demodulation analysis
S3302RC-073 120MHz Analysis Bandwidth The analog bandwidth is extended to 120MHz, affecting the zero-span IF output, IQ data acquisition, and real-time spectrum analysis functions
S3302RC-074 Indoor/outdoor Map Measurement Built-in software, including indoor/outdoor maps, need to be used with 010 option
