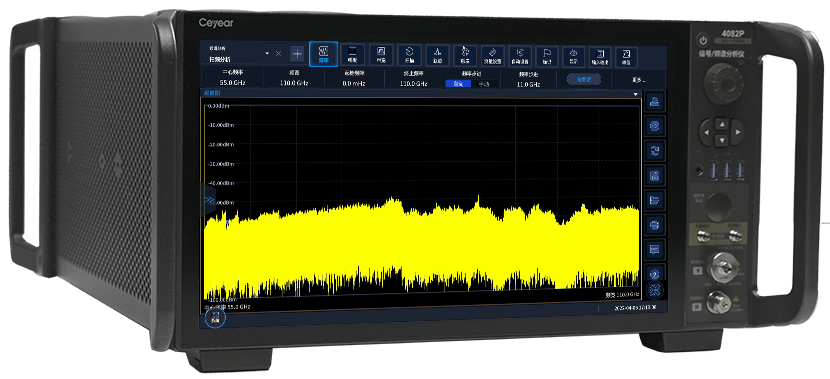

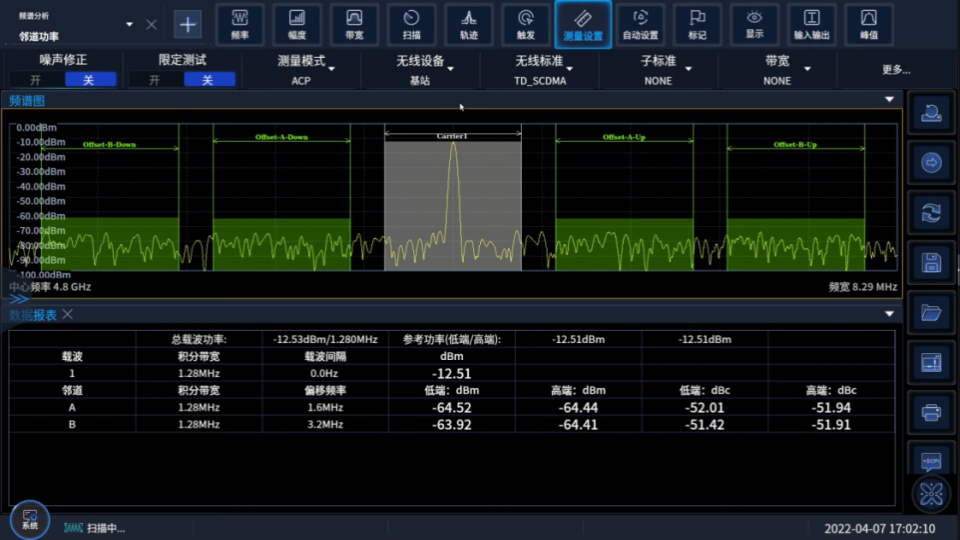

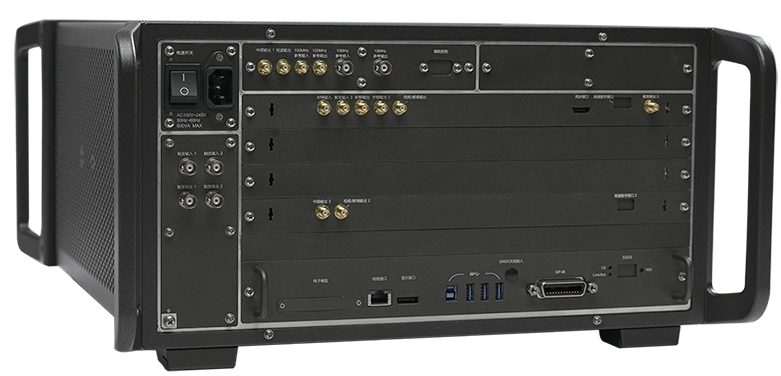

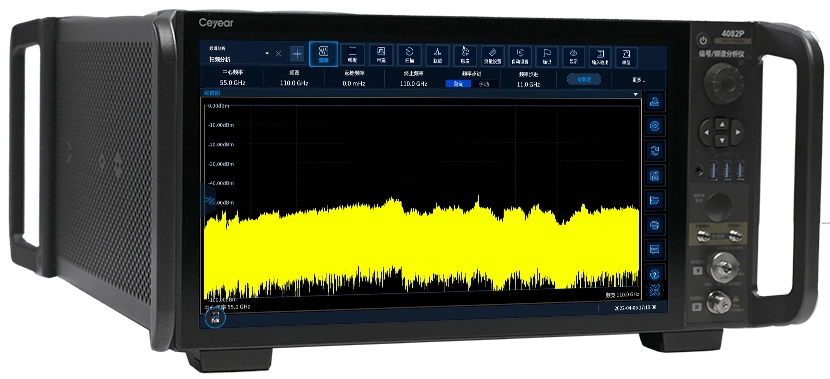

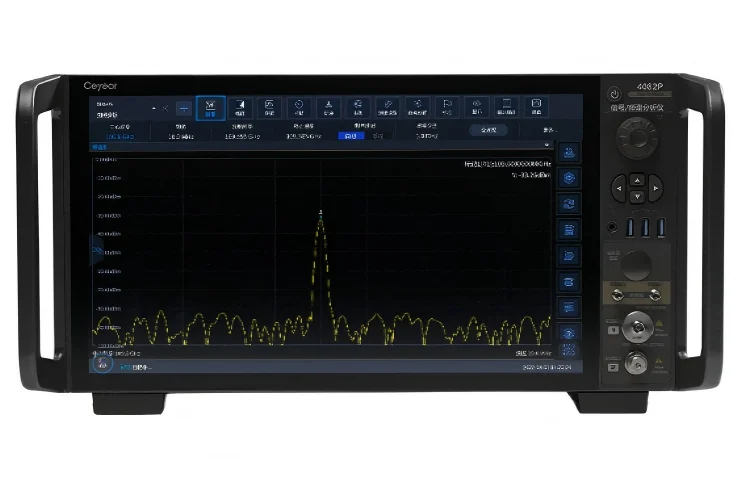

| Module No. |
Item |
Description |
| 4082-H02 |
Auxiliary IF output |
Output second IF signal, the frequency is 425MHz,750MHz,1.5GHz |
| 4082-H08 |
Wideband Log detect output |
Output a logarithmic detection signal reflecting the level characteristics of the input signal. |
| 4082-H11 |
10 Gigabit Ethernet Control and Data Interface |
Optical fiber based 10 gigabit network interface. |
| 4082-H12C |
Broadband digital interface |
It can output broadband IQ data in real time via fiber optic cable, supporting IQ data output with a maximum bandwidth of 400MHz. When used with a high-capacity data logger (4712C data logger), it can achieve real-time, high-capacity recording of IQ data. (Note: The 4082-H12C is optional when the analysis bandwidth is ≤400MHz; this option cannot be selected simultaneously with the 4082-H38-600 or 4082-H38-1200). |
| 4082-H12E |
Broadband digital interface |
It can output broadband IQ data in real time via fiber optic cable, supporting IQ data output with a maximum bandwidth of 1.2GHz. When used with a high-capacity data logger (4712E data logger), it can achieve real-time, high-capacity recording of IQ data. Requires configuration with 4082-H38-600 or 4082-H38-1200.
(Note: 4082-H12E is optional when 600MHz ≤ analysis bandwidth ≤ 1.2GHz). |
| 4082-H12F |
Broadband digital interface |
It can output broadband IQ data in real time via fiber optic cable, supporting IQ data output with a maximum bandwidth of 2GHz. When used with a high-capacity data logger (4712F data logger), it can achieve real-time, high-capacity recording of IQ data.
(Note: The 4082-H12F is optional when the analysis bandwidth is 2GHz). |
| 4082-H22C-4T/8T/16T/32T |
4712C Data Logger |
When interconnected with a signal/spectrum analyzer equipped with a 4082-H12C wideband digital interface, it can achieve real-time, high-capacity recording of signal data with a maximum analysis bandwidth of 400MHz. For detailed specifications of the recorder, please refer to the 4712 series data recorder documentation. |
| 4082-H22E-8T/16T/32T/64T |
4712E Data Logger |
When interconnected with a signal/spectrum analyzer equipped with a 4082-H12E broadband digital interface, it can achieve real-time, high-capacity recording of signal data with a maximum analysis bandwidth of 1.2 GHz. For detailed specifications of the recorder, please refer to the 4712 series data logger documentation. |
| 4082-H22F 16T/32T/64T |
4712F Data Logger |
When interconnected with a signal/spectrum analyzer equipped with a 4082-H12F broadband digital interface, it can achieve real-time, high-capacity recording of signal data with a maximum analysis bandwidth of 2GHz. For detailed specifications of the recorder, please refer to the 4712 series data recorder documentation. |
| 4082-H13 |
Precision Frequency Reference |
Provides a high-precision frequency reference. |
| 4082-H19-2T |
Local memory expansion |
Supports up to 2TB storage memory (electronic hard disk) |
| 4082-H19-4T |
Local memory expansion |
Supports up to 4TB storage memory (electronic hard disk) |
| 4082-H33-08 |
Electronic attenuator |
Frequency range: 9kHz to 8GHz, attenuation range: 30dB, in 0.5dB steps |
| 4082-H34-08 |
Low-noise preamplifier |
The preamplifier is selected according to the frequency upper limit of the signal analyzer
Example: 4082B frequency upper limit is 8.4GHz, Pre-amplifier need to select option H34-08 |
| 4082-H34-18 |
Low-noise preamplifier |
The preamplifier is selected according to the frequency upper limit of the signal analyzer.
Example: 4082D frequency upper limit is 18GHz, Pre-amplifier need to select option H34-18. |
| 4082-H34-26 |
Low-noise preamplifier |
The preamplifier is selected according to the frequency upper limit of the signal analyzer.
Example: 4082E frequency upper limit is 26.5GHz, Pre-amplifier need to select option H34-26. |
| 4082-H34-45 |
Low-noise preamplifier |
The preamplifier is selected according to the frequency upper limit of the signal analyzer.
Example: 4082F frequency upper limit is 45GHz, Pre-amplifier need to select option H34-45. |
| 4082-H34-50 |
Low-noise preamplifier |
The preamplifier is selected according to the frequency upper limit of the signal analyzer.
Example: 4082H frequency upper limit is 50GHz, Pre-amplifier need to select option H34-50. |
| 4082-H34-67 |
Low-noise preamplifier |
The preamplifier is selected according to the frequency upper limit of the signal analyzer.
Example: 4082L frequency upper limit is 50GHz, Pre-amplifier need to select option H34-67. |
| 4082-H34A-08 |
Low-noise preamplifier |
Only 4082B mainframe can be configured, and 4082-H34-08 is not optional at the same time. |
| 4082-H36 |
Pre-selector Bypass |
The tracking pre-selector in the bypass receiving channel. |
| 4082-H38-40 |
External frequency extender |
To extend the frequency range using external frequency mixing method. This option provides
LO output and IF input, as well as signal recognition ability. (Notes: this option can be selected
when the main unit is not 4052B: the extended frequency range depends on the selected
extension modules; the frequency extension module needs to buy additionally) |
| 4082-H38-200 |
Real-time spectrum analysis |
This option provides digital phosphor spectrum and seamless waterfall, including frequency
template trigger, which can support real-time spectrum analysis of 200MHz bandwidth. |
| 4082-H38-400 |
Real-time spectrum analysis |
This option provides digital phosphor spectrum and seamless waterfall, including frequency
template trigger, which can support real-time spectrum analysis of 400MHz bandwidth. |
| 4082-H38-600 |
Real-time spectrum analysis |
This option provides digital phosphor spectrum and seamless waterfall, including frequency
template trigger, which can support real-time spectrum analysis of 600MHz bandwidth. |
| 4082-H38-1200 |
Real-time spectrum analysis |
This option provides digital phosphor spectrum and seamless waterfall, including frequency
template trigger, which can support real-time spectrum analysis of 1.2GHz bandwidth. |
| 4082-H38-2000 |
2GHz analysis bandwidth |
Supports analysis bandwidth from 10Hz to 2GHz. (Note: Except for the 4082B, when using the H38 series options, the H36 preselector bypass option must be selected to provide optimal wideband signal reception characteristics.) |
| 4082-H38-4000 |
4GHz analysis bandwidth |
Supports analysis bandwidth from 10Hz to 4GHz. (Note: This option is not supported on the 4082B. Models 4082D and above require the H38-4000 option and the H36 preselector bypass option for optimal wideband signal reception characteristics.) |
| 4082-H40 |
External frequency extension function |
This option provides the ability to extend the frequency testing range using external mixing methods. It offers local oscillator output and intermediate frequency input interfaces, as well as signal identification capabilities. (This option is only available for main unit models other than 4082B; the extended frequency range depends on the selected spread spectrum module, which must be purchased separately.) |
| 4082-H41-10 |
Real-time spectrum analysis function |
It offers digital phosphor spectrum with a maximum bandwidth of 10MHz and seamless waterfall plot functionality, including frequency template triggering and broadband real-time spectrum analysis. |
| 4082-H41-40 |
Real-time spectrum analysis function |
Provides digital phosphor spectrum analysis with a maximum bandwidth of 40MHz and seamless waterfall plot functionality, including frequency template triggering and broadband real-time spectrum analysis. (The H38 option is required. This option is also available when configuring H38-40, H38-200, H38-400, H38-600, H38-1200, H38-2000, and H38-4000.) |
| 4082-H41-200 |
Real-time spectrum analysis function |
Provides digital phosphor spectrum analysis with a maximum bandwidth of 200MHz and seamless waterfall plot functionality, including frequency template triggering and broadband real-time spectrum analysis.
(The H38 option is required. This option is available when configuring H38-200, H38-400, H38-600, H38-1200, H38-2000, and H38-4000.) |
| 4082-H41-400 |
Real-time spectrum analysis function |
Provides digital phosphor spectrum analysis with a maximum bandwidth of 400MHz and seamless waterfall plot functionality, including frequency template triggering and broadband real-time spectrum analysis. (Requires the H38 option. This option is available when configuring H38-400, H38-600, H38-1200, H38-2000, and H38-4000.) |
| 4082-H41-600 |
Real-time spectrum analysis function |
It provides digital phosphor spectrum analysis with a maximum bandwidth of 600MHz and seamless waterfall plot functionality, including frequency template triggering and broadband real-time spectrum analysis. (The H38 option is required. This option is available when configuring H38-1200, H38-2000, and H38-4000.) |
| 4082-H41-1200 |
Real-time spectrum analysis function |
It provides digital phosphor spectrum with a maximum bandwidth of 1.2 GHz and seamless waterfall plot functionality, including frequency template triggering and broadband real-time spectrum analysis. (The H38 option is required. This option is available when configuring H38-2000 and H38-4000.) |
| 4082-H41-2000 |
Real-time spectrum analysis function |
Provides digital phosphor spectrum with a maximum bandwidth of 2GHz and seamless waterfall plot functionality, including frequency template triggering and broadband real-time spectrum analysis. (Requires the H38 option. This option is available when configuring H38-2000 and H38-4000.) |
| 4082-H48 |
Noise figure analysis |
Provide noise source drive and noise figure measurement function. 4082N/P only support
maximum 67GHz noise figure measurement.(note: the option need to select H34 low-noise
pre-amplifier option and corresponding 1660X noise source to finish the noise figure measurement.) |
| 4082-H96 |
User manual (paper publication) |
Provide a detailed user manual in hard copy |
| 4082-H97 |
Mounting rack |
Handles and accessories for 4052 mounting on standard racks |
| 4082-H99 |
Aluminum transportation case |
High-strength lightweight aluminum transportation case, with handle and roller, convenient
for transportation |
| 4082-H99-2 |
Plastic safety pull rod with wheels, packaging box |
High-strength plastic safety pull rod with wheels packaging box, with handle and wheels for easy transportation. |
| 4082-S01 |
Absolute power measurement function |
High-precision measurement of RF signal power is performed using an external USB power probe. (A compatible 8723X series power probe is required.) |
| 4082-S02 |
Noise power ratio measurement |
Provide noise power ratio parameters measurement |
| 4082-S04 |
Phase noise measurement |
SSB phase noise curves and single-point phase noise measurement |
| 4082-S05 |
EMC Pre-Compliance |
Provide EMC pre-compliance measurement function |
| 4082-S09 |
Analog demodulation function |
To analyze the modulation and distortion characteristics of AM, FM, and ΦM signals. |
| 4082-S10 |

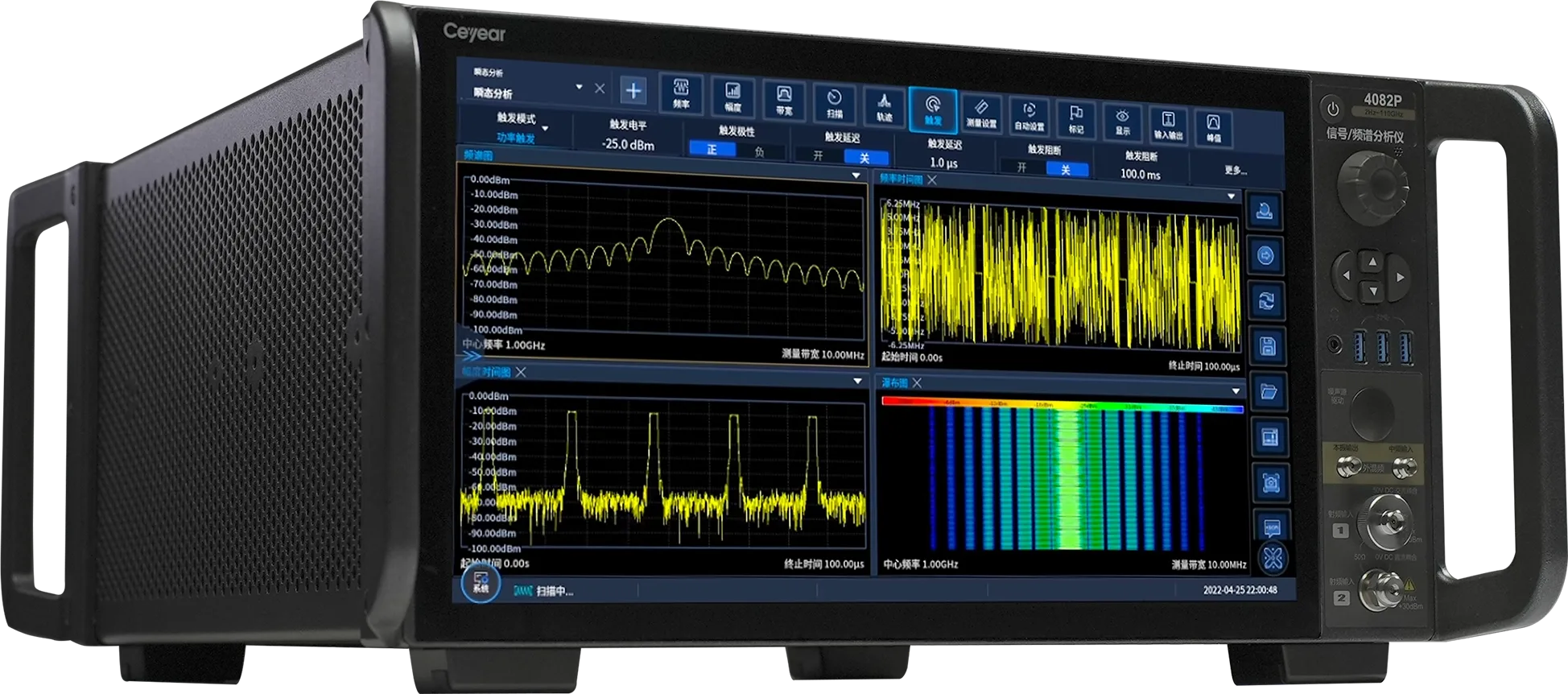

Transient analyzer |
To realize the measurement & analysis of transient parameters, spectrum, and time-varying
characteristics of signals, support playback of the recorded data. |
| 4082-S10H |
Frequency hopping signal analysis function |
Provides automatic measurement of characteristics such as dwell time, switching time, frequency, and error of frequency-hopping signals. (S10 option required) |
| 4082-S10F |
FMCW signal analysis function |
Provides automatic measurement of FMCW signal characteristics such as slope, deviation, and power. (S10 option required) |
| 4082-S12 |
Vector signal analyzer |
This option provides flexible demodulation functions of multiple single-carrier digital
modulation signals. It can provide vector charts, constellation diagrams, eye diagrams,
spectrum diagrams, etc., to analyze the characteristics of the modulation signal. The
modulation error of the signal can be obtained by demodulation, which helps to judge
the cause of the signal error |
| 4082-S12B |
Bit error rate testing function |
Supports bit error rate (BER) testing based on imported known data from files; supports BER testing based on user-recorded known data; supports PRBS-based BER testing; provides BER result output. (Optional S12 required) |
| 4082-S12M |
Multi-modulation analysis function |
Supports signal demodulation and analysis compliant with the DVB-S2/X standard; provides display windows for constellation diagrams, symbol tables, etc.; provides modulation quality analysis results such as EVM and origin offset. (S12 option required) |
| 4082-S13 |
Pulse signal analyzer |
Automatic measurement on time, level and modulation parameters of pulse waveform and
statistical analysis of pulse sequence |
| 4082-S14 |
OFDM signal analysis function |
Supports custom OFDM signal modulation analysis; supports custom configuration of multiple parameters such as preamble, pilot, CP, subcarrier, and number of symbols; provides view windows such as capture storage, power spectral density, constellation diagram, and result summary table. |
| 4082-S15 |
Amplifier measurement function |
It supports the measurement of amplifier ACLR, AM/AM, AM/PM, frequency response, and EVM characteristics, and supports time-domain and frequency-domain analysis. |
| 4082-S15D |
Digital predistortion measurement function |
It supports correction of amplifier nonlinear distortion and supports iterative learning control DPD and memory polynomial DPD. |
| 4082-S16 |
Multicarrier group delay measurement |
Provides absolute and relative group delay measurement capability for wideband signals |
| 4082-S40 |
WLAN 802.11a/b/g measurement |
Broadband wireless local area network protocol physical layer test (802.11a/ b/g), covering radio
frequency, modulation analysis, and modulation quality testing. |
| 4082-S40N |
WLAN 802.11n measurement |
Broadband wireless local area network protocol physical layer test (802.11n), covering radio
frequency, modulation analysis, and modulation quality testing |
| 4082-S40AC |
WLAN 802.11ac measurement |
Broadband wireless local area network protocol physical layer test (802.11ac), covering radio
frequency, modulation analysis, and modulation quality testing. |
| 4082-S40AX |
WLAN 802.11ax measurement |
Broadband wireless local area network protocol physical layer test (802.11ax), covering radio
frequency, modulation analysis, and modulation quality testing. |
| 4082-S40BE |
WLAN 802.11be 分析功能 |
Supports 802.11be protocol signal demodulation, supports various result measurements such as EVM, frequency error, and quadrature error, and provides multiple views including spectrum diagrams, constellation diagrams, result summary tables, EVM vs. carrier, and quadrature error vs. carrier. (S40 option required) |
| 4082-S41D |
LTE/LTE-A TDD downlink signal analysis function |
Supports downlink signal modulation analysis; supports modulation analysis of each TDD subframe configuration type; supports modulation analysis with custom parameter configuration; supports downlink E-TM template modulation analysis; supports measurement of parameters such as EVM, switching power, frequency error, and power; provides views such as acquisition storage, power spectral density, constellation diagram, result summary table, and EVM vs carrier. |
| 4082-S41U |
LTE/LTE-A TDD uplink signal analysis function |
Supports uplink signal modulation analysis; supports custom parameter configuration modulation analysis; supports measurement of parameters such as EVM, frequency error, and power; provides views such as capture storage, power spectral density, constellation diagram, result summary table, and EVM vs carrier. |
| 4082-S42D |
LTE/LTE-A FDD downlink signal analysis function |
Supports downlink signal modulation analysis; supports custom parameter configuration modulation analysis; supports downlink E-TM template modulation analysis; supports EVM, frequency error, power and other parameter measurements; provides views such as capture storage, power spectral density, constellation diagram, results summary table, EVM vs carrier. |
| 4082-S42U |
LTE/LTE-A FDD uplink signal analysis function |
Supports uplink signal modulation analysis; supports custom parameter configuration for modulation analysis; supports measurement of parameters such as EVM, frequency error, and power; provides views such as capture storage, power spectral density, constellation diagram, results summary table, and EVM vs carrier. |
| 4082-S43D |
NB-IoT downlink signal analysis function |
Supports downlink signal modulation analysis for narrowband IoT based on FDD LTE standard; supports three deployment modes: standalone, in-band, and guard band; supports one-click testing of N-Test Model and flexible configuration analysis with custom parameters; supports measurement of parameters such as EVM, frequency error, and power; provides views such as constellation diagram, result summary table, and EVM vs carrier. |
| 4082-S43U |
NB-IoT uplink signal analysis function |
Supports uplink signal modulation analysis for narrowband IoT based on FDD LTE standard; supports flexible configuration analysis with custom parameters; supports measurement of parameters such as EVM, frequency error, and power; provides constellation diagrams, result summary tables, and EVM vs carrier views. |
| 4082-S45 |
V2X signal analysis function |
Supports modulation analysis of vehicle-to-everything (V2X) side-link signals based on 5G NR standard; supports measurement of parameters such as EVM, frequency error, and power, and provides views such as constellation diagrams, result summary tables, and EVM vs. carrier. |
| 4082-S46D |
5G NR Downlink signal measurement |
Support 5G NR DOWNlink signal demodulation, EVM, spectrum flatness, time alignment error;
Support ACP, spectrum emission template, transmit on/off, CCDF and other power
measurement; Support multiple bandwidth and multiple TM. |
| 4082-S46U |
5G NR Upling signal measurement |
Support 5G NR UPlink signal demodulation, EVM, spectrum flatness, time alignment error;
Support ACP, spectrum emission template, transmit on/off, CCDF and other power
measurement; Support multiple bandwidth and multiple TM. |
| 4082-S47D |
5G NR downlink signal combination measurement function |
Supports simultaneous measurement and display of 5G downlink signal EVM, ACLR, and SEM measurement results in a single measurement. (S46D option required) |
| 4082-S48 |
Bluetooth signal analysis function |
Supports Bluetooth signal analysis in BR, EDR, and LE modes; supports measurement of parameters such as output power and frequency drift; provides result summary tables, constellation diagrams, and other views. |
| 4082-S49D |
WCDMA downlink signal analysis function |
Supports WCDMA downlink signal demodulation, and supports the measurement of parameters such as code domain power, EVM, frequency error, symbol rate error, and IQ offset; supports automatic detection of active channels; and provides views such as code domain power, result summary table, constellation diagram, and channel list. |
| 4082-S49U |
WCDMA uplink signal analysis function |
Supports WCDMA uplink signal demodulation, and supports the measurement of parameters such as code domain power, EVM, frequency error, symbol rate error, and IQ offset; supports automatic active channel detection; and provides views such as code domain power, result summary table, constellation diagram, and channel list. |
| 4082-S50 |
GSM signal analysis function |
It supports GSM signal demodulation and measurement of parameters such as time-domain power, EVM, and frequency error; it provides views such as amplitude acquisition, result summary tables, and constellation diagrams. |
| 4082-S51 |
UWB signal analysis function |
Supports UWB signal analysis based on IEEE 802.15.4 and IEEE 802.15.4z, and supports parameter measurements such as PPDU power, SHR power, NRMSE, and STS; supports all UWB channels and bandwidths; provides amplitude acquisition, result summary tables, pulse views, etc. |
