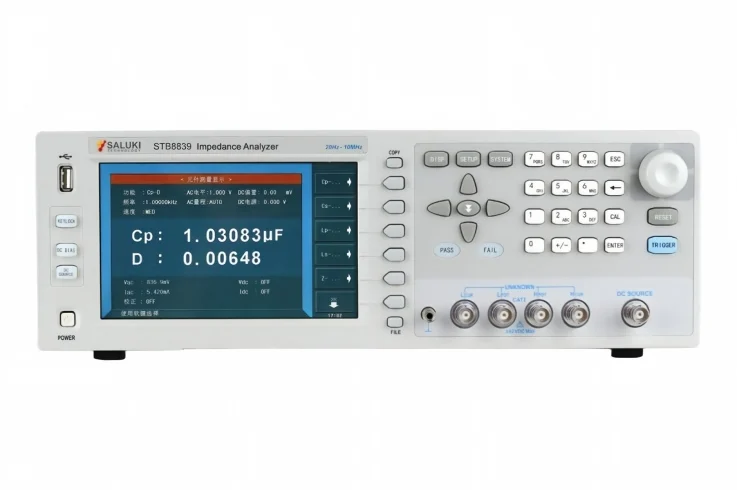

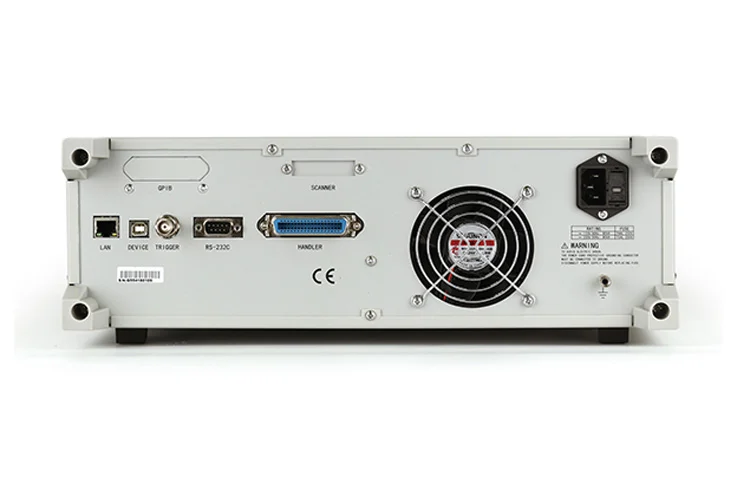

STB8839 Series Precision Impedance Analyzer

Overview Specifications Ordering Resources

STB8839 series precision impedance analyzer is a new generation impedance test instrument by adopting the current international advanced automatic balance bridge principle. Its basic accuracy of 0.05%, the fastest test speed of 5.6ms, the frequency range of 20Hz-10MHz, and the impedance test range of up to 1GΩ can meet the testing requirements of components and materials, especially for low-loss (D) capacitors and high-quality Measurement of Factor (Q) Inductors. The four-terminal pair port configuration method can effectively eliminate the influence of the electromagnetic coupling of the test line and expand the lower limit of the low-impedance test capability ten times lower than that of the conventional five-terminal configuration instrument.
STB8839 series supports high-power test conditions of 2V AC test signal and 40V DC bias. The enhanced multi-parameter list sweep/multi-parameter graph analysis capability will help users to expand the ability to fully evaluate components.
STB8839 series is a powerful tool for electronic component design, inspection, quality control and production testing. It can implement various tests such as IEC and MIL standards.

Applications: Passive component / Semiconductor component / Dielectric material / Magnetic material / Semiconductor material / Liquid crystal cell

** Standard Lead Time: within 4 weeks **

Key Features

Test frequency: 20Hz-10MHz

High accuracy: auto-balance bridge technology, 4-terminal pair

High stability and consistency: up to 15 test ranges

High speed: up to 7.7ms

High resolution: 7-inch, 800×600

201 points list sweep function

Multi-parameter graphic sweep function

Varactor diode automatic polarity function

10 bins sorting, sorting result with sound and light alarm

High compatibility: support SCPI commands, compatible with KEYSIGHT E4980A, E4980AL, HP4284A etc.

A. High Precision
B. High Stability and High Consistency
C. High Speed
■ Passive Components:
Evaluation of impedance parameters and performance analysis for capacitors, inductors, magnetic cores, resistors, piezoelectric devices, transformers, chip components, network elements, etc.
■ Semiconductor Components:
Testing and analysis of parasitic parameters for LED driver ICs; C-VDC characteristics of variable capacitance diodes; analysis of parasitic parameters for transistors or integrated circuits.
■ Other Components:
Impedance evaluation for printed circuit boards (PCBs), relays, switches, cables, batteries, etc.
■ Dielectric Materials:
Evaluation of dielectric constant and loss angle for plastics, ceramics, and other materials.
■ Magnetic Materials:
Evaluation of permeability and loss angle for ferrites, amorphous materials, and other magnetic materials.
■ Semiconductor Materials:
Dielectric constant, conductivity, and C-V characteristics of semiconductor materials. Liquid Crystal Materials: Dielectric constant, elastic constants, and C-V characteristics of liquid crystal cells.

Fixture
Four-end clamp with card
Fixture
Magnetic ring fixture
Dielectric test fixture
Frequency Range	STB8839: 20Hz to 10MHz, STB8839A: 20Hz to 5MHz
Basic Accuracy	0.05%
AC Signal Source	Voltage: 5mVrms – 2Vrms Current: 50μArms – 20mArms
DC Bias	Voltage: 0V – ±40V Current: 0mA – ±100mA
	(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No.	Item	Description

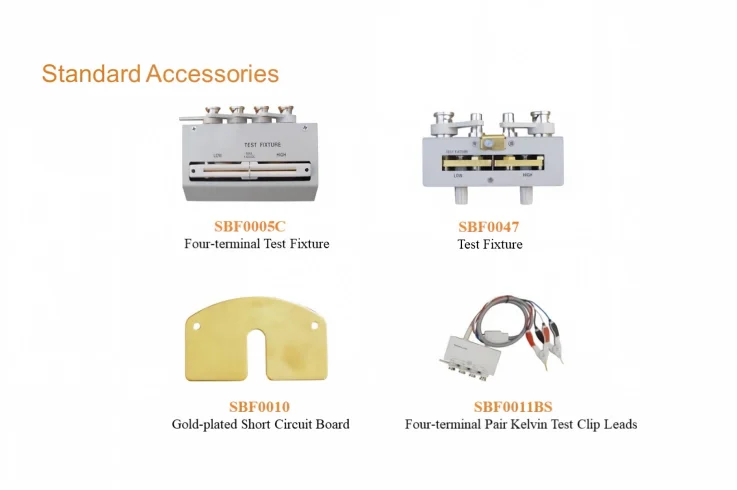

STB8839	Precision Impedance Analyzer	Frequency range: 20Hz-10MHz, including short circuit, 4-terminal test fixture, 4-terminal pair Kelvin test clip leads
STB8839A	Precision Impedance Analyzer	Frequency range: 20Hz-5MHz, including short circuit, 4-terminal test fixture, 4-terminal pair Kelvin test clip leads

Options

Module No.	Item	Description
SBF0007A	Magnetic Ring Test Fixture	DC-120MHz, maximum ±42V DC bias, applied to single-turn inductance test of small magnetic ring, customizable size
SBF0008A	SMD Component Test Fixture	DC-120MHz, maximum ±42V DC bias, applied to SMD components, especially high-frequency small capacitor ≤3pF or small inductance ≤1uH, test frequency ≥100kHz
SBF0009B	SMD Component Test Fixture	DC-15MHz, maximum ±42V DC bias, applied to SMD components
SBF1108C	Four-terminal SMD Test Fixture	DC-40MHz, maximum ±42V DC bias, applied to SMD components, especially high-frequency small capacitor ≤3pF or small inductance ≤1uH, test frequency ≥100kHz
SBF0062A	Four-terminal Test Fixture	DC-100kHz, maximum ±42V DC bias, applied to test thin film bulk DC_LINK capacitors for electric vehicles
SBF0047	Four-terminal Test Fixture	DC-120MHz, maximum ±42V DC bias, applied to impedance testing of wire-type devices, with shielded ground terminal
SBF0048	Four-terminal Test Fixture	DC-13MHz, maximum ±42V DC bias, applied to in-Line axial and radial impedance components
SH26063	Four-terminal Test Fixture	DC-100kHz, maximum ±42V DC bias, applied to test bolted capacitor and DC_LINK capacitors
SBF0077	Dielectric Test Fixture	DC-120MHz, DUT size: 10mm-56mm, DUT thickness: ≤10mm, applied to dielectric analysis of solid materials
