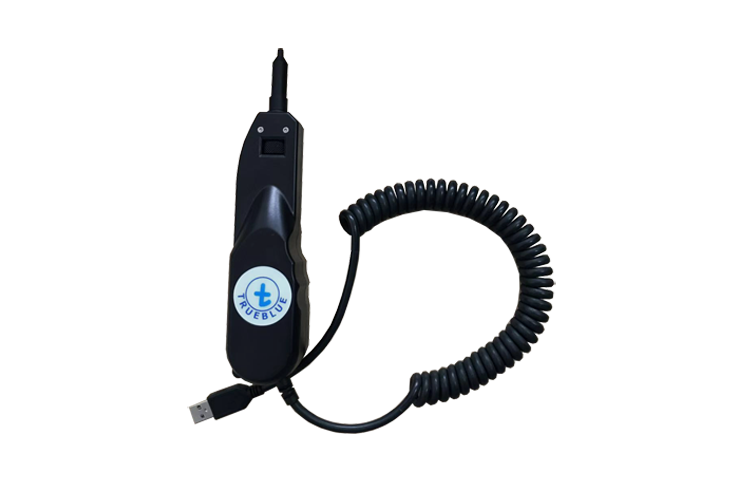

SFED-01 USB handheld optical fiber end face microscope adopts high-precision optical path design and high-speed digital image processing to carry out 200/250 times magnification imaging of the measured end face, which is especially suitable for fine inspection of stains, scratches, dents and other end face conditions.No need to drive, connect with the computer through USB, the detection image is stored in the computer.Stylish appearance, lightweight and portable.
SFED-01 USB Handheld Optical Fiber Microscope
Key Features
FC/SC/ST/E2000/LC/MU/MPO compatible
200/250x magnification
Support operation with computer and OTDR
Pre-center positioning, image centered, clear, uniform spot
Suitable for DWDM, SDH, SONET equipment and various optical fiber transmission racks, optical switches, optical distribution boxes, etc.
Built-in digital sensor, through the USB port connected to the computer to detect optical fiber end face, easy to do the image analysis
No need to drive, plug in the USB port to work, support for USB1.1 and USB2.0 interfaces
| Focusing Style | Manual |
| Magnification | 200X/250X |
| Resolution | 0.5µm |
| User Interface | USB 1.1, USB 2.0 |
| Dimension | 119 × 56 × 33 mm |
| Weight | 187g |
Main Machine
| Module No. | Item | Description |
| SFED-01 | USB Handheld Optical Fiber Microscope | Including 2.5mm-PC-Male, 1.25mm-PC-Male, SC-PC-Female, LC-PC-Female adapter |
Options
| Module No. | Item | Description |
| SFED-01-1 | APC adapter | For 2.5mm-APC-Male fiber end |
| SFED-01-2 | APC adapter | For 1.25mm-APC-Male fiber end |
| SFED-01-3 | APC adapter | For SC-APC-Female fiber end |
| SFED-01-4 | APC adapter | For FC-APC-Female fiber end |
| SFED-01-5 | APC adapter | For LC-APC-Female fiber end |
