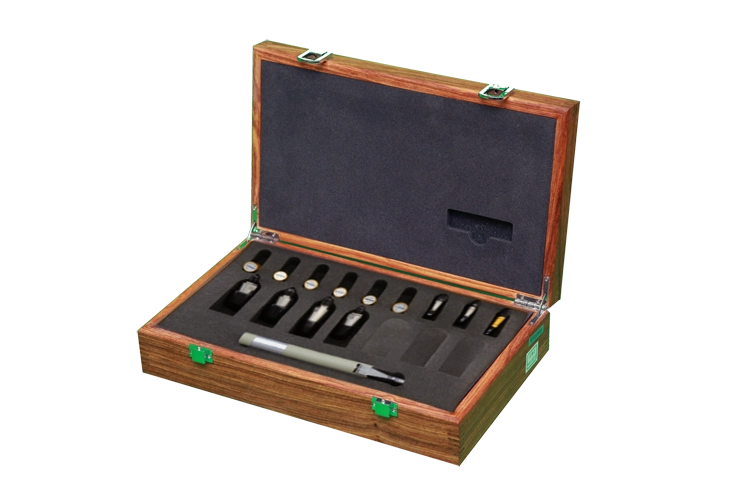

SCKCL06-3.5 Mechanical Calibration Kit

Overview Specifications Ordering Resources

Economical Calibration Kit, DC to 6GHz, 3.5mm, 50Ω, 14-piece Set

• Calibrate the vector network analyzer for 3.5mm interfaces

• Includes adapters and a torque wrench, allowing for changes in port type and ensuring consistently reliable connections.

Unit Price: US$ 2,880

3-4 Weeks Delivery

♦ Click to view the selection guide.

♦ Need technical support or a custom solution? Contact our application engineers: saluki@salukitec.com.

♦ To request a quotation, please contact sales@salukitec.com or click “Contact Us” to leave a message.

Key Features

DC to 6GHz frequency coverage

Adapters and torque wrench included

Using for Site Master, Cable & Antenna Analyzer and VNA calibration

Saluki, Agilent/Keysight, Anritsu, Rohde & Schwarz, Tektronix and other VNA supported

We offer two payment methods .

• Send your requirements to sales@salukitec.com

• Select your preferred payment method

• Receive the Proforma Invoice (PI) or Credit Card payment link

• Make payment

• Goods are shipped
Saluki Calibration Kits – Trusted by Industry Leaders

Typical Users of Saluki Calibration Kits

• The National Physical Laboratory (NPL)（UK）

• Missouri University of Science and Technology

• Boise State University

• University of South Florida

• Nagoya University

• Rutgers University

• Yonsei University

• Sejong University

• TEKTRONIX, INC.

• ERAVANT

• NVIDIA

……
Common Q&A

Q: Can I use it in Keysight VNA?

A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.

Q: Can I use it to R&S or other brand VNA?

A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

Q: What is the warranty time?

A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.

Q: Who will afford shipping cost for return?

A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.

Frequency

DC to 6 GHz

Specifications

• Open: ± 0.85°

• Short: ± 0.55°

• Load: VSWR < 1.029

• Adaptor: VSWR < 1.04

Impedance

50 ohm

Standard Package

No.	Item	Qty.
1	Open: 3.5mm (M)	1
2	Open: 3.5mm (F)	1
3	Short: 3.5mm (M)	1
4	Short: 3.5mm (F)	1
5	Load: 3.5mm (M)	1
6	Load: 3.5mm (F)	1
7	3.5mm(f) – 3.5mm(f) adaptor	1
8	3.5mm(m) – 3.5mm(m) adaptor	1
9	3.5mm(m) – 3.5mm(f) adaptor	1
10	N(m) - 3.5mm(m) adaptor	1
11	N(m) - 3.5mm(f) adaptor	1
12	N(f) - 3.5mm(m) adaptor	1
13	N(f) - 3.5mm(f) adaptor	1
14	Torque wrench	1
