SCK0TTL26-3.5 Mechanical Calibration Kit

Overview Specifications Ordering Resources

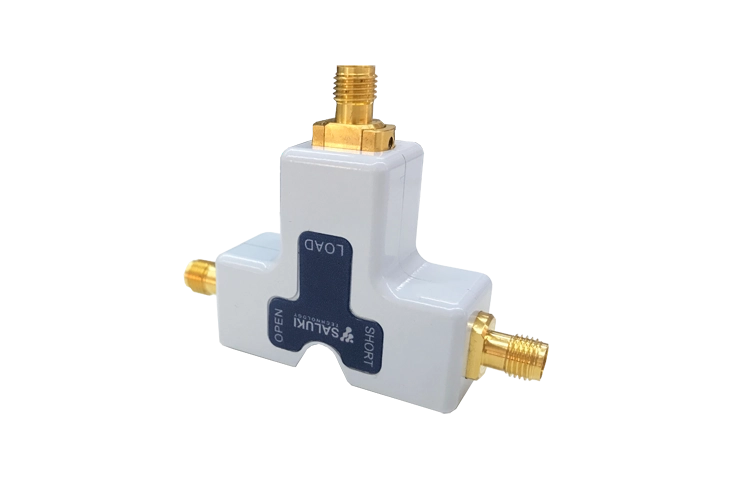

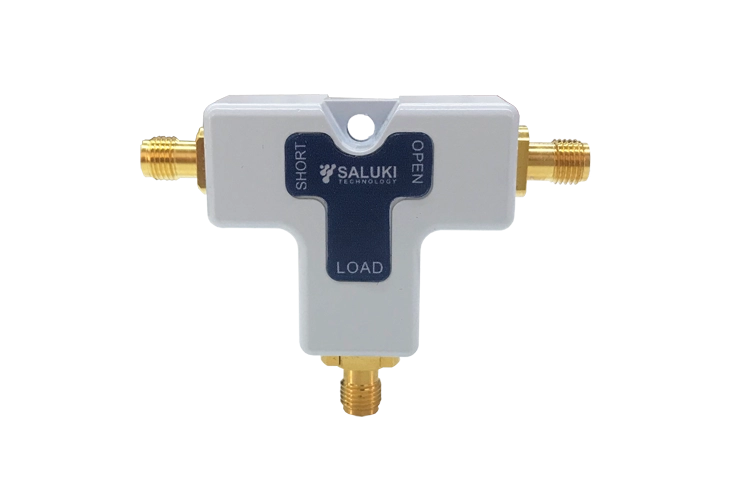

3-in-1 OSL Mechanical Calibration Kit, DC to 26.5GHz, 3.5mm, 50Ω

      • Combines an open, short, and load standard in a compact unit that is easy to handle and lightweight.

     • Delivers exceptional measurement results when used in conjunction with precision instruments. Suitable for use in both field and laboratory environments.

     • Plug-and-play compatibility with Keysight, R&S, and Anritsu VNAs.

Request a Quote for Calibration Kits





SCK0TCL09-N Mechanical Calibration Kit Price  Unit Price: US$ 538
 3 Days Delivery



♦ Click to view the Selection Guide.

Key Features

DC to 26.5GHz frequency coverage

3.5mm(M) and 3.5mm(F) connector configurationF

Using for Site Master, Cable & Antenna Analyzer and VNA calibration

Saluki, Agilent/Keysight, Anritsu, Rohde & Schwarz, Tektronix and other VNA supported

  • We offer two payment methods .



    •  Send your requirements to sales@salukitec.com



    •  Select your preferred payment method



    •  Receive the Proforma Invoice (PI) or Credit Card payment link



    •  Make payment



    •  Goods are shipped

  • Saluki Calibration Kits – Trusted by Industry Leaders

    Typical Users of Saluki Calibration Kits



    •  The National Physical Laboratory (NPL)（UK）



    •  Missouri University of Science and Technology



    •  Boise State University



    •  University of South Florida



    •  Nagoya University



    •  Rutgers University



    •  Yonsei University



    •  Sejong University



    •  TEKTRONIX, INC.



    •  ERAVANT



    •  NVIDIA

    ……

  • Common Q&A



    Q: Can I use it in Keysight VNA?

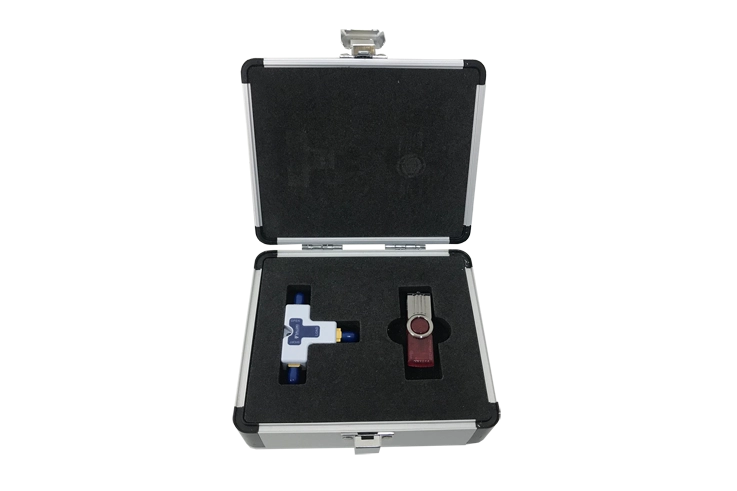

    A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.



    Q: Can I use it to R&S or other brand VNA?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.



    Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.



    Q: What is the warranty time?

    A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.



    Q: Who will afford shipping cost for return?

    A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.

Frequency

DC to 26.5 GHz
Specifications

•  Open: ± 2.0°
•  Short: ± 2.0°
•  Load: VSWR < 1.065
Impedance

50 ohm

Main Module

Module No. Item Description
SCK0TTL26-3.5(M) Mechanical Calibration Kit 3.5mm (male) T type calibration kit, DC - 26.5GHz, Open-short-load
SCK0TTL26-3.5(F) Mechanical Calibration Kit 3.5mm (female) T type calibration kit, DC - 26.5GHz, Open-short-load
