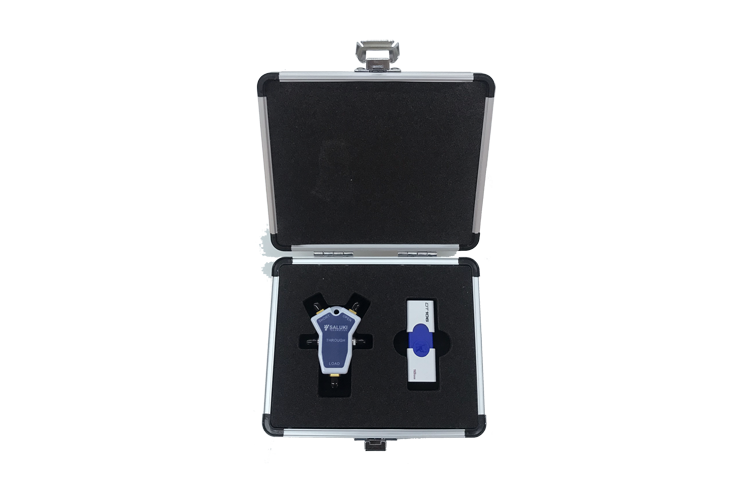

SCK0YTL26-3.5 Mechanical Calibration Kit

Overview Specifications Ordering Resources

4-in-1 OSL Mechanical Calibration Kit, DC to 26.5GHz, 3.5mm, 50Ω

1

Compact Open · Short · Load · Thru module — calibrate in tight spaces where individual standards won’t fit.

2

Exceptional accuracy with any precision VNA, in the field or on the bench.

3

Plug-and-play with Keysight, R&S, and Anritsu VNAs.

Request a Quote

Unit Price
US$ 1,020
Delivery
3 Days

Browse the full lineup → Calibration Kit Selection Guide

Key Features

DC to 26.5GHz frequency coverage

3.5mm(M) and 3.5mm(F) connector configuration

Using for Site Master, Cable & Antenna Analyzer and VNA calibration

Saluki, Agilent/Keysight, Anritsu, Rohde & Schwarz, Tektronix and other VNA supported

  • Payment Methods

    BT

    Bank Transfer

    Pay against a Proforma Invoice issued to your company.

    CC

    Credit Card

    Secure payment link sent directly to your email.

    How to Order

    1

    Email requirements to
    sales@salukitec.com

    2

    Choose bank transfer or credit card.

    3

    Receive the PI or secure payment link.

    4

    Complete payment. We ship the same day.

  • Trusted by Industry Leaders

    Engineers and researchers worldwide rely on Saluki calibration kits.

    Industry

    NVIDIA
    Eravant
    Tektronix

    National Laboratory

    National Physical Laboratory (UK)

    Universities & Research Centers

    Missouri S&T
    Nagoya University
    Yonsei University
    Sejong University
    Rutgers University
    Boise State University

  • Common Questions

    Everything you need to know before ordering.

    Can I use it with a Keysight VNA?
    +

    Yes. Plug the included USB drive into your Keysight VNA, import the calibration data, and start measuring. No extra software, no manual entry.

    Does it work with R&S, Anritsu, or other VNA brands?
    +

    Yes. You’ll receive a calibration data file. Enter it into your VNA once, then reuse it indefinitely. Compatible with all major brands.

    Can I use it with a Site Master or Cable & Antenna Tester?
    +

    Yes. Load the calibration data into your instrument the same way. Once loaded, it’s ready whenever you need it.

    What warranty is included?
    +

    Every kit is rated for 500+ mating cycles. If a quality issue arises within the first year, we’ll repair it free of charge.

    Who covers return shipping?
    +

    You cover shipping to our facility. We cover the shipping back to you.

Frequency

DC to 26.5GHz
Specifications

•  Open: ± 2.0°

•  Short: ± 2.0°

•  Load: VSWR < 1.065

•  Through: VSWR < 1.12
Impedance

50 ohm

Main Module

Module No. Item Description
SCK0YTL26-3.5(M) Mechanical Calibration Kit 3.5mm (male) Y type calibration kit, DC - 26.5GHz, Open-short-load-through
SCK0YTL26-3.5(F) Mechanical Calibration Kit 3.5mm (female) Y type calibration kit, DC - 26.5GHz, Open-short-load-through
Document
Video

  • Unboxing Video
