SCK0YTL40-2.92 Mechanical VNA Calibration Kit

Overview Specifications Ordering Resources

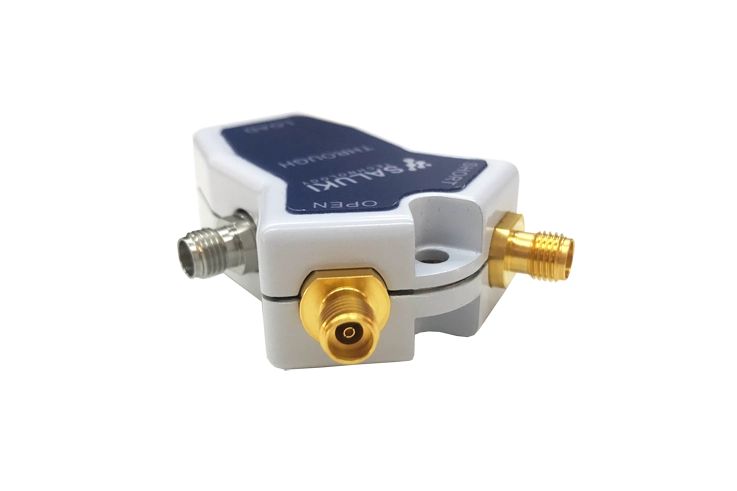

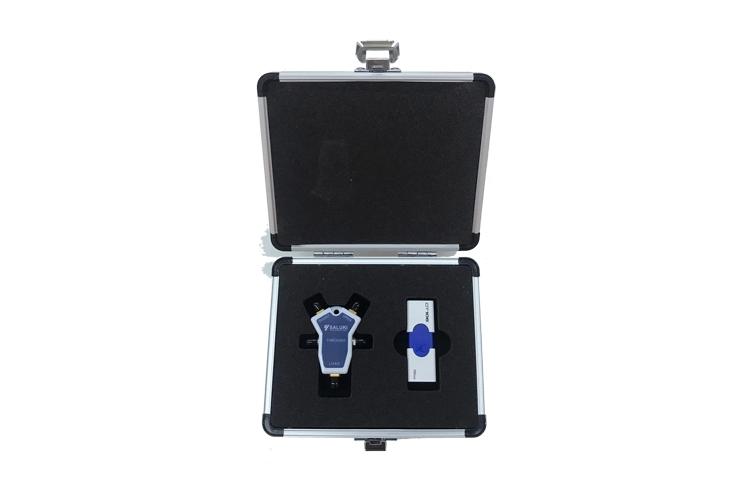

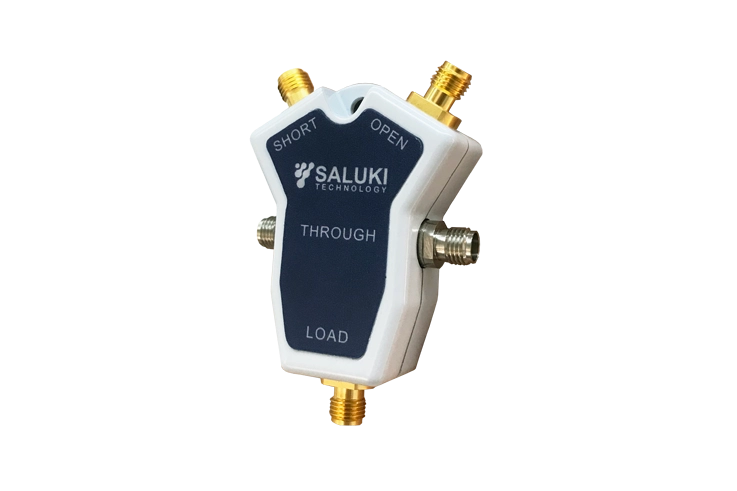

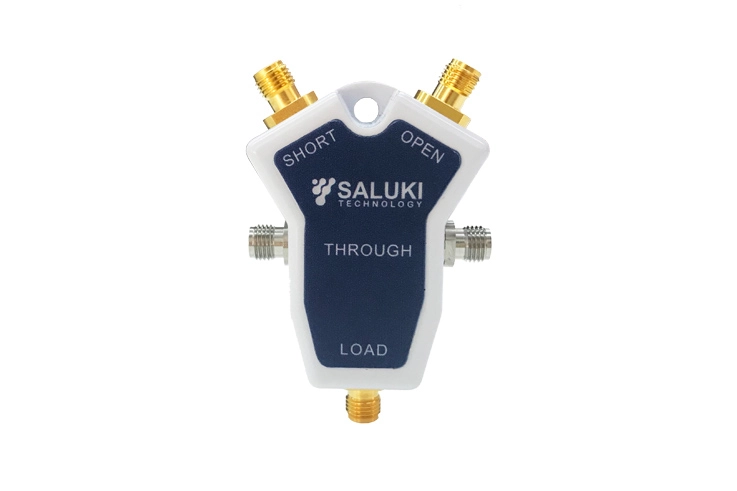

4-in-1 OSLT Mechanical Calibration Kit, 0.1 to 40GHz, 2.92mm, 50Ω

      • This compact Open, Short, Load, and Thru module enables easy calibration of devices that lack sufficient space to insert calibration standards.

     • Delivers exceptional measurement results when used in conjunction with precision instruments. Suitable for use in both field and laboratory environments.

     • SCK0YTL40-2.92 is a good substitute of Keysight 85562A calibration kit.



  Unit Price: US$ 1,068

  2-3 Weeks Delivery



♦ Click to view the selection guide.

♦ Need technical support or a custom solution? Contact our application engineers: saluki@salukitec.com.

♦ To request a quotation, please contact sales@salukitec.com or click “Contact Us” to leave a message.

Key Features

0.1 to 40GHz frequency coverage

2.92mm(M) and 2.92mm(F) connector configuration

Using for Site Master, Cable & Antenna Analyzer and Vector Network Analyzer calibration

Saluki, Agilent/Keysight, Anritsu, Rohde & Schwarz, Tektronix and other VNA supported

  • We offer two payment methods .



    •  Send your requirements to sales@salukitec.com



    •  Select your preferred payment method



    •  Receive the Proforma Invoice (PI) or Credit Card payment link



    •  Make payment



    •  Goods are shipped

  • Saluki Calibration Kits – Trusted by Industry Leaders

    Typical Users of Saluki Calibration Kits



    •  The National Physical Laboratory (NPL)（UK）



    •  Missouri University of Science and Technology



    •  Boise State University



    •  University of South Florida



    •  Nagoya University



    •  Rutgers University



    •  Yonsei University



    •  Sejong University



    •  TEKTRONIX, INC.



    •  ERAVANT



    •  NVIDIA

    ……

  • Common Q&A



    Q: Can I use it in Keysight VNA?

    A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.



    Q: Can I use it to R&S or other brand VNA?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.



    Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.



    Q: What is the warranty time?

    A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.



    Q: Who will afford shipping cost for return?

    A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.

Frequency

100 MHz to 40 GHz
Specifications

•  Open: ± 6°

•  Short: ± 4.5°

•  Load: VSWR < 1.17

•  Through: VSWR < 1.15
Impedance

50 ohm
Calibration Data
C0 (F*10-15) C1 (F*10-27/Hz) C2 (F*10-36/Hz2) C3 (F*10-45/Hz3) DELAY (ps) LOSS (GΩ/s)
Open (m) 37.0883 70.7568 1.03487 0.077080 23.6831 4.93052
Open (f) 36.842 164.764 -9.2586 0.294455 23.6831 3.79386
L0 (H*10-12) L1 (H*10-24/Hz) L2 (H*10-33/Hz2) L3 (H*10-42/Hz3) DELAY (ps) LOSS (GΩ/s)
Short (m) 13.9373 -2300.69 97.9591 -1.29741 26.4683 3.62125
Short (f) 5.91213 -1298.99 61.0329 -0.855233 26.4683 4.15172
Through
Elecreical Delay (ps) 127.8
Offset Loss (GΩ/s) 3.60

Main Module

Module No. Item Description
SCK0YTL40-2.92(M) Mechanical Calibration Kit 2.92mm (male) Y type calibration kit, 0.1 - 40GHz, Open-short-load-through
SCK0YTL40-2.92(F) Mechanical Calibration Kit 2.92mm (female) Y type calibration kit, 0.1 - 40GHz, Open-short-load-through
