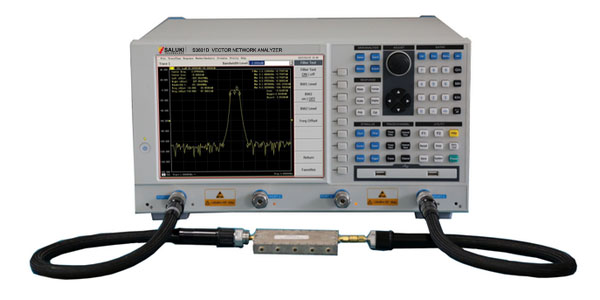

S3601 Series Vector Network Analyzer

S3601 series vector network analyzer is a powerful and efficient VNA which is suitable for industries like wireless communication, CATV, automotive and education. S3601 series is capable to do amplitude, phase, group delay S parameter measurement of filters, amplifiers, antennas, cables, connectors etc. S3601 series uses Windows system and provide multi display format, multi calibration types, multi window display and flexible interfaces.

Key Features

Frequency range from 100kHz to 3GHz / 8.5GHz

125dB wide dynamic range, accurate measurement on high rejection ratio devices

Provide 4-port option which can achieve all 16 S parameters test

Standard interfaces including USB, LAN, GPIB, VGA

Low noise level, good measurement performance

Multi-window, multi-channel measurement display

75Ω test port impedance option of S3601A for cable TV components measurement

Multiple calibration methods including frequency response, single port, response isolation, enhanced response and full dual-port, rapid SOLT calibration and electrical calibration

Frequency Range

S3601A: 100 kHz to 3 GHz,

S3601B: 100 kHz to 8.5 GHz

Frequency Resolution

1 Hz

Frequency Accuracy

±5×10-6 (23°C ± 3°C)

Output Power

S3601A: -45dBm to 10dBm,

S3601B: -55dBm to 10dBm

Max. Dynamic Range

S3601A:

(10Hz)  / (3kHz)

•  100kHz – 1MHz: 90dB / 60dB

•  1MHz – 10MHz: 110 dB / 80dB

•  10MHz – 3GHz: 125dB / 95dB

S3601B:

(10Hz)  / (3kHz)

•  100kHz – 20MHz: 110dB / 80dB

•  20MHz – 3GHz: 125dB / 95dB

•  3GHz – 6GHz: 123dB / 93dB

•  6GHz – 8.5GHz: 118dB / 88dB



Reflection Track

S3601A:

•  100kHz – 10MHz: ±0.030dB

•  10MHz – 3GHz: ±0.020dB

S3601B:

•  100kHz – 3GHz: ±0.030dB

•  3GHz – 6GHz: ±0.040dB

•  6GHz – 8.5GHz: ±0.050dB

Transmission Track

S3601A:

•  100kHz – 10MHz: ±0.030dB

•  10MHz – 3GHz: ±0.020dB

S3601B:

•  100kHz – 3GHz: ±0.030dB

•  3GHz – 6GHz: ±0.040dB

•  6GHz – 8.5GHz: ±0.050dB

Effective Directivity

S3601A:

•  100kHz – 10MHz: 49dB

•  10MHz – 3GHz: 46dB

•  100kHz – 10MHz: 49dB (option H01)

•  10MHz – 3GHz: 46dB (option H01)

S3601B:

•  100kHz – 3GHz: 46dB

•  3GHz – 6GHz: 40dB

•  6GHz – 8.5GHz: 38dB

Effective Source Match

S3601A:

•  100kHz – 10MHz: 44dB

•  10MHz – 3GHz: 40dB

•  100kHz – 10MHz: 43dB (option H01)

•  10MHz – 3GHz: 21dB (option H01)

S3601B:

•  100kHz – 3GHz: 36dB

•  3GHz – 6GHz: 35dB

•  6GHz – 8.5GHz: 33dB

Effective Load Match

S3601A:

•  100kHz – 10MHz: 49dB

•  10MHz – 3GHz: 46dB

•  100kHz – 10MHz: 48dB (option H01)

•  10MHz – 3GHz: 41dB (option H01)

S3601B:

•  100kHz – 3GHz: 44dB

•  3GHz – 6GHz: 40dB

•  6GHz – 8.5GHz: 36dB

IF Bandwidth

1MHz – 5MHz

Number of Built-In Ports

2

Measurement Point

1 – 16001

Number of Measurement Receiver

4

Reference Level Amplitude Setting

•  Range: ± 500dB

•  Resolution: 0.001dB

Reference Phase Setting

•  Range: ± 500°

•  Resolution: 0.01°

Time-base Reference Output

•  Output frequency: 10MHz

•  Output level: +10dBm ± 4dB

Measurement Fields

Frequency domain and Time domain

Display Format

Logarithmic amplitude, linear range, standing wave, phase, group delay, smith chart, polar diagram

Interface

•  N (F), 50Ω system impedance

•  N (F), 75Ω system impedance (option 01)

Power Supply

50 Hz 220 V AC / 60 Hz 110 V AC

Power Consumption

150 W

Display

10.4-inch high brightness LCD

Dimension

435 (W) × 233 (H) × 348 (D) mm

Weight

16 kg

Main Machine

Module No. Item Description
S3601A Vector Network Analyzer 100 kHz to 3 GHz
S3601B Vector Network Analyzer 100 kHz to 8.5 GHz

Options of S3601A Vector Network Analyzer

Module No. Item Description
S3601A-01 75Ω port impedance system /
S3601A-02 N-type testing cable (GORE-OSZKUZKU0240) Male - Male, 60cm
S3601A-03 N-type testing cable (GORE-OSZKUZKU0240) Female - Male, 60cm
S3601A-05 20205 Type-N calibration kit DC - 3GHz
S3601A-06 20204 Type-N 75Ω calibration kit /
S3601A-07 Economical stable testing cable Saluki-N/J.SMA/J.197C-800, N-type to 3.5mm connector, dual male, 80cm
S3601A-08 Economical stable testing cable Saluki-N/J.N/K.197C-800, N-type connector, female-male, 80cm
S3601A-09 Economical stable testing cable Saluki-N/J.N/J.197C-800, N-type connector, dual male, 80cm
S3601A-10 75Ω testing cable 24-0800-51M1-51M1
S3601A-11 20402 Electronic calibration kit 300kHz-18GHz, N Type (female to male), 2 port
S3601A-12 20403 Electronic calibration kit 10MHz-26.5GHz, 3.5mm (female to male), 2 port
S3601A-13 20405 Electronic calibration kit 10MHz-20GHz, 3.5mm (female), 4 port
S3601A-16 Aluminum carrying case For safety transportation
S3601A-17 Front panel jumper Supports 4-port extension and receiver through test
S3601A-18 2813A 4-port test equipemt Dual male, need option S3601A-17
S3601A-19 Cabinet Easy to build system

Options of S3601B Vector Network Analyzer

Module No. Item Description
S3601B-02 N-type testing cable (GORE-OSZKUZKU0240) Male - Male, 60cm
S3601B-03 N-type testing cable (GORE-OSZKUZKU0240) Female - Male, 60cm
S3601B-07 Economical stable phase testing cable Saluki-N/J.SMA/J.197C-800, N-type to 3.5mm connector, dual male, 80cm
S3601B-08 Economical stable phase testing cable Saluki-N/J.N/K.197C-800, N-type connector, female-male, 80cm
S3601B-09 Economical stable phase testing cable Saluki-N/J.N/J.197C-800, N-type connector, dual male, 80cm
S3601B-11 20402 Electronic calibration kit 300kHz-18GHz, N Type (female to male), 2 port
S3601B-12 20403 Electronic calibration kit 10MHz-26.5GHz, 3.5mm (female to male), 2 port
S3601B-13 20405 Electronic calibration kit 10MHz-20GHz, 3.5mm (female), 4 port
S3601B-16 Aluminum carrying case For safety transportation
S3601B-18 2813A 4-port test equipemt Need option S3601B-29
S3601B-19 Cabinet Easy to build system
S3601B-21 20201 N-type calibration kit DC - 9GHz
S3601B-22 20202 3.5mm calibration kit DC - 9GHz
S3601B-23 32111 waveguide calibration kit 1.72GHz - 2.61GHz
S3601B-24 32112 waveguide calibration kit 2.6GHz - 3.95GHz
S3601B-25 32113 waveguide calibration kit 3.94GHz - 6.0GHz
S3601B-26 32114 waveguide calibration kit 4.64GHz - 7.05GHz
S3601B-27 32115 waveguide calibration kit 5.88GHz - 8.17GHz
S3601B-28 32116 waveguide calibration kit 7.0GHz - 10.0GHz
S3601B-29 Front panel jumper Supports 4-port extension and receiver through test
