Nowadays, millimeter-wave and terahertz technology has been widely used in radar, electronic interference, electronic reconnaissance, precision guidance, communications, inter-star satellite communications, and other military electronics fields. In the civil field, mm-wave and terahertz technology have been applied to automotive collision-proof radar, remote sensing, astronomical observation, 6G communication system, and other technical fields.
The development and utilization of Millimeter-wave and Terahertz technology are based on solving the testing and measurement challenges of the Millimeter Wave and Terahertz band. The Millimeter-wave and Terahertz test system developed by Saluki achieves high performance in many fields such as vector network analysis, signal generation, spectrum analysis, power measurement, antenna testing, material electromagnetic parameter testing, and radar cross-section (RCS) test, etc.
Saluki mm-wave and THz spectrum analysis system consists of a frequency expander module and a spectrum analyzer. This system provides advanced receiver performance, comprehensive measurement application functions, and is easy to use.

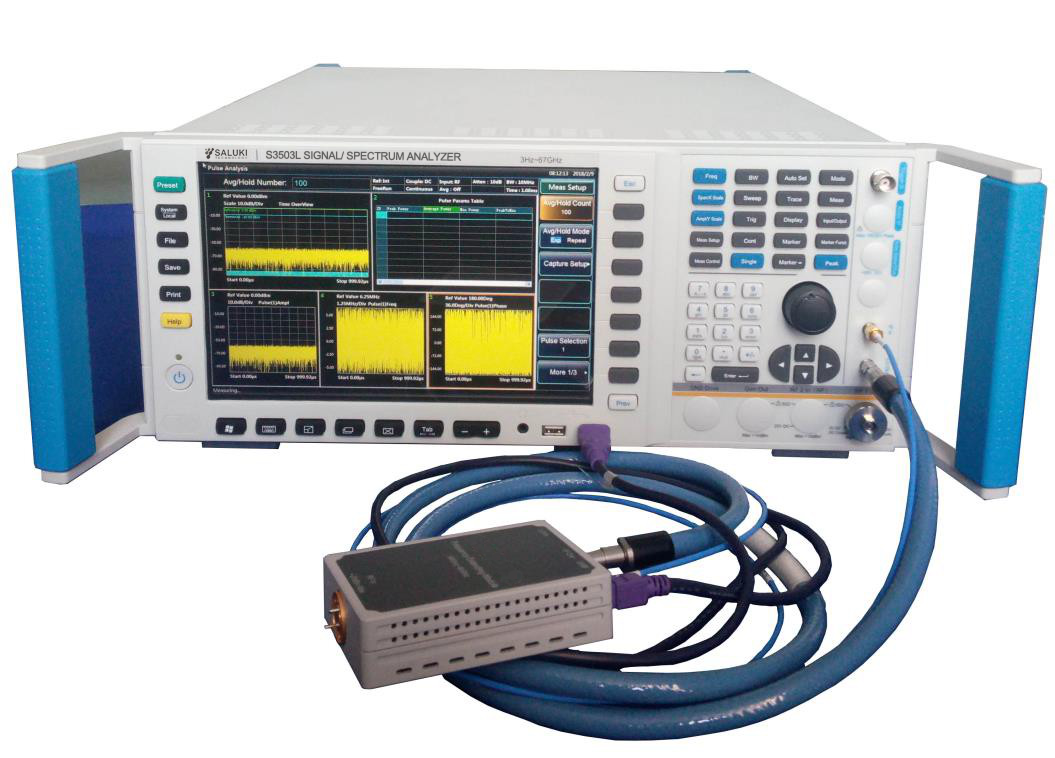

Figure 1 Saluk millimeter-wave and THz spectrum analysis test system
The S82407 millimeter-wave terahertz frequency extender module is used in conjunction with the spectrum analyzer to form a millimeter-wave terahertz spectrum analysis system. It can be used for spectrum measurement in a wide frequency band with large dynamic range, high sensitivity and high resolution. Multiple testing functions such as modulation performance, harmonic distortion, third-order intercept, excitation response is supported. The mm-wave and terahertz Power Sensor and power meter form a power measurement system. The system has power, linear, temperature compensation function, using diode detection technology to realize high-speed frequency sweep measurement.
Figure 2 S82407 series spectrum analyzer frequency extension module
