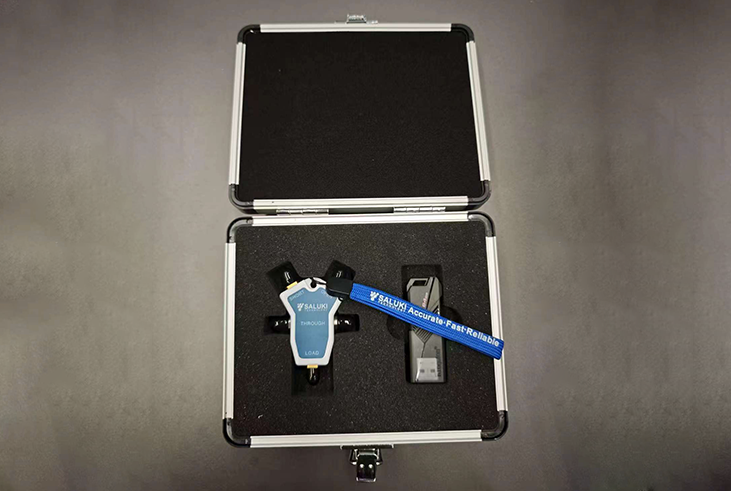

SCK0YTL40-2.92 Mechanical VNA Calibration Kit

SCK0YTL40-2.92 series mechanical 4-in-1 SOLT calibration kit has been designed to provide superior measurement results when used with precision instruments. It is designed for use in both field and lab environments. It is a high precision component and should be handled with proper care. Excessive shock, torque, or power should be avoided to prevent permanent damage.

Replaces the Keysight 85562A calibration kit.

Unit Price: US$ 1,068

Click here to purchase online !

Key Features

0.1 to 40GHz frequency coverage

2.92mm(M) and 2.92mm(F) connector configuration

Using for Site Master, Cable & Antenna Analyzer and Vector Network Analyzer calibration

Saluki, Agilent/Keysight, Anritsu, Rohde & Schwarz, Tektronix and other VNA supported

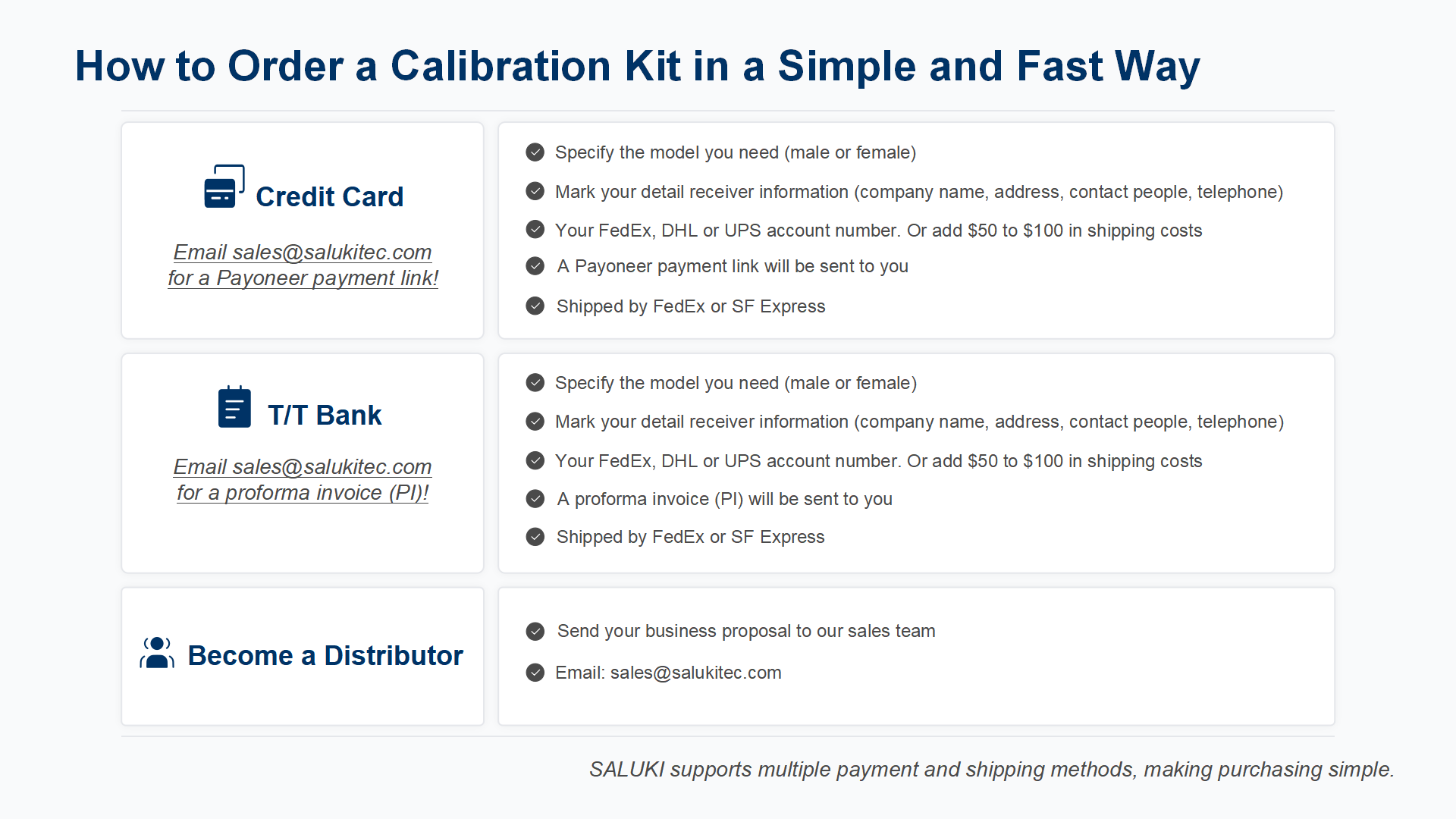

  • How to Place an Order ?

    PaypalUnavailable

     Click here to purchase online !



    T/T Bank

    •  Need a PI for payment? Please send email to sales01@salukitec.com



    Credit Card

    •  Need to pay by credit card? Please send email to sales01@salukitec.com



    Express

    •  Shipped by DHL/FEDEX/UPS/SF express, or use your express account

  • Trusted by universities and research institutions around the world!

     The National Physical Laboratory (NPL)(UK)

     Missouri University of Science and Technology

     Boise State University

     University of South Florida

     Nagoya University

     Rutgers University

     Yonsei University

     Sejong University

     TEKTRONIX, INC.

     ERAVANT

     NVIDIA
    ……

  • Common Q&A

    Q: Can I use it in Keysight VNA?

    A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.

    Q: Can I use it to R&S, Anritsu or other brand VNA?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

    Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.

    Q: What is the warranty time?

    A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.

    Q: Who will afford shipping cost for return?

    A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.

Frequency

100 MHz to 40 GHz

Specifications

•  Open: ± 6°

•  Short: ± 4.5°

•  Load: VSWR < 1.17

•  Through: VSWR < 1.15

Impedance

50 ohm

Main Module

Module No. Item Description
SCK0YTL40-2.92(M) Mechanical Calibration Kit 2.92mm (male) Y type calibration kit, 0.1 - 40GHz, Open-short-load-through
SCK0YTL40-2.92(F) Mechanical Calibration Kit 2.92mm (female) Y type calibration kit, 0.1 - 40GHz, Open-short-load-through
