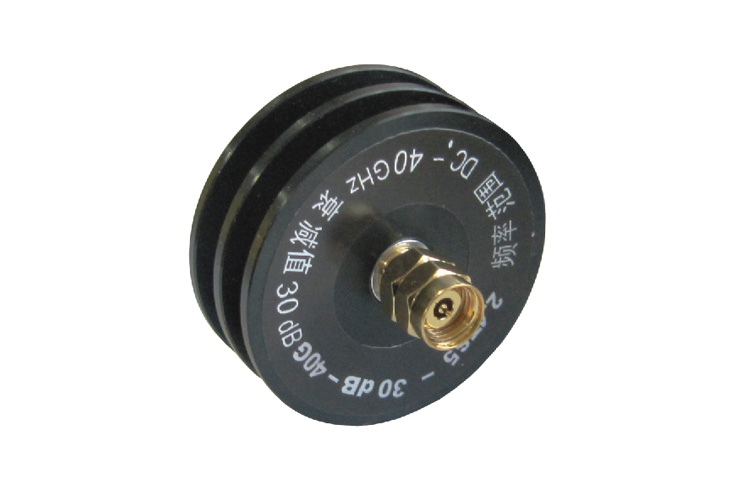

2.4TS5 Coaxial Attenuator, 5 Watts

2.4TS5 series coaxial fixed attenuator covers frequency from DC to 40GHz and features low VSWR, flatness attenuation value and excellent capacity in anti-pulse and anti-burnout etc..

Coaxial fixed attenuators are used in absorbing energy of transmission line, expanding power range and controlling power level, they are also used in accurately measuring power or spectrum of RF microwave transmitters accompany with small power meter, comprehensive tester or spectrum analyzer.

Key Features

Wide frequency range up to 40 GHz

5 W average power and 0.2 kW peak power

Low VSWR and flatness attenuation

50 ohm nominal impedance

Custom designs available for other special attenuation value & accuracy

2.4TS5-XX-26.5

•  Frequency range: DC – 26.5 GHz

•  Max. VSWR: 1.25

•  Attenuation value: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 40 dB (refer to XX)

•  Accuracy: -0.8/+0.5dB for 1-9 attenuation, ±0.6dB for 10 attenuation, ±0.8dB for 20 attenuation, -0.8/+1.0dB for 30 attenuation, -1.2/+1.0dB for 40 attenuation

2.4TS5-XX-32

•  Frequency range: DC – 32 GHz

•  Max. VSWR: 1.30

•  Attenuation value: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 40 dB (refer to XX)

•  Accuracy: ±1.0dB for 1-9/10/20 attenuation, ±1.4dB for 30 attenuation, ±1.5dB for 40 attenuation

2.4TS5-XX-40

•  Frequency range: DC – 40 GHz

•  Max. VSWR: 1.40

•  Attenuation value: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, 40 dB (refer to XX)

•  Accuracy: ±1.0dB for 1-9/10 attenuation, -1.0/+1.5dB for 20 attenuation, ±1.5dB for 30 attenuation, -1.0/+2.0dB for 40 attenuation

Average Power

5W average to 25°C ambient temperature, derated linearly to 0.5W @ 125°C

Peak Power

0.2 kW (5μs pulse width with 2.5% duty cycle)

Connector Type

2.4 mm,  50 ohm

Connectors

Brass gold plated or Stainless steel

Pin

Male: brass gold plated

Female: beryllium copper gold plated

Housing

Aluminum

Dimension

•  ≤ 20 dB: Ø38 × 31.4 mm

•  30 dB: Ø38 × 33 mm

•  40 dB: Ø38 × 47.6 mm

Weight

20 g

Temperature Range

-55°C to +125°C

RoHS Complient

Yes

Main Module

Module No. Item Description
2.4TS5-XX-26.5 Coaxial Fixed Attenuator DC to 26.5 GHz, XX refers to the attenuation value which is 1-9,10,20,30,40
2.4TS5-XX-32 Coaxial Fixed Attenuator DC to 32 GHz, XX refers to the attenuation value which is 1-9,10,20,30,40
2.4TS5-XX-40 Coaxial Fixed Attenuator DC to 40 GHz, XX refers to the attenuation value which is 1-9,10,20,30,40
