SLNA01122X Wide Band Low Noise Amplifier

SLNA01122X is a wideband low noise RF coaxial amplifier covering frequency from 1GHz to 12GHz. The amplifier offers 36dB typical gain, 1.8dB typical noise figure and 24dBm Min. P1dB.

Saluki’s RF low noise amplifier brings compact and reliable gain block performance to MW&RF designers, wireless infrastructure and systems integrators.

(Note: send email to sales@salukitec.com for more modules)

Key Features

Wide Band Low Noise Amplifier 1GHz ~ 12GHz

Gain: 36dB typical

Noise figure: 1.8dB typical

P1dB: 24dBm Min.

Supply Current (Vcc=+12V): 350 mA typical

Impedance: 50ohms

  • Gain @+25℃

  • Input VSWR @+25℃

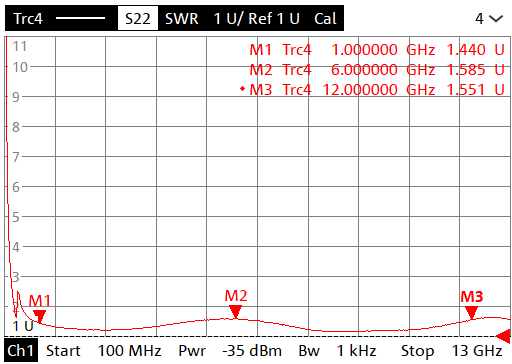

  • Output VSWR @+25℃

  • Isolation @+25℃

  • Gain @-40℃

  • Input VSWR @-40℃

  • Isolation@-40℃

  • Gain@+85℃

  • Input VSWR@+85℃

  • Isolation@+85℃

Frequency Range

1GHz to 12GHz

Gain

36dB(1-6GHz),

35dB(6-12GHz) typical

Gain Flatness

± 1.0 dB

Noise Figure

1.8 dB typical

Input VSWR

1.6:1(1-6GHz),

1.7:1(6-12GHz) typical



Output VSWR

1.5:1

Output 1dB Compression Point (P1dB)

26 dBm(1-6GHz),

25 dBm(6-12GHz) typical









Saturated Output Power (Psat)

27 dBm(1-6GHz),

26 dBm(6-12GHz) typical



Output Third Order Intercept (IP3)

35 dBm(1-6GHz),

30 dBm(6-12GHz) typical

Supply Current (Vcc=+12V)

350 mA

Isolation S12

-65 dB(1-6GHz),

-60 dB(6-12GHz) typical

Input / Output Connectors

SMA-Male/SMA-Female

Finish

Standard: Gold 40 micron; Nickel 220 micron thickness

Option: Gold 80 micron; Nickel 180 micron thickness

Material

Copper

Weight

3.53 ounces



(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Module

Module No. Item Description
SLNA01122X Wide Band Low Noise Amplifier 1 to 12GHz, Gain 36dB(1-6GHz), 35dB(6-12GHz) typical, SMA-Male/SMA-Female
