SK329 Smart Multi Meter integrates the intelligent optical power meter module, highly stable light source module and VFL module in one unit. It can also provide data storage and upload functions. It is widely used in installation ,measurement and maintenance of DDN, Telecom and CATV networks.

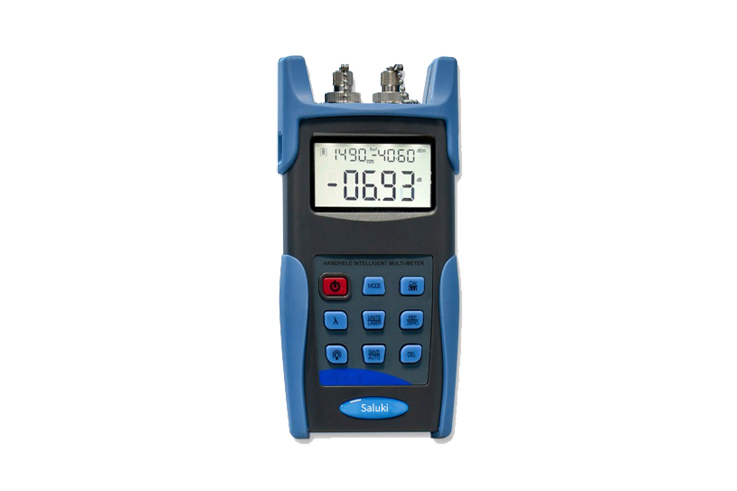

SK329 Smart Multi Meter
Key Features
Integrated OPM, LS and VFL function
Users could write their own software by the communication protocol provided
Automatic wavelength of light source switching
Frequency identification
High stability of the output power
Data storage function, up to 1000 test records
Simple function mode switching
USB communication port for saved testing records download
AA alkaline battery and mini USB adapter for power supply
| 1. OPM | |
| Wavelength Range | 800nm – 1700nm |
| Connector | FC/PC |
| Detector Type | InGaAs |
| Measurement Range | A: (-70dBm to +6dBm) or C: (-50dBm to +26dBm) |
| Uncertainty | ± 0.25dB |
| Calibration Wavelength | 850/1300/1310/1490/1550/1625 nm |
| Linearity | ≤ ± 0.1dB |
| Frequency ID Range | < 10kHz |
| 2. LS | |
| Wavelength | 1310/1550nm |
| Typical Output Power | ≥ -5dBm |
| Output Stability | ≤ 0.1dB (30min, 20℃) |
| Mode | CW/270Hz/1kHz/2kHz |
| 3. VFL | |
| Output Power | 10mW (only for SK329C) |
| Date Storage Capacity | 1000 data |
| Communication Port | Mini USB |
| Continuous Working Time | • ≥ 50h (Both OPM and LS are working) • ≥ 200h (Only OPM is working) |
| Power Supply | Three AA batteries, 1.5V |
| Dimension | 90 (W) × 175 (H) × 44.5 (D) mm |
| Weight | 265g |
Main Machine
| Module No. | Item | Description |
| SK329A | Smart Multi Meter | OPM range: -70dBm to +6dBm, LS: 1310/1550nm, dry battery |
| SK329C | Smart Multi Meter | OPM range: -50dBm to +26dBm, LS: 1310/1550nm, VFL: 10mW, dry battery |
