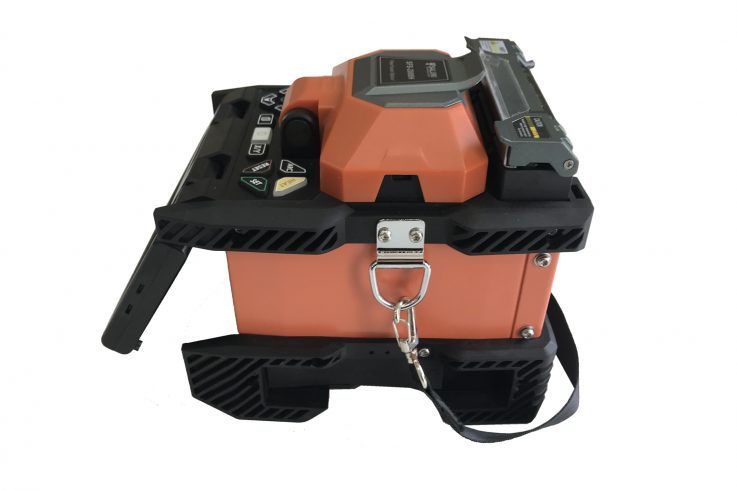

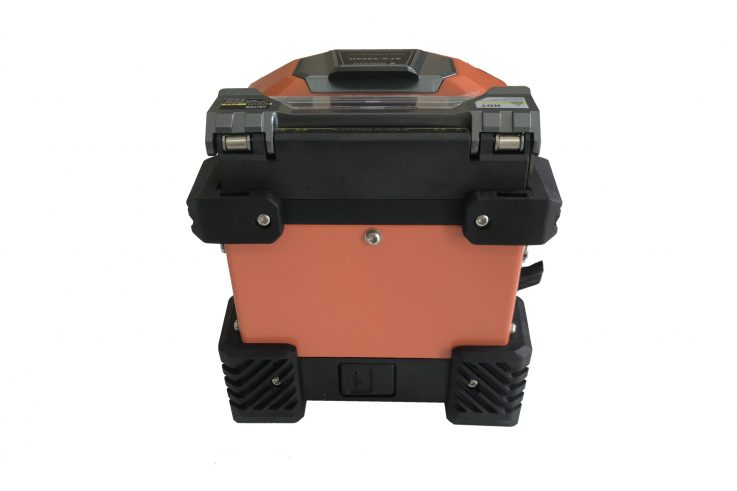

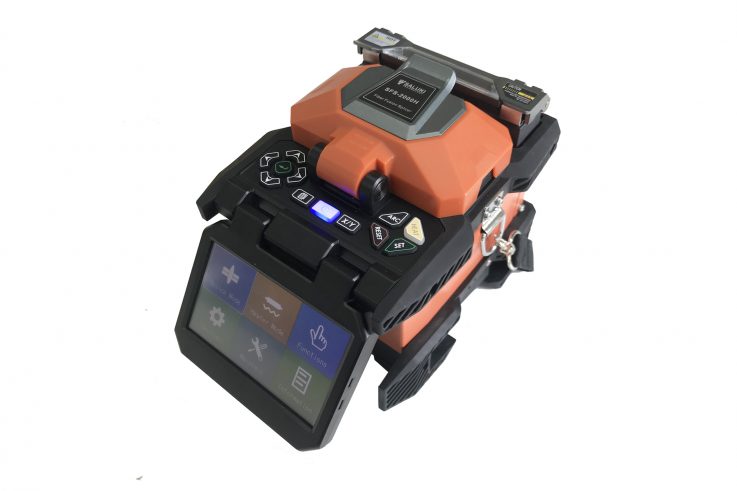

SFS-2000H Fusion Splicer (6 motors)

SFS-2000H series is the core-to-core alignment (6 motors) fusion splicer. Light Weight, Touch Screen, Friendly UI, Fast Fusion and Heating, and more intelligent. The rich functionality and ultra-low splice loss make the splicer adaptive to fiber splicing in various environments.

Key Features

Core to core alignment (6 motors)

7s fast splicing, 14s highly efficient heating

320/200 times image magnification, 5mm fusing for ultra-short cleave length

10000 groups and 100 images of fusion records storage

300 groups of splice modes, 100 groups of heating modes

300 counts of splicing and heating cycles with build-in 6800mAh Li-on battery

Ceramic presser foot, ceramic V-groove, all-in-one fixture

Dual-directional fusing, auto fushing, intelligent heat shrink

USB and SD card interface, auto update of U disk

GUI and touch screen, battery electric power display, convenient for operation

Dust-resistant, water-resistant, shock-resistant, greater environment adaptability

Motor Qty.

6

Alignment Method

Precise core alignment, cladding alignment, manual alignment

Applicable Fibers

SMF (G.652), BIF (G.657), MMF (G.651), DSF (G.653), NZDSF (G.655)

Typical Splice Loss

0.02dB (SMF/BIF), 0.01dB (MMF), 0.04dB (DSF), 0.04dB (NZDSF)

Cleave Length

•  5 – 16mm (coated  optical  fiber diameter ≤250μm)

•  10mm (coated optical fiber  diameter: 250μm – 3mm)

Optical Fiber Diameter

Cladding: 80 – 150μm,  coating layer:  0.1 – 3mm

Return Loss

Better than 60dB

Attenuation Value Accuracy

0.01dB

Splicing/ Heating Programe

300 / 100

Typical Splicing Time

7s (fast mode)

Typical Heating Time

14s (40mm, 23℃)

Estimated Splice Loss

Yes

Tension Test

1.96N – 2.25N

Applicable Protection Sleeve

60mm, 40mm and a series of protection sleeves

No. of Splice/heating Per Battery Full Charge

300 times

Magnification Time

320 times / 200 times, 700 times

Fusion Record

10000 groups / 100 images

Electrode Service Life

Typical: 4000 splices,  can be replaced by customers

Construction Lighting

Built-in lights with high-brightness and wide lighting area

Operating Condition

•  Altitude: 0 to 6000m above sea level

•  Temperature: -10 to 50°C

•  Humidity: 0 to 95%RH, non-dew

•  Wind: 15m/sec

Resistance Features

•  Shock: 60cm all surface drop

•  Dust: Exposure to dust (0.1 to 500 μm dia Alumina Silicate), IP5X

•  Rain: H=3mm/min for 10min, IPX2

Port

USB / SD card

Display

High performance  4.3  inch LCD screen touch

Power Supply

AC: 100-240V, 60Hz, 0-1.5A; DC: 10-15V

Power Consumption

< 55W

Battery Service Llife

Cycle charging: 300 – 500 counts, can be replaced by customers

Dimension

120 (W) × 130 (H) × 154 (D) mm

Weight

1.8kg (excluding battery), 2.1kg (including battery)

Main Machine

Module No. Item Description
SFS-2000H Fusion Splicer Core-to-core alignment, 6 motors

Standard Package

No. Item Qty.
1 Main host 1 PC
2 Fiber cleaver 1 PC
3 Power adapter 1 PC
4 Power cord 1 PC
5 Fiber stripper 1 PC
6 Cable stripper 1 PC
7 Spare electrode 1 PAIR
8 Cooling tray 1 PC
9 Cleanup tools 1 SET
10 Carrying case 1 PC
11 Certificate of quality 1 PC
12 User manual 1 PC
