SCKCL40-2.92 mechanical calibration kit is an economical calibration piece with an operating frequency of up to 40GHz and is mainly used to calibrate a vector network analyzer with 2.92mm ports.
Unit Price: US$ 3,600

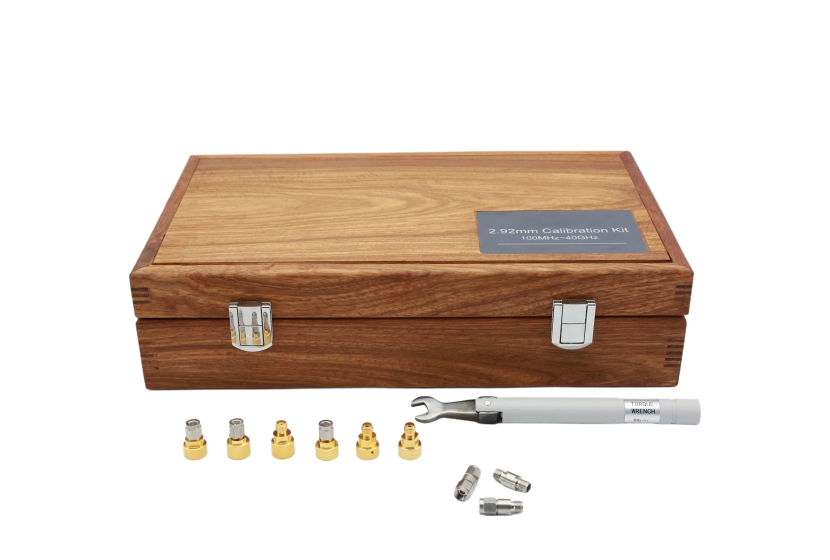

SCKCL40-2.92 Mechanical Calibration Kit
Key Features
The 2.92mm Coaxial port
Broadband: DC~40GHz
High performance, high cost performance
Fixed load calibration
-
How to Place an Order?
• Send your requirements to sales@salukitec.com
• Select your preferred payment method
• Receive the Proforma Invoice (PI) or Credit Card payment link
• Make payment
• Goods are shipped
-
Common Q&A
Q: Can I use it in Keysight VNA?
A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.
Q: Can I use it to R&S or other brand VNA?
A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.
Q: Can I use it in my Sitemaster or Cable and Antenna Testers?
A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.
Q: What is the warranty time?
A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.
Q: Who will afford shipping cost for return?
A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.
-
Trusted by universities and research institutions around the world!
• The National Physical Laboratory (NPL)（UK）
• Missouri University of Science and Technology
• Boise State University
• University of South Florida
• Nagoya University
• Rutgers University
• Yonsei University
• Sejong University
• TEKTRONIX, INC.
• ERAVANT
• NVIDIA
……
| Frequency | DC to 40 GHz |
| Specifications | • Open: ±3°（DC-40GHz） • Short: ±3°（DC-40GHz） • Load: VSWR ≤1.10（DC-40GHz） • Adaptor: VSWR ≤1.15（DC-40GHz） |
| Impedance | 50 ohm |

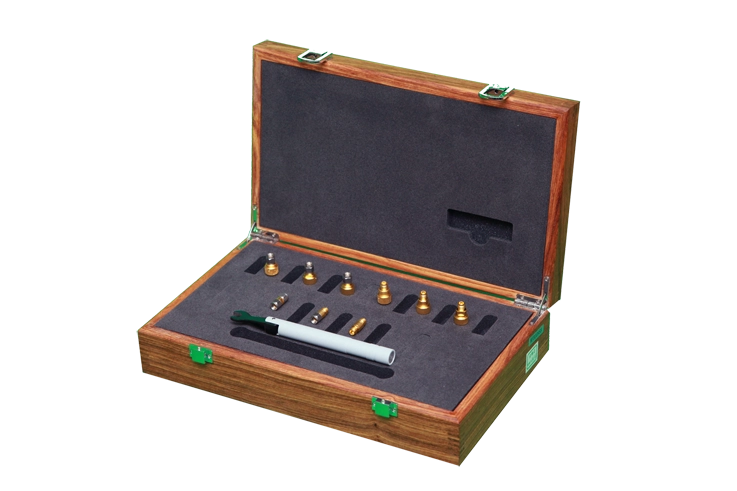

Standard Package
| No. | Item | Qty. |
| 1 | Short: 2.92mm (M) | 1 |
| 2 | Short: 2.92mm (F) | 1 |
| 3 | Open: 2.92mm (M) | 1 |
| 4 | Open: 2.92mm (F) | 1 |
| 5 | Load: 2.92mm (M) | 1 |
| 6 | Load: 2.92mm (F) | 1 |
| 7 | 2.92mm JJ adapter | 1 |
| 8 | 2.92mm JK adapter | 1 |
| 9 | 2.92mm KK adapter | 1 |
| 10 | Torque Spanner | 1 |
Video
-
Unboxing Video
