SCK7.5-7/16-L29 Mechanical Calibration Kit

Overview Specifications Ordering Resources

Economical Calibration Kit, DC to 7.5GHz, 7-16 or L29, 50Ω, 9-piece Set

    • Calibrate the vector network analyzer for 7-16 or L29 interfaces

    • Includes adapters and a torque wrench, allowing for changes in port type and ensuring consistently reliable connections.



  Unit Price: US$ 4,320

  3-4 Weeks Delivery



♦ Click to view the selection guide.

♦ Need technical support or a custom solution? Contact our application engineers: saluki@salukitec.com.

♦ To request a quotation, please contact sales@salukitec.com or click “Contact Us” to leave a message.

Key Features

DC to 7.5GHz frequency coverage

Using for Site Master, Cable & Antenna Analyzer and VNA calibration

Saluki, Agilent/Keysight, Anritsu, Rohde & Schwarz, Tektronix and other VNA supported

  • We offer two payment methods .



    •  Send your requirements to sales@salukitec.com



    •  Select your preferred payment method



    •  Receive the Proforma Invoice (PI) or Credit Card payment link



    •  Make payment



    •  Goods are shipped

  • Saluki Calibration Kits – Trusted by Industry Leaders

    Typical Users of Saluki Calibration Kits



    •  The National Physical Laboratory (NPL)（UK）



    •  Missouri University of Science and Technology



    •  Boise State University



    •  University of South Florida



    •  Nagoya University



    •  Rutgers University



    •  Yonsei University



    •  Sejong University



    •  TEKTRONIX, INC.



    •  ERAVANT



    •  NVIDIA

    ……

  • Common Q&A



    Q: Can I use it in Keysight VNA?

    A: Yes, you can, insert the U Disk which we provided to Keysight VNA, import the database, then you can use it successfully.



    Q: Can I use it to R&S or other brand VNA?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.



    Q: Can I use it in my Sitemaster or Cable and Antenna Testers?

    A: Yes, you can. We will provide you a database, you just need to input the data to your VNA at the first time, then can use it freely in future.



    Q: What is the warranty time?

    A: We guarantee at least 500 times, In case there is quality issue, please contact with us for free repair within one year.



    Q: Who will afford shipping cost for return?

    A: Shipping from your side to our factory need to pay by yourself, we will pay shipping cost when shipping back.

Frequency

DC to 7.5 GHz
Specifications

•  Open: ±2.0°(50MHz – 4GHz), ±3.0° (4GHz – 7.5GHz)

•  Short: ±1.8°(50MHz – 4GHz), ±2.5° (4GHz – 7.5GHz)

•  Load: VSWR<1.066

•  Adaptor: VSWR < 1.066 (50MHz – 4GHz), VSWR < 1.18 (4GHz-7.5GHz)
Impedance

50 ohm

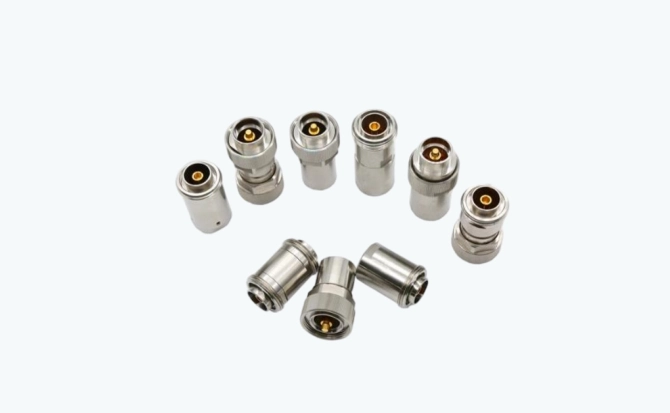

Standard Package

No. Item Qty.
1 Open: 7/16 (M) 1
2 Open: 7/16 (F) 1
3 Short: 7/16 (M) 1
4 Short: 7/16 (F) 1
5 Load: 7/16 (M) 1
6 Load: 7/16 (F) 1
7 7/16(f) - 7/16(f) adaptor 1
8 7/16(m) - 7/16(m) adaptor 1
9 7/16(m) - 7/16(f) adaptor 1
