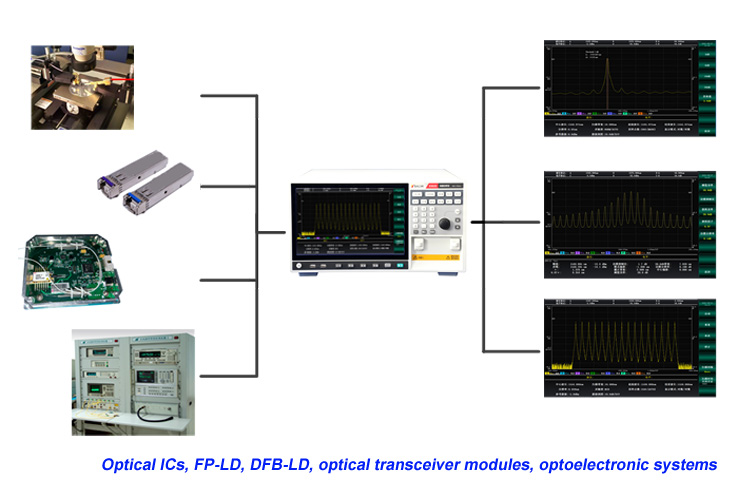

Saluki S6362D is a high-resolution, large-dynamic, high-speed, high-performance optical spectrum analyzer. It is perfect for testing 600 nm to 1700 nm optical systems, such as DWDM and optical amplifiers. It can also be used for optical active and passive device testing, such as LED, FP-LD, DFB-LD, optical transceivers and optical fibers and fiber gratings and other optical devices.
S6362D Optical Spectrum Analyzer
Key Features
20pm minimum spectrum resolution
600nm to 1700nm spectrum scanning range
76dB large dynamic range
-90dBm sensoring sensitivity
Single longitudinal mode laser spectrum analysis
Multi-longitudinal mode laser spectroscopy
Various optoelectronic device application analysis functions
Support spatial light input
Built-in light source output configuration
Powerful spectrum data analysis function for multiple applications
12.1-inch touch screen
| Spectral Range | 600nm – 1700nm |
| Applicable Fiber Type | SM (9.5/125um), GI (50/125um, 62.5 um, 125um), Large core diameter fiber (maximum 200um) |
| Scan Span | 0.2 nm to 1100 nm (full span), 0 nm |
| Wavelength Accuracy | • ±0.02 nm (1520nm to 1620nm) • ±0.04 nm (1450nm to 1520nm) • ±0.10 nm (full span) |
| Wavelength Linearity | ±0.01nm (1520 – 1580nm) |
| Wavelength Repeatability | ±0.005nm (2 minutes) |
| Wavelength Resolution Setting | 0.02, 0.05, 0.1, 0.2, 0.5, 1, 2 nm |
| Sampling Resolution | Minimum 0.001nm |
| Sampling Points | 101 to 50001, AUTO |
| Power Sensitivity Setting | NORMAL, MID, HIGH1, HIGH2 and HIGH3 |
| Power Sensitivity | • -90 dBm (1300 to 1620nm) • -85 dBm (1000 to 1300nm) • -60 dBm (600 to 1000nm) (sensitivity: HIGH3) |
| Maximum input power | +20 dBm (per channe, full wavelength band) |
| Maximum Safe Input Power | +25 dBm (total input power) |
| Power Accuracy | ±0.4 dB (1310/1550nm, input power: -20dBm, sensitivity: MID) |
| Power Linearity | ±0.05 dB (input power: -50dBm to +10dBm) |
| Power Flatness | • ±0.1dB (1520nm to 1580nm) • ±0.2dB (1450nm to 1520nm, 1580nm to 1620nm) |
| Polarization Dependence | ±0.05 dB (1550nm), ±0.08 dB (1310nm) |
| Dynamic Range | • Resolution 0.02nm: 60dB (peak ±0.2nm), 46dB (peak ±0.1nm) • Resolution 0.05nm: 73dB (peak ±1.0nm), 63dB (peak ±0.4nm), 52dB (peak ±0.2nm) • Resolution 0.1nm: 60dB (peak ±0.4nm), 46dB (peak ±0.2nm) |
| Stray Light Suppression Rate | 76dB |
| Optical Return Loss | 35dB (using APC connectors) |
| Optical Output Options | Standard C-band DFB calibration light source DFB/FP light source (standard 1550nm, other wavelengths are optional) SLED light source (band range optional), SLED+C2H2 light source Other light source type accessories can be customized |
| Display | 12.1 inch touch screen |
| Instrument Interface | USB/Ethernet/GPIB/RS232C/VGA |
| Dimension | 426 (W) × 221 (H) × 450 (D) mm |
| Weight | 19kg |
Main Machine
| Module No. | Item | Description |
| S6362D | Optical Spectrum Analyzer | 600 nm to 1700 nm |
Options
| Module No. | Item | Description |
| S6362D-S02 | High Accuracy Analysis Software | Optimized wavelength measurement accuracy and dynamic range. Wavelength accuracy: ±10pm (1520nm to 1580nm), Dynamic range: better than 75dB (Typ: 76dB) |
| S6362D-H02 | Build-in Source | Type: SLED, Power: ≥1mW, Center Wavelength: 1310nm/1490nm/1550nm (Selectable) |
| S6362D-H03 | Build-in Source | Type: SLED + C2H2 absorption tank for higher calibration, Power: ≥1mW, Center Wavelength: 1550nm |
