S1433 Series Handheld Signal Generator

Overview Specifications Ordering Resources

Saluki S1433 series signal generator is a hand-held instrument specially designed for field testing. It has the functions of CW signal output, FM/AM/Pulse modulation, large dynamic range amplitude adjustment, step/list sweep etc. The integrated design of 8.4-inch large capacitive touch screen is convenient for users’ operation.

S1433 series signal generator has the characteristics of small size, flexible power supply and good working environment adaptability, which is very suitable for on-site use. It can be applied to the field installation, debugging and daily maintenance of fault diagnosis of electronic integrated system, receiver performance test, communication, radar, navigation and other equipment test.

Key Features

Wide frequency range: 1MHz to 20/26.5/40/50GHz

Higher frequency resolution: 0.1Hz

Excellent phase noise performance: -110dBc/Hz@10kHz frequency offset @10GHz carrier (typical)

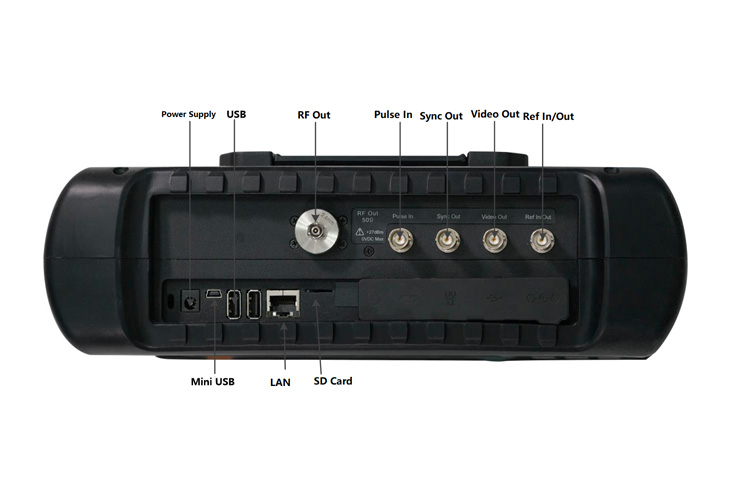

Various auxiliary test interfaces: reference input/output, pulse input, monitoring output, synchronization output etc.

Support LAN and USB interface program control function

Flexible power supply mode: can be powered by battery or power adapter

8.4-inch large screen with bright LCD, convenient capacitive touch screen operation, multi-window display

Frequency Range	S1433D: 1 MHz to 20 GHz, S1433E: 1 MHz to 26.5 GHz, S1433F: 1 MHz to 40 GHz, S1433H: 1 MHz to 50 GHz
Frequency Resolution	0.1Hz
Internal Timebase	Aging rate: ±0.5×10^-6/year Temperature effects: ±0.3×10^-6 (-10℃ to 50℃, versus 25℃±5℃)
Reference Input	Frequency: 1MHz – 100MHz, step 1MHz Power: -5dBm to +10dBm, impedance: 50Ω
Reference Output	Frequency: 10MHz Power: >0dBm, 50Ω impedance
Sweep Features	Sweep mode: step, list Sweep points: 2 to 1601 Dwell time: 10ms to 100s Trigger mode: auto/manual
Stable Output Power Range	• 1MHz≤f<2.5GHz: -120dBm to +5dBm • 2.5GHz≤f≤10GHz: -120dBm to +10dBm • 10GHz<f≤20GHz: -120dBm to +5dBm • 20GHz<f≤40GHz: -120dBm to +5dBm • 40GHz<f≤50GHz: -120dBm to 0dBm
Level Accuracy	• -10dBm<P≤maximum stable output power: ±1.0dB • -60dBm<P≤-10dBm: ±1.5dB • -90dBm<P≤-60dBm: ±1.8dB
SWR	• 1MHz≤f≤20GHz: <1.8:1 • 20GHz≤f≤40GHz: <2.0:1 • 40GHz≤f≤50GHz: <2.5:1
Reverse Power	Maximum +27dBm (0V DC, rating)
Harmonics	• 1MHz≤f≤1.5GHz: ≤-40dBc • 1.5GHz<f≤2.5GHz: ≤-30dBc • 2.5GHz<f≤19GHz: ≤-40dBc • 19GHz<f≤25GHz: ≤-30dBc • 25GHz<f≤50GHz: ≤-35dBc (typical) (Measured at +5dBm or maximum specified power, whichever is lower)
Non-harmonics	• 1MHz≤f≤2.5GHz: ≤-54dBc • 2.5GHz<f≤5GHz: ≤-60dBc • 5GHz<f≤10GHz: ≤-56dBc • 10GHz<f≤20GHz: ≤-50dBc • 20GHz<f≤38GHz: ≤-44dBc • 38GHz<f≤50GHz: ≤-40dBc (0dBm, >10kHz offset)
Pulse Modulation	On/off ratio: ≥80dB Rise/fall times: ≤30ns Minimum pulse width ALC ON: 1us (Deviation±50ns) Minimum pulse width ALC OFF: 100ns (Deviation±20ns)
Amplitude Modulation	Modulation type: Linear modulation, exponent modulation Modulation rate (3dB bandwidth): DC – 20kHz Maximum depth: linear closed loop: ≥90%, exponent closed loop: ≥20dB Linear AM accuracy: ± (5%× setting depth＋1%) (at 1kHz modulation rate) Exponent AM accuracy: ± (5%× setting depth＋1dB) (at 1kHz modulation rate)
Frequency Modulation	Modulation rate (3dB bandwidth): DC – 20kHz Maximum peak deviation: N×800kHz (N: YO harmonic number) , accuracy: ±10% (at 1kHz) Distortion: ±3% (at 1kHz, 100kHz offset, 300Hz – 3kHz demodulation bandwidth)
RF Output Port	S1433D: N (female) , impedance: 50Ω S1433E/F/H: 2.4mm (male) , impedance: 50Ω
Power Supply	Power adapter: input 100 – 240V, 50/60Hz AC, output 15V_DC, 4A Lithium electronic battery: 10.8V, 9900mAh
Dimension	314 (W) × 218 (H) × 91 (L) mm (excluding handle, foot mat and footing)
Weight	≤ 5.5kg (including battery)
	(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No.	Item	Description
S1433D	Handheld Signal Generator	1 MHz to 20 GHz
S1433E	Handheld Signal Generator	1 MHz to 26.5 GHz
S1433F	Handheld Signal Generator	1 MHz to 40 GHz
S1433H	Handheld Signal Generator	1 MHz to 50 GHz

Options

Module No.	Item	Description
S1433-S01	USB Power Meter Option (software)	Provide USB Power Measurement Function (Requires USB Power sensor: H06-H13)
S1433-H01	English Version	Optional Accessories of English Version, English Signs, Keys, Menu
S1433-H02	Power Adapter	Power Adapter
S1433-H03	Rechargeable Lithium Ion Battery	Standby Battery
S1433-H04	Purple Cat5e Cable	Point to Point, 2 Meters
S1433-H05	Micro SD Card	Class4, Capacity: 8G
S1433-H06	S87230 USB CW Power Sensor	9kHz-6GHz, for CW power measurement (S01 is optional)
S1433-H07	S87231 USB CW Power Sensor	10MHz-18GHz, for CW power measurement (S01 is optional)
S1433-H08	S87232 USB CW Power Sensor	50MHz-26.5GHz, for CW power measurement (S01 is optional)
S1433-H09	S87233 USB CW Power Sensor	50MHz-40GHz, for CW power measurement (S01 is optional)
S1433-H10	S87234D USB Peak Power Sensor	50MHz-18GHz, for Peak power measurement (S01 is optional)
S1433-H11	S87234E USB Peak Power Sensor	50MHz-26.5GHz, for Peak power measurement (S01 is optional)
S1433-H12	S87234F USB Peak Power Sensor	50MHz-40GHz, for Peak power measurement (S01 is optional)
S1433-H13	S87234L USB Peak Power Sensor	500MHz-67GHz, for Peak power measurement (S01 is optional)
S1433-H14	Functional Bag	Protect the Instrument
S1433-H15	Backpack	Easy to Carry
S1433-H16	Safety Carrying Case	High strength light weight packing case with handle for transportation

Document

S1433 Series Signal Generator Datasheet
