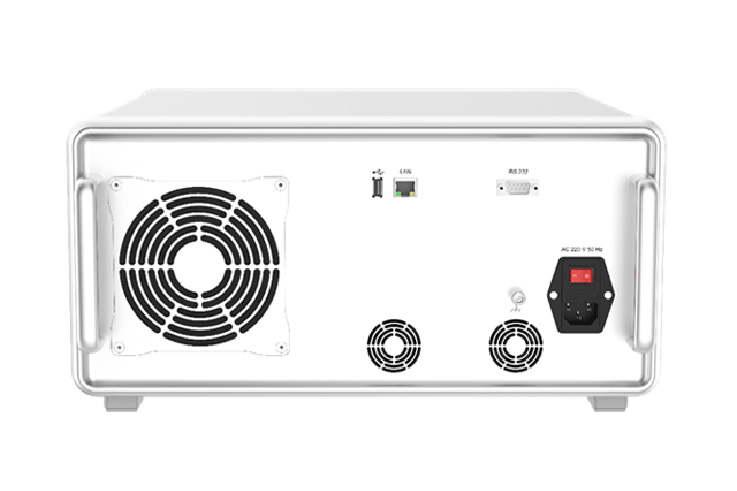

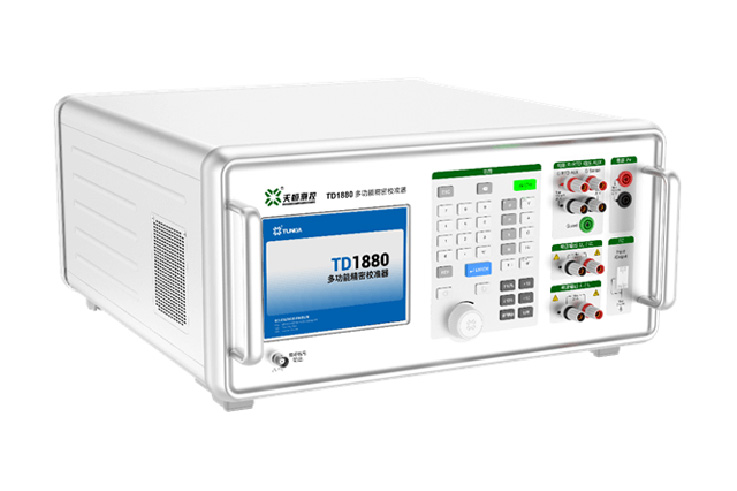

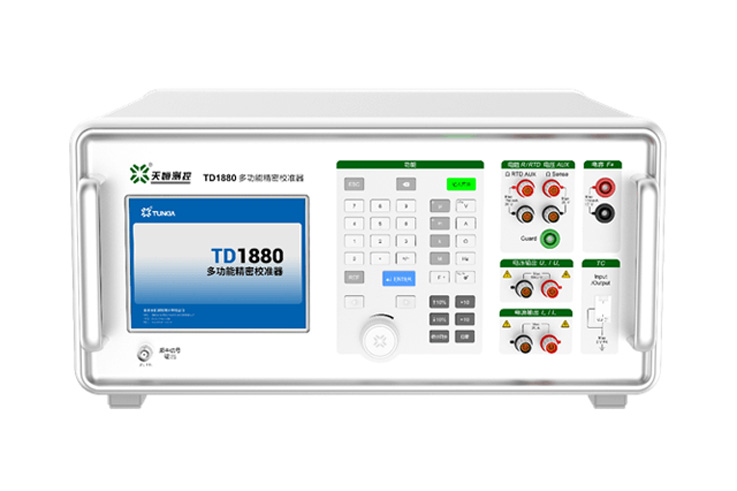

TD1880 Multiproduct Calibrator

TD1880, a wide-range, multi-value and high-precision calibrator, can accurately output ultra-precision AC/DC voltage, current, phase adjustment and power, and also has the functions of pulse output and simulating DC resistance, thermocouple (TC), thermal resistance (RTD) and capacitance.

Key Features

Electrical Parameters Output: Voltage is up to 1020 V, current is up to 20.5 A at a frequency 10 Hz - 500 kHz

Resistance Simulation: Continuously variable range, 1 Ω - 1100 MΩ, pulse output range: 1 Hz - 2 MHz

The output current has high stability (the typical value is better than 10 ppm/h) and high accuracy (the typical value is 50 ppm/a), and its measurement accuracy is higher than the international similar products

Value Adjustment Method: Fixed-point, rotary encoder, step and potentiometer (option).

Output Switch: The output can be turned on/off arbitrarily by one-touch operation.

TC and RTD simulation: Support for simulation of up to 8 types of TC and 6 types of RTD.

Strong load capacity of AC, can drive various types of analogue meters and digital meters, so the applicable range of measured instruments is very wide.

The protection of voltage and current sources ensures high reliability under complex conditions.

Excellent Human-Computer Interaction: Large LCD touch screen display, touch and button operation modes, easy for users to measure manually.

Transmitter Measurement (Option): Measure the secondary DC signal of the transmitters.

Proprietary Software (Option): Support the calibration of the checked meters by semi-automatic or full-automatic, data management and report export.

  • To Develop The World-Class Measuring Equipment

    •   Applied to calibrate 6½ and below digits multimeters or other electrical measuring instruments.



    •   Widely used in electric, calibration, military, manufacturing, scientific research and other fields.

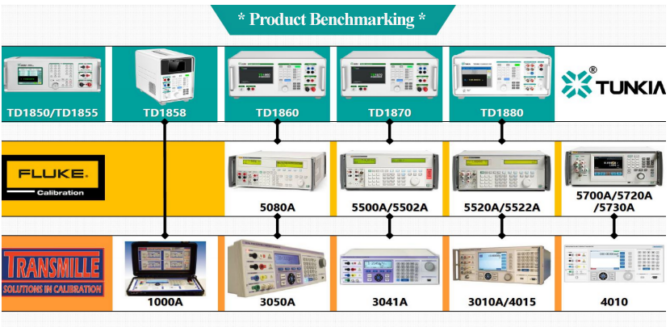

    •   Tunkia’s calibrators are comparable to Fluke, Transmille brands.

(see the “Resources”-“Datasheet”)

Main Machine

Module No. Item Description
TD1880 Muitlproduct Calibrator High precision, multi-function

Options

Module No. Item Description
/ Transmitter Measurement Measure the secondary DC signal of the transmitters
/ Proprietary Software Support the calibration of the checked meters by semi-automatic or full-automatic, data management and report export
