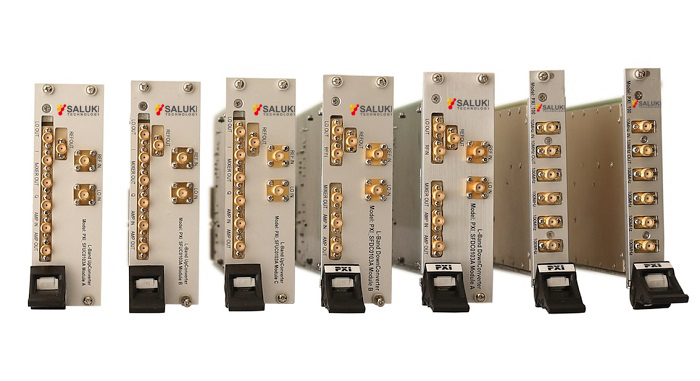

SUDC-M Series Multi-Channel Microwave Up/Downconverter

SUDC-M Series Multi-Channel Microwave Up/Downconverter is a modular frequency converter based on the mainstream standard bus (PXI/CPCI/VPX etc.) that has a high integration, high scalability, and good cost/performance ratio. The RF signal of this series of converter covers single octave and multi-octave, and the frequency step is precise and accurate to 10Hz with a variety of IF and signal bandwidth choices. It is mainly used for wireless communication MIMO, signal monitoring system, GPS, and electronic countermeasures system. Its excellent phase noise, clutter suppression, and in-band flatness data can provide a transparent RF transmission channel to all videos or data communications. PXI/CPCI/VPX are all standard buses that are easy to use – plug and play, reliable, and convenient.

Key Features

Octave RF coverage (S, C, X, Ku, and Ka)

Multi-octave RF coverage 1.5M ~ 26.5GHz

2GHz or above instantaneous signal bandwidth

Amplitude Equalization and Group Delay Equalization

Variety of commonly sued IF and bandwidth combinations

Choices of coherent multi-channel or non-coherent multi-channel

Excellent phase noise specification ≤-100dBc/Hz@10KHz

Broadband IQ modulation and demodulation (2GHz signal bandwidth)

Internal and external reference switching

RF frequency cover

1.5MHz ~ 26.5GHz

Octave RF coverage

S, C, X, Ku, and Ka

Phase noise specification


(Note: see more technical specifications, please contact

Main Machine

Module No. Item Description
SUDC-M Multi-Channel Microwave Up/Downconverter RF output frequency range: 1.5 MHz to 26.5 GHz
