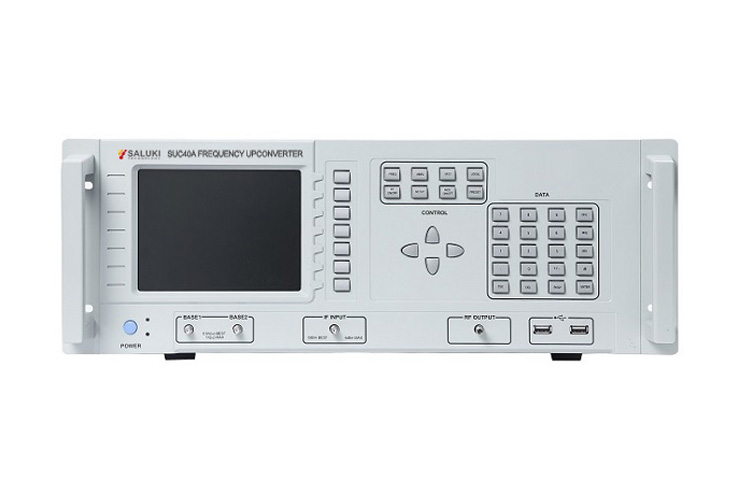

SUC-A Series Multi-Octave Upconverter

SUC-A Series Multi-Octave Upconverter belongs to our microwave upconverter series that has a high performance and an octave overage by RF signal. Its frequency step is precise and accurate to 10Hz with a variety of IF and signal bandwidth choices.

This series of converters is mainly used for electronic countermeasure system, radar system, and satellite communication system. Its excellent phase noise, clutter suppression, and in-band flatness data can provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. SUC-A series microwave upconverter is available in 2U/ 4U sizes.

Applications: T&M Systems / Satellite Communications / MIMO / Radar System

Key Features

Multi-octave RF coverage (0.5GHz to 67GHz)

4GHz or above instantaneous signal bandwidth

Amplitude equalization and group delay equalization

Variety of commonly used IF and bandwidth combinations

Excellent phase noise specification (67GHz): ≤-100dBc/Hz@10KHz

Internal and external reference switching

Remote programming

1. Output
Frequency Range

0.5GHz – 20GHz / 26.5GHz /40GHz / 50GHz / 67GHz

P-1 Output Power

SUC20A/SUC26A: ≥15dBm,  SUC40A: ≥13dBm,  SUC50A/SUC67A: ≥10dBm

Frequency Tuning Step Size

10Hz

Output VSWR

≤2.5

Output Impedance

50Ω

2. Input
Input Frequency

70±20MHz, 140±40MHz, 0.72±0.25GHz, 1.2±0.25GHz, 1.2±0.5GHz, 1.8±1GHz, 3±2GHz (select between single or multiple IF inputs)

Max. Power Input

+10dBm (Operating)

Input VSWR

≤1.4

Input Impedance

50Ω

3. Transfer
Gain

0-15dB (minimum signal power output -100dBm or below, ATT110 support)

Tuning Step Size

0.1dB

Gain Resolution

≤±1dB

Level Stability

≤±0.5dB/day at room temperature

Gain Flatness

≤±0.3dB/40MHz, ≤±0.5dB/80MHz, ≤±1dB/500MHz, ≤±1.5dB/1000MHz, ≤± 2dB/2000MHz, ≤±3dB/4000MHz, ≤±2dB/Full Band

Inband Frequency Clutter

≤-55dBc (excluding output harmonics)

RF Shutdown Feature

≥ 80dB

Phase Noise

Check the detailed specifications in the datasheet

4. Reference
Internal Reference Frequency Stability

±2e-8 (0℃ to +50℃, after 30min power on)

Internal Reference Frequency Accuracy

0.05ppm

Internal Reference Power Output

5±2dBm, 50Ω, 10MHz, Sine wave

External Reference Power Input

5±2dBm, 50Ω, 10MHz, Sine wave

Reference Phase Noise

≤-125dBc/Hz@10Hz, ≤-140dBc/Hz@100Hz, ≤-150dBc/Hz@1kHz, ≤-155dBc/Hz@10kHz, ≤-155dBc/Hz@100kHz

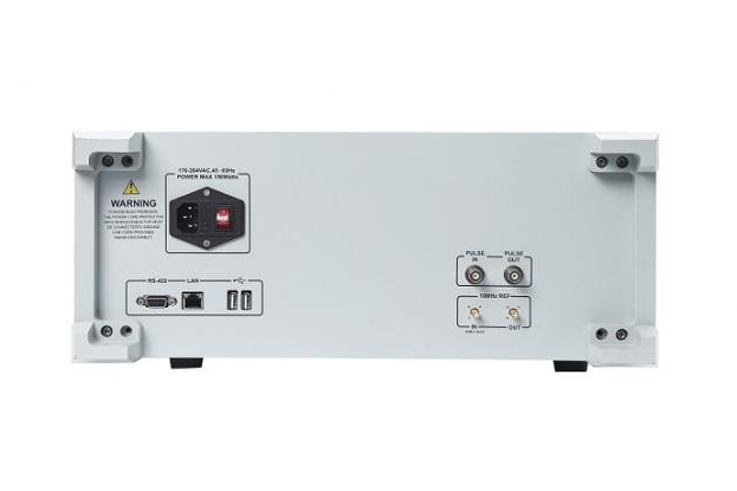

5. General
RF Output Port

•   SUC20A/SUC26A/SUC40A: 2.92mm-K

•   SUC50A: 2.4mm-K

•   SUC67A: 1.85mm-K

IF Input Port

SMA-K

I/Q Input Port

SMA-K

External Reference Input Port

BNC female

Internal Reference Output Port

BNC female

Control Interface

RJ-45 (TCP/IP over Ethernet) / RS422

Dimension

•   SUC20A: 483 × 90× 550 mm (2U)

•   SUC26A/SUC40A/SUC50A/SUC67A: 483 × 180 × 550 mm (4U)

Weight

•   SUC20A: 15kg

•   SUC26A/SUC40A/SUC50A/SUC67A: 25kg

(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
SUC20A Multi-Octave Upconverter RF output frequency range: 0.5 GHz to 20 GHz
SUC26A Multi-Octave Upconverter RF output frequency range: 0.5 GHz to 26.5 GHz
SUC40A Multi-Octave Upconverter RF output frequency range: 0.5 GHz to 40 GHz
SUC50A Multi-Octave Upconverter RF output frequency range: 0.5 GHz to 50 GHz
SUC67A Multi-Octave Upconverter RF output frequency range: 0.5 GHz to 67 GHz

Options

Module No. Item Description
SUC-MA IF/BW IF/Bandwidth Option IF input frequency range: 70±20 MHz
SUC-MB IF/BW IF/Bandwidth Option IF input frequency range: 140±40 MHz
SUC-MC IF/BW IF/Bandwidth Option IF input frequency range: 0.72±0.25 GHz
SUC-MD IF/BW IF/Bandwidth Option IF input frequency range: 1.2±0.25 GHz
SUC-ME IF/BW IF/Bandwidth Option IF input frequency range: 1.2±0.5 GHz
SUC-MF IF/BW IF/Bandwidth Option IF input frequency range: 1.8±1 GHz
SUC-MG IF/BW IF/Bandwidth Option IF input frequency range: 3±2 GHz
SUC-IQ IQ Baseband Input Option IQ baseband input
SUC-ATT110 ATT110 Option Minimum output of signal power down to -100dBm
