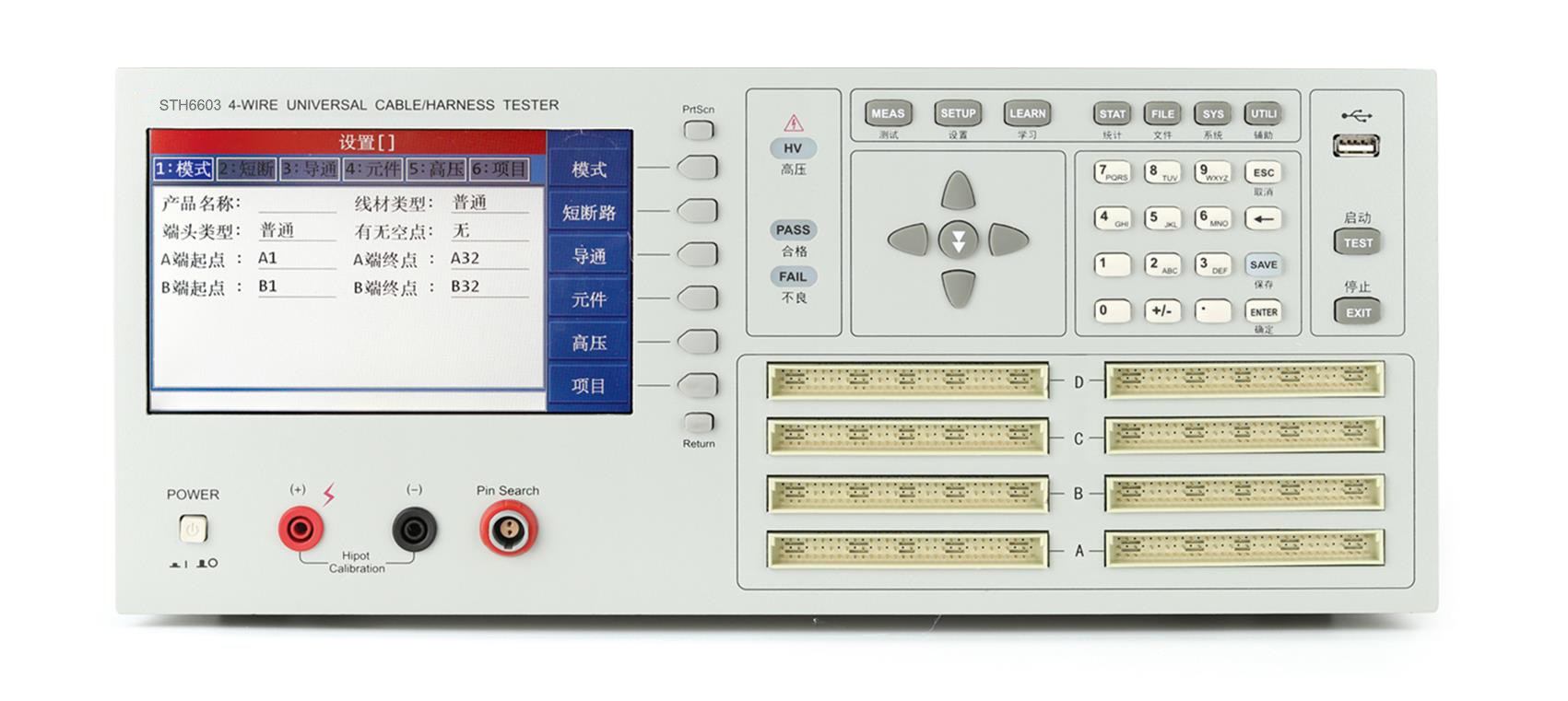

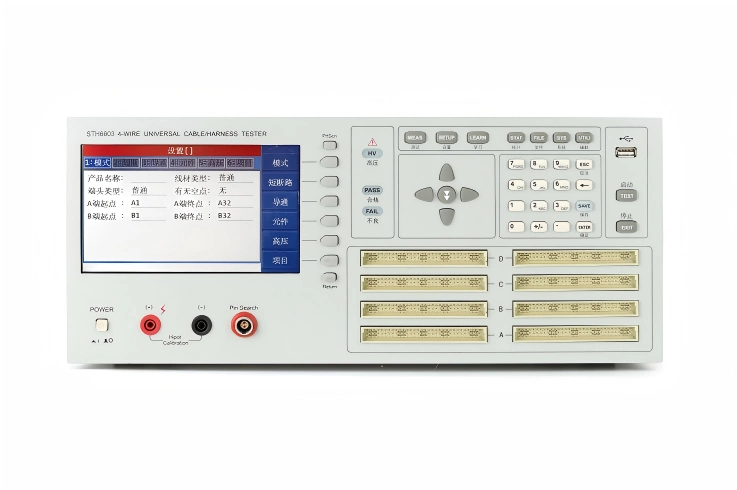

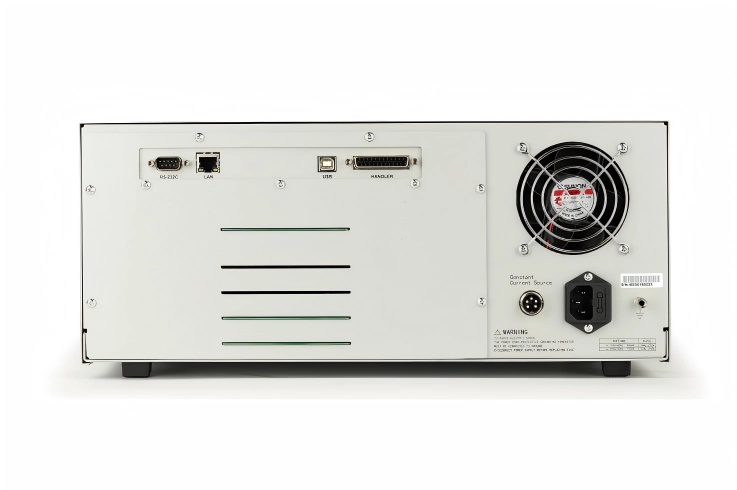

STH6603 series cable/harness tester is multifunctional and automatic test system of wire comprehensive parameters, which is exclusively used in quality and connection reliability test for various kinds of cables, wiring harness and winding displacement.
Applications: Communication and IT / Automotive Electronics / Electronics Industry / Components / Safety test
** Standard Lead Time: within 4 weeks **
Test Pin: 512pin, four-terminal test
Conductance, Transient open and short circuit, Hipot, IR, Component test
(Patent) High and low voltage separation technology, insulation impedance > 100GΩ
Built-in 10A independent DC current source for pressure dropping test
(Patent) 4 high-pressure test modes: a pair of other, dichotomy, automatic test, grounding test
Testing resistance, capacitance, diode and other components using four-terminal testing technology
Support multi-file testing, providing flexible solutions for complex wires
Handler supports up to 40 outputs
Communication command provides two instruction systems: SCPI
Applications:
Communications & IT:
Telephone lines, network cables, multi-strand connection cables, mobile phone display cables, Type-C data cables, USB data cables, laptop display cables, HDMI cables, VGA cables, IDE hard drive cables, SATA hard drive cables, etc.
Automotive Electronics:
ECU cables, automotive wiring harnesses, navigation system cables, navigation display cables, in-vehicle electronics cables, audio/video cables.
Electronics Industry:
Ribbon cables, flat cables, connectors, power cords, multi-way switches, RS232 cables,
GPIB cables, USB extension cables, multi-pin sockets.
Components:
Passive Components: Capacitors, inductors, resistors, diodes; polarity and voltage drop testing for capacitors.
Safety Testing: AC withstand voltage, DC withstand voltage, insulation resistance.
| Module | STH6603-4 |
| 1. Test Signal Source | |
| AC | Frequency: 50Hz-100kHz, Accuracy 0.02% Range: 0-1Vrms, Accuracy 10% |
| DC | Voltage: 0-5V，Accuracy 10%±1 Digit Current: 1-15mA，Accuracy 10%±1 Digit |
| Channel board open-off scan signal source | 5Vdc |
| 2. Capacitance Measurement | 1uF-1000μF，Accuracy：10%±1 Digit |
| 3. DCR | 10mΩ-1MΩ, Accuracy: 2%±1 Digit |
| 4. Cond./Interval cond | 0.1Ω-950Ω |
| 5. Open and Short Circuit | 1kΩ-50kΩ, Accuracy: 10%±1 Digit |
| 6. Diode Testing | 0-10V, Accuracy: 10%±1 Digit |
| 7. Test Speed | Momentary Short Circuit: 20ms(512 Dots) Basic Test Speed: 100ms |
| Module No. | Item | Description |

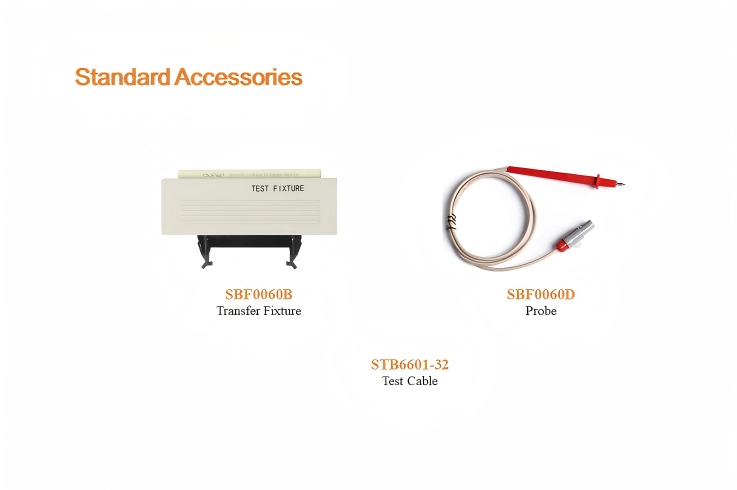

| STH6603-4 | Cable/Harness Tester | AC: 50Hz-100kHz DC: 0V-5V, 512 PINS, including Probe, Transfer Fixture, Test Cable. |
