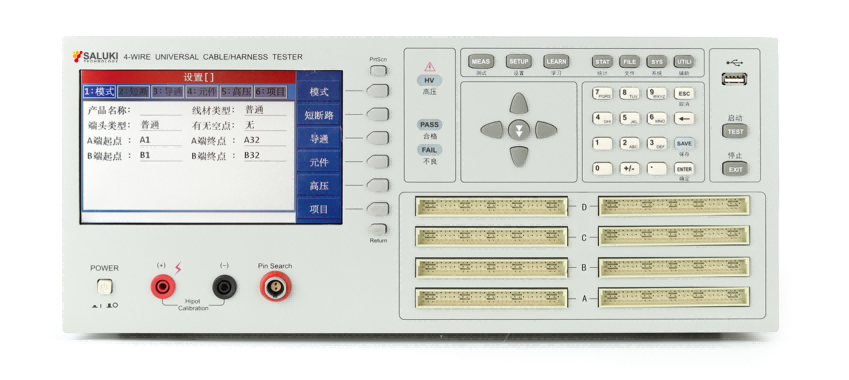

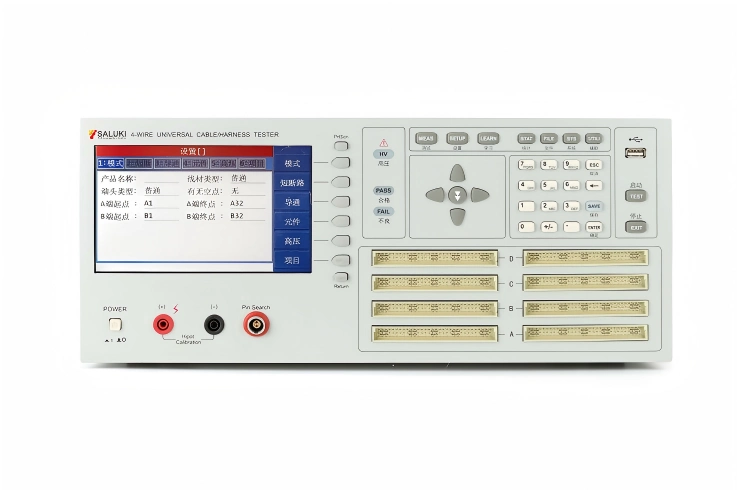

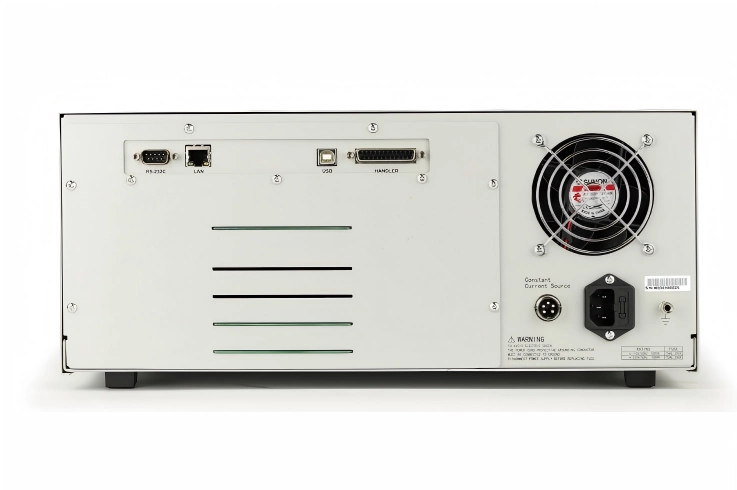

STH6602 series cable/harness tester is multifunctional and automatic test system of wire comprehensive parameters, which is exclusively used in quality and connection reliability test for various kinds of cables, wiring harness and winding displacement.
Applications: Communication and IT / Automotive Electronics / Electronics Industry / Components / Safety test
** Standard Lead Time: within 4 weeks **
Test Pin: 64-256 pin, four-terminal test
Conductance, Transient open and short circuit, Hipot, IR, Component test
(Patent) High and low voltage separation technology, insulation impedance > 100GΩ
Built-in 10A independent DC current source for pressure dropping test
(Patent) 4 high-pressure test modes: a pair of other, dichotomy, automatic test, grounding test
Testing resistance, capacitance, diode and other components using four-terminal testing technology
Handler supports up to 40 outputs
Communication command provides two instruction systems: SCPI
Applications:
Communications & IT
Telephone lines, network cables, multi-strand connection cables, mobile phone display cables, Type-C data cables,
USB data cables, laptop display cables, HDMI cables, VGA cables, IDE hard drive cables, SATA hard drive cables, etc.
Automotive Electronics
ECU cables, automotive wiring harnesses, navigation system cables, navigation display cables, in-vehicle electronics cables, audio/video cables
Electronics Industry
Ribbon cables, flat cables, connectors, power cords, multi-way switches, RS232 cables,
GPIB cables, USB extension cables, multi-pin sockets
Electronic Components
Passive Components: Capacitors, inductors, resistors, diodes; Capacitor Polarity, Voltage Drop
Safety Testing
AC Dielectric Withstand, DC Dielectric Withstand, Insulation Resistance
| Module | STH6602-1 STH6602B STH6602C STH6602-2 STH6602-3 STH6602-4 |
| 1. Test Signal Source | |
| AC | Frequency: 50Hz-100kHz，Accuracy 0.02% Range: 0-1Vrms,Accuracy 10% |
| DC | Voltage: 0-5V，Accuracy 10%±1 Digit Current: 1-20mA，Accuracy 10%±1 Digit |
| Channel board open-off scan signal source | 5Vdc |
| 2. Capacitance Measurement | 1uF-1000μF，Accuracy：10%±1 Digit |
| 3. DCR | 10mΩ-1MΩ，Accuracy：2%±1 Digit |
| 4. Cond./Interval cond | 10mΩ-50Ω |
| 5. Open and Short Circuit | 1kΩ-50kΩ，Accuracy：10%±1 Digit |
| 6. Diode Testing | 0-10V，Accuracy：10%±1 Digit |
| 7. Test Speed | Instant breakpoint：4ms Instantaneous circuit：5μs-2ms |
| Module No. | Item | Description |

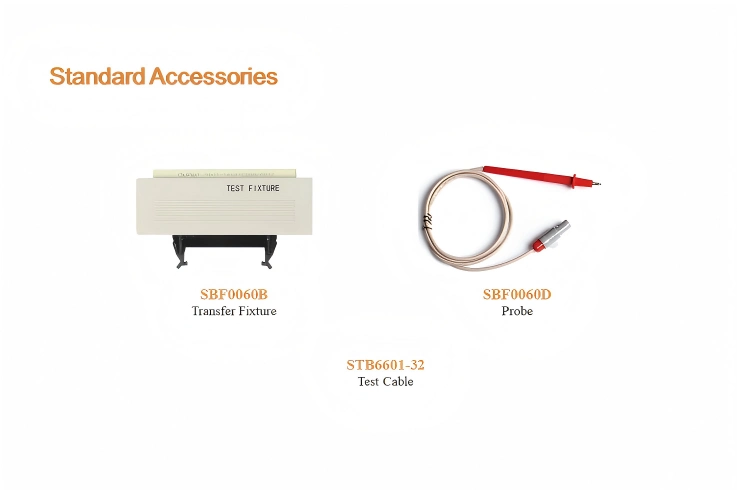

| STH6602-1 | Cable/Harness Tester | AC: 50Hz-100kHz DC: 0V-5V, 64 PINS, including Probe, Transfer Fixture, Test Cable. |
| STH6602B | Cable/Harness Tester | AC: 50Hz-100kHz DC: 0V-5V, 64 PINS, including Probe, Transfer Fixture, Test Cable. |
| STH6602C | Cable/Harness Tester | AC: 50Hz-100kHz DC: 0V-5V, 64 PINS, including Probe, Transfer Fixture, Test Cable. |
| STH6602-2 | Cable/Harness Tester | AC: 50Hz-100kHz DC: 0V-5V, 128 PINS, including Probe, Transfer Fixture, Test Cable. |
| STH6602-3 | Cable/Harness Tester | AC: 50Hz-100kHz DC: 0V-5V, 192 PINS, including Probe, Transfer Fixture, Test Cable. |
| STH6602-4 | Cable/Harness Tester | AC: 50Hz-100kHz DC: 0V-5V, 256 PINS, including Probe, Transfer Fixture, Test Cable. |
