STB8882A Series Impulse Winding Tester

Overview Specifications Ordering Resources

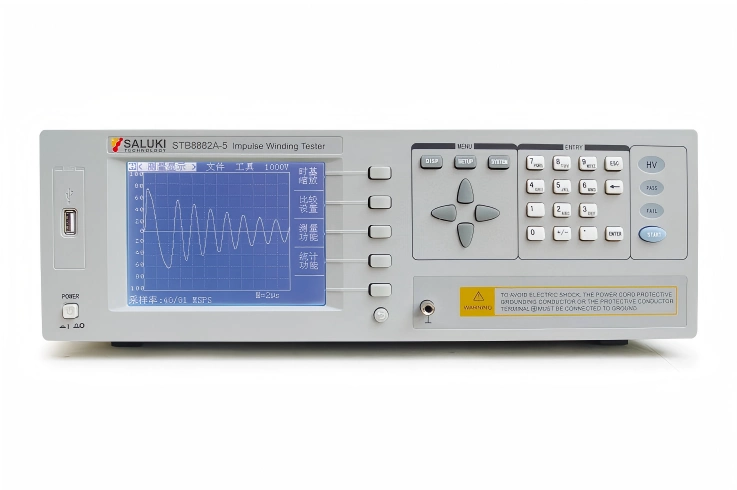

STB8882A series impulse winding tester, adopting highspeed sampling technique, is a new generation analysis test instrument for insulation performance of coil products.

When testing, STB8882A compares the standard waveform stored in the instrument with current measuring waveform. STB8882A gives the PASS or FAIL comparison result according to Area, Differential Area, Corona Discharge, Differential Phase etc. With strong function, precision test method, flexible operation and various interfaces, STB8882A can provide test solution for most coil winding products.

** Standard Lead Time: within 4 weeks **

Key Features

Low inductance impulse test: down to 10μH

Low energy test without damaging the coil

Fast detection of winding insulation at a speed of 5.5 meas/sec

Up to 40 MSPS sampling rate

Multi-trigger mode programmable

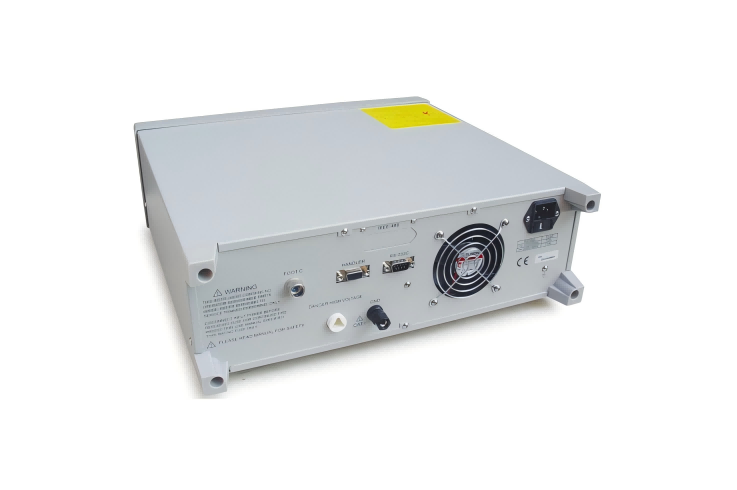

Handler, RS-232C, and GPIB(optional) interfaces

Multi-channel scan control interface: SCANNER (optional)

Module

STB8882A-3

STB8882A-5

STB8882AS-5

Output Impulse Voltage

300V-3000V, 50V Steps ± 5% of set value ± 15V;

500V-5000V, 100V Steps ± 5% of set value± 25V.

Impulse Energy (1KΩ Resistive Load)

≤ Max. 90 milli-Joules;

≤ Max. 250 milli-Joules.

Inductance Range

≥ 10μH;

≥ 20μH;

≥ 200μH.

Waveform Sampling

Sampling rate:

40MSPS/25ns, 20MSPS/50ns, 10MSPS/100ns, 5MSPS/200ns, 2.5MSPS/400ns, 1.25MSPS/800ns, 625kSPS/1.6μs, 312kSPS/3.2μs

Resolution: Digits

Sampling length: Bytes

Input Impedance

10MΩ (Resistive voltage divider)

Measuring Speed

5.5 times/sec (Waveform display OFF, PASS/FAIL ON)

3.3 times/sec (Waveform display ON, PASS/FAIL ON)

Waveform Measurement

Voltage, Time, Frequency

Accuracy

Area Size Repetition Accuracy: ±1%

Differential Area Repetition Accuracy: ±1%

Main Machine

Module No.	Item	Description

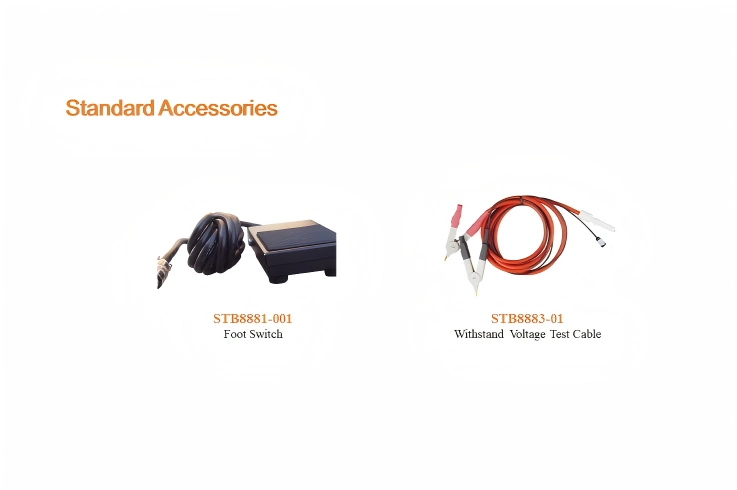

STB8882A-3	Impulse Winding Tester	Pass/Fail sound/light alarm output Single Phase, including Withstand Voltage Test Cable and Foot Switch.
STB8882A-5	Impulse Winding Tester	Pass/Fail sound/light alarm output Single Phase, Withstand Voltage Test Cable and Foot Switch.
STB8882AS-5	Impulse Winding Tester	Pass/Fail sound/light alarm output Single Phase/Three Single, Withstand Voltage Test Cable and Foot Switch.

Options

Module No.	Item	Description
SAX0001	GPIB Interface Board	/
SBF0025	STB8818-USB Main Control Board	/

Document

STB8882A Series Impulse Winding Tester Datasheet
