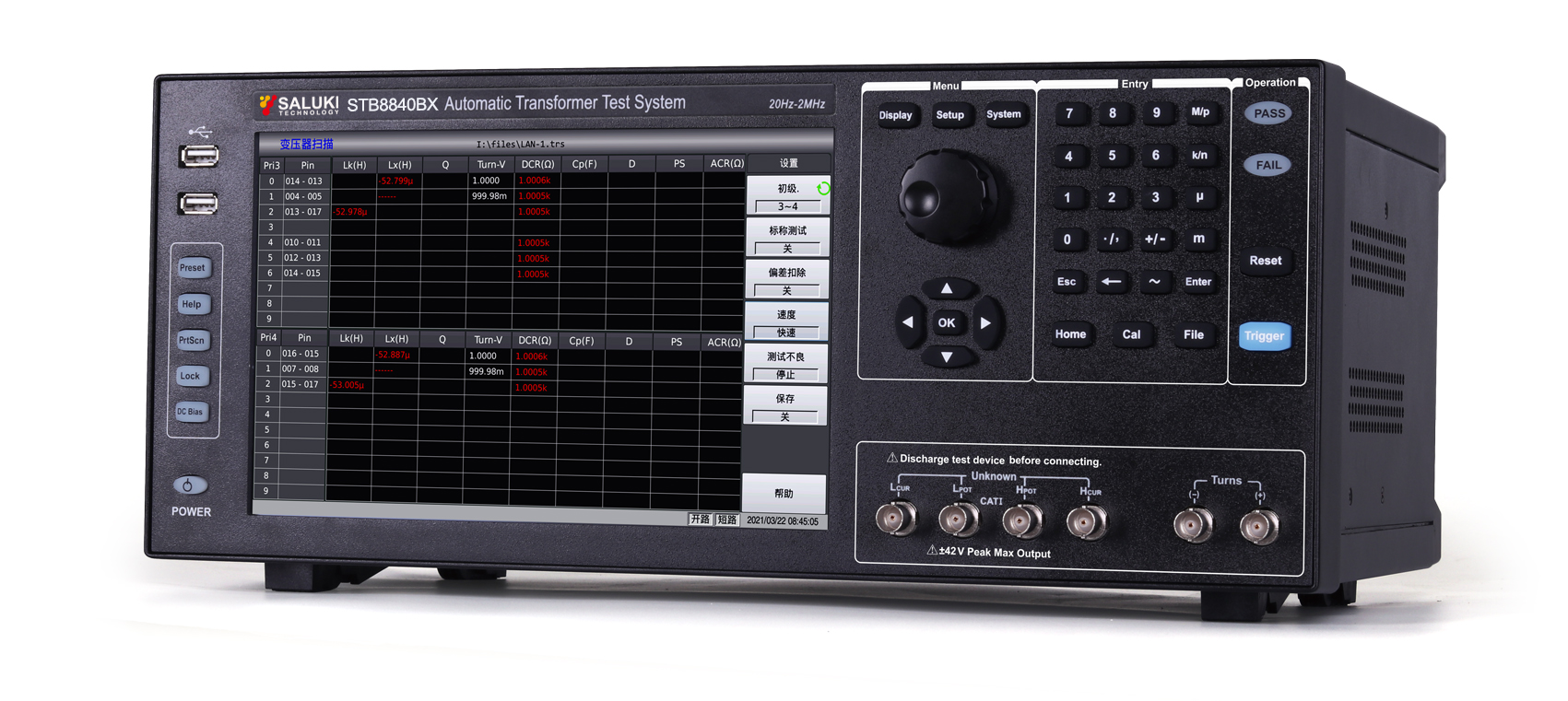

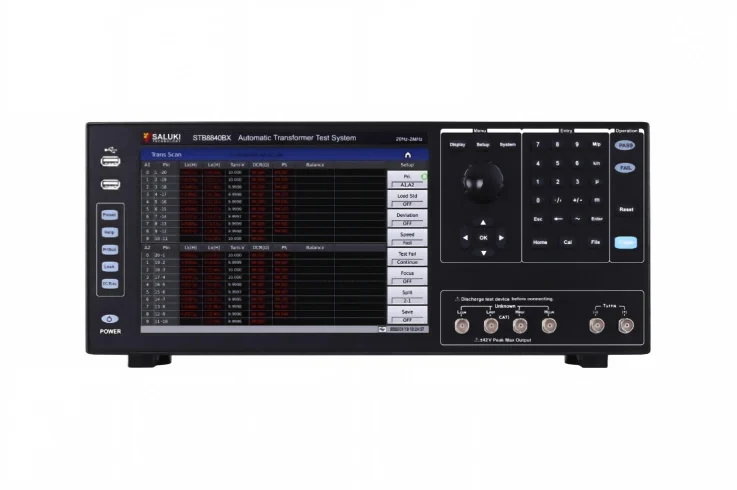

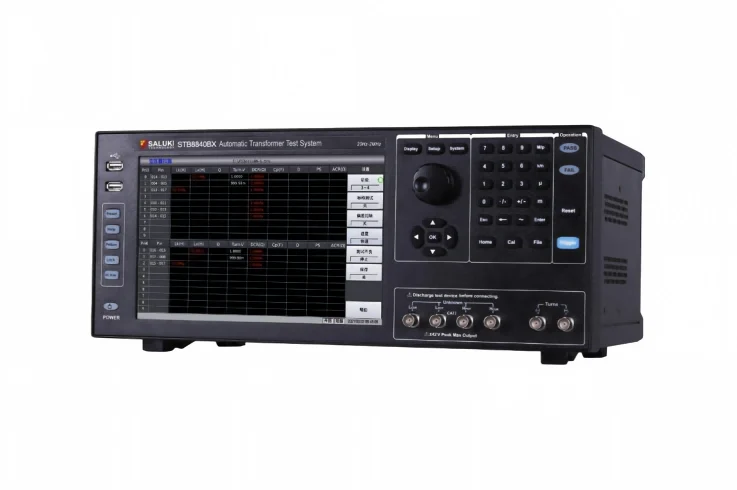

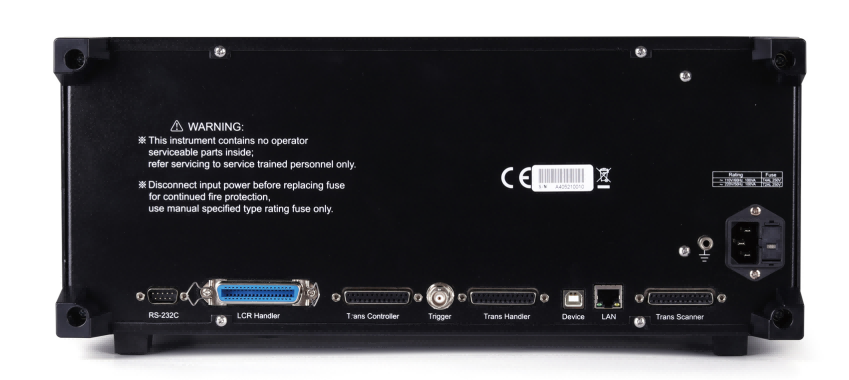

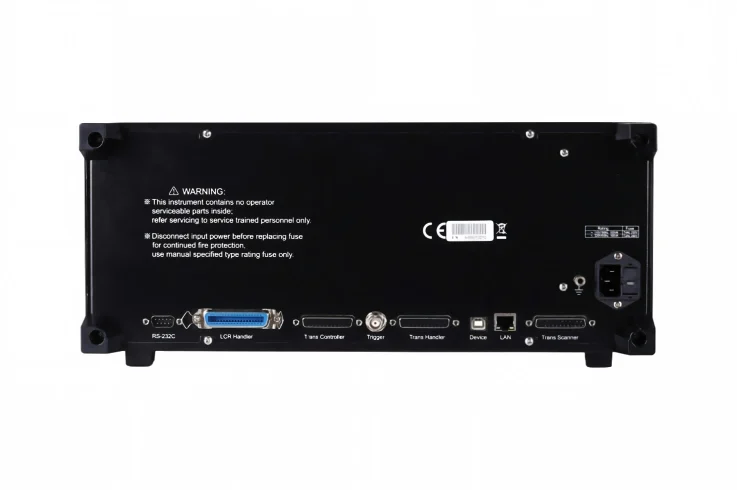

STB8840X series is a new generation Automatic Transformer Test system of low cost and high performance, The basic accuracy is 0.05%, and the wide frequency range: 20Hz to 2MHz, which means STB8840X series Automatic Transformer Test system has good test stability that can compare favorably with those high-end models.
** Standard Lead Time: within 4 weeks **
The test speed is as high as 1800 times/s (>10kHz), without relay action time
Test level up to 20Vrms
The bias voltage is built-in ±40V/±100mA/2A
Up to 288 test pins (only STB8840NX)
Industry-friendly user experience: Linux bottom layer, built-in help file
10.1 inch 1280×800 capacitive touch screen
Graphical pin association setting page, so that wiring is no longer a problem
Lk setting does not need to input the leakage inductance pin, which is more intuitive
Enhanced balance scanning function, from 5 points to 10 points
Range switching adopts electronic switch, fast speed, long life, no noise
Optional LCR function
Approximately 100M setting file storage space in the machine, and massive U disk setting file storage capacity
Provide host computer to support early model file format conversion to ensure compatibility
A. Revolutionary Design
Featuring a dual-CPU architecture running on a Linux-based operating system—and supporting input via touchscreen, keyboard, and mouse, along with built-in multilingual help functions—this device delivers an unparalleled user experience. It significantly lowers the barrier to entry for operators while boosting testing efficiency several-fold.

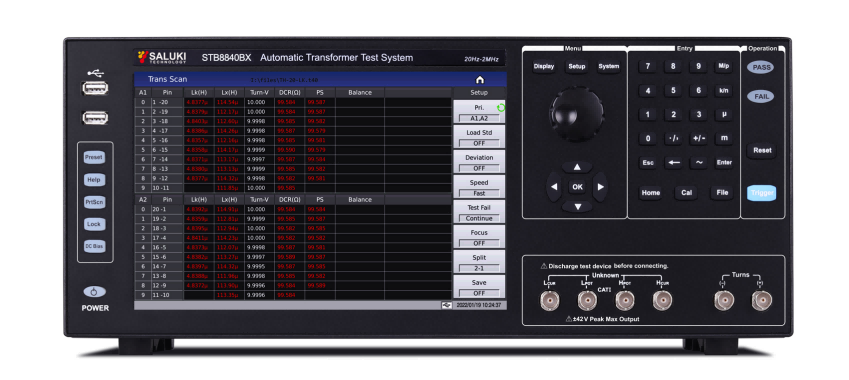

B. Large 10.1-inch Screen: Streamlined Setup and Simplified Operation
Equipped with a 10.1-inch touchscreen display boasting a 1280 x 800 resolution, this large interface offers distinct advantages: it consolidates all critical settings—including transformer pin assignments, test parameters, pin series/parallel configurations, and sorting criteria—onto a single screen. Users can interact directly via touch or through a keyboard and mouse, ensuring that operations are not only rapid but also visually uncluttered and organized.
■ Switching Transformer Sweep Testing and Comprehensive Characterization
■ Network Transformer Sweep Testing and Comprehensive Characterization
■ Multi-channel Sweep Testing for Discrete Passive Components (Inductors L, Resistors R, Capacitors C)
■ Multi-channel Sweep Testing for Relay Drive Coils and Contact Resistance
■ Multi-channel DC Resistance (DCR) Sweep Testing
■ Comprehensive Testing and Analysis of Multiple Passive Devices within Impedance Networks
| Fixture |
|
| Frequency Range | 20Hz to 2MHz |
| Basic Accuracy | 0.05% |
| Test Cable Length | 0m |
| Computation | The absolute deviation from the nominal value Δ, the percentage deviation from the nominal value Δ% |
| Equivalent Way | Series, Parallel |
| Calibration Function | OPEN, SHORT, LOAD |
| Average Times | 1-255 |
| Highest Accuracy | 0.05% Please refer to the manuals for the details |
| Module No. | Item | Description |
| STB8840AX | Automatic Transformer Test system | Frequency range: 20Hz to 500kHz. |
| STB8840BX | Automatic Transformer Test system | Frequency range: 20Hz to 2MHz. |
| STB8840NX | Automatic Transformer Test system | Frequency range: 20Hz to 500kHz. |

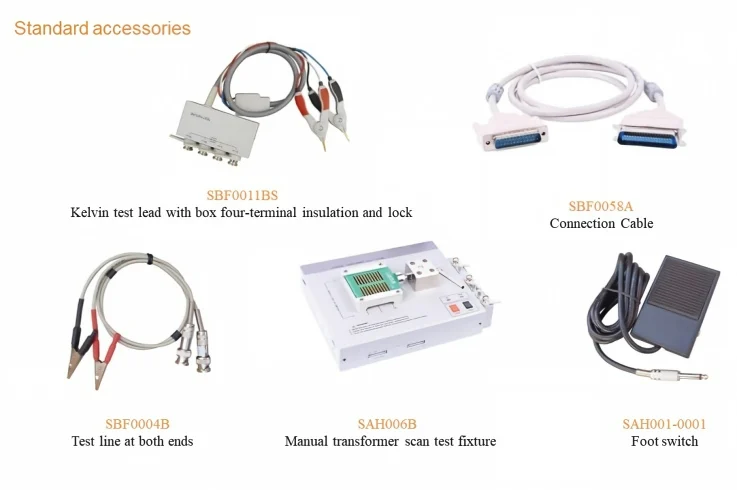

| Module No. | Item | Description |
| SBF0011BS | Kelvin test lead with box four-terminal insulation and lock | / |
| SBF0058A | Connection Cable | / |
| SBF0004B | Test line at both ends | / |
| SAH006B | Manual transformer scan test fixture | / |
| SAH001-0001 | Foot switch | / |
