STB883X Series Compact LCR Meter

CurrentHome>LCR Meters

STB883X Series Compact LCR Meter

Overview Specifications Ordering Resources

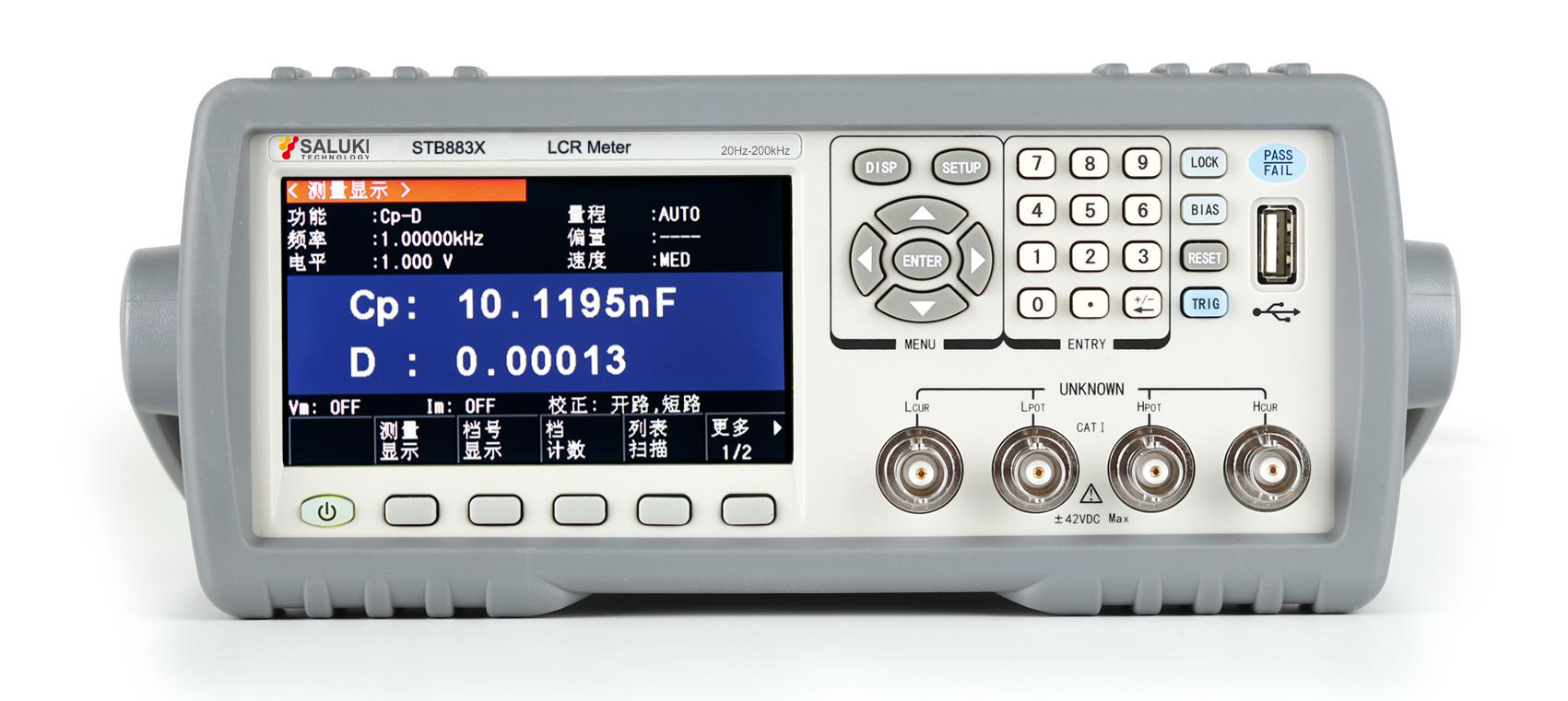

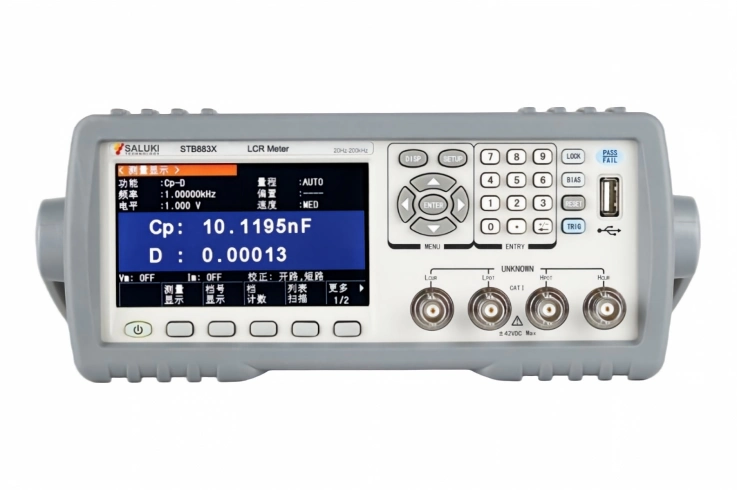

Adopting the latest technology & high-density circuit design and concentrating the essence of LCR test, STB883X series is a new generation compact LCR meter of low cost and high performance. Instead of traditional mechanical power switch, it adopts software control power switch. The basic accuracy of 0.05% and good test stability can compare favorably with those high-end models. Being equipped with 4.3-inch TFT LCD Display and brand-new interface system, STB883X series LCR meters possess elegant appearance and easy operation.

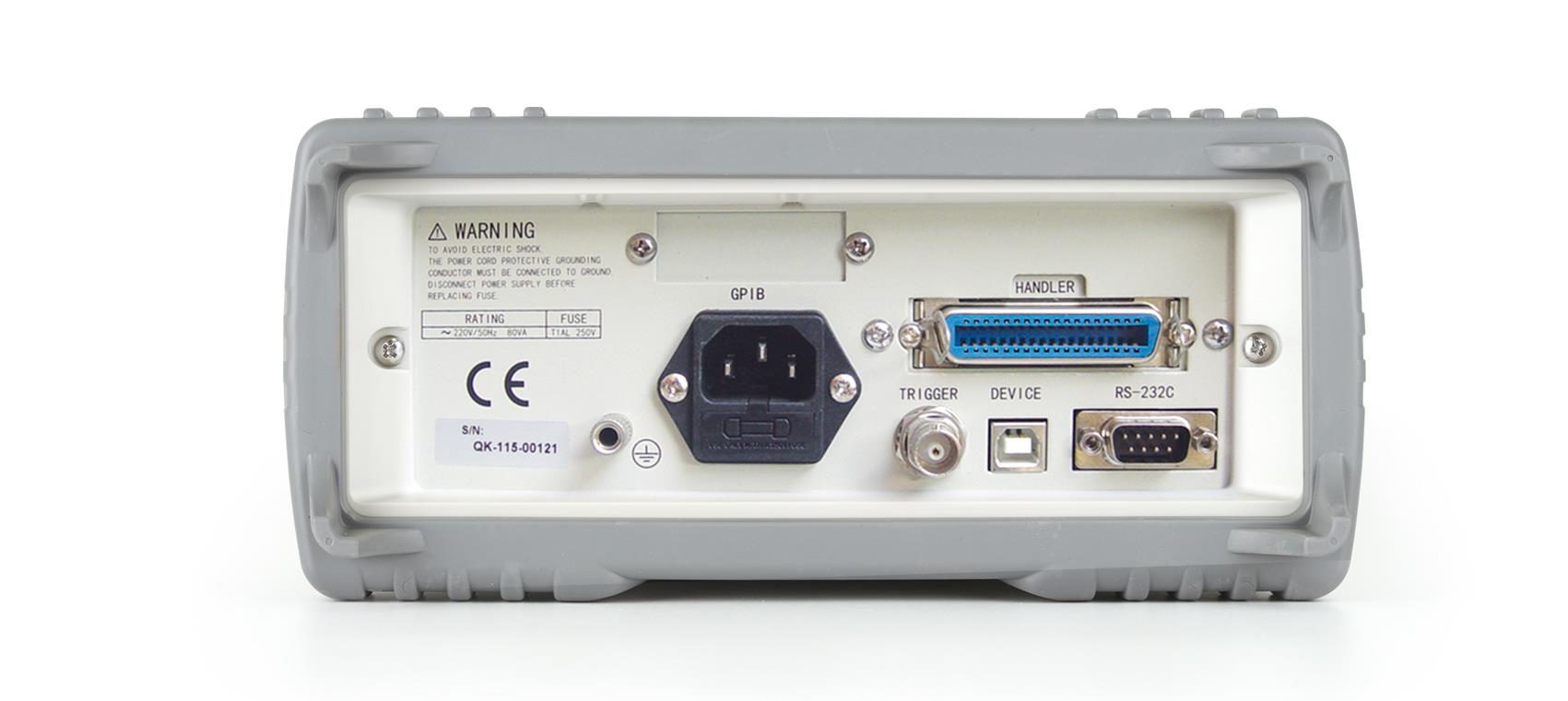

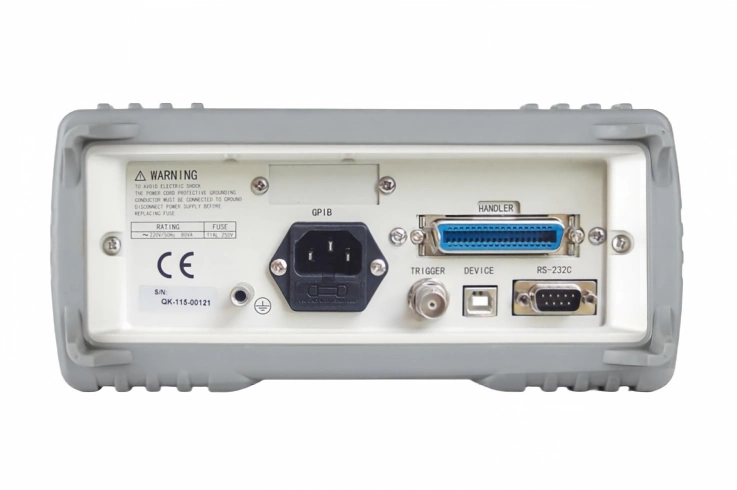

Also, being provided with various interfaces and good compatibility with SCPI commands, STB883X series LCR meters are convenient for constituting all kinds of test system and satisfy various kinds of demands for inspection, production and scientific research.

** Standard Lead Time: within 4 weeks **

Key Features

Low cost, high performance, small size

Max. 100kHz test frequency

Max. 6 digit reading resolution

10mVrms-2.0Vrms programmable signal level, built-in 0 - ± 5V/50mA bias source

DCR, 50mV-2V programmable test level, resolution 10μΩ

Ls-Rd / Lp-Rd Function (L, Rd display simultaneously) *

Selectable 30Ω/100Ω signal source impedance

Built-in comparator, 10 bins sorting and count function

Frequency Range	STB8830: 20Hz-100kHz, Continuous STB8832: 20Hz-200kHz, Continuous
Basic Accuracy	LCRZ：0.05% DCR：0.1%
Signal source output impedance	Selectable 30Ω, 100Ω, ±1% @1kHz
DC bias voltage source	0V— ± 5V Resolution: 0.5mV, Accuracy: 1% 0mA—± 50mA Resolution: 0.5μA
DCR display range	0.00001 Ω – 99.9999 MΩ
Math operation	Direct reading, ΔABS, Δ%

Main Machine

Module No.	Item	Description

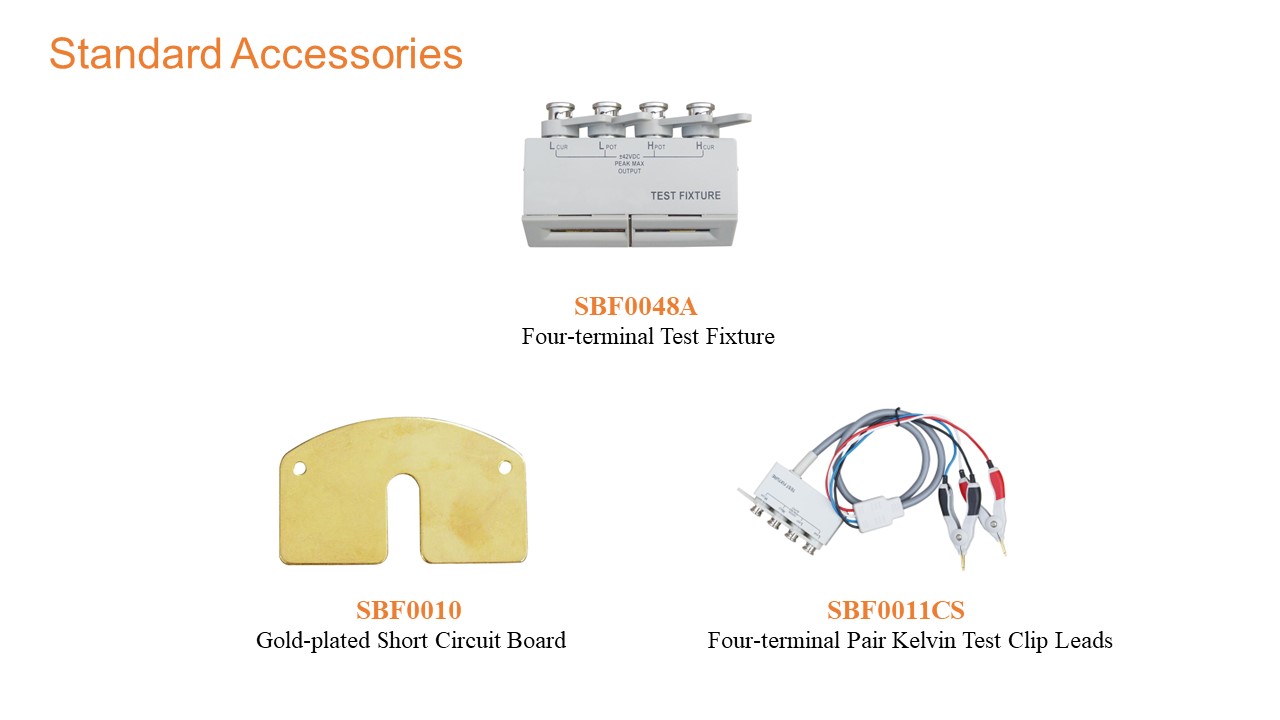

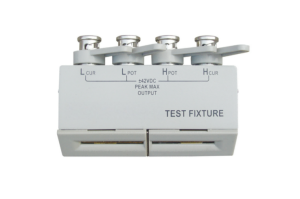

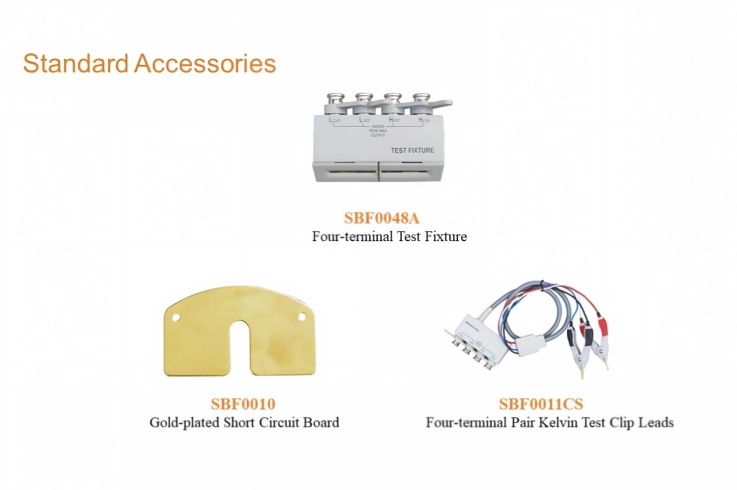

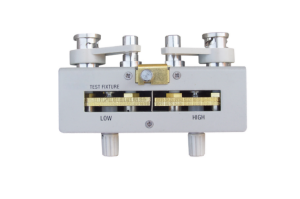

STB8830	Compact LCR Meter	Frequency range: 50Hz to 100kHz, including Four-terminal Test Fixture, short circuit and Four-terminal Pair Kelvin Test Clip Leads.
STB8832	Compact LCR Meter	Frequency range: 50Hz to 200kHz, including Four-terminal Test Fixture, short circuit and Four-terminal Pair Kelvin Test Clip Leads.

Document

STB883X Series Precision LCR Meter Datasheet
