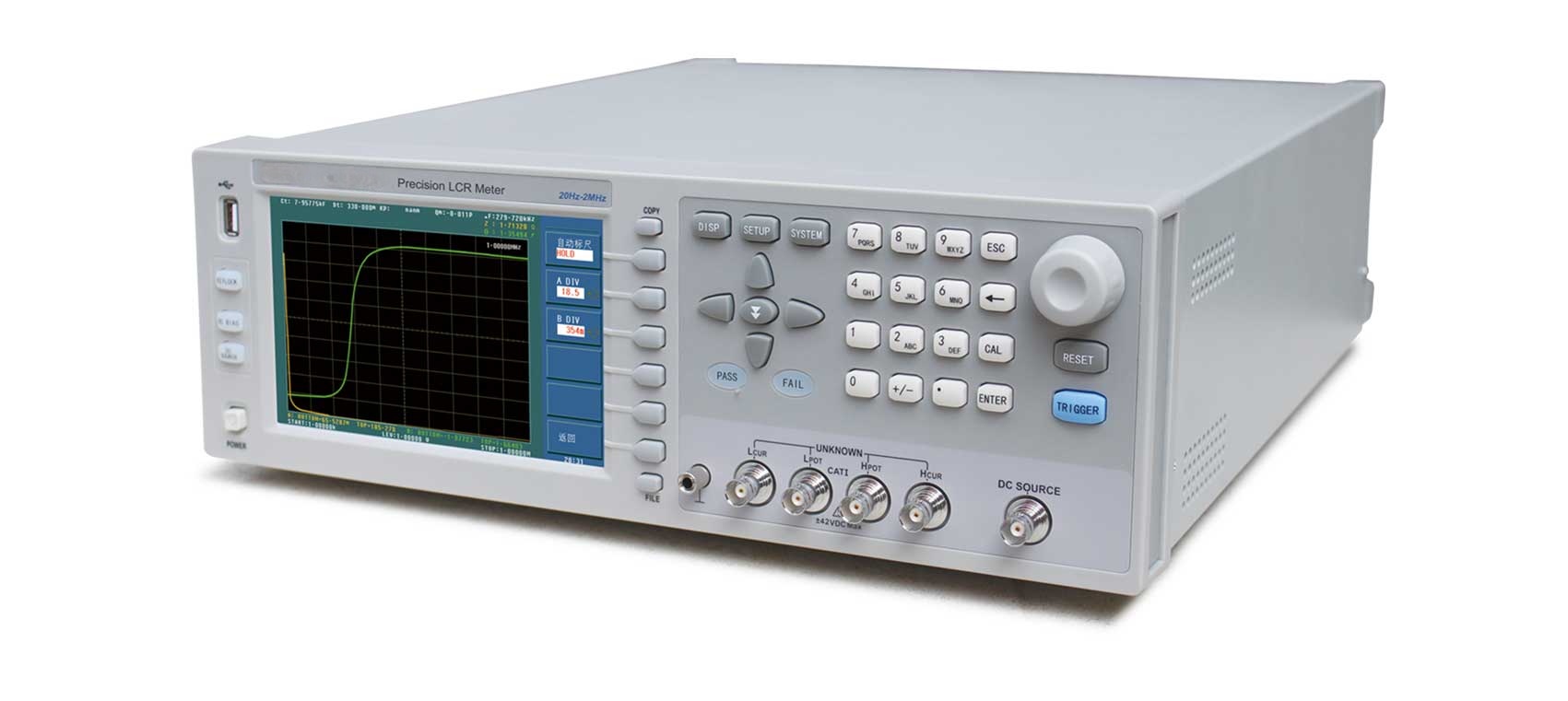

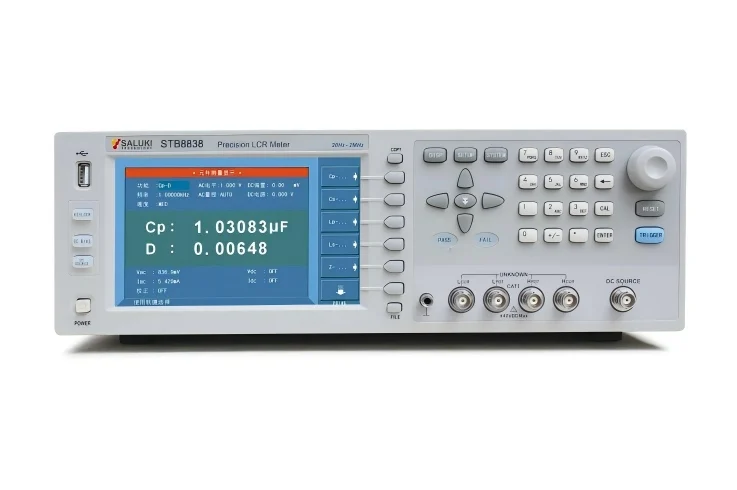

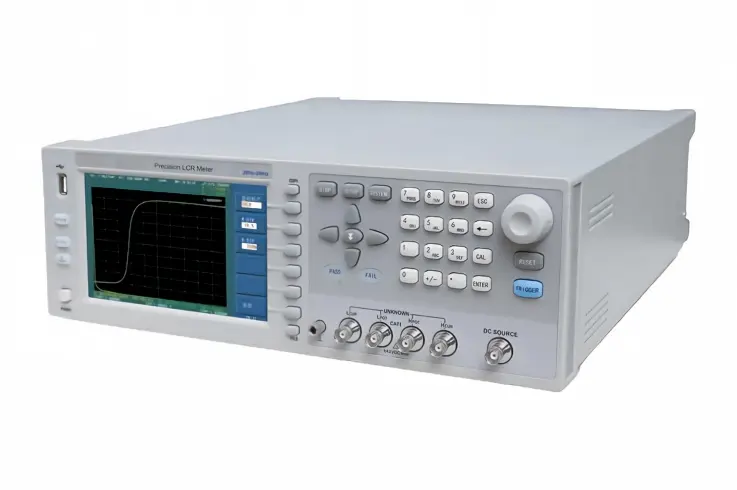

STB8838 Series Precision LCR Meter

Overview Specifications Ordering Resources

STB8838/STB8838H/STB8838A is a new generation impedance tester adopting the most advanced auto balance bridge theory in the world at present. With its 0.05% basic accuracy, speed up to 5.6ms, 20Hz-2MHz frequency range and impedance test range up to 1GΩ, this new impedance tester can meet all test demands of components and materials, especially for testing capacitor with low D and inductor with high Q. Four-terminal pair configuration can eliminate the effect of electromagnetic coupling in test cable, to extend the low limit of low impedance test 10 times than those testers with Five-pair configuration.

** Standard Lead Time: within 4 weeks **

Key Features

High accuracy: Adopt Auto-balance bridge technology, 4-terminal pair

High stability and consistency: Up to 15 ranges

High speed: Up to 5.6ms

High resolution:7- inch, 800×600

201 Points List Sweep Function

Multi-parameter Graphic Sweep Function

10 bins sorting, sorting result with sound and light alarm

Huge storage space: (Internal) 100 groups of setting files, 10 groups of gif image files; (External) 100 groups of setting files through USB storage

Arithmetical operation

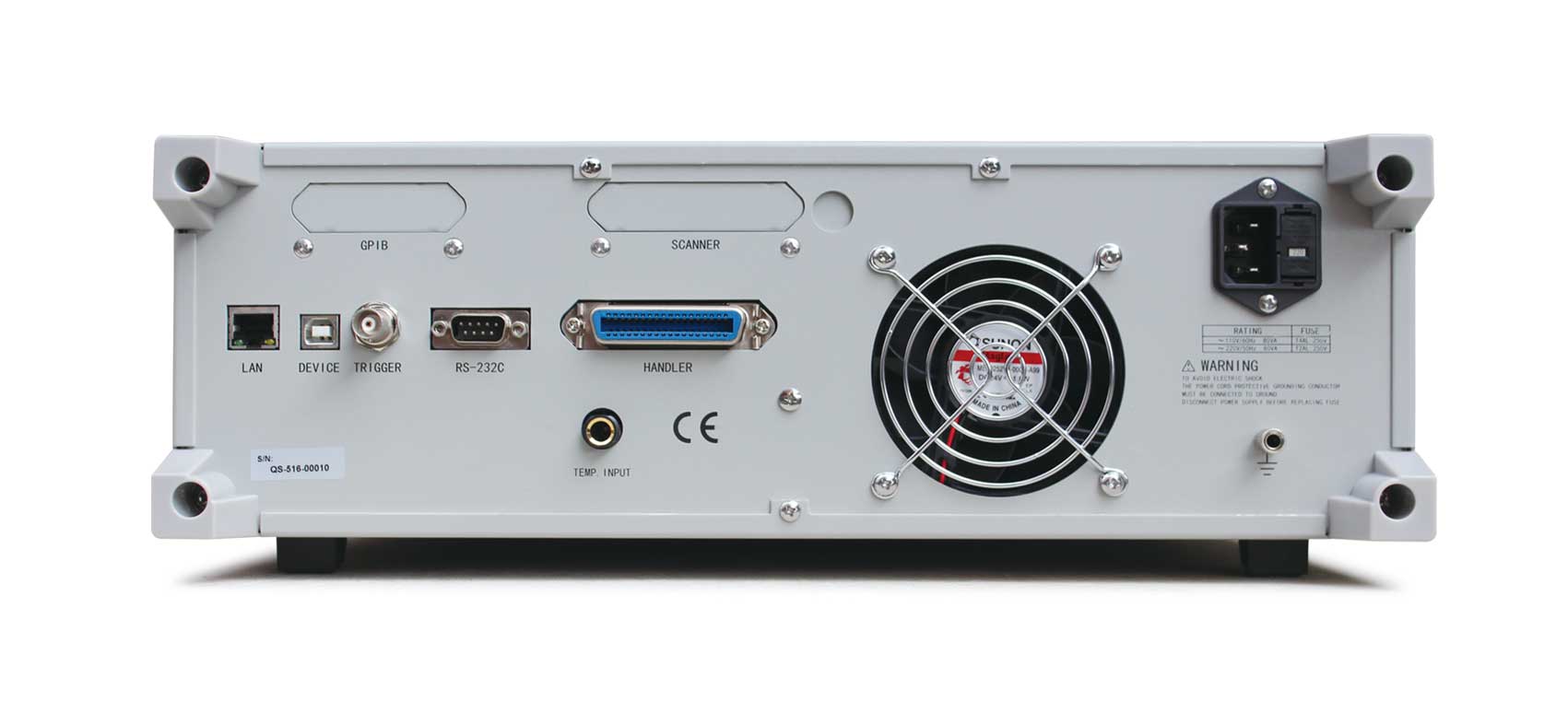

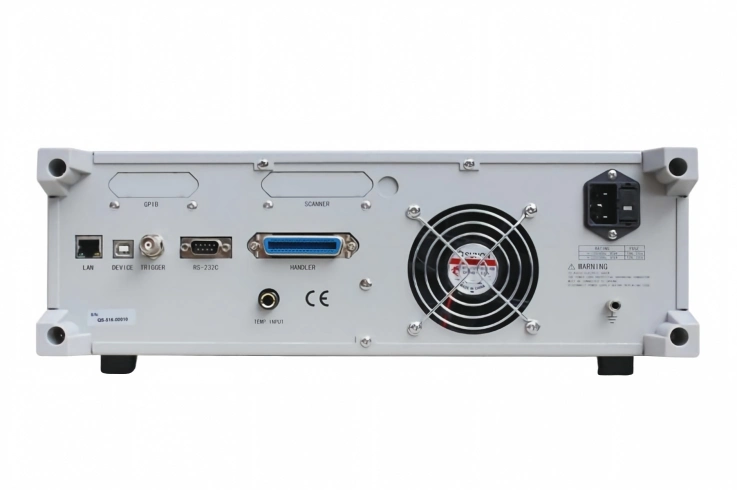

Rich interfaces: USB HOST, USB DEVICE, LAN, HANDER, GPIB(Optional), SCANER(Optional), external DC BIAS control interface

  • A. High Precision
    B. High Stability and High Consistency

  • ■ Passive Components:
    Evaluation of impedance parameters and performance analysis for capacitors, inductors, magnetic cores, resistors, piezoelectric devices, transformers, chip components, network elements, etc.
    ■ Semiconductor Components:
    Testing and analysis of parasitic parameters for LED driver ICs; C-VDC characteristics of variable capacitance diodes; analysis of parasitic parameters for transistors or integrated circuits.
    ■ Other Components:
    Impedance evaluation for printed circuit boards (PCBs), relays, switches, cables, batteries, etc.
    ■ Dielectric Materials:
    Evaluation of dielectric constant and loss angle for plastics, ceramics, and other materials.
    ■ Magnetic Materials:
    Evaluation of permeability and loss angle for ferrites, amorphous materials, and other magnetic materials.
    ■ Semiconductor Materials:
    Dielectric constant, conductivity, and C-V characteristics of semiconductor materials. Liquid Crystal Materials: Dielectric constant, elastic constants, and C-V characteristics of liquid crystal cells.

Fixture

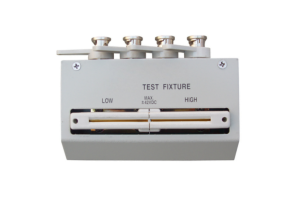

Four-end clamp with card

Saluki STB8838 Series Precision LCR Meter Four-end clamp with card

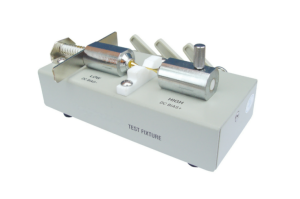

Magnetic ring fixture

Saluki STB8838 Series Precision LCR Meter Magnetic ring fixture
Dielectric test fixture

Saluki STB8838 Series Precision LCR Meter Dielectric test fixture
Frequency Range

STB8838/STB8838H: 20Hz – 2MHz
STB8838A: 20Hz – 1MHz
Basic Accuracy

0.05%
AC Signal Source

Voltage: 5mVrms – 2Vrms

Current: 50μArms — 20mArms
DC Bias

Voltage: 0V — ± 10V

Current: 0mA— ± 100mA


DCR Test

Voltage: 100mV – 2V

Current: 0mA – 20mA

DC Bias source: 0mA – 100mA

(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’)

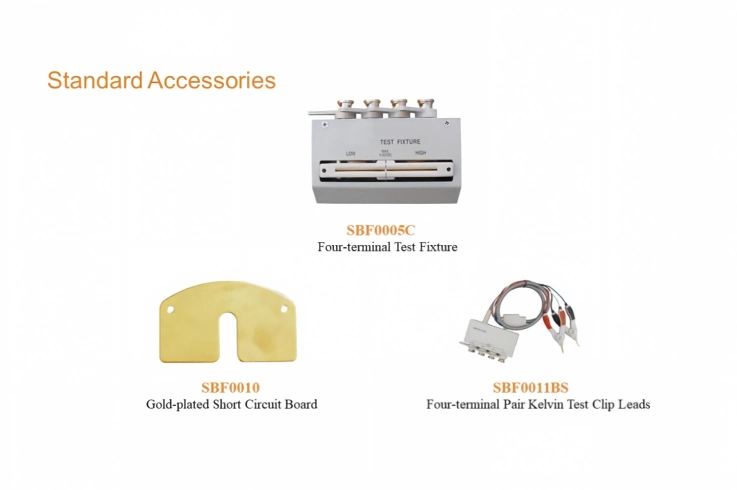

Main Machine

Module No. Item Description

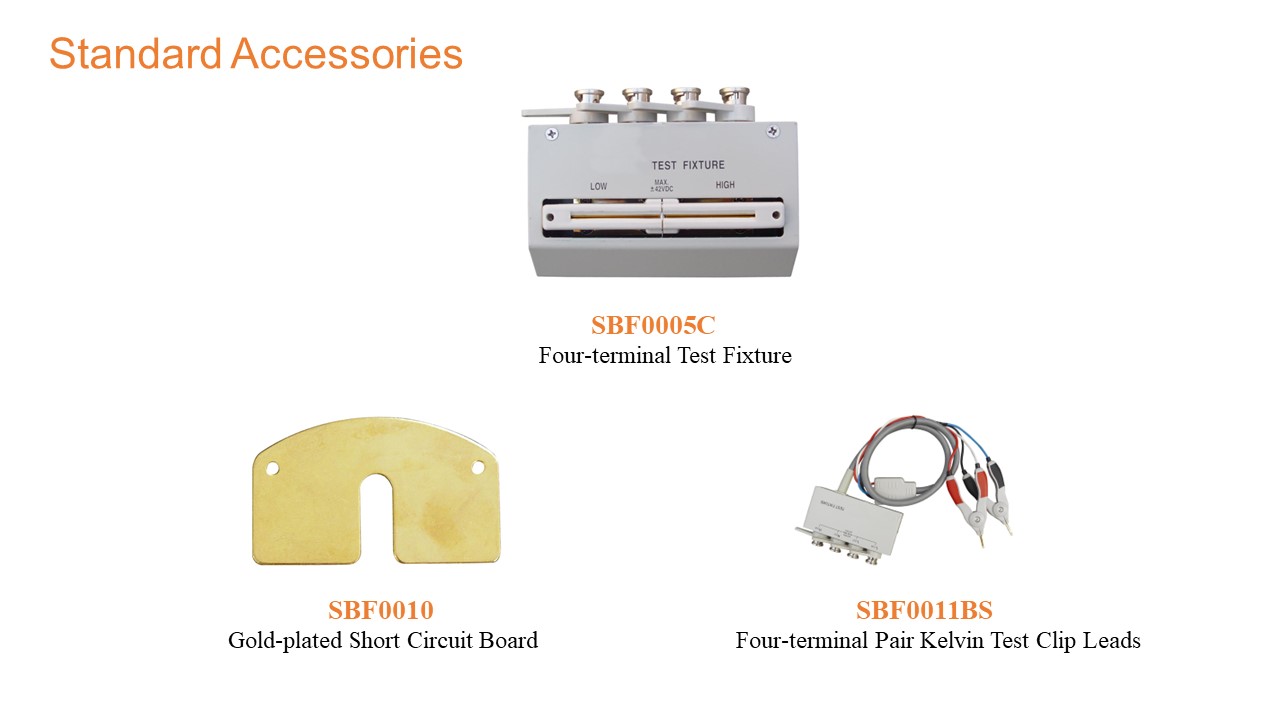

STB8838 Precision LCR Meter Frequency range: 20Hz to 2MHz, including Four-end clamp with card, short circuit and Kelvin test lead with box four-terminal insulation and lock.
STB8838H Precision LCR Meter Frequency range: 20Hz to 2MHz, including Four-end clamp with card, short circuit and Kelvin test lead with box four-terminal insulation and lock.
STB8838A Precision LCR Meter Frequency range: 20Hz to 1MHz, including Four-end clamp with card, short circuit and Kelvin test lead with box four-terminal insulation and lock.

Options

Module No. Item Description
SBF1108C Four-terminal-pair patch test fixture DC-40MHz, maximum ±42V DC bias, applied to SMD components, especially high-frequency small capacitor ≤3pF or small inductance ≤1uH, test frequency ≥100kHz
SBF0007A Magnetic ring test fixture DC-120MHz, maximum ±42V DC bias, applied to single-turn inductance test of small magnetic ring, customizable size
SBF0047 Four-terminal test fixture DC-120MHz, maximum ±42V DC bias, applied to impedance testing of wire-like devices, with shielded ground terminal
SBF0063 Four-terminal test fixture DC-100kHz, maximum ±42V DC bias, applied to test bolted capacitor and DC_LINK capacitors
SBH338-GPIB GPIB Interface board /
SBF0008A SMD component test fixture DC-120MHz, DUT size: 10mm-56mm, DUT thickness: ≤10mm, applied to dielectric analysis of solid materials
SBF0009B SMD Kelvin test tweezers DC-15MHz, maximum ±42V DC bias, applied to SMD components
SBF0048 Four-terminal test fixture DC-13MHz, maximum ±42V DC bias, applied to in-Line axial and radial impedance components
SBF0062A Four-terminal test fixture DC-100kHz, maximum ±42V DC bias, applied to test thin film bulk DC_LINK capacitors for electric vehicles
SBF0033 GPIB Control cable /
