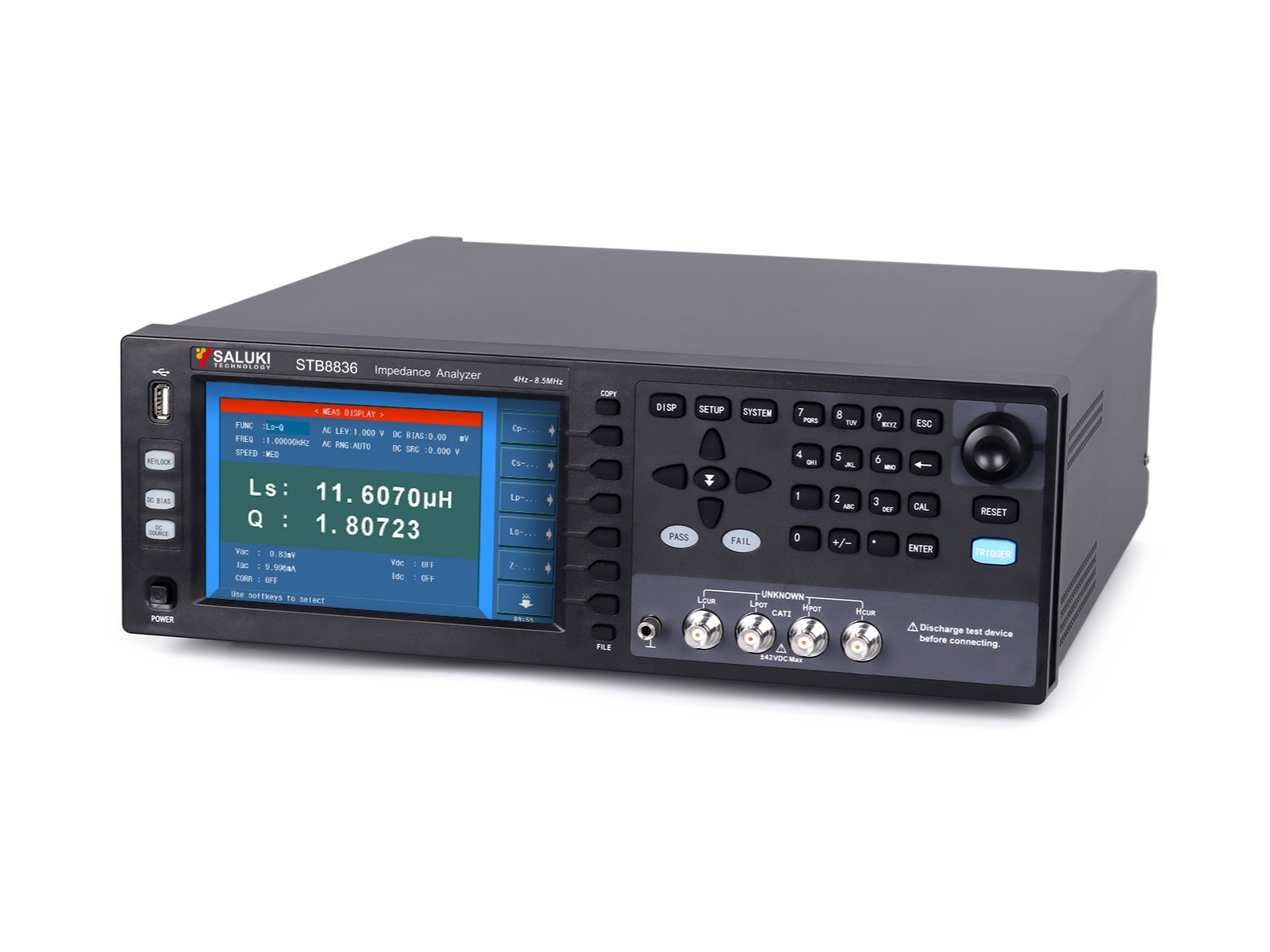

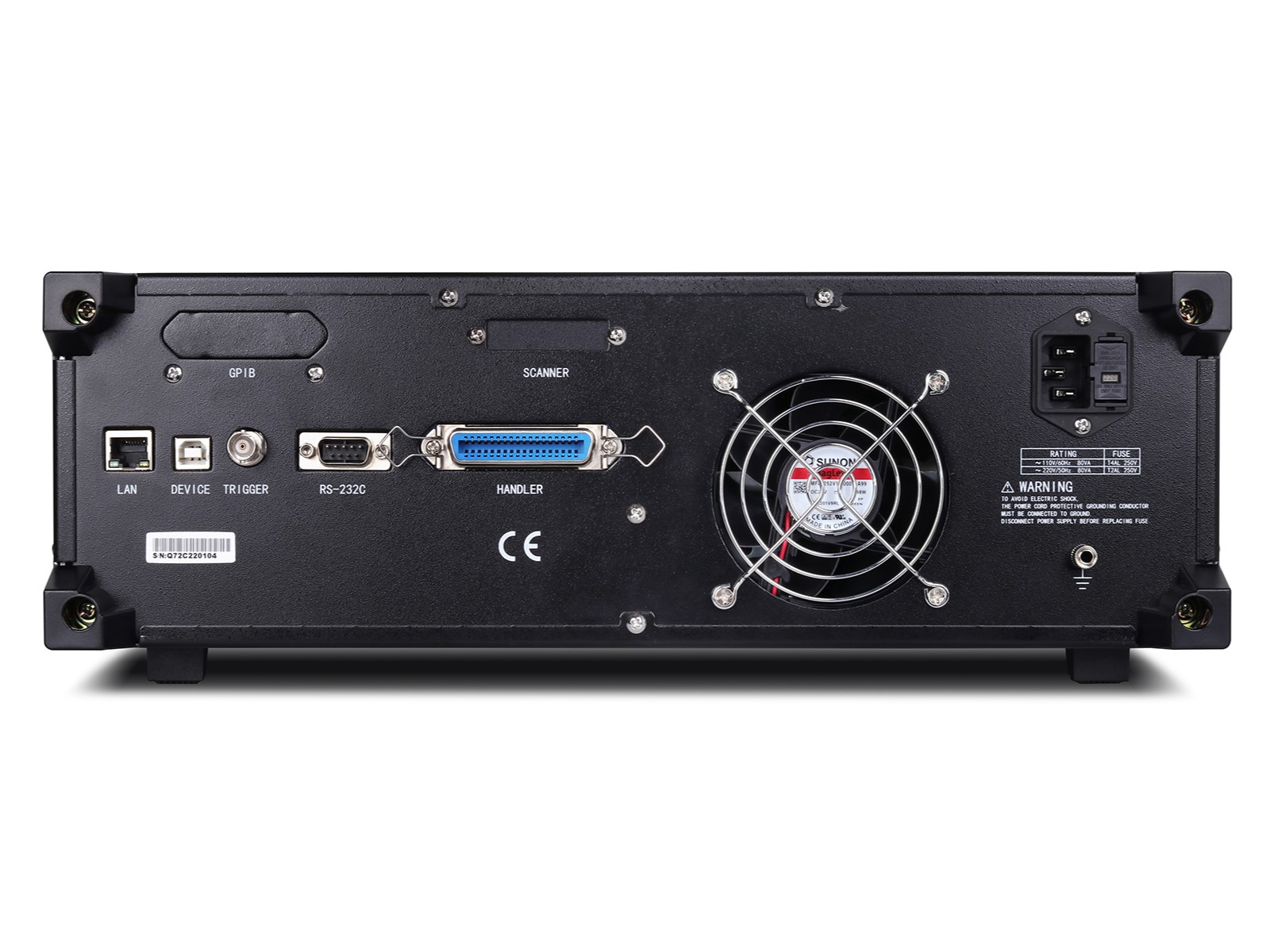

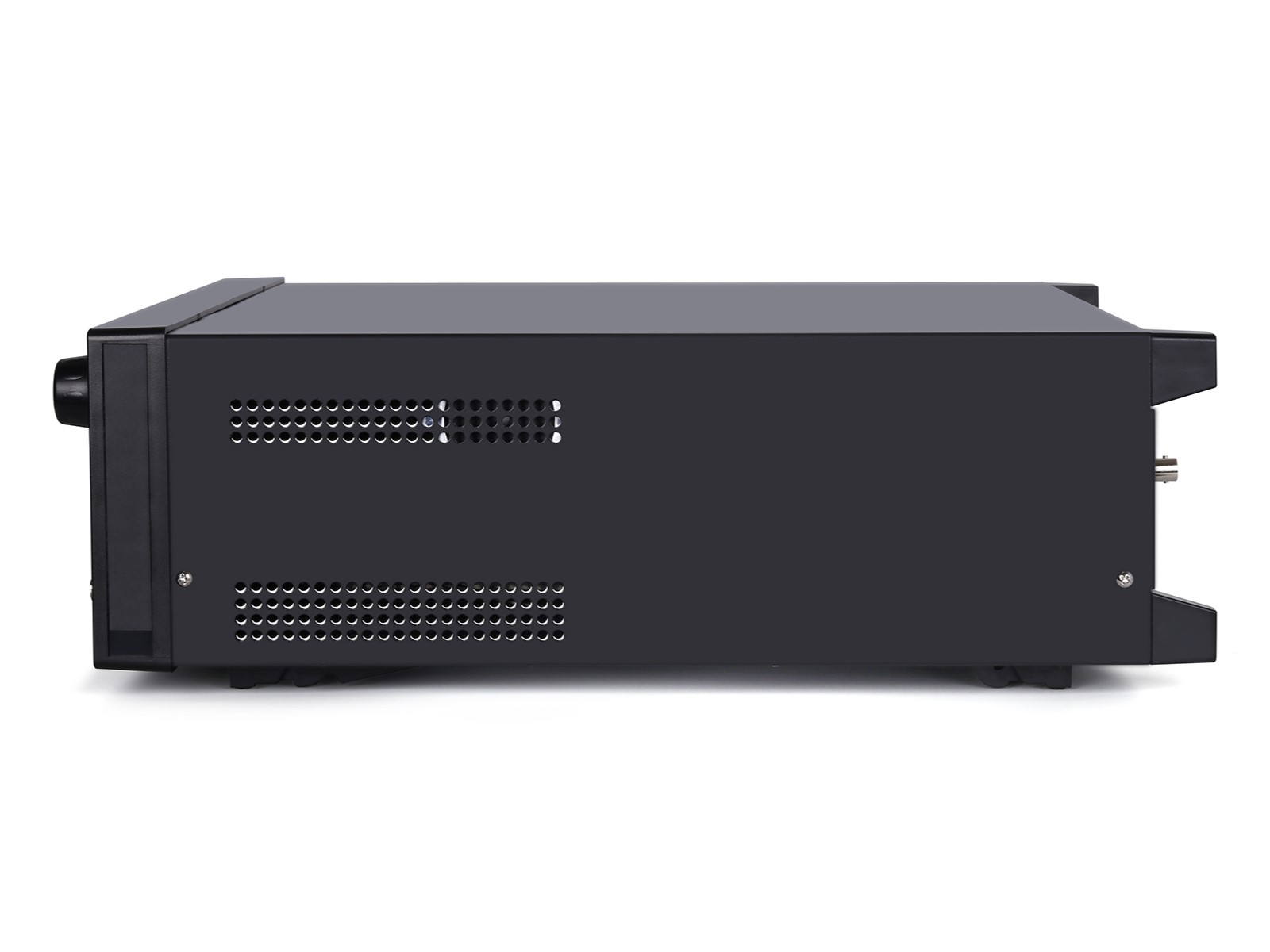

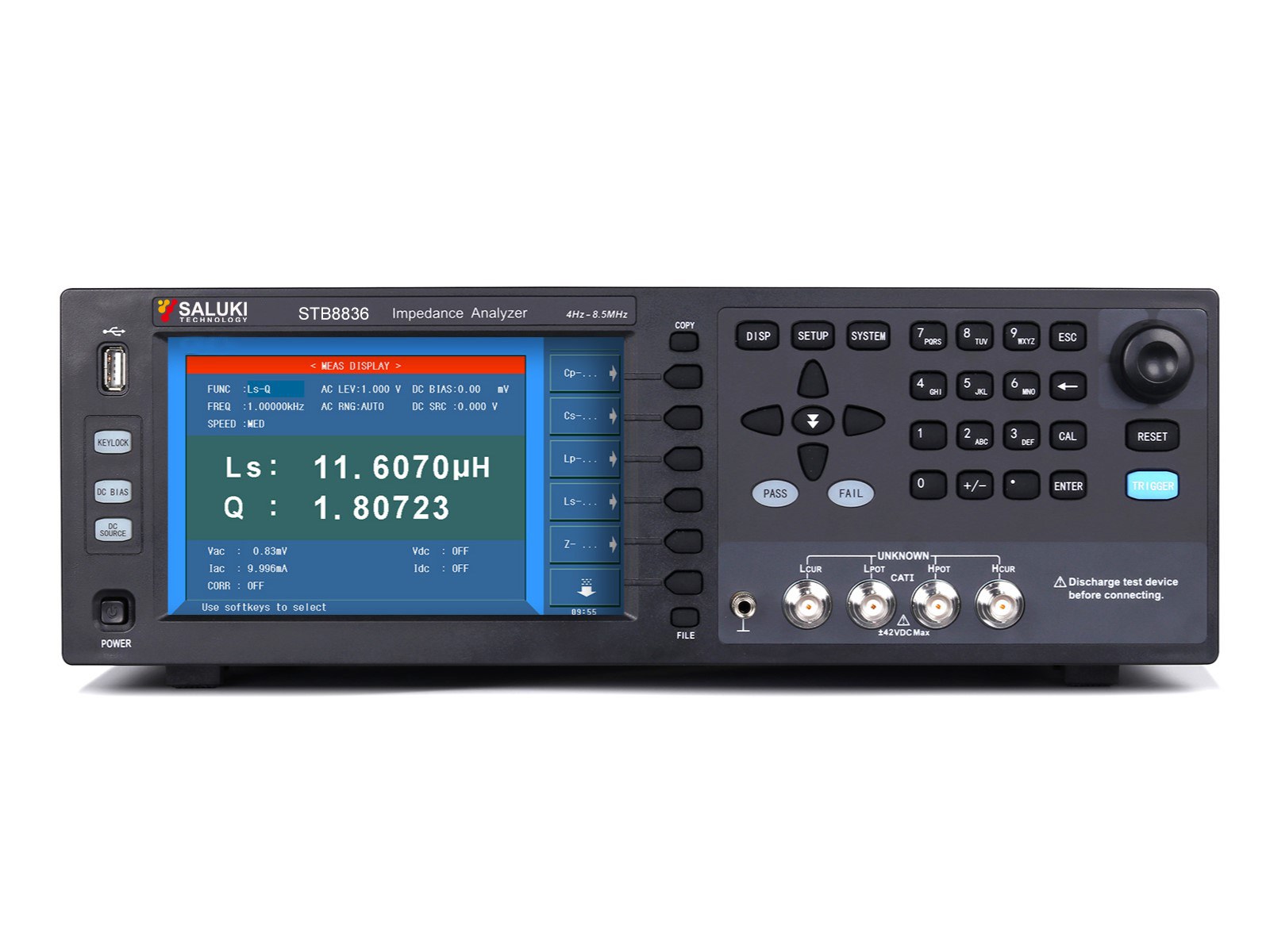

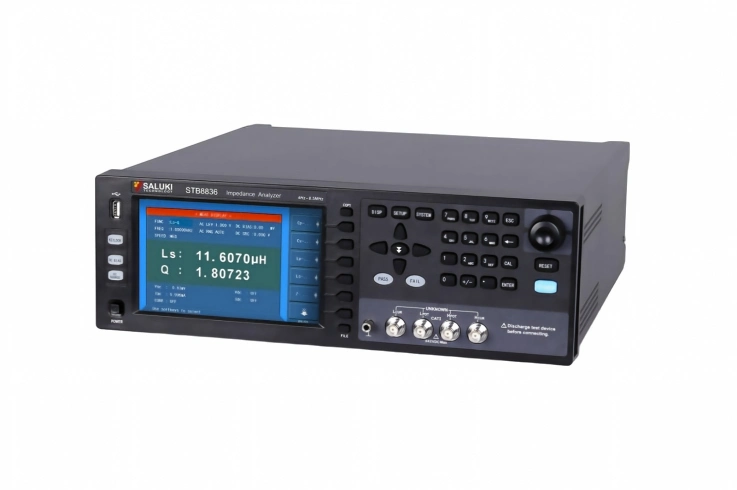

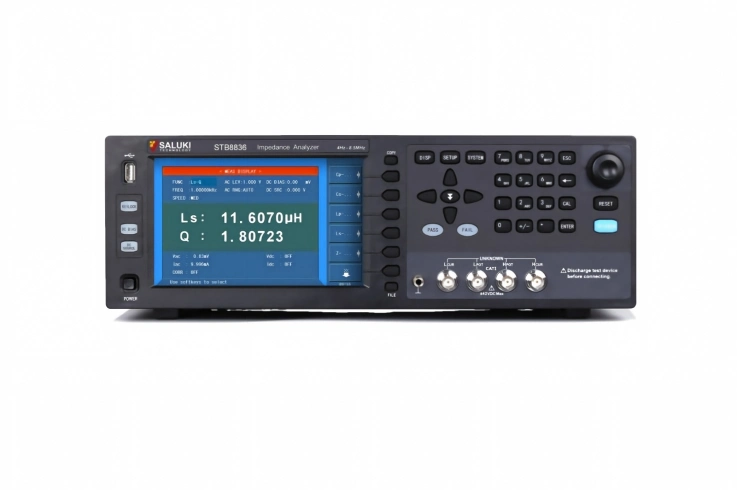

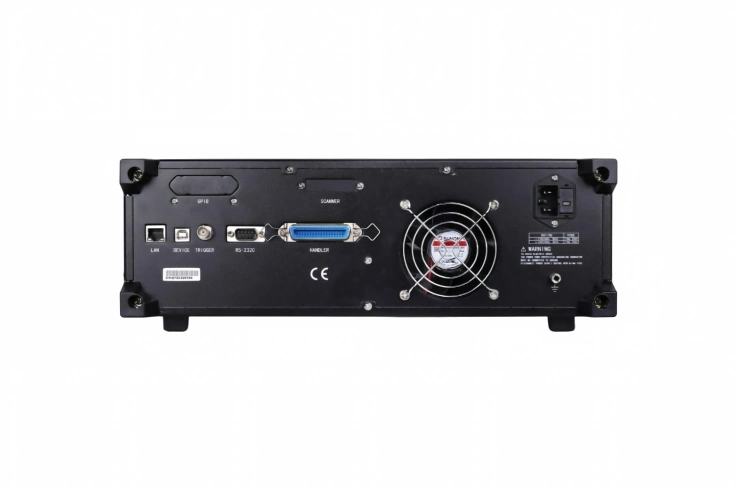

STB8836 Series Precision LCR Meter

Overview Specifications Ordering Resources

STB8836 is a new generation impedance testing instrument successfully developed using the current internationally advanced automatic balancing bridge principle. It has a basic accuracy of 0.05%, a fastest testing speed of 5.6ms, and a frequency range of 4Hz-8.5MHz. The four-terminal pair port configuration can effectively eliminate the influence of electromagnetic coupling of test lines, extending the lower limit of low-impedance testing capabilities ten times lower than conventional five-terminal configuration instruments.
STB8836 supports high-power test conditions of 2V AC test signal and 10V DC bias, and enhanced multi-parameter list scanning/multi-parameter graphic analysis capabilities will help users expand their ability to comprehensively evaluate components.
STB8836 is a powerful tool for electronic component design, inspection, quality control and production testing. Its excellent performance and functions provide a powerful tool for the design and development of circuits and the research and development of materials (electronic materials and non-electronic materials)

** Standard Lead Time: within 4 weeks **

Key Features

High precision: using automatic balancing bridge technology, four-terminal pair test configuration

High speed: the fastest test speed is 5.6ms

High resolution: 7 inches, 800×480 resolution

10-point multi-parameter list sweep function

Mathematical operation function

Automatic polarity function of varactor diode

One-key screenshot function

One key recording function

10-level sorting function, sound and light alarm for sorting results

Large storage space: Built-in: 40 sets of setting files

Expansion: 500 sets of setting files, image files, and data recording files can be stored through USB memory

High compatibility: support SCPI commands, compatible with KEYSIGHTE4980A, E4980AL, HP4284A

  • A. High Precision
    Compared to standard LCR bridges, the automatic balancing bridge ensures superior frequency accuracy across a significantly wider frequency range.
    B. High Stability and Consistency
    C. Material Dielectric Constant Measurement
    When used in conjunction with a dedicated material test fixture and host computer software, it enables convenient and precise measurement of a material’s dielectric constant at various frequencies.

  • ■ Passive Components:
    Evaluation of impedance parameters and performance analysis for capacitors, inductors, magnetic cores, resistors, piezoelectric devices, transformers, chip components, network elements, etc.
    ■ Semiconductor Components:
    Testing and analysis of parasitic parameters for LED driver ICs; C-VDC characteristics of variable capacitance diodes; analysis of parasitic parameters for transistors or integrated circuits.
    ■ Other Components:
    Impedance evaluation for printed circuit boards (PCBs), relays, switches, cables, batteries, etc.
    ■ Dielectric Materials:
    Evaluation of dielectric constant and loss angle for plastics, ceramics, and other materials.
    ■ Magnetic Materials:
    Evaluation of permeability and loss angle for ferrites, amorphous materials, and other magnetic materials.
    ■ Semiconductor Materials:
    Dielectric constant, conductivity, and C-V characteristics of semiconductor materials. Liquid Crystal Materials: Dielectric constant, elastic constants, and C-V characteristics of liquid crystal cells.

Fixture
Fixture

Saluki STB8836 Series Precision LCR Meter Fixture

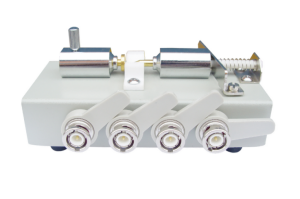

Magnetic Ring Fixture

Saluki STB8836 Series Precision LCR Meter Magnetic Ring Fixture

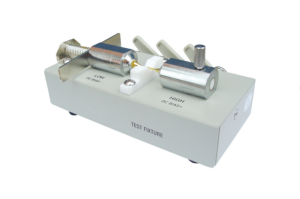

Magnetic Ring Fixture

Saluki STB8836 Series Precision LCR Meter Magnetic Ring Fixture
Frequency Range

4Hz-8.5MHz
Basic Accuracy

0.1%
Display

7-inch TFT LCD Display 800×RGB×480
DC Bias

Voltage: 0V — ± 10V

Resolution: 100μV

Current: 0mA— ± 100mA

Resolution: 1μA


Test terminal configuration

Four-terminal pair
Cable Length

0m, 1m
Output Impedance

100Ω
Typical Measurement Time (speed)

Fast: 5.6ms, Medium: 120ms, Slow: 230ms
Highest accuracy
1kHz: 0.05%
1MHz: 0.05%
2MHz: 0.1%
5MHz: 0.5%
8.5MHz: 1.0%

(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No. Item Description
STB8836 Precision LCR Meter Frequency range: 4Hz-8.5MHz , including Fixture, short circuit and Kelvin test lead with box four-terminal insulation and lock.

Options

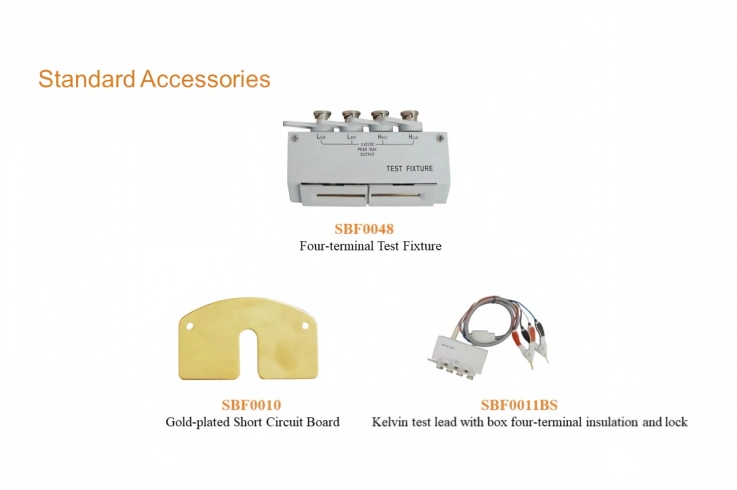

Module No. Item Description

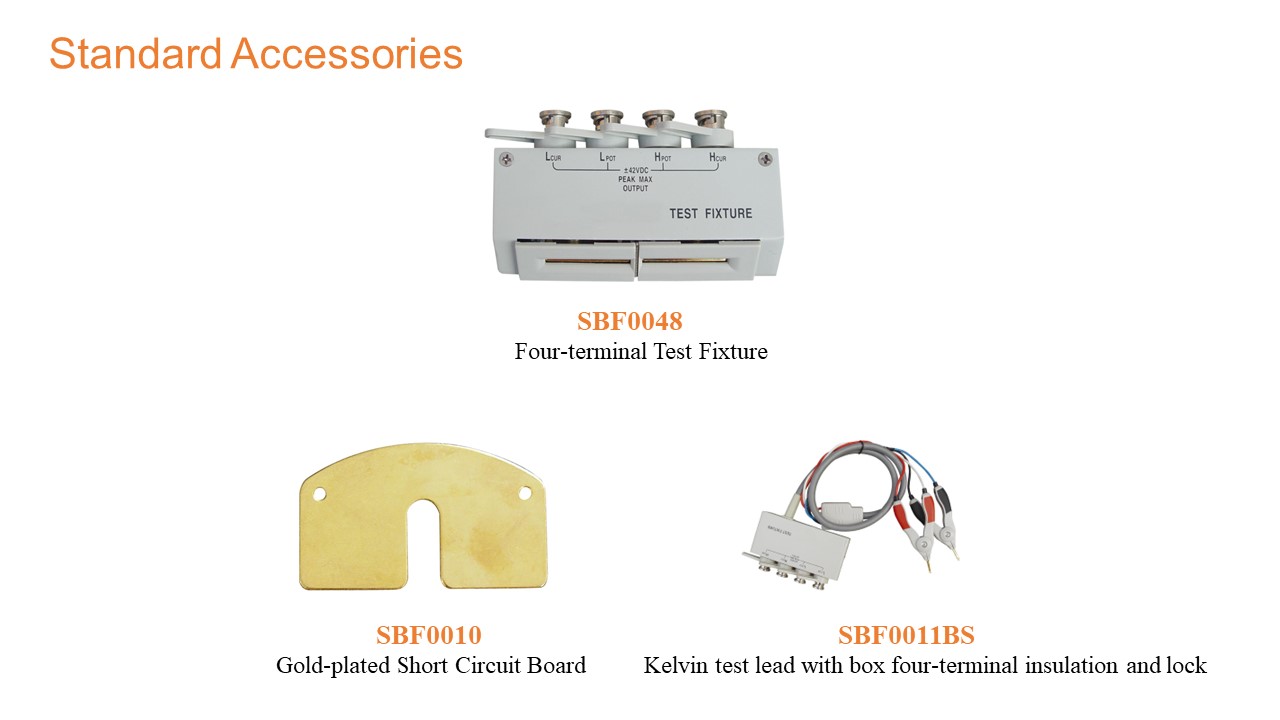

SBF0048 Four-terminal test fixture DC-13MHz, maximum ±42V DC bias, applied to in-Line axial and radial impedance components
SBF0010 Short circuit /
SBF0011BS Kelvin test lead with box four-terminal insulation and lock /
