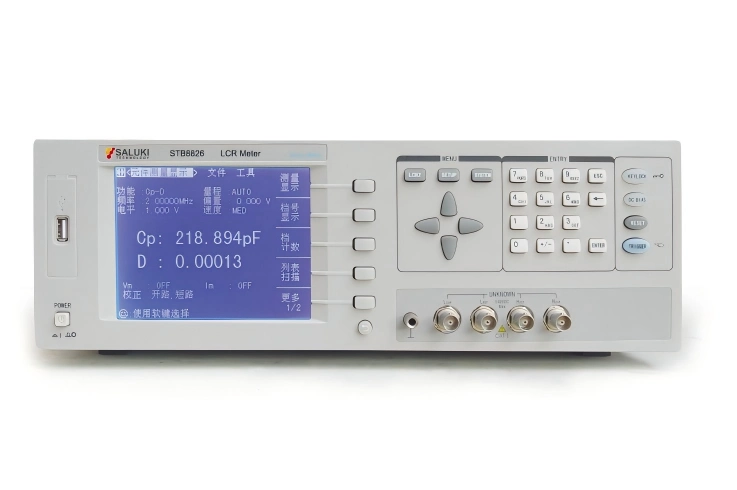

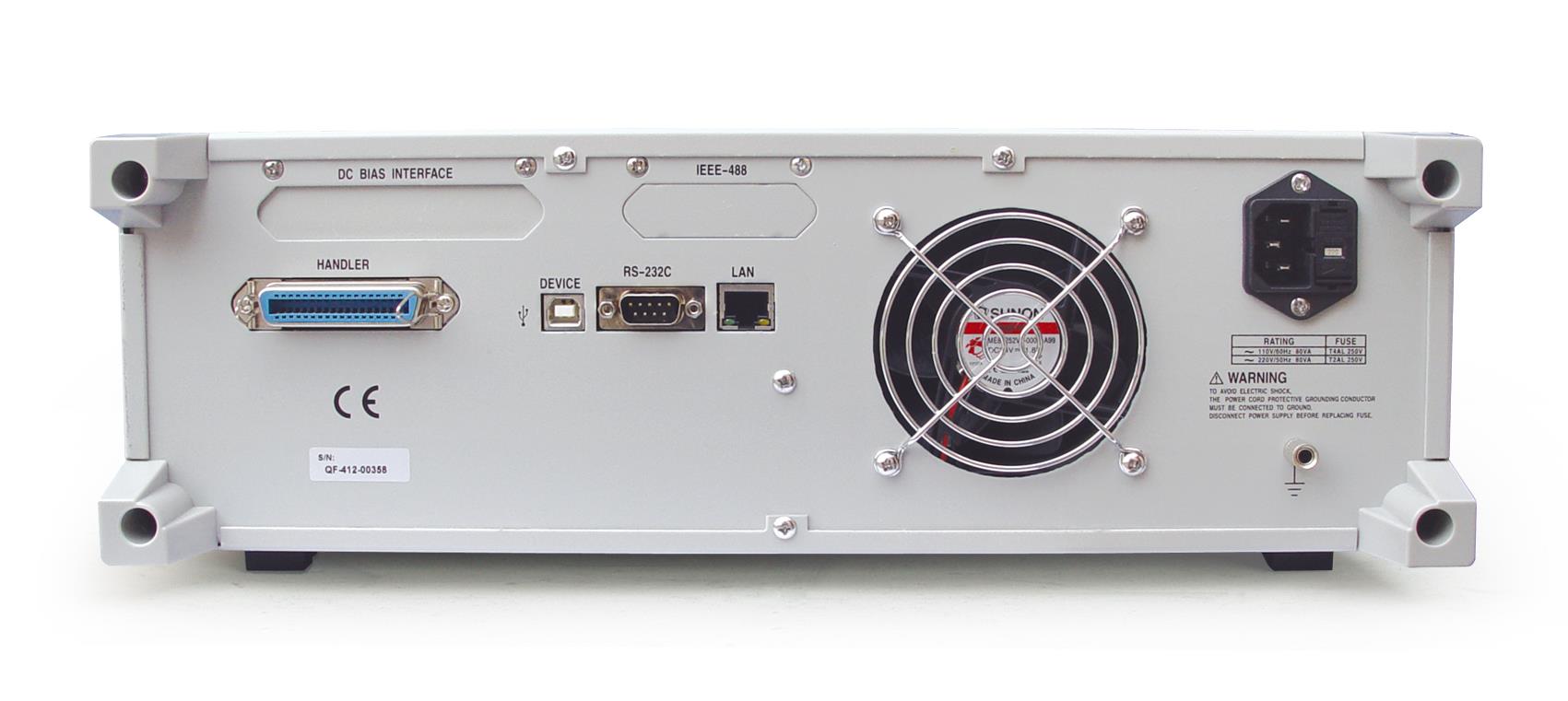

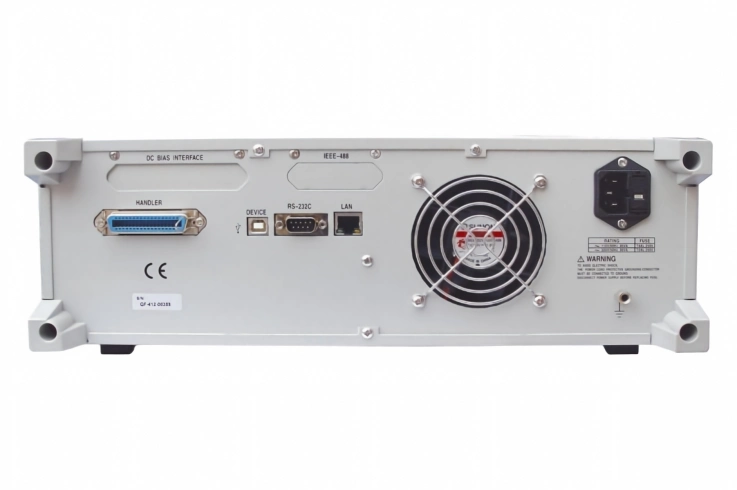

STB8826 Series Precision LCR Meter

Overview Specifications Ordering Resources

STB8826 series is a new generation impedance test instrument and firstly in conformity with LXI standard inland. It fulfills most low-voltage parameter measurement needs for components and materials with its basic accuracy (0.1%), wide frequency range (from 20Hz to 5MHz). The instrument is widely applied in microphone, resonator, inductor, ceramic capacitor, LCD, varactor and transformer to analyze electrical performance and test low-ESR capacitor and high-Q inductor.

** Standard Lead Time: within 4 weeks **

Key Features

The first LCR meter with LXI standard in China.

Test frequency:20Hz-5MHz with the resolution of 10mHz

Test level:10mV-5V with the resolution of 1mV

The highest test speed up to 200 times/s.

22 parameter combinations available

4 signal source output impedance

Built-in DC bias source

Built-in comparator, 10-bins and bin counters

2m/4m cable length extension

Auto level control (ALC) function of voltage or current

Frequency Range	STB8826: 20Hz – 5MHz STB8826A: 20Hz – 2MHz
Basic Accuracy	0.1%
Internal DC bias source	Voltage: -5V – +5V, ±(10%+10mV), with the resolution of 1mV Current: -100mA – +100mA, ±(10%+0.2mA),with the resolution of 20uA
Test Level	f≤1MHz; 10mV–5V, ±(10%+10mV) f>1MHz; 10mV–1V, ±(20%+10mV)
Measuring Speed (meas/sec)	Fast: 200(f﹥30kHz),100(f﹥1kHz); Med: 25, Slow: 5
	(Note: see more technical specifications in the ‘Resource’ – ‘Datasheet’)

Main Machine

Module No.	Item	Description

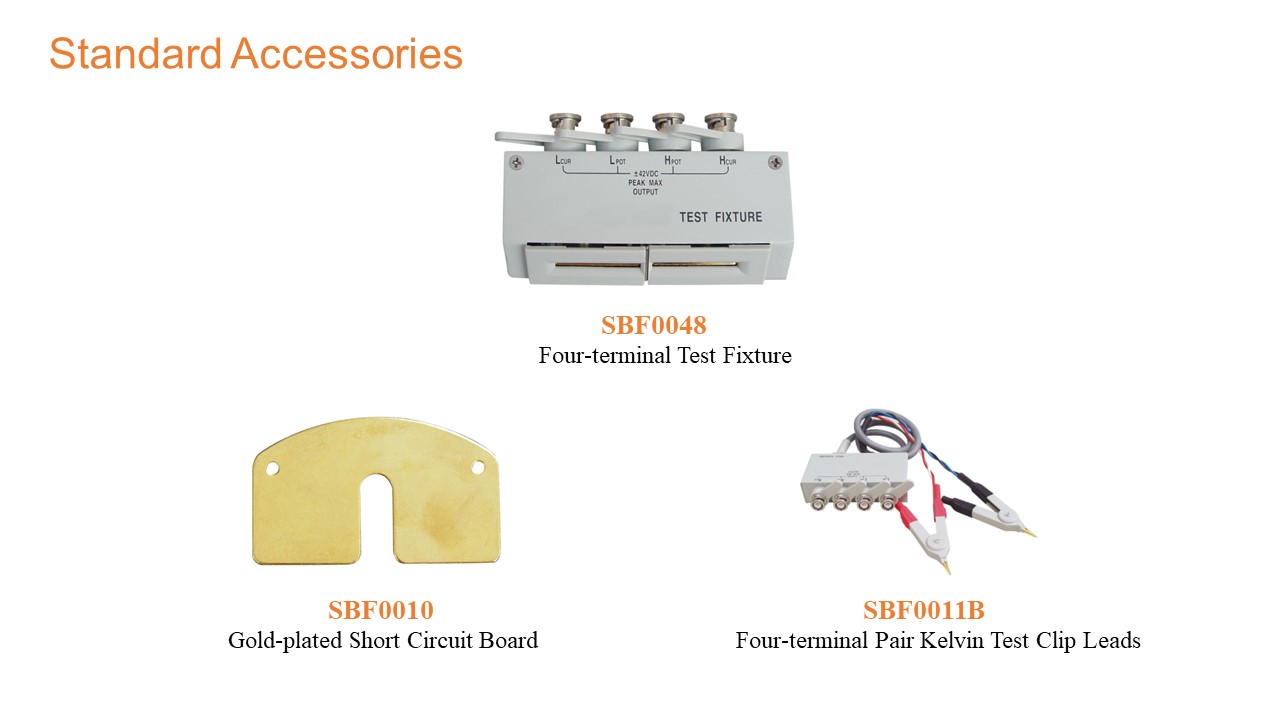

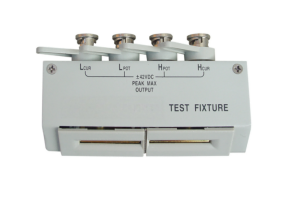

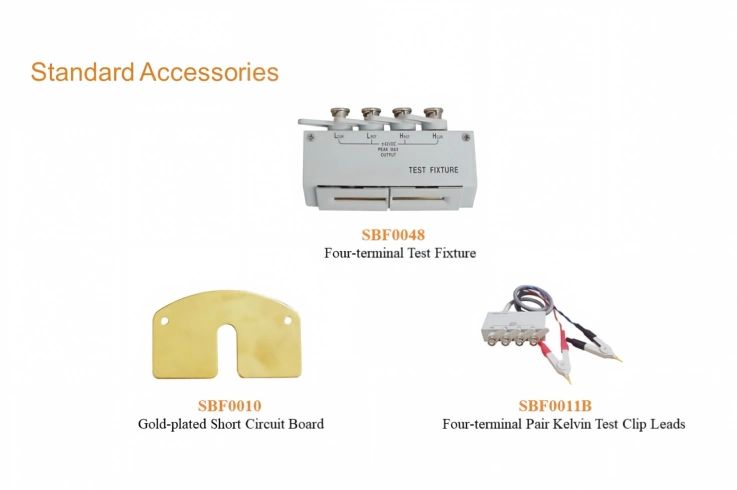

STB8826	Precision LCR Meter	Frequency range: 20Hz to 5MHz, including Four-terminal Test Fixture, short circuit and Kelvin test lead with box four-terminal insulation and lock.
STB8826A	Precision LCR Meter	Frequency range: 20Hz to 2MHz, including Four-terminal Test Fixture, short circuit and Kelvin test lead with box four-terminal insulation and lock.

Options

Module No.	Item	Description
SBF0008A	SMD component test fixture	DC-120MHz, maximum ±42V DC bias, applied to SMD components, especially high-frequency small capacitor ≤3pF or small inductance ≤1uH, test frequency ≥100kHz.
SBF0009B	SMD test tweezers	DC-15MHz, maximum ±42V DC bias, applied to SMD components.
SAX0001	GPIB interface	/

Document

STB8826 Series Precision LCR Meter Datasheet
