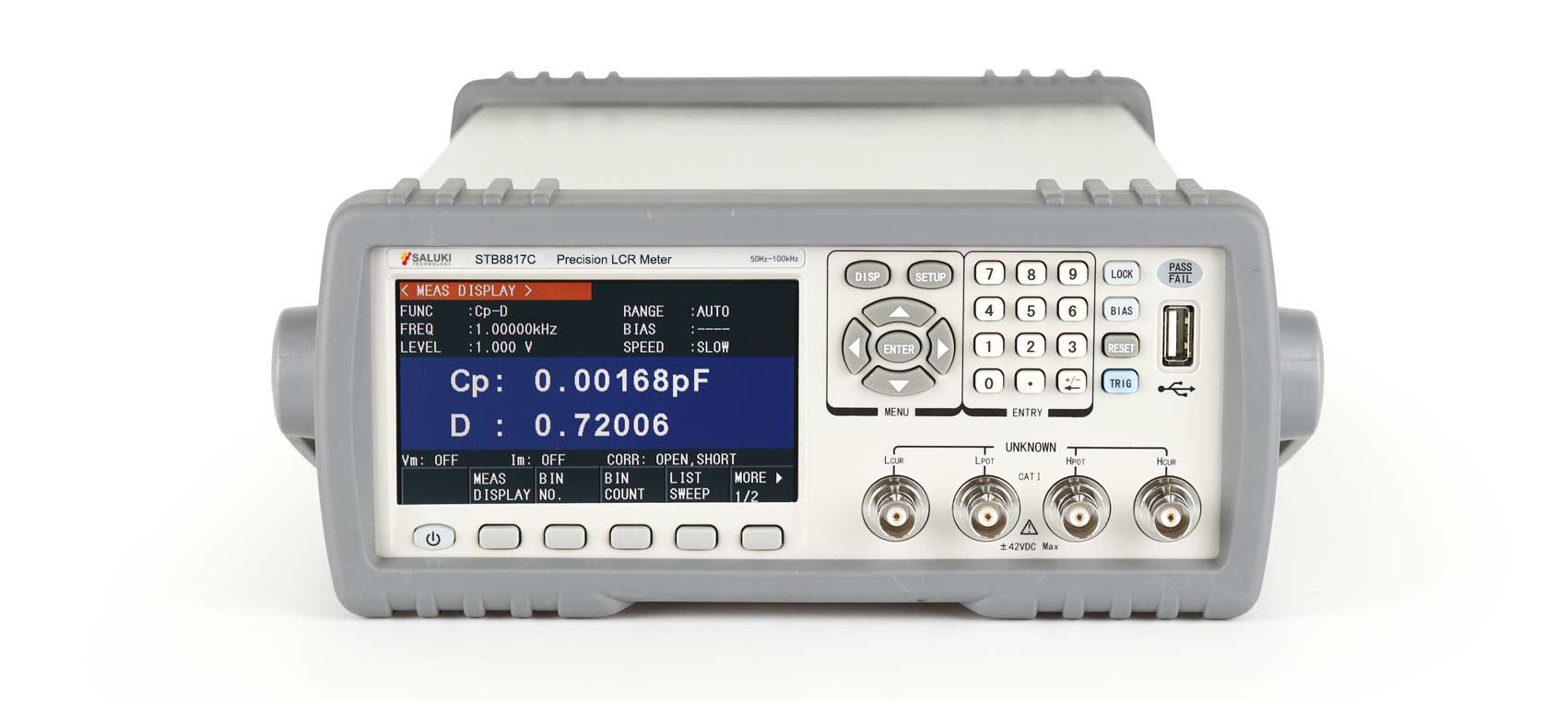

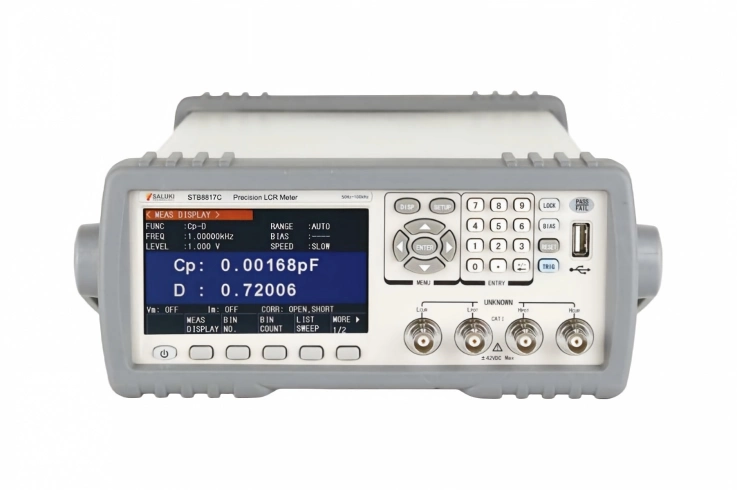

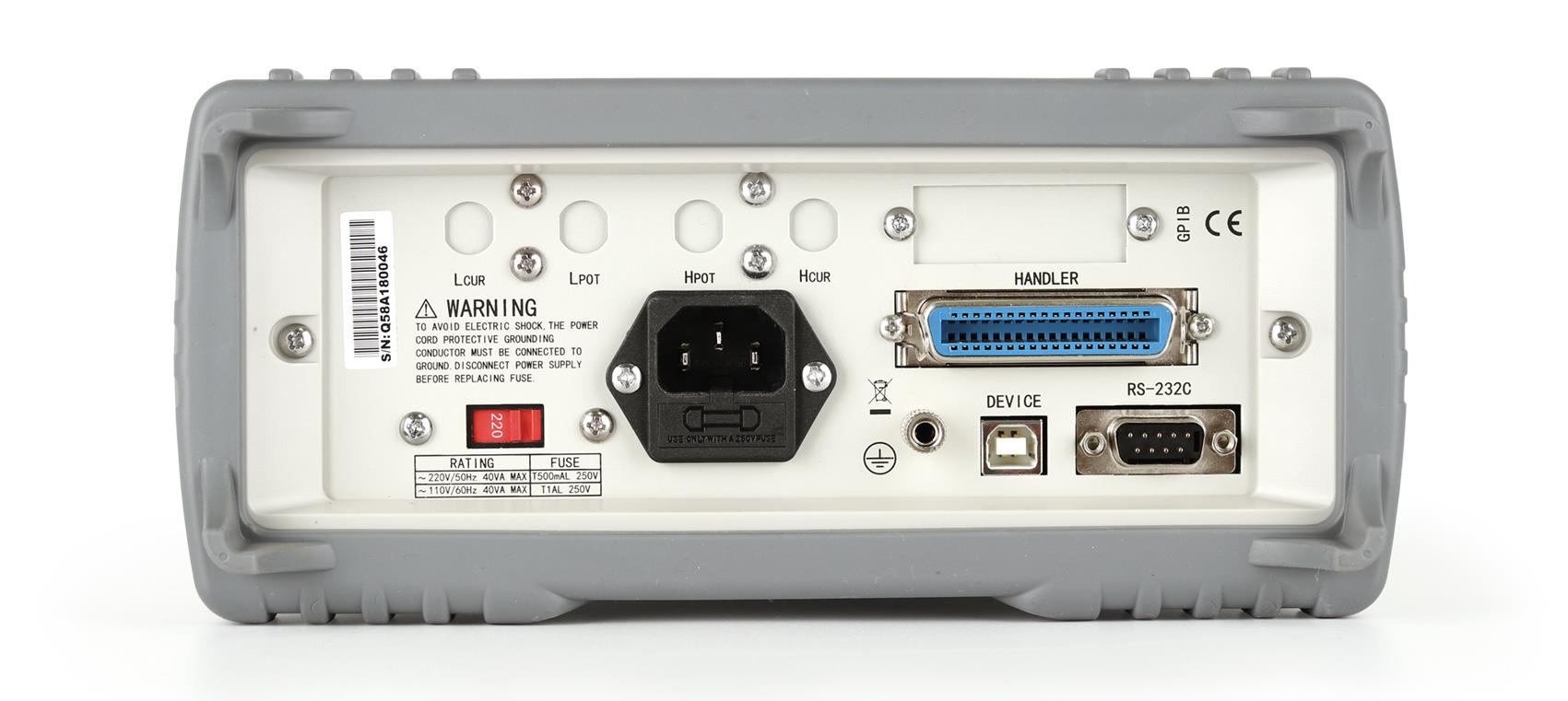

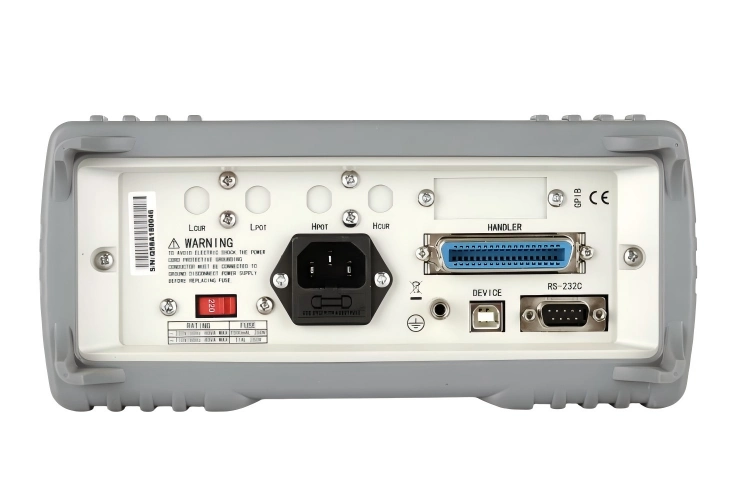

STB8817C is a new generation Precision LCR meter of low cost and high performance, The basic accuracy of 0.1% and the wide frequency range: 50Hz,60Hz,100Hz,120Hz,1kHz,10kHz,20kHz,40kHz, 50kHz,100kHz, total 10 points, which means STB8817C series Precision LCR meter has good test stability that can compare favorably with those high-end models.
** Standard Lead Time: within 4 weeks **
Maximum test speed:12.5ms, support low frequency and highspeed:TX4+3ms
100 sets of LCRZ instrument setting files, 10 measurements
Support 110V/220V two power supply voltages
Range configuration 3/10 times stepping configuration to ensure stable and reliable impedance full range test
Ultra-low signal source output offset (<100μV), meeting the needs of large inductor, common mode choke inductor test
Super impact protection
Interface function, timing, trigger delay, etc. are more complete.
■ Passive Components
Capacitors, Inductors, Magnetic Cores, Resistors, Piezoelectric Devices, Transformers, Chipsets
■ Balanced Devices
Impedance parameter evaluation for Common Mode Filters, Balanced Capacitors, Integrated Resistor Voltage Dividers, Network Components, etc.
■ Other Components
Impedance evaluation for Printed Circuit Boards (PCBs), Relays, Switches, Cables, Batteries, etc.
| Fixture | |
| Fixture |
|

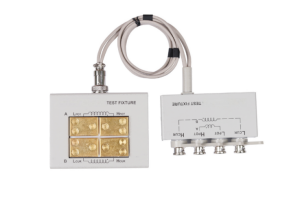

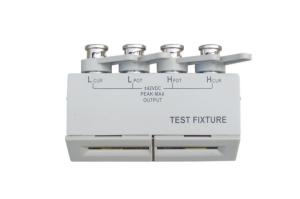

| STB8817C Fixture |
|
| Frequency Range | 50Hz,60Hz,100Hz,120Hz,1kHz,10kHz,20kHz,40kHz, 50kHz,100kHz, total 10 points |
| Basic Accuracy | 0.1% |
| Test Level | AC: 0.1Vrms,0.3Vrms,1Vrms DC: ±1V |
| Source Impedance | 100Ω; 100Ω optional |
| Test Speed (ms/time) | Fast: 19ms Medium:83ms Slow: 333ms |
| Arithmetical operation | Direct reading, △ABS, △% |
| Module No. | Item | Description |

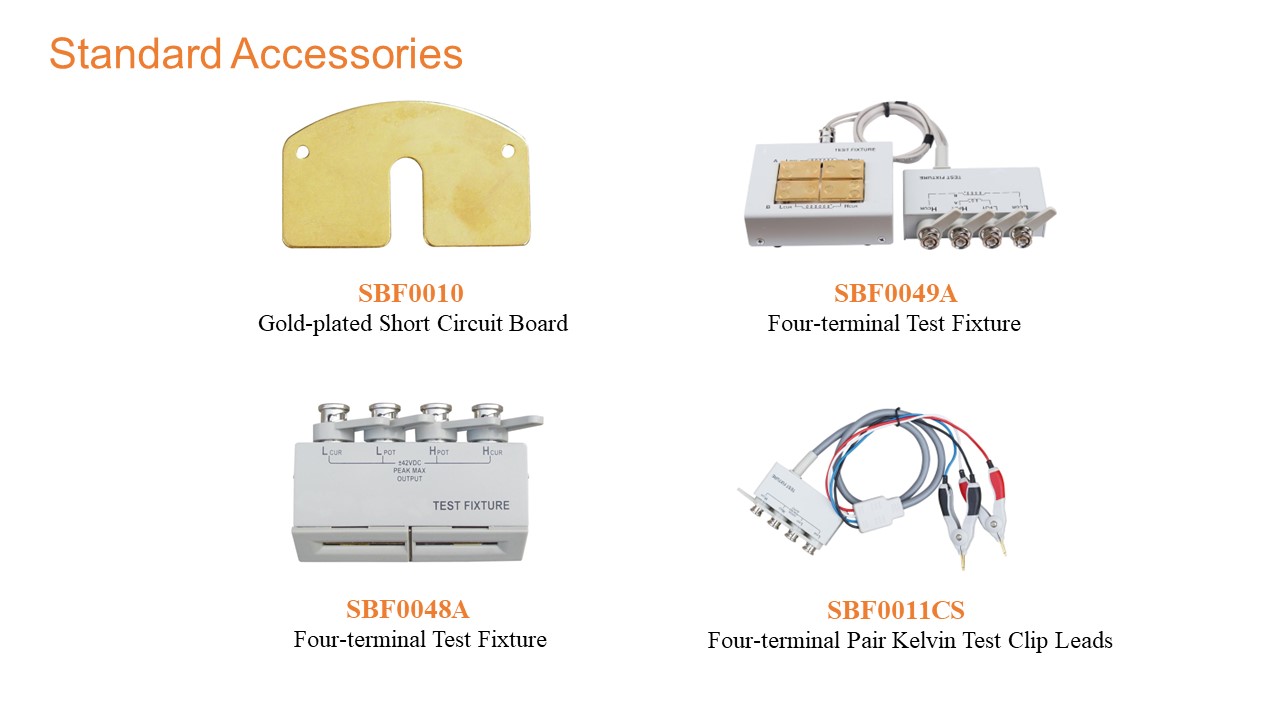

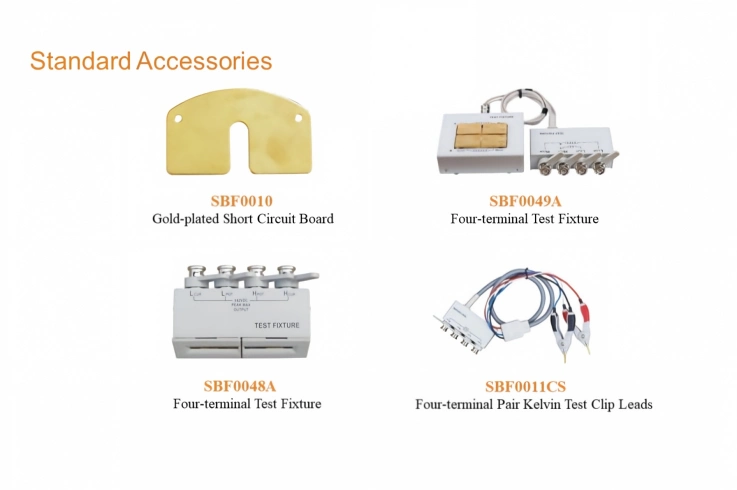

| STB8817C | Precision LCR Meter | Frequency range: 50Hz to 100kHz, including Four-terminal Test Fixture, short circuit and Four-terminal Pair Kelvin Test Clip Leads. |
