STB8816 Series Precision LCR Meter

Overview Specifications Ordering Resources

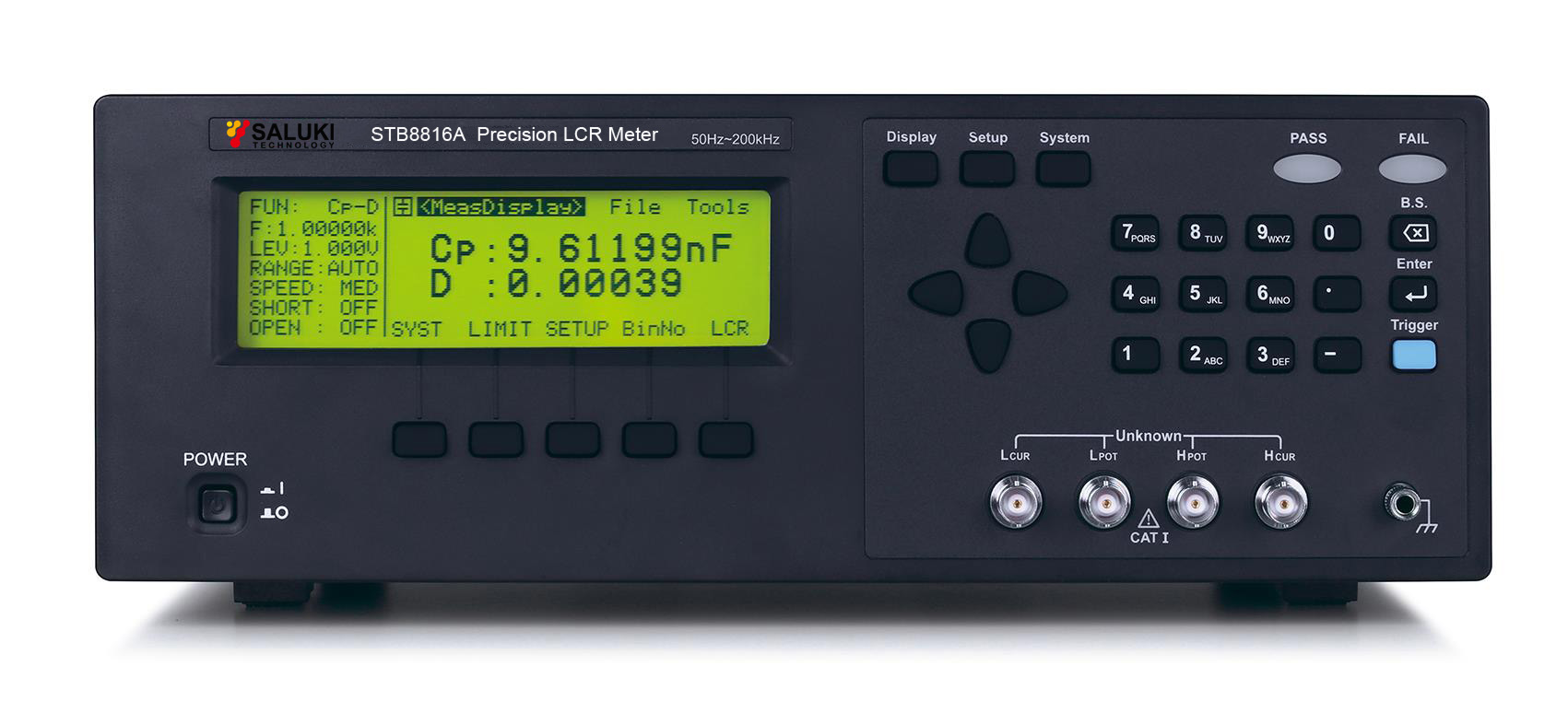

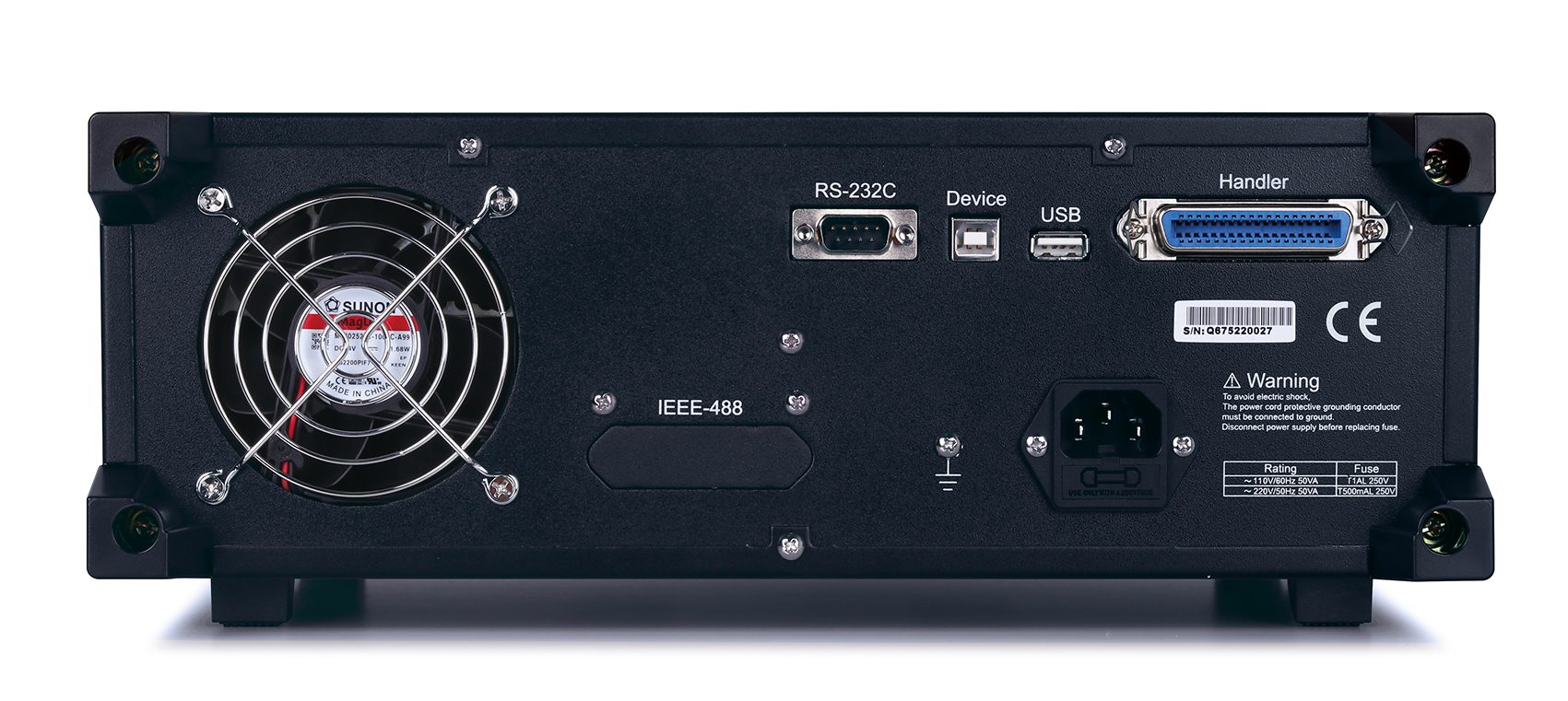

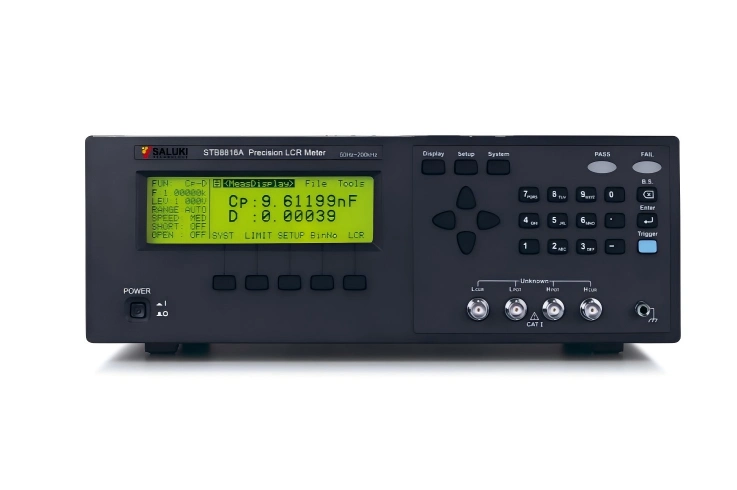

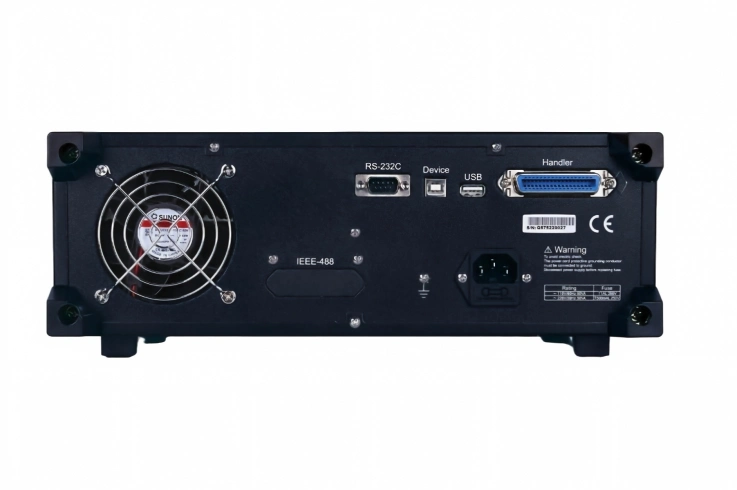

STB8816A/STB8816B/STB8816P is a new precision LCR meter combined with years of technical experience and newest measurement technology of instrument industry. With powerful measurement functions, high performance and low cost, STB8816A/STB8816B/STB8816P have been one of the world advanced instruments, and it provides users a super value measurement resolution and experience. The meter offers stable 6-digit resolution, wide frequency range, programmable signal level (0.01V to 2.0V), up to 30 meas/sec measurement rate, 9 measurement ranges, 30Ω or 100Ω constant output impedance and friendly operation interface. STB8816A/STB8816B/ STB8816P can be used for incoming inspection of components, quality control of product line and high accuracy laboratory use. The HANDLER, GPIB, RS232C interfaces make it easy to build an automatic component test system, communicate with the computer and record the test results.

** Standard Lead Time: within 4 weeks **

Key Features

Up to 30meas/sec measurement rate

World-level stability and accuracy

Selectable signal source output impedances: 30Ω, 100Ω

List sweep function for up to 4 frequencies, signal levels and DC bias levels

Direct, Δ ABS and Δ% display modes

Built-in comparator, 10 Bins and bin counters (STB8816A/B)

Test signal level monitor function

Frequency Range	50Hz to 200kHz
Basic Accuracy	0.05% (STB8816A/STB8816B) 0.02% (STB8816P)
Output impedance	30Ω / 100Ω
AC Test level	10mV – 2Vrms, 10mV steps
Equivalent circuit	Series and Parallel
Input power	Voltage: 198V－242V AC Frequency: 47Hz－63Hz Power consumption: Max 80VA

Main Machine

Module No.	Item	Description

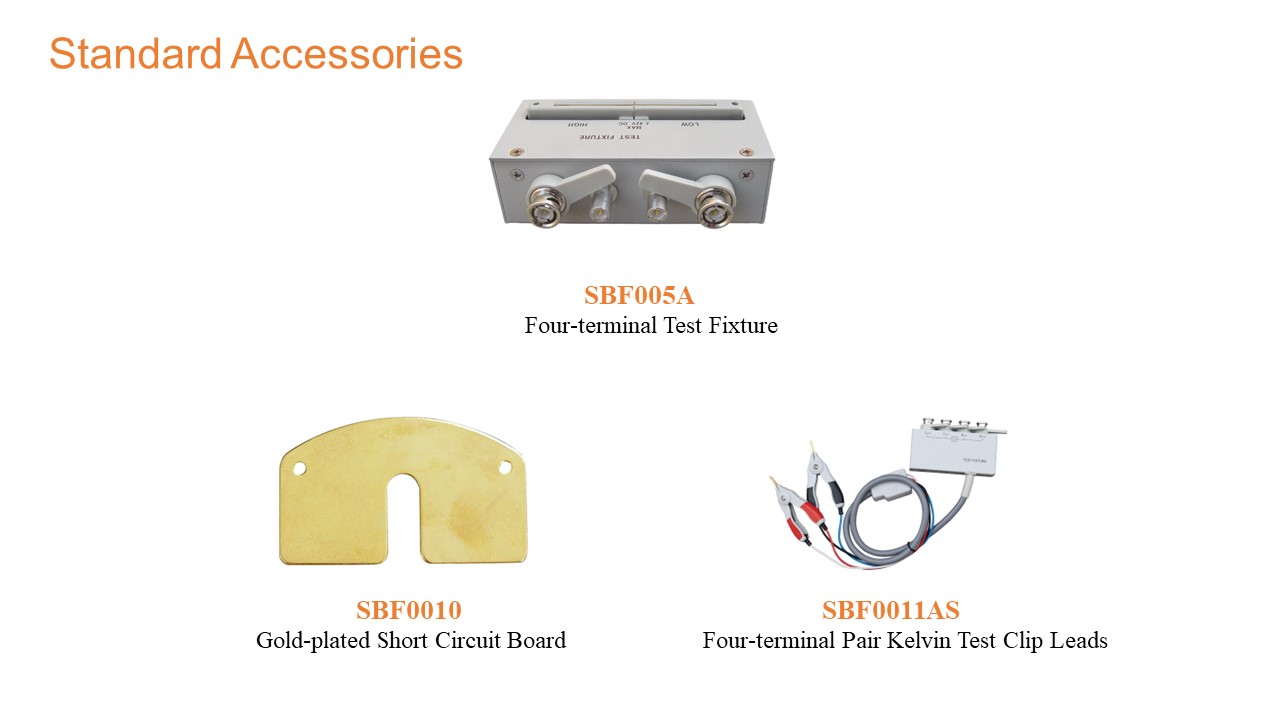

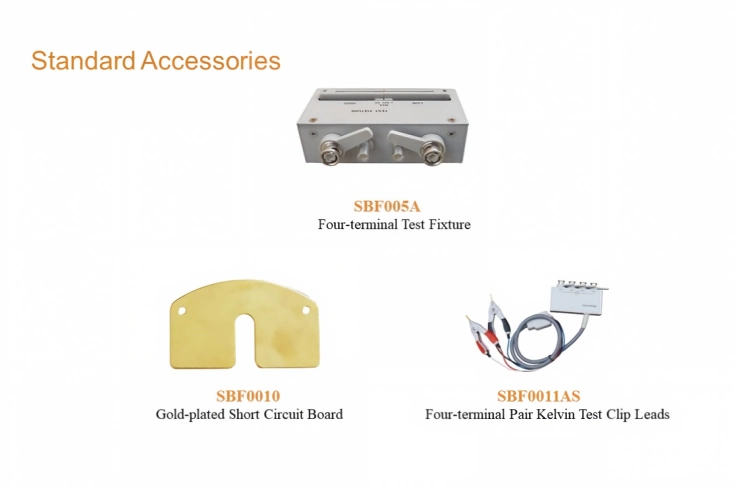

STB8816A	Precision LCR Meter	Frequency range: 50Hz to 200kHz, including Four-terminal Test Fixture, short circuit and Four-terminal Pair Kelvin Test Clip Leads.
STB8816B	Precision LCR Meter	Frequency range: 50Hz to 200kHz, including Four-terminal Test Fixture, short circuit and Four-terminal Pair Kelvin Test Clip Leads.
STB8816P	Precision LCR Meter	Frequency range: 50Hz to 100kHz, including Four-terminal Test Fixture, short circuit and Four-terminal Pair Kelvin Test Clip Leads.

Options

Module No.	Item	Description

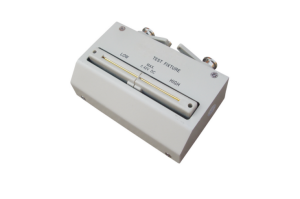

SBF0047	Four-terminal Test Fixture	DC-120MHz, maximum ±42V DC bias, applied to impedance testing of wire-like devices, with shielded ground terminal.

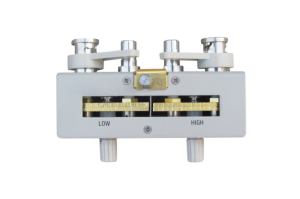

SBF0048	Four-terminal Test Fixture	DC-13MHz, maximum ±42V DC bias, applied to in-Line axial and radial impedance components.
SBF0006	Axial Component Test Fixture	/
SBF0007A	Magnetic Ring Test Fixture	DC-120MHz, maximum ±42V DC bias, applied to single-turn inductance test of small magnetic ring, customizable size
SBF0008A	SMD Component Test Fixture	DC-120MHz, maximum ±42V DC bias, applied to SMD components, especially high-frequency small capacitor ≤3pF or small inductance ≤1uH, test frequency ≥100kHz

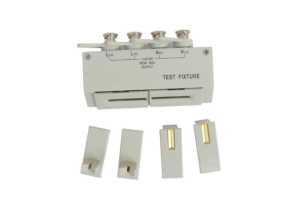

SBF0009B	SMD Component Test Fixture	DC-15MHz, maximum ±42V DC bias, applied to SMD components
SBF0033	GPIB Control cable	/
SBF0034	RS232 cable	/
SAX0001	GPIB interface	/

Document

STB8816 Series Precision LCR Meter Datasheet
