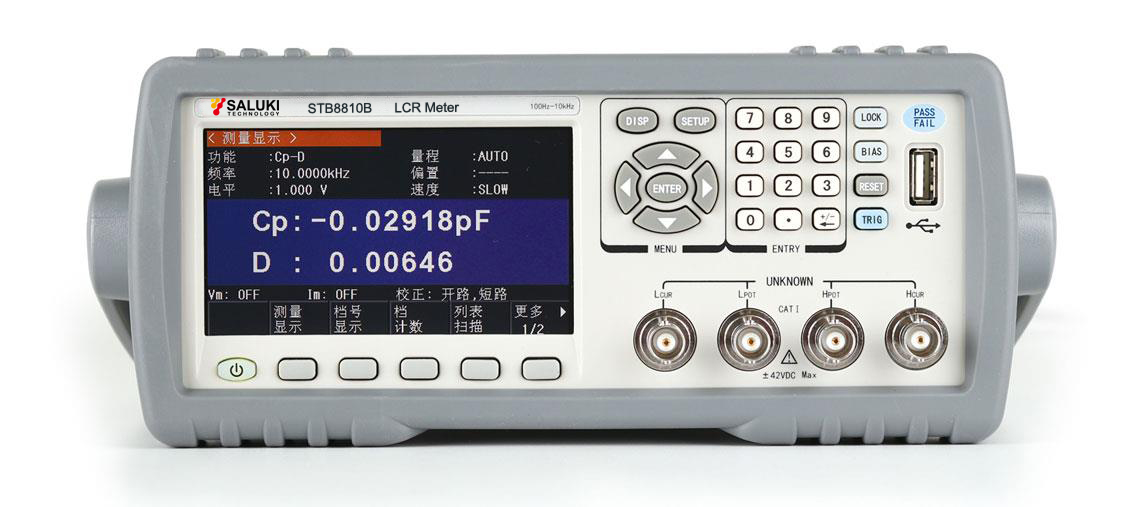

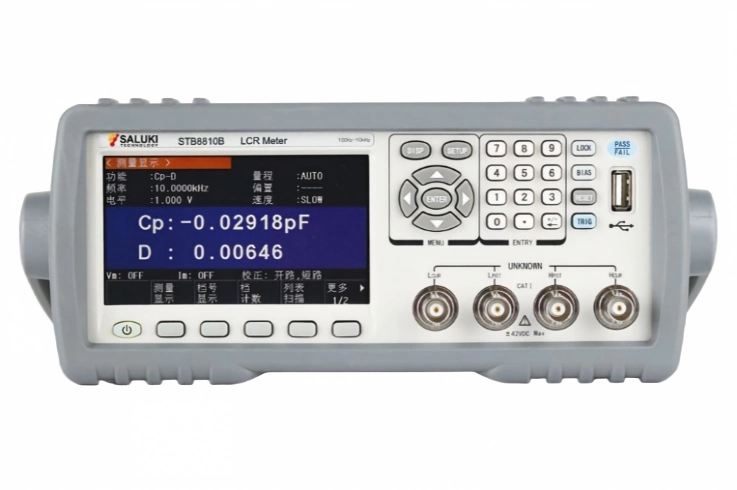

STB8810B Series Economic LCR Meter

STB8810B series is a new generation Economic LCR meter of low cost and high performance, The basic accuracy of 0.1% and the wide frequency range: 100Hz, 120Hz, 1kHz, 10kHz, which means STB8810B series Economic LCR meter has good test stability that can compare favorably with those high-end models.

** Standard Lead Time: within 4 weeks **

Key Features

100Hz,120Hz,1kHz,10kHz 4 typical test frequencies

Maximum test speed:12.5ms, support low frequency and high speed:TX4+3ms

100 sets of LCRZ instrument setting files, 10 measurements

Support 110V/220V two power supply voltages

Ultra-low signal source output offset (<100μV), meeting the needs of large inductor, common mode choke inductor test

Super impact protection

Empty fixture judgment

Frequency Range

100Hz, 120Hz, 1kHz, 10kHz

Basic Accuracy


AC Test Signal Level

0.1 Vrms; 03 Vrms; 1 Vrms

Signal Source Internal Resistance

10Ω, 100Ω

Test Speed(ms/time)

Fast: 19ms

Medium: 83ms

Slow: 333msF≤120Hz

Fast: 4XT+3ms

Arithmetical Operation

Direct reading, △ABS, △%


10 bins sorting, BIN1-BIN9, NG, AUX.

Bin count function PASS, FALL front panel LED display.

Main Machine

Module No. Item Description

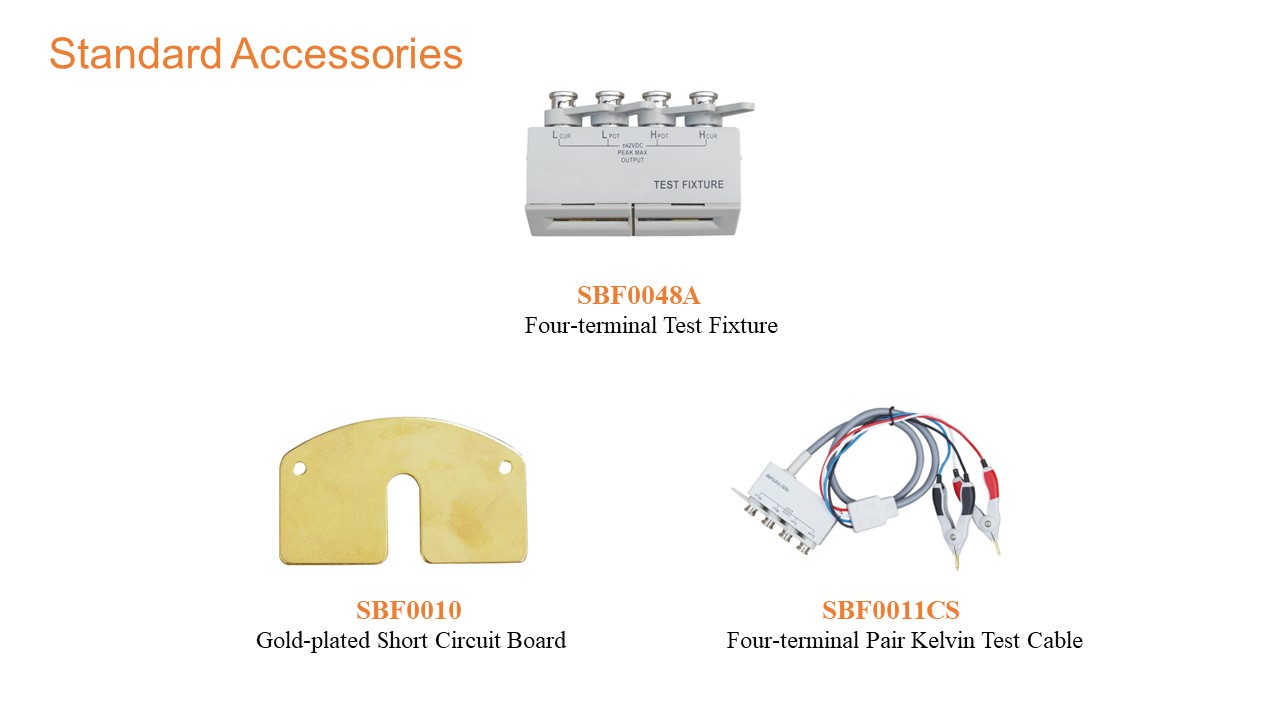

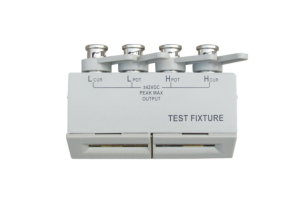

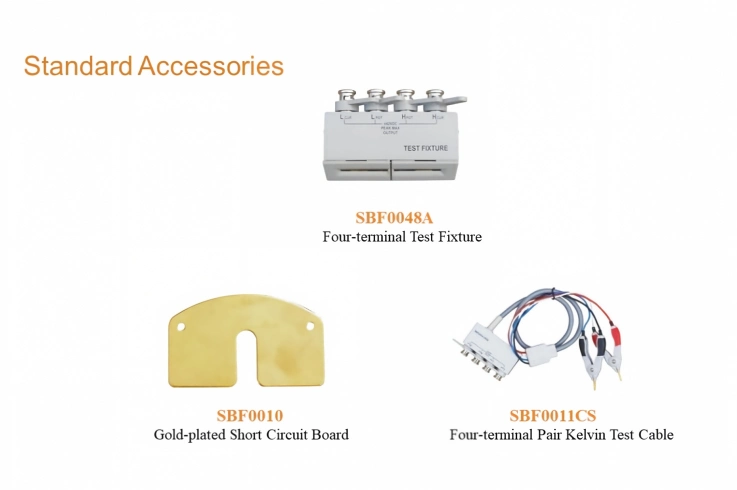

STB8810B Economic LCR Meter Frequency range: 50Hz to 100kHz, including Four-terminal Test Fixture, short circuit and Four-terminal Pair Kelvin Test Cable.
